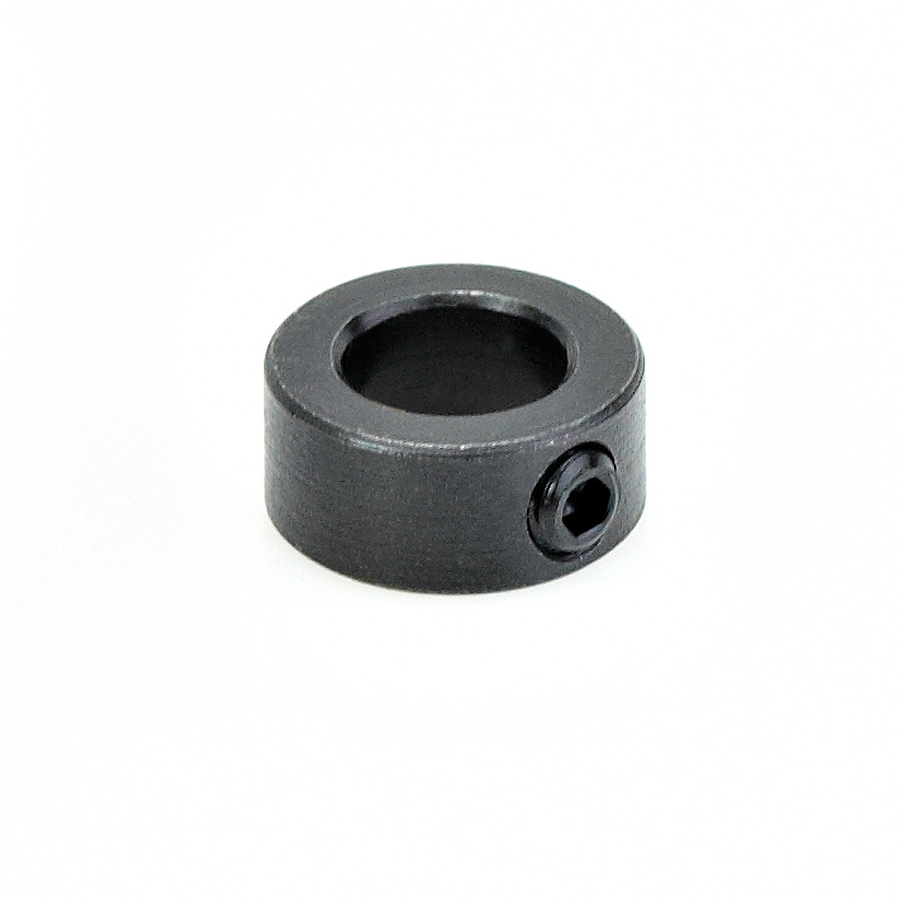

Amana 47724 Retaining Collar 7/16 Overall Dia x 1/4 Inner Dia

Name: Amana 47724 Retaining Collar 7/16 Overall Dia x 1/4 Inner Dia
SKU: Amana 47724
Availability: InStock

Original price was: $8.40.Current price is: $6.30.

RETAINING COLLAR 1/4 SHANK

UPC: 738685877241 SKU: Amana 47724 Categories: Amana Tool, Ball Bearing Retaining Collars & Snap Rings, Router Bit Parts & Accessories, Router Bits

Item Description

Application: To retain bearings on tools furnished with upper ball bearing guides. Collars include #67091 set screw.

Specifications

Use w/ Tool no.	45460, 45461,45462, 45464, 45750, 45850, 45950, 45

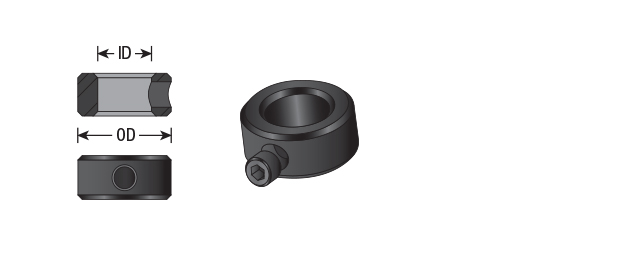

Face thickness	.203 (13/64)
Outer Diameter (OD)	7/16
Inner Diameter (ID)	1/4

Other Sizes Available

Inner Diameter (ID)	Outer Diameter (OD)	Face thickness	Use w/ Tool no.	Tool No.
6.3mm	9.5mm	1/4 (6.35mm)	45475	47764
1/2 (12.70mm)	23/32 (18.26mm)	.234	49529	47739
1/2 (12.70mm)	25/32 (19.84mm)	.234	57144.45468.00	47740

Weight	0.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
