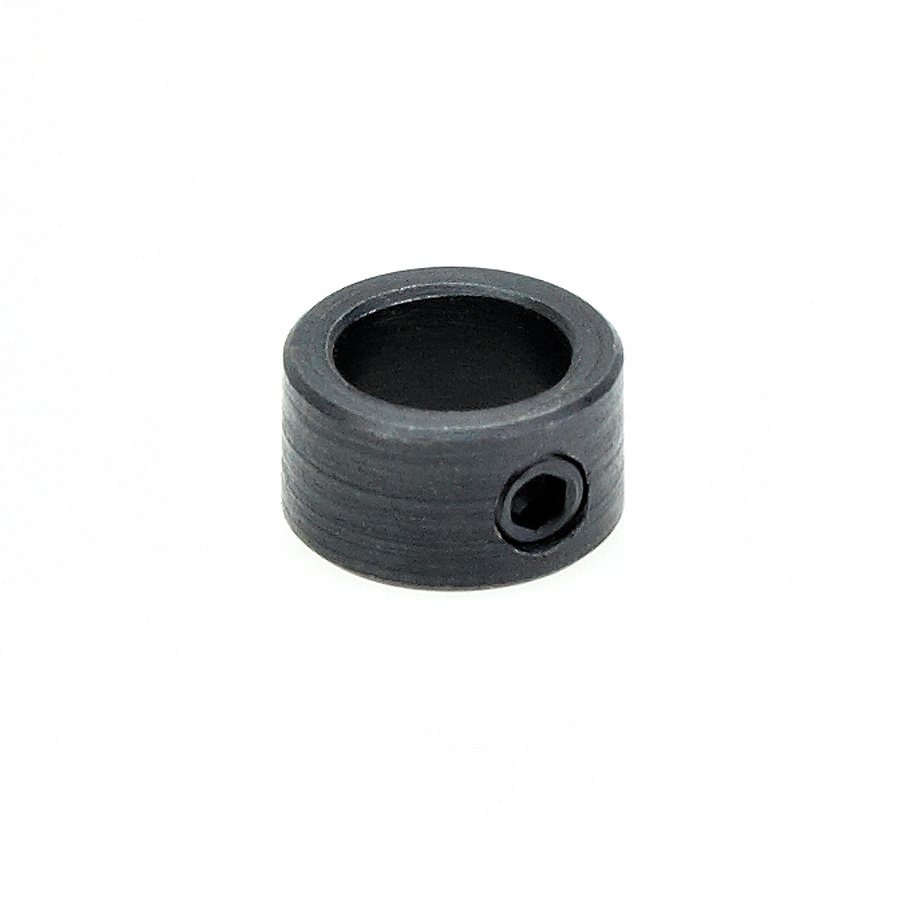

Amana 47764 Retaining Collar 9.5mm Overall Dia x 6.3mm Inner Dia

Name: Amana 47764 Retaining Collar 9.5mm Overall Dia x 6.3mm Inner Dia
SKU: Amana 47764
Availability: InStock

Original price was: $8.40.Current price is: $6.30.

RETAINING COLLAR 9.5×6.3 45475

UPC: 738685477649 SKU: Amana 47764 Categories: Amana Tool, Ball Bearing Retaining Collars & Snap Rings, Router Bit Parts & Accessories, Router Bits

Item Description

Application: To retain bearings on tools furnished with upper ball bearing guides. Collars include #67091 set screw.

Replacement Parts

Hex Screw	Hex Key
67091	5002

Specifications

Use w/ Tool no.	45475
Face thickness	1/4
Outer Diameter (OD)	9.5mm
Inner Diameter (ID)	6.3mm

Other Sizes Available

Inner Diameter (ID)	Outer Diameter (OD)	Face thickness	Use w/ Tool no.	Tool No.
1/4 (6.35mm)	7/16 (11.11mm)	.203	45	47724
1/2 (12.70mm)	23/32 (18.26mm)	.234	49529	47739
1/2 (12.70mm)	25/32 (19.84mm)	.234	57144.45468.00	47740

Weight	0.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
