Sale!

45890 Carbide Tipped Keller Dovetail 14 Deg x 1 Inch Dia x 1 Inch x 1/2 Shank with Upper BB

Amana 45890 Carbide Tipped Keller Dovetail 14 Deg x 1 Inch Dia x 1 Inch x 1/2 Shank with Upper BB

Name: Amana 45890 Carbide Tipped Keller Dovetail 14 Deg x 1 Inch Dia x 1 Inch x 1/2 Shank with Upper BB
SKU: Amana 45890
Availability: InStock

Original price was: $56.60.Current price is: $42.45.

14 DEGREE KELLER DOVETAIL BIT

UPC: 738685458907 SKU: Amana 45890 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

The popular Kellera™ Templates require the use of bits with shank-mounted pilot bearings. This bit is specifically designed for use in the Kellera™ system.

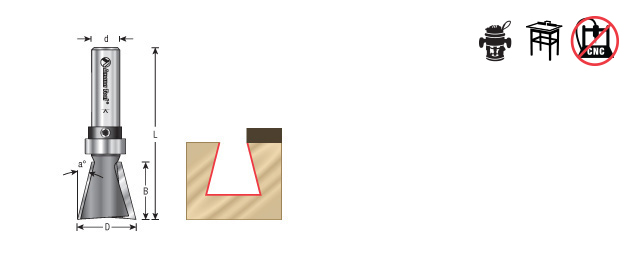

Specifications

Angle (a°)	14°
Diameter (D)	1
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	2-3/4
Type	Dovetail
Replacement Bearing	47738
Keller Number	3637
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Replacement Bearing	Keller Number	Flutes	Tool No.
–	1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	–	47723	–	2	47224-S
–	1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	–	47723	–	2	47224-S-5
–	5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	–	–	2	45412
–	5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	–	–	2	45412-5
–	3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	–	–	2	45415
–	3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	–	–	2	45415-5
–	5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-5/8	Straight	47712	1643/1543 (27.05mm)	2	45470

Weight	0.26 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
