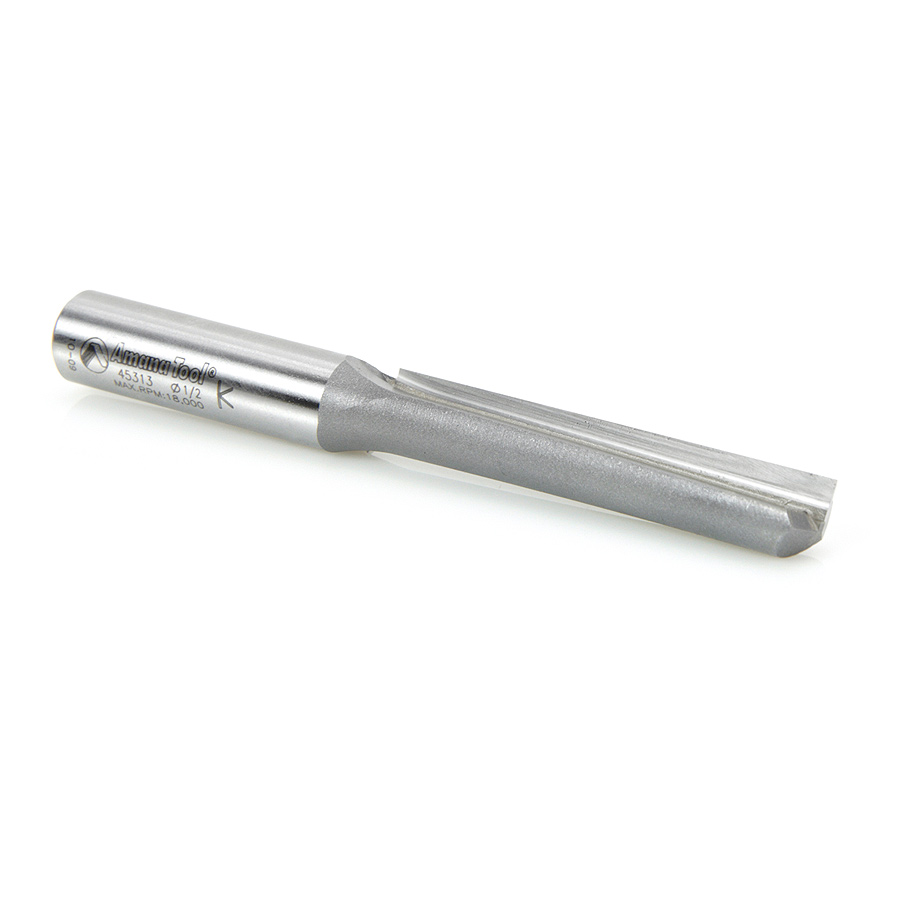

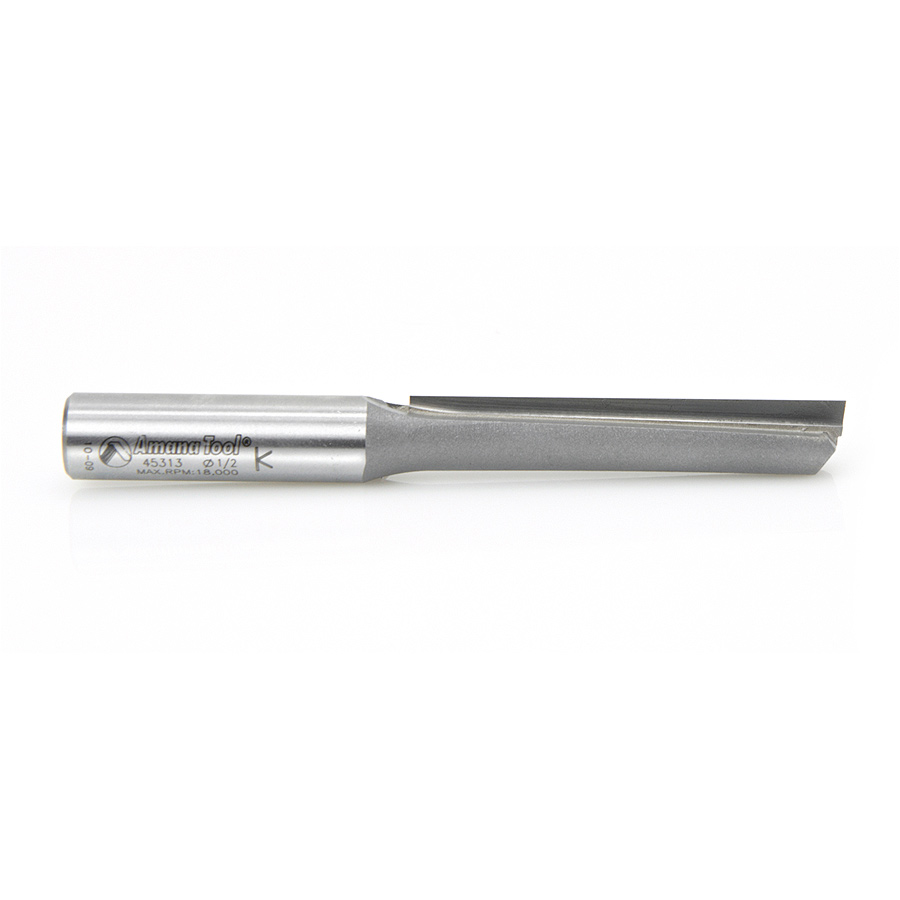

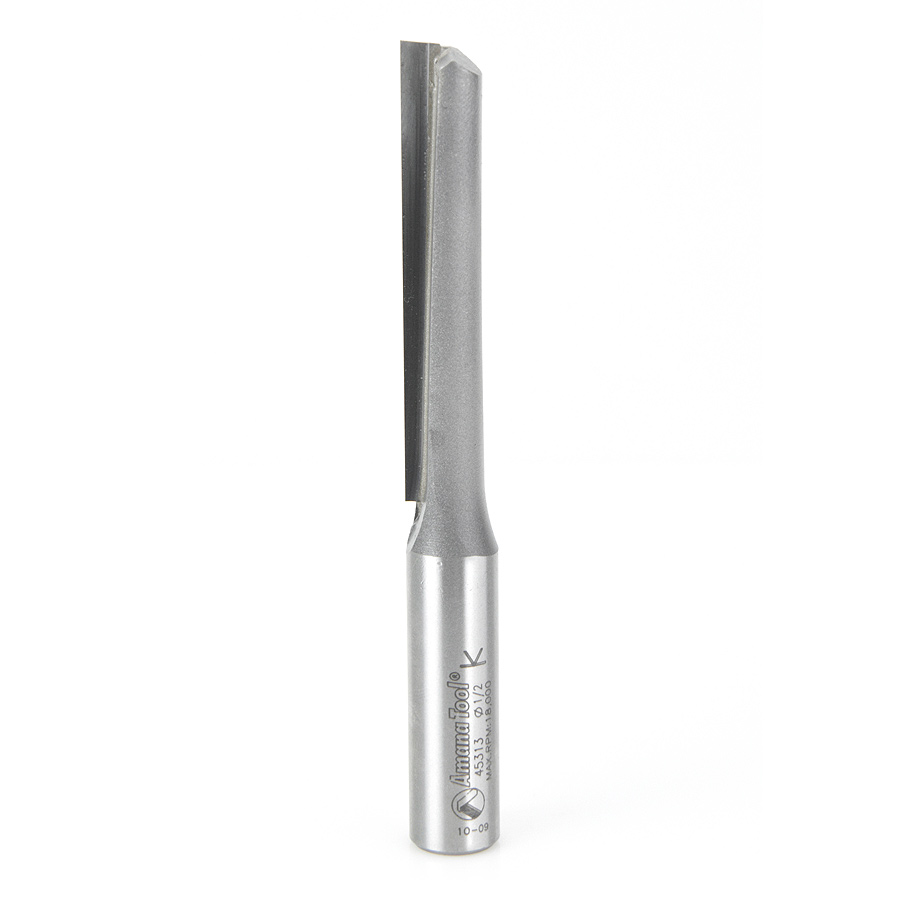

45313 Carbide Tipped Straight Plunge Single Flute High Production 1/2 Dia x 2-1/2 x 1/2 Inch Shank

Amana 45313 Carbide Tipped Straight Plunge Single Flute High Production 1/2 Dia x 2-1/2 x 1/2 Inch Shank

Name: Amana 45313 Carbide Tipped Straight Plunge Single Flute High Production 1/2 Dia x 2-1/2 x 1/2 Inch Shank
SKU: Amana 45313
Availability: InStock

Original price was: $64.00.Current price is: $48.00.

SINGLE FLUTE 1/2 DIA. 1/2 SHK

UPC: 738685453131 SKU: Amana 45313 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

In choosing a straight bit for any application, always select one with the shortest cutting edges and the shortest overall length that will reach the required cut depth. Excessive length intensifies deflection and vibration, which degrade cut quality and lead to tool breakage.

A single-flute bit should be used where cut speed is more important than cut finish. Making one cut per revolution is faster than making two or three. Improved chip clearance is possible with a single flute configuration. The result: fast cuts.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Diameter (D)	1/2
Cutting Height (B)	2-1/2
Shank (d)	1/2
Overall Length (L)	4-3/8
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	1	45304
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	1	45302
1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/8	1	45307
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	2-7/8	1	45308
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-1/8	1	45310
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	1	45312
9/16 (14.29mm)	1-1/4	1/2 (12.70mm)	2-7/8	1	45314

Weight	0.21 lbs
