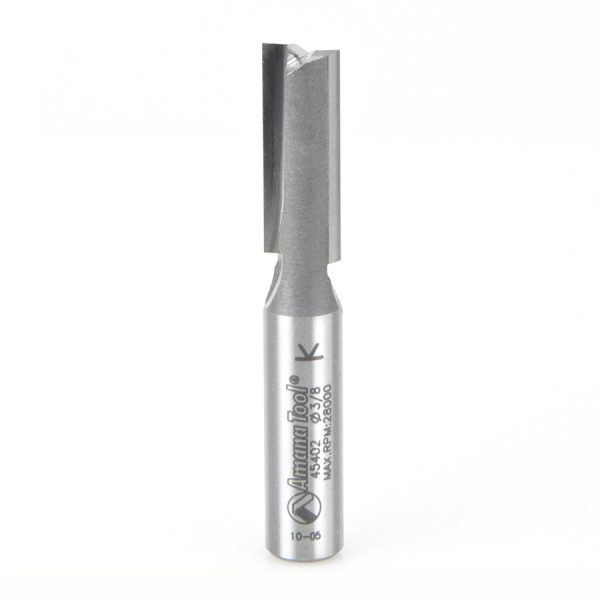

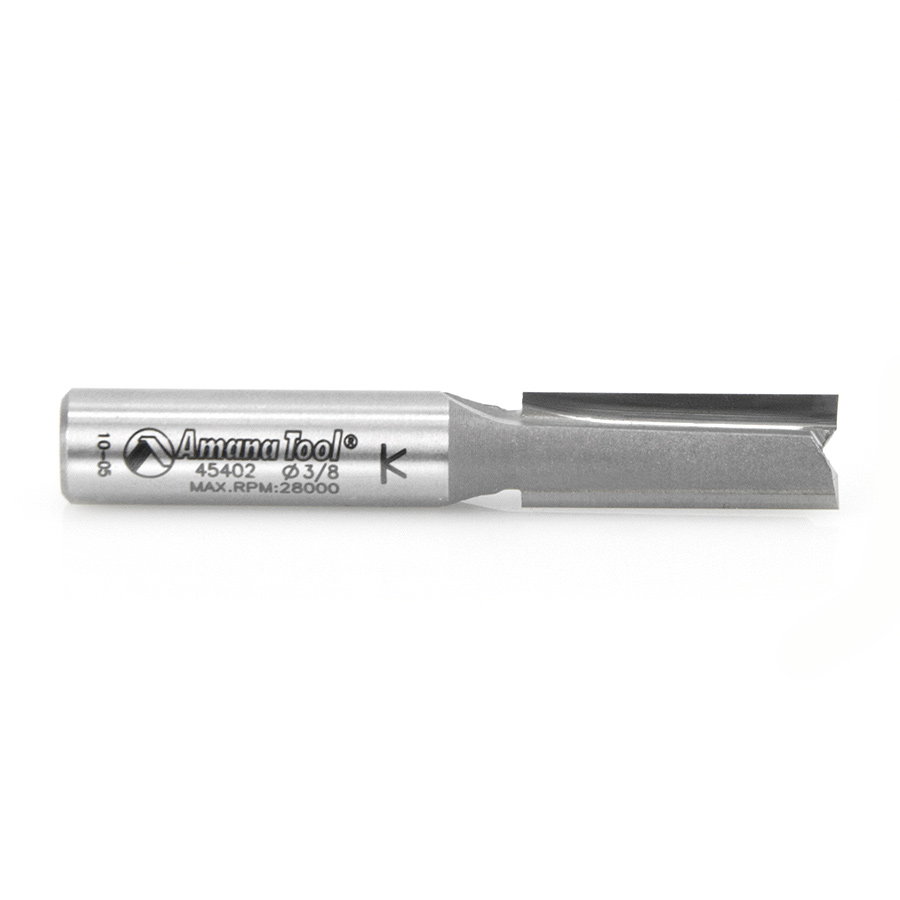

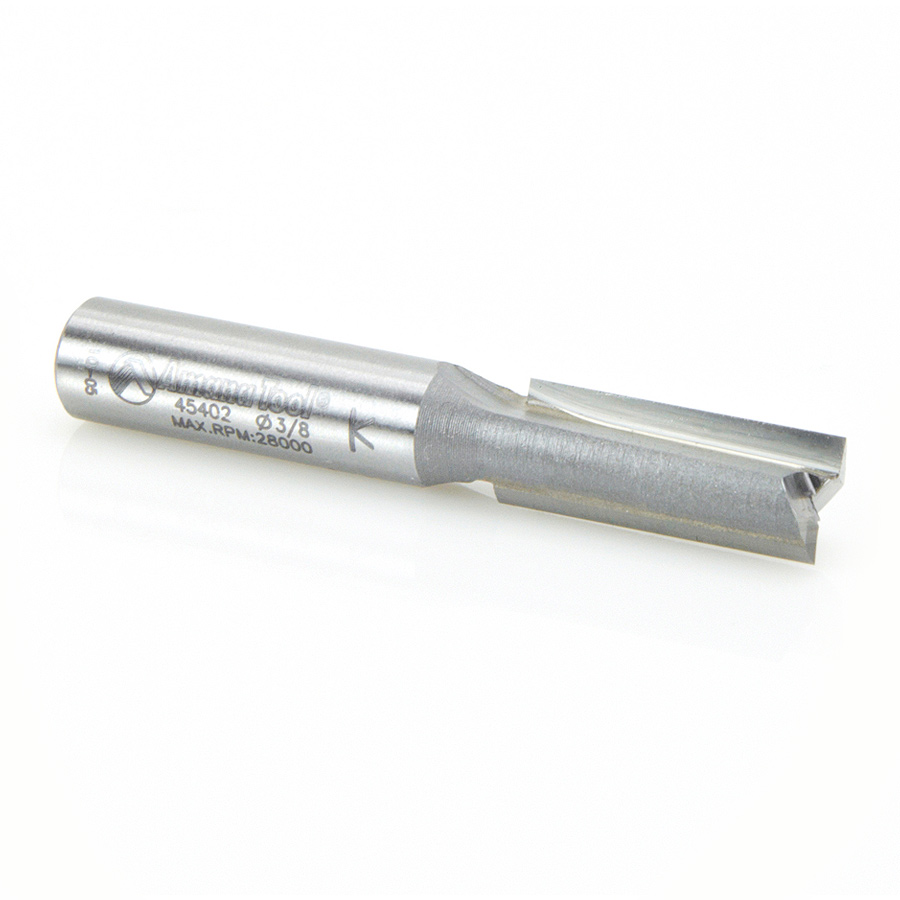

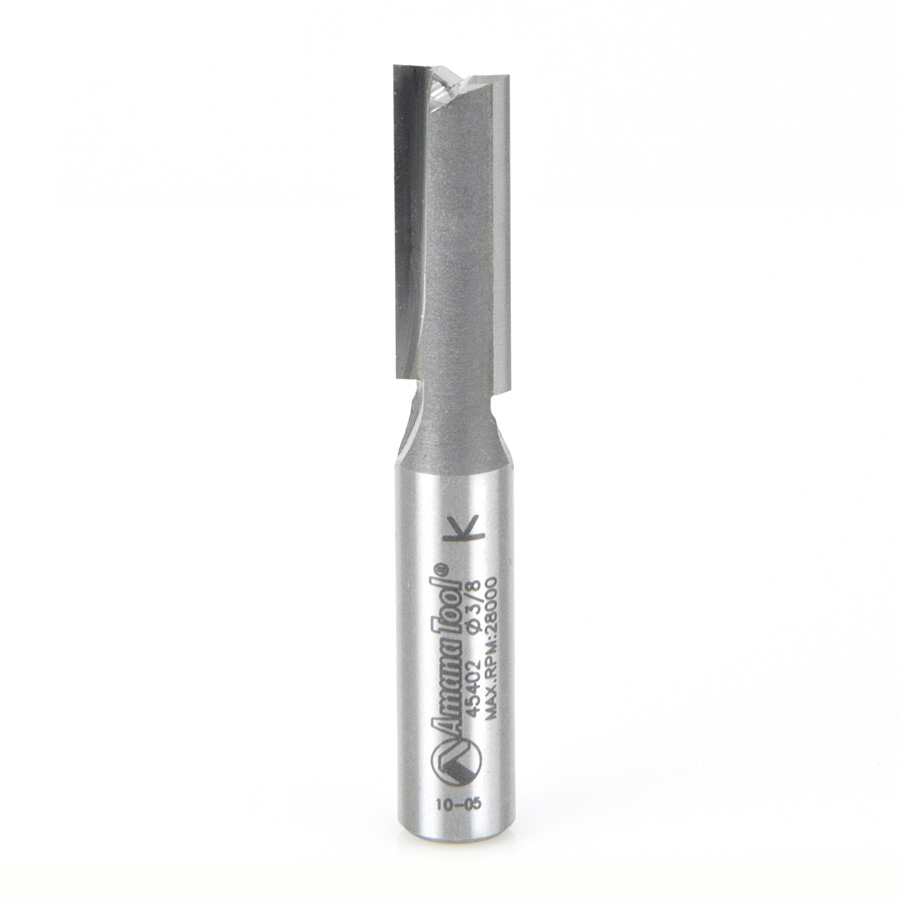

45402 Carbide Tipped Straight Plunge 3/8 Dia x 1 Inch x 3/8 Shank

Amana 45402 Carbide Tipped Straight Plunge 3/8 Dia x 1 Inch x 3/8 Shank

Name: Amana 45402 Carbide Tipped Straight Plunge 3/8 Dia x 1 Inch x 3/8 Shank
SKU: Amana 45402
Availability: InStock

Original price was: $34.25.Current price is: $25.69.

2 FLUTE 3/8 DIAMETER 3/8 SHANK

UPC: 738685854020 SKU: Amana 45402 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.

Excellent for Cutting:

Wood
MDF
Plywood

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Diameter (D)	3/8
Cutting Height (B)	1
Shank (d)	3/8
Overall Length (L)	2-1/2
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412-5
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	2-3/4	2	45400
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3-3/8	2	45404
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415-5

Weight	0.08 lbs
