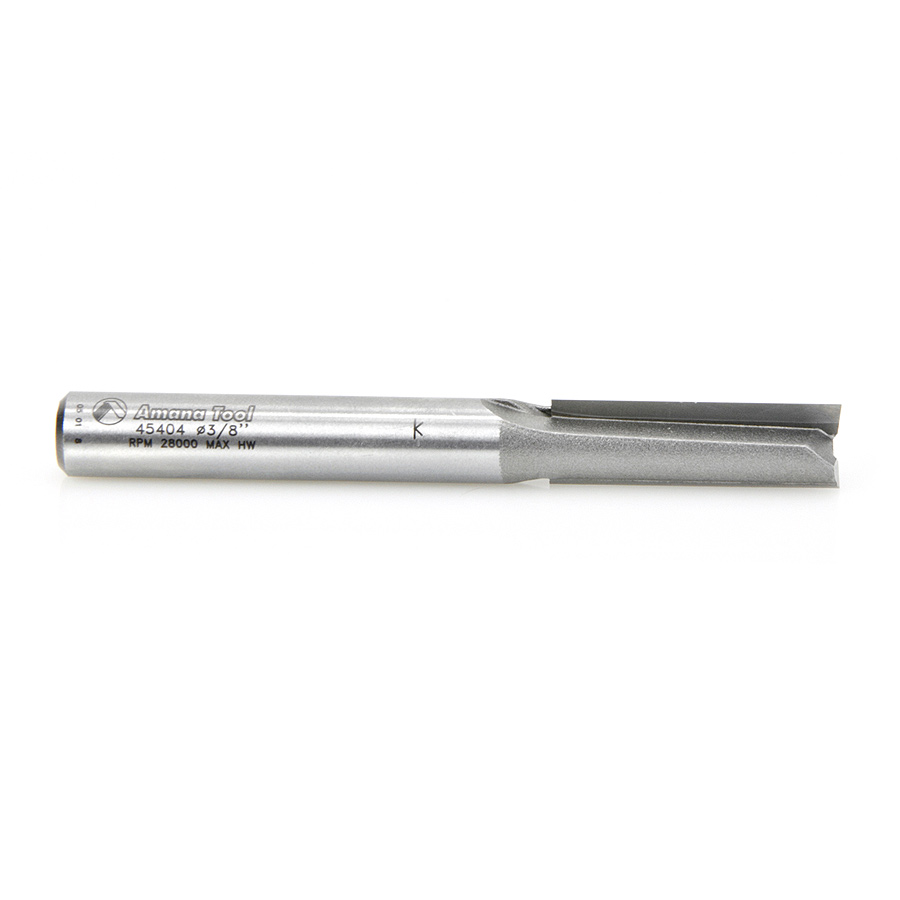

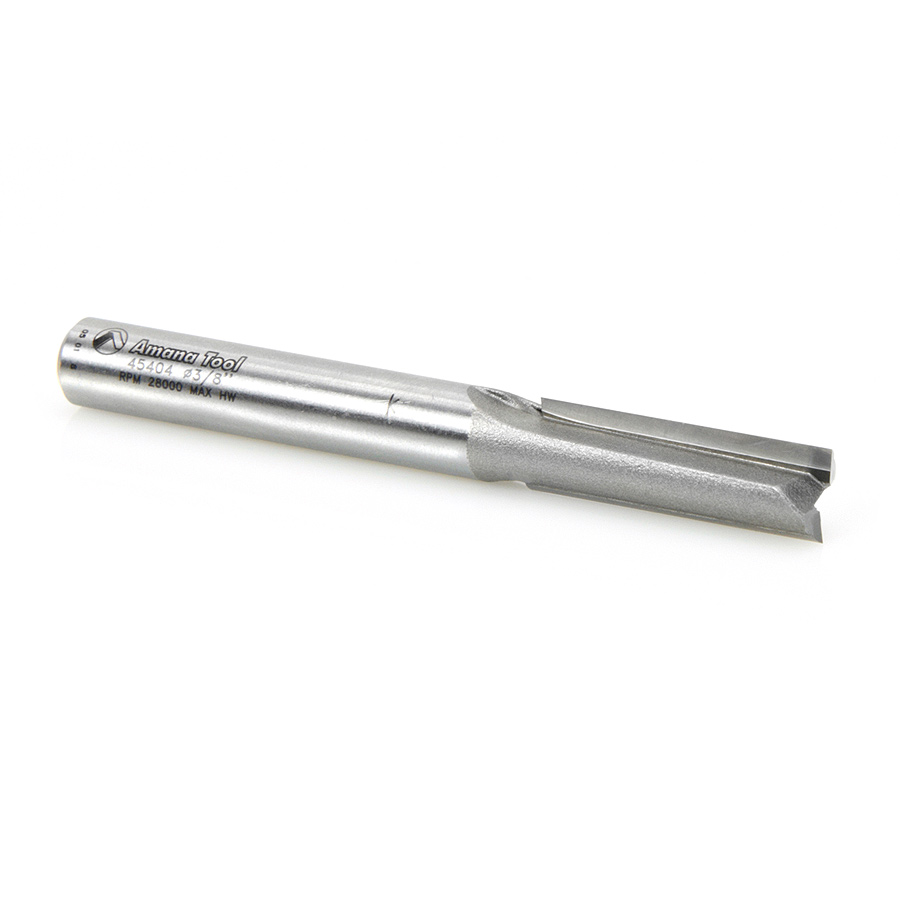

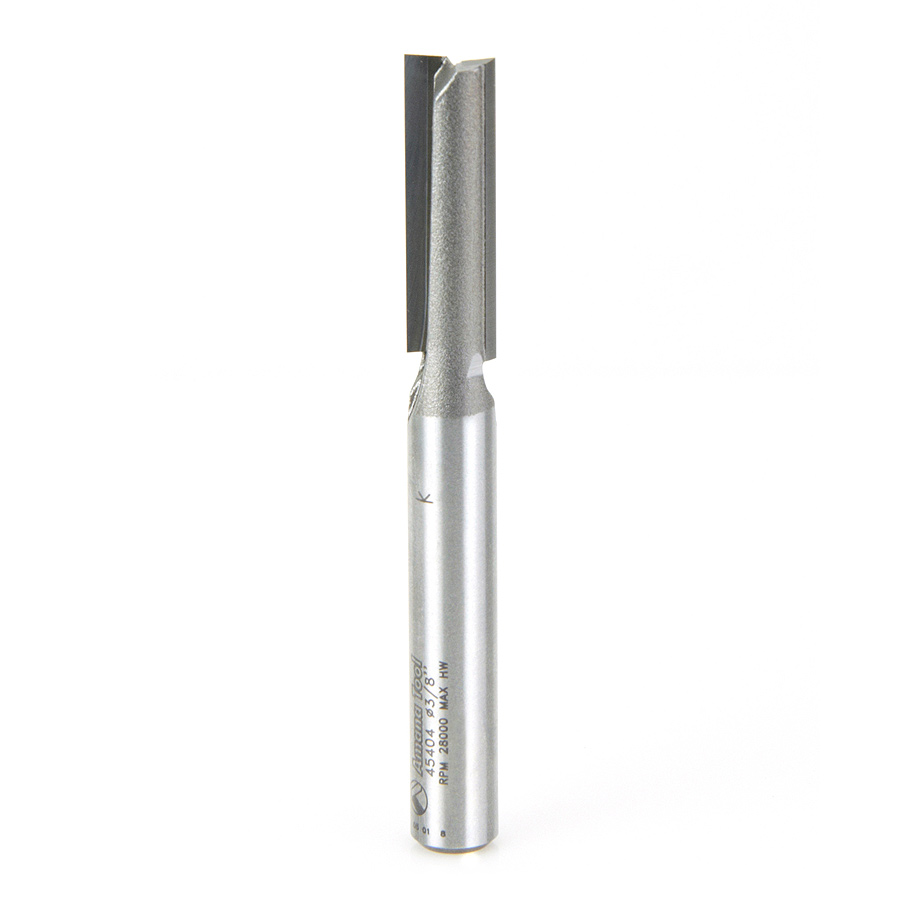

45404 Carbide Tipped Straight Plunge 3/8 Dia x 1-1/4 x 3/8 Shank

Amana 45404 Carbide Tipped Straight Plunge 3/8 Dia x 1-1/4 x 3/8 Shank

Name: Amana 45404 Carbide Tipped Straight Plunge 3/8 Dia x 1-1/4 x 3/8 Shank
SKU: Amana 45404
Availability: InStock

Original price was: $40.35.Current price is: $30.27.

2 FLUTE 3/8 DIAMETER 3/8 SHANK

UPC: 738685854044 SKU: Amana 45404 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.

Excellent for Cutting:

Wood
MDF
Plywood

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Vectric and Fusion 360 compatible tool files for 45404 available for download, click here.

Specifications

Diameter (D)	3/8
Cutting Height (B)	1-1/4
Shank (d)	3/8
Overall Length (L)	3-3/8
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412-5
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	2-3/4	2	45400
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	2	45402
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415-5

Weight	0.1 lbs
