Sale!

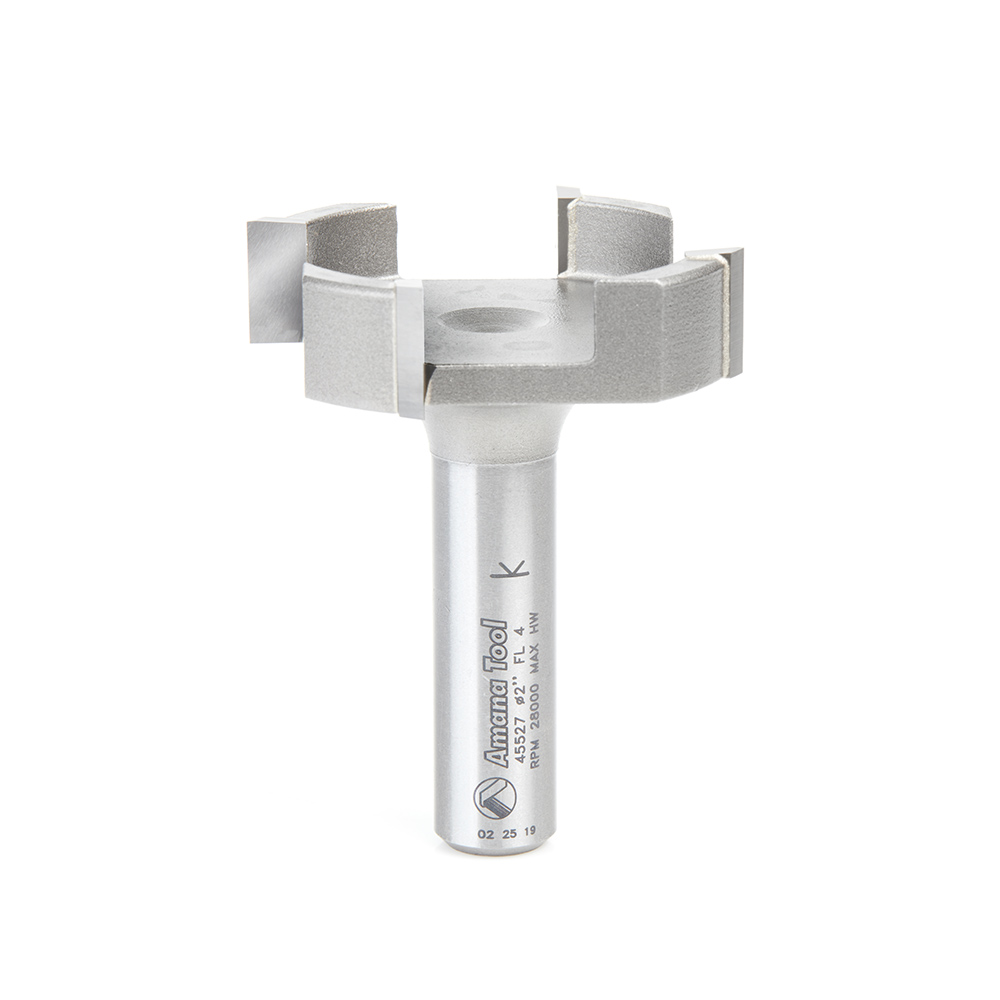

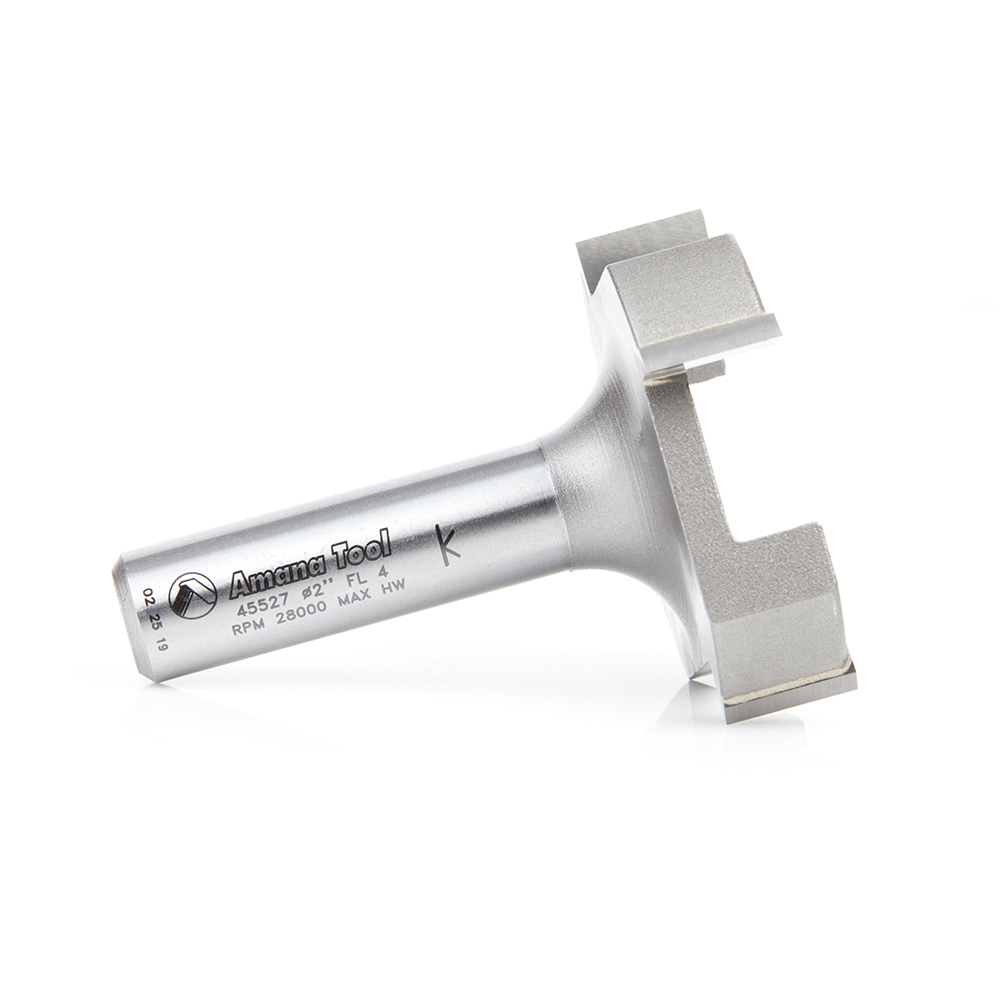

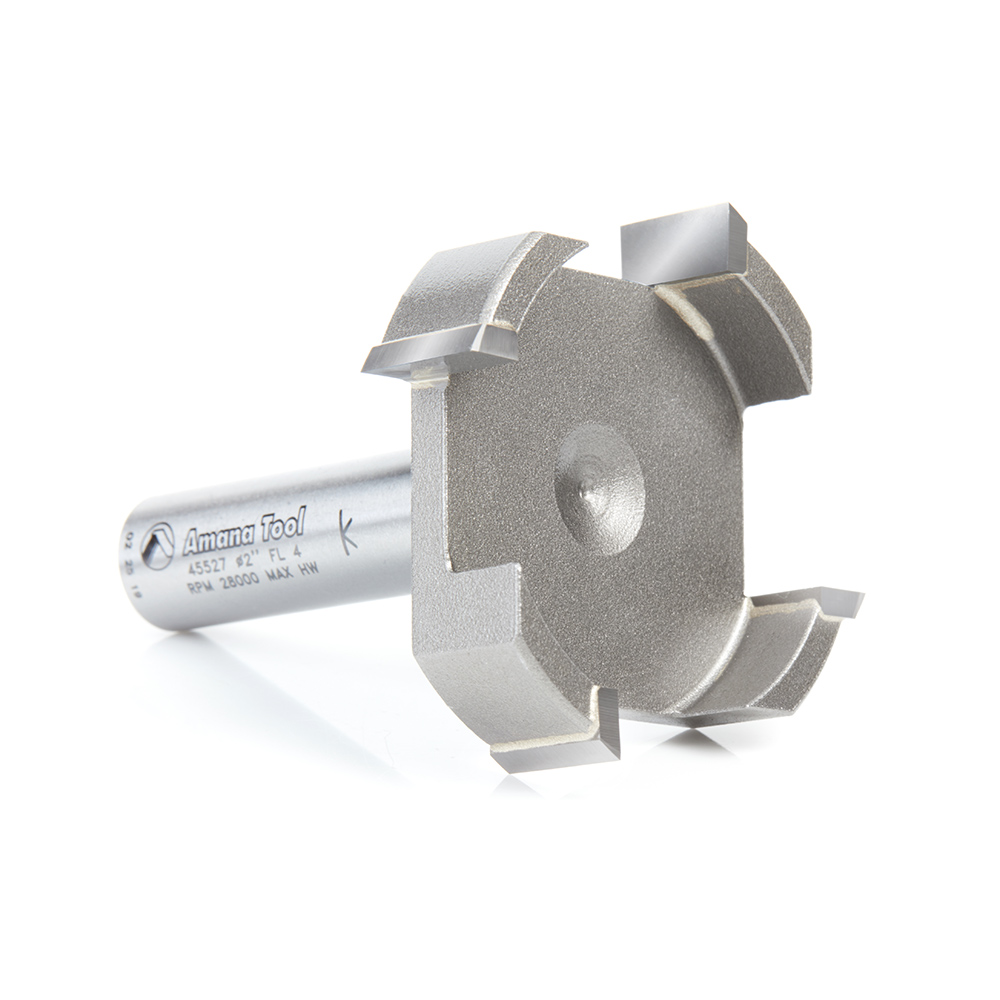

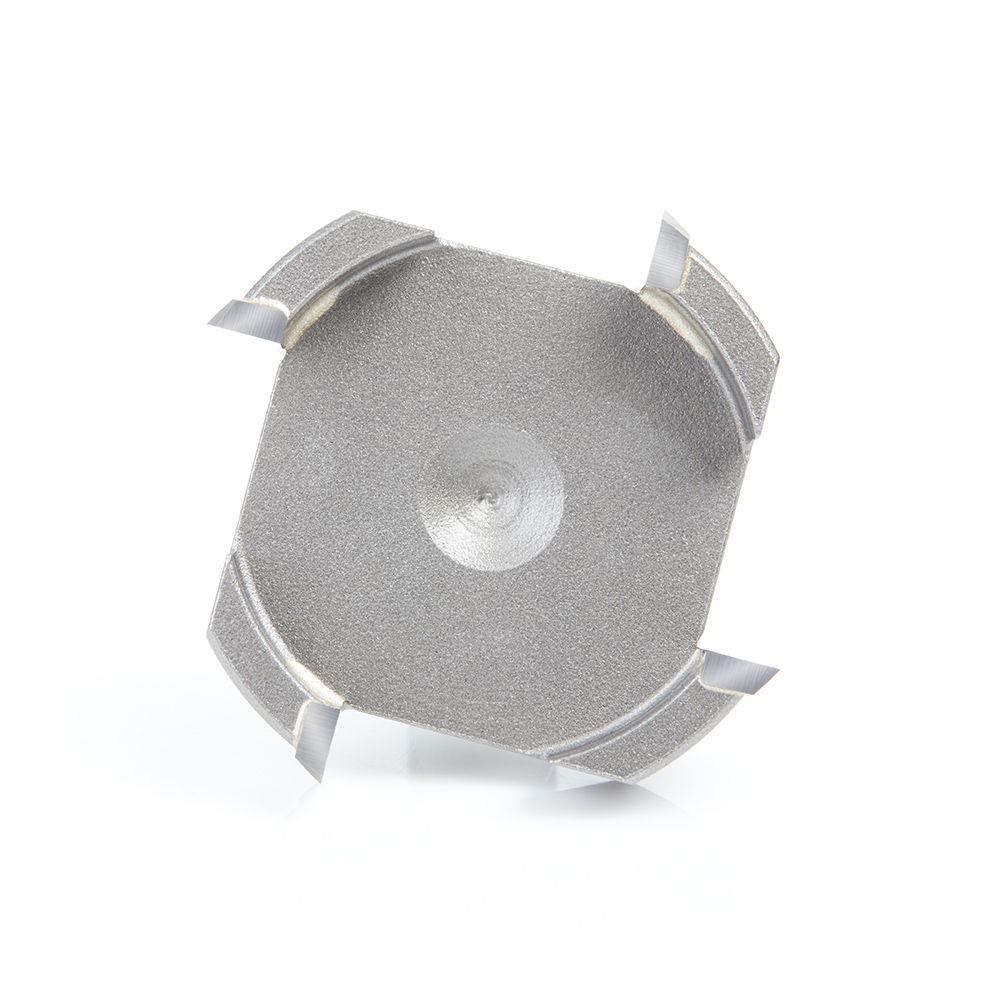

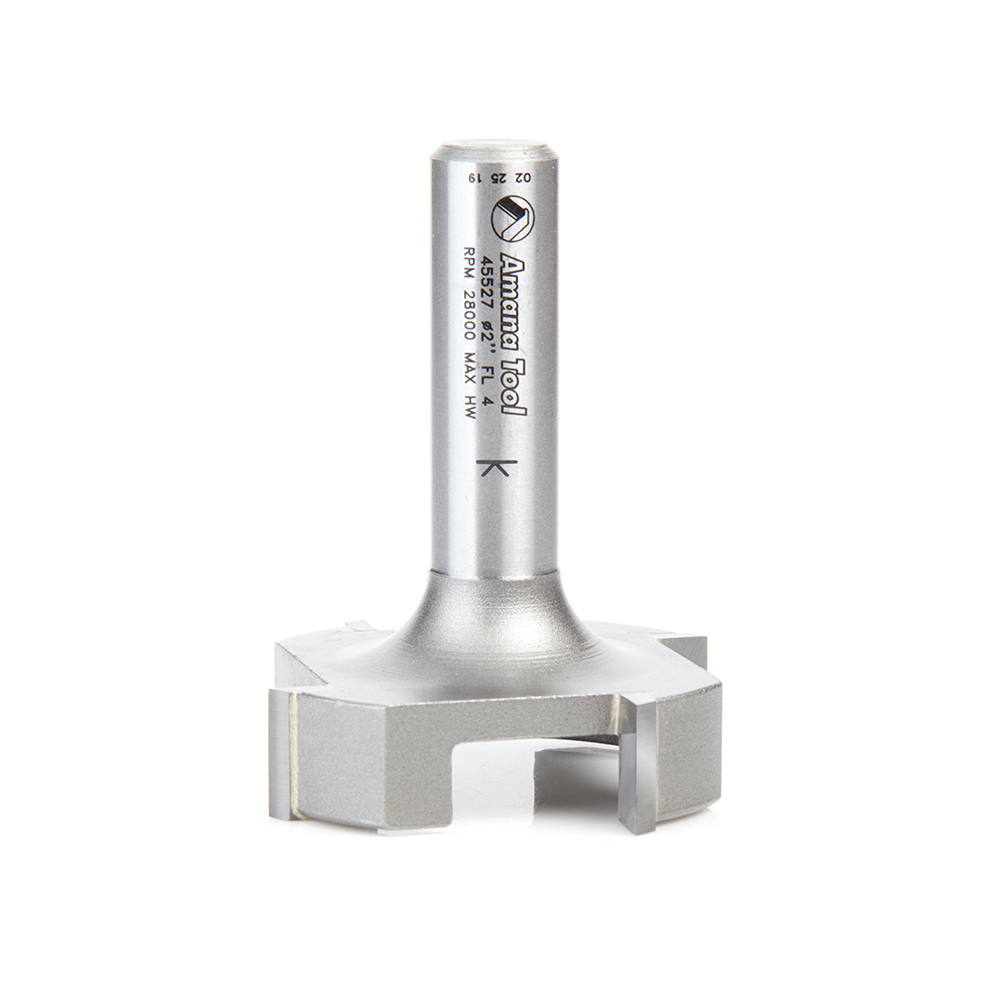

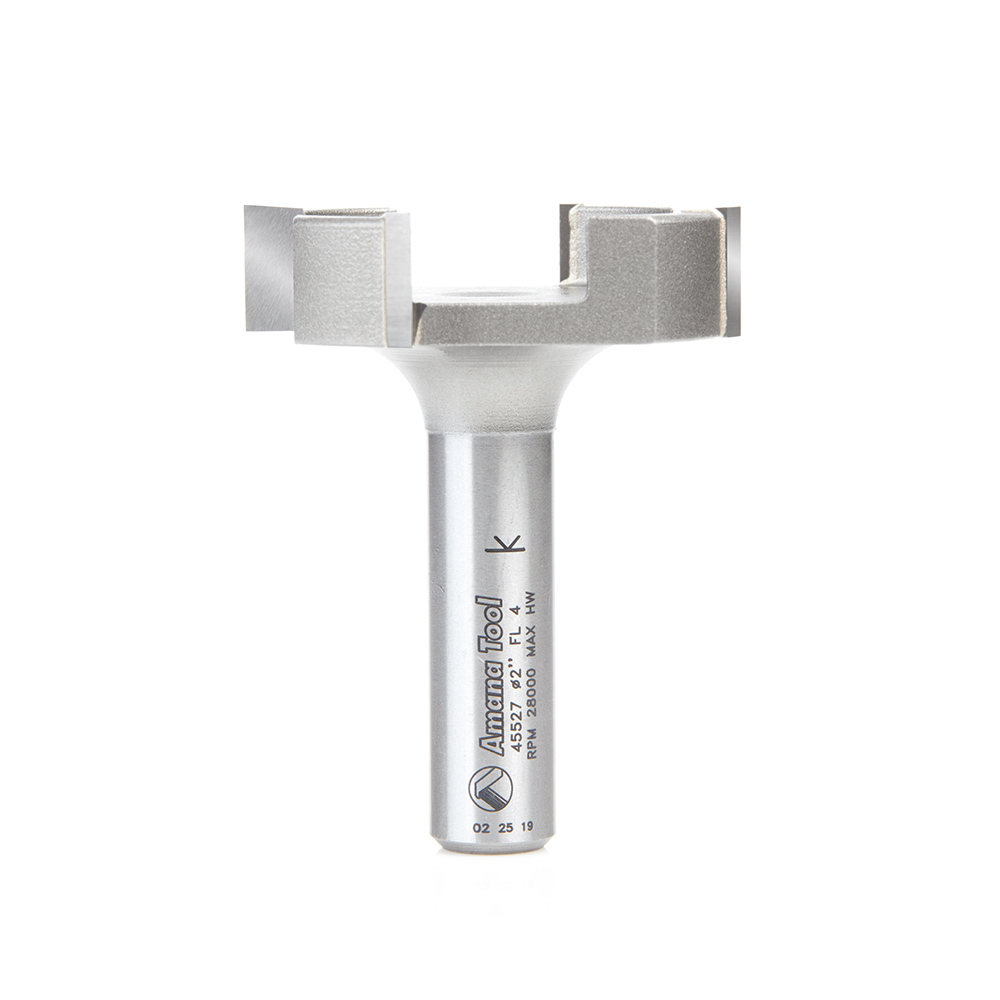

45527 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 2 Dia x 1/2 x 1/2 Inch Shank Router Bit

Amana 45527 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 2 Dia x 1/2 x 1/2 Inch Shank Router Bit

Name: Amana 45527 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer &amp; Flattening 2 Dia x 1/2 x 1/2 Inch Shank Router Bit
SKU: Amana 45527
Availability: InStock

Original price was: $133.80.Current price is: $100.35.

2″D 4FL SURFACING 1/2″ SHANK

UPC: 738685455272 SKU: Amana 45527 Categories: Amana Tool, Bottom Cleaning Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

Resurfacing spoilboards using CNC
Planing large glued up panels using CNC
Surfacing and finishing wood using timber slab machines
Rabbeting or slotting

Designed for planing & rabbeting the following materials:

MDF
Fiberboard
HDF/LDF
Balsa Core

Plastic/Acrylic**
Chipboard
Hardwood/Softwood

Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.

Featuring:

Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process

Vectric and Fusion 360 tool files for 45527 available for download,click here.

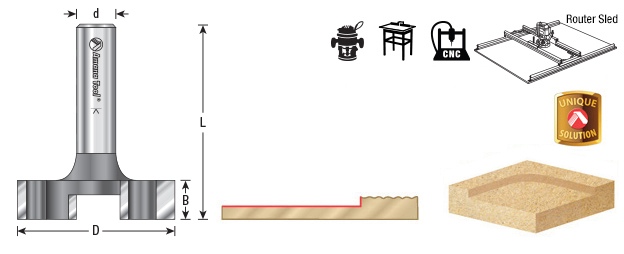

Specifications

(D) Diameter	2
(B) Cutting Height	1/2
(d) Shank	1/2
Overall Length (L)	2-1/2
Max RPM	28,000
Flutes	4

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Max RPM	Flutes	Tool No.
1 (25.40mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	28,000	3	45522
28.5mm	12.5mm	6mm	46mm	28,000	3	45523
1-1/8	1/2 (12.70mm)	1/4 (6.35mm)	1-13/16	28,000	3	45525
1-1/8	1/2 (12.70mm)	1/4 (6.35mm)	1-13/16	28,000	3	45525-5
1-1/2	1/2 (12.70mm)	1/2 (12.70mm)	2-1/4	28,000	4	45526

Weight	0.38 lbs
