Sale!

45526 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 1-1/2 Dia x 1/2 x 1/2 Inch Shank Router Bit

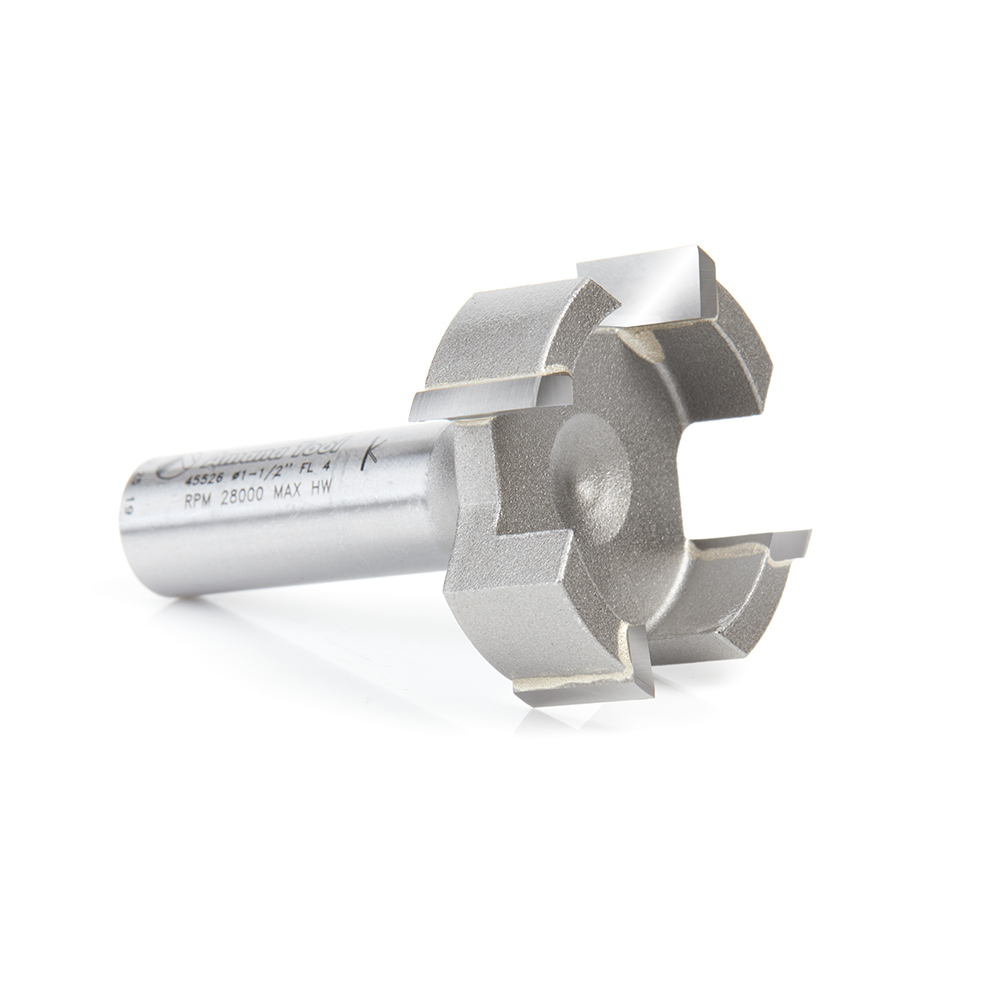

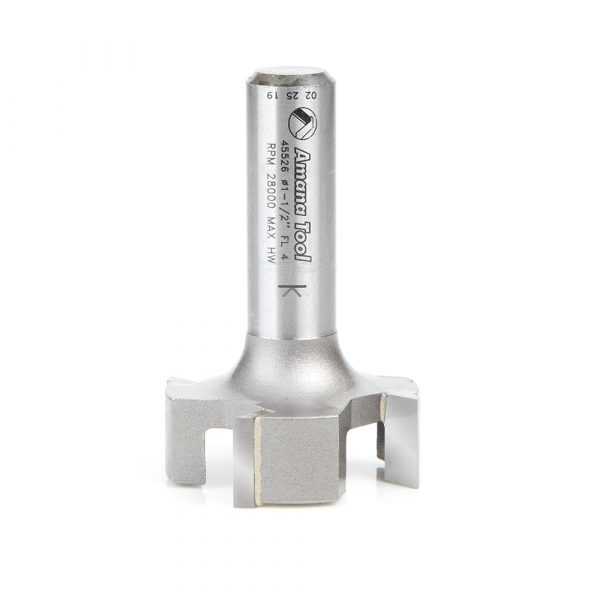

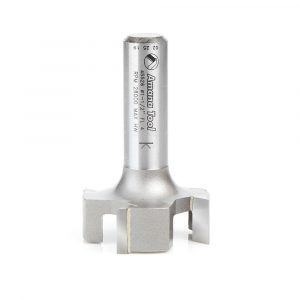

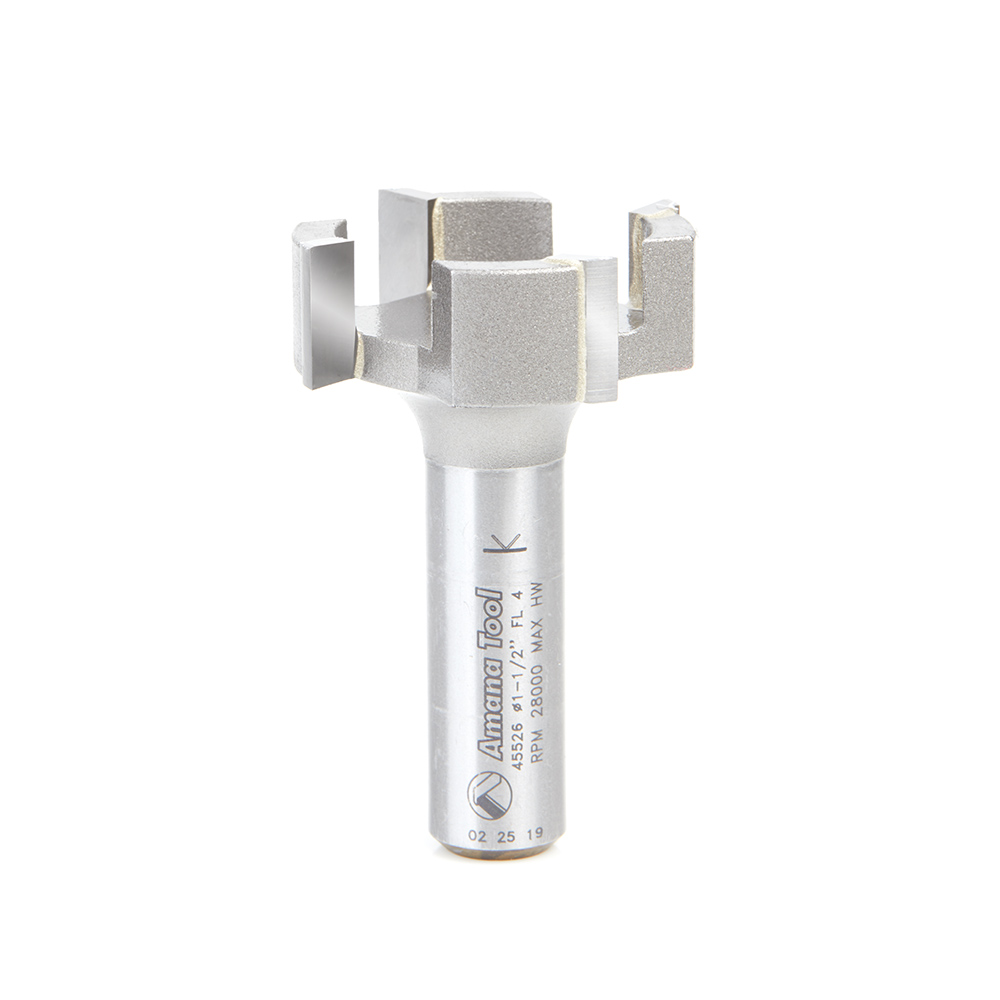

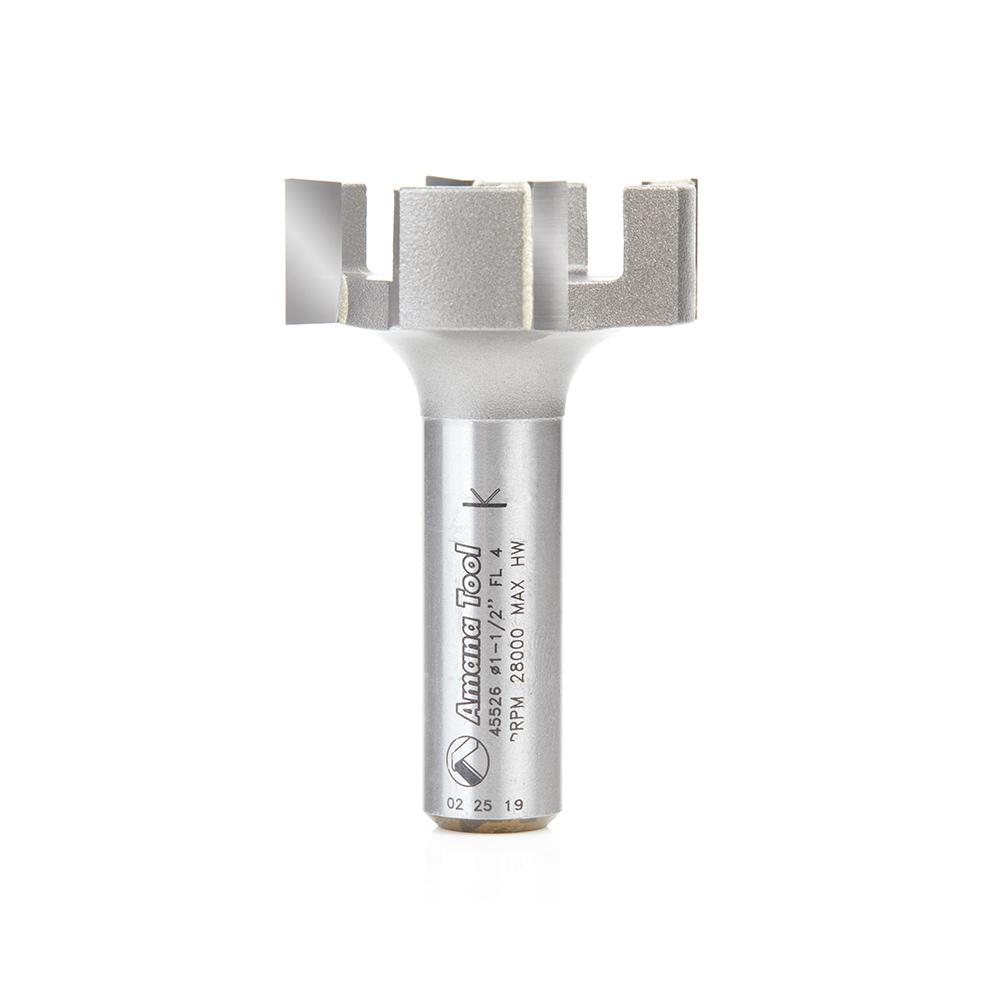

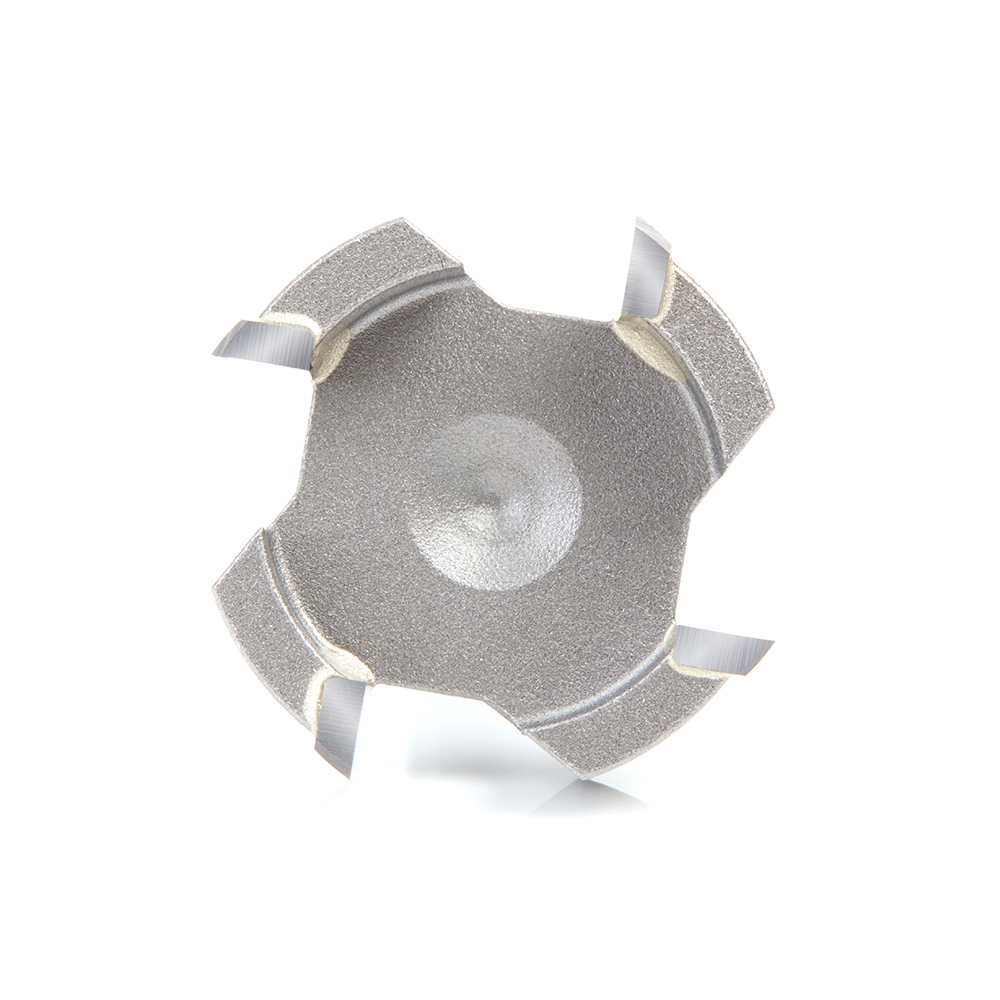

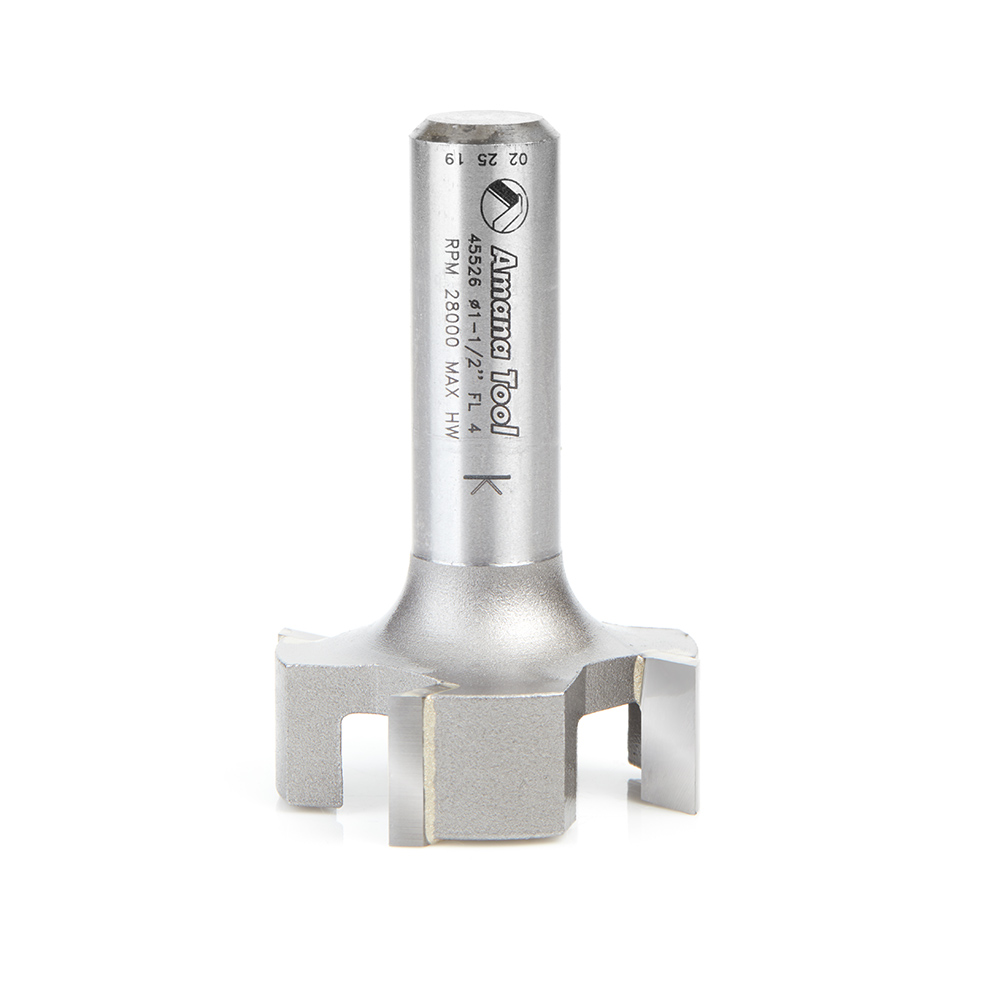

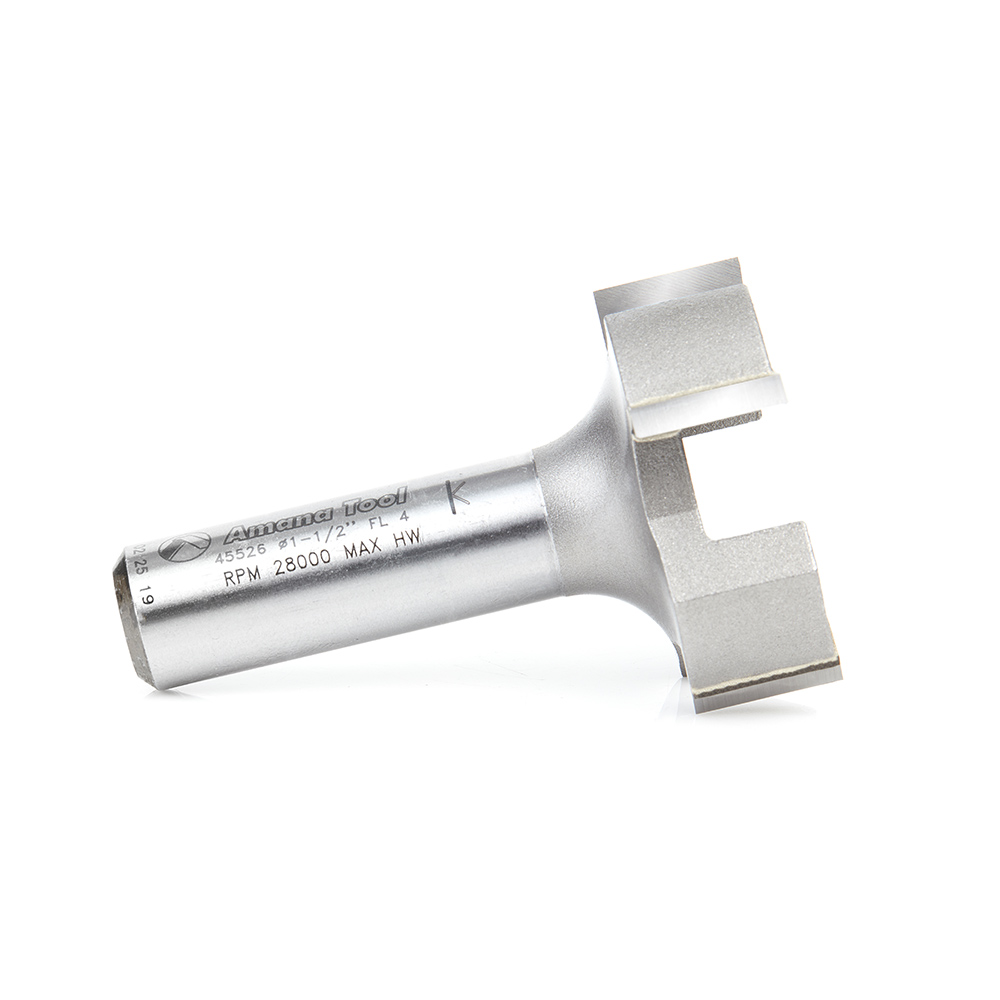

Amana 45526 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 1-1/2 Dia x 1/2 x 1/2 Inch Shank Router Bit

Name: Amana 45526 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer &amp; Flattening 1-1/2 Dia x 1/2 x 1/2 Inch Shank Router Bit
SKU: Amana 45526
Availability: InStock

Original price was: $96.00.Current price is: $72.00.

1-1/2″ 4FL SURFACING 1/2″SHANK

UPC: 738685455265 SKU: Amana 45526 Categories: Amana Tool, Bottom Cleaning Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.

Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.

Perfect for:

Resurfacing spoilboards using CNC
Planing large glued up panels using CNC
Surfacing and finishing wood using timber slab machines
Rabbeting or slotting

Designed for planing & rabbeting the following materials:

MDF
Fiberboard
HDF/LDF
Balsa Core

Plastic/Acrylic**
Chipboard
Hardwood/Softwood

Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.

Featuring:

Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process

Vectric and Fusion 360 tool files for 45526 available for download,click here.

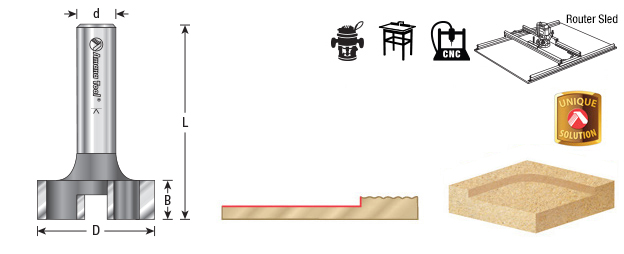

Specifications

(D) Diameter	1-1/2
(B) Cutting Height	1/2
(d) Shank	1/2
Overall Length (L)	2-1/4
Max RPM	28,000
Flutes	4

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Max RPM	Flutes	Tool No.
1 (25.40mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	28,000	3	45522
28.5mm	12.5mm	6mm	46mm	28,000	3	45523
1-1/8	1/2 (12.70mm)	1/4 (6.35mm)	1-13/16	28,000	3	45525
1-1/8	1/2 (12.70mm)	1/4 (6.35mm)	1-13/16	28,000	3	45525-5
2 (50.80mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/2	28,000	4	45527

Weight	0.24 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
