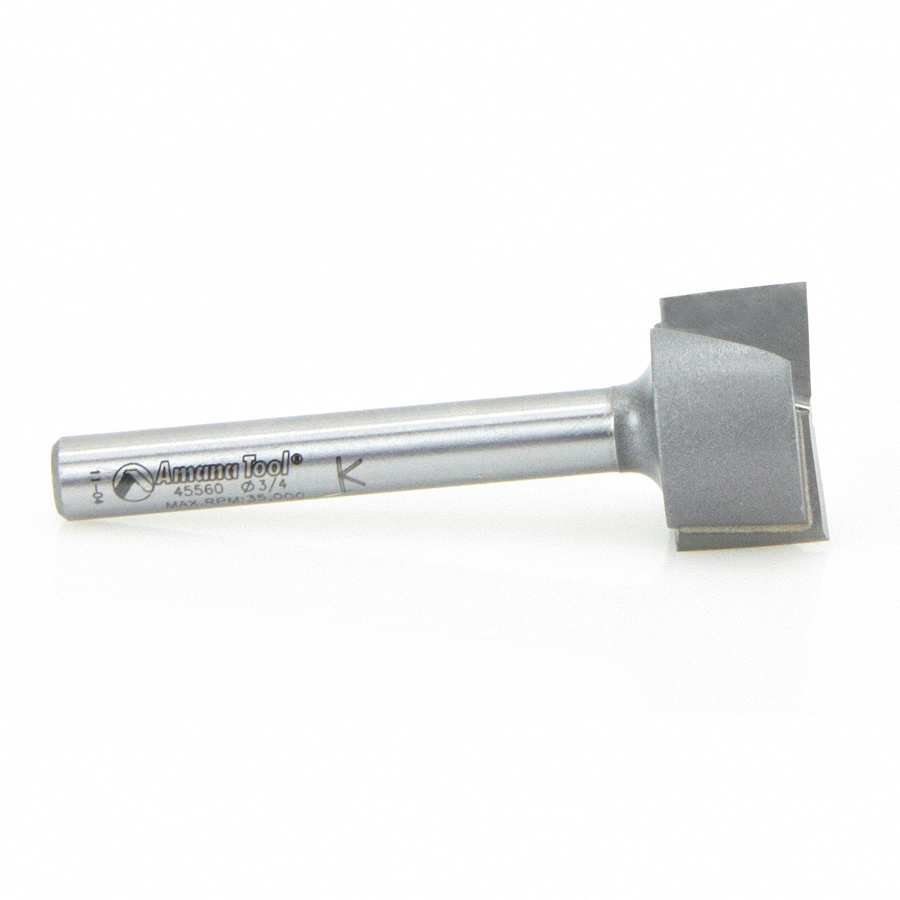

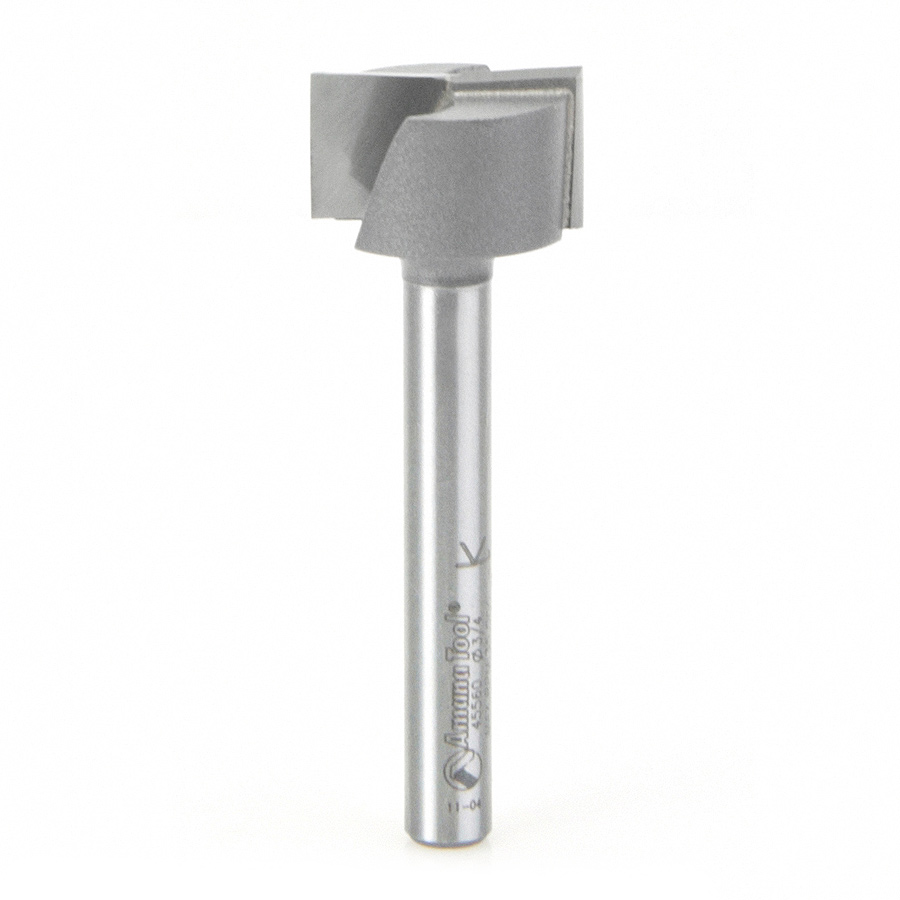

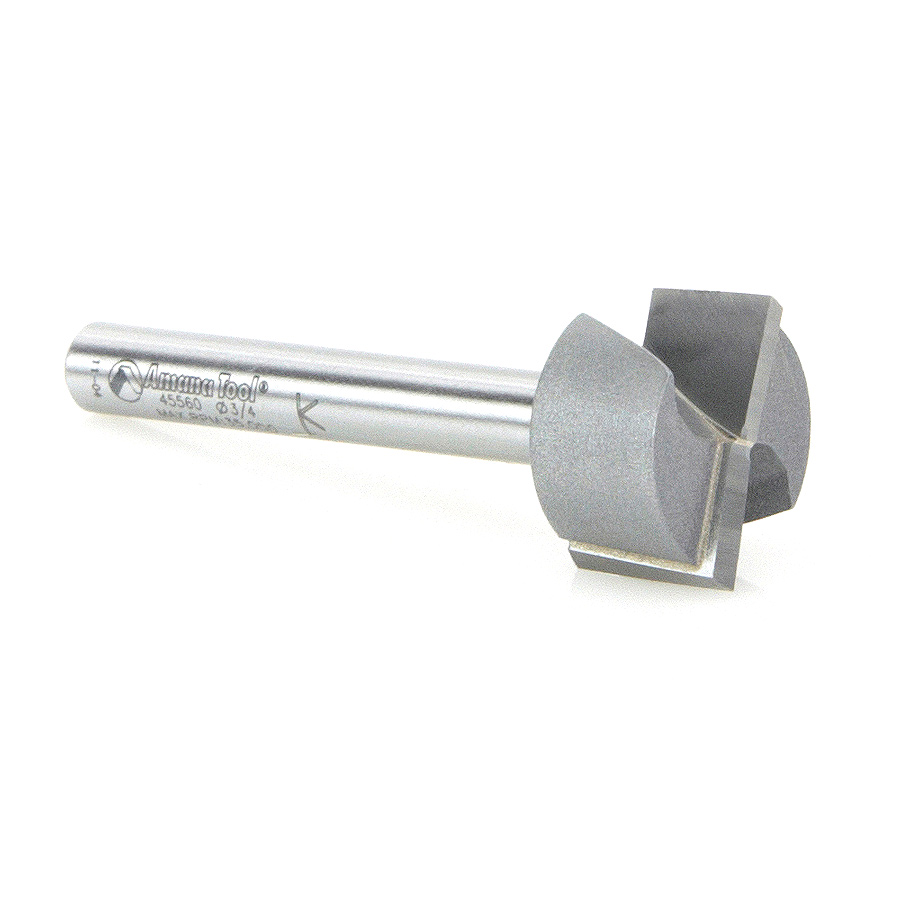

45560 Carbide Tipped Bottom Cleaning / Spoilboard 3/4 Dia x 7/16 x 1/4 Inch Shank Upshear Design

Amana 45560 Carbide Tipped Bottom Cleaning / Spoilboard 3/4 Dia x 7/16 x 1/4 Inch Shank Upshear Design

Name: Amana 45560 Carbide Tipped Bottom Cleaning / Spoilboard 3/4 Dia x 7/16 x 1/4 Inch Shank Upshear Design
SKU: Amana 45560
Availability: InStock

Original price was: $65.95.Current price is: $49.47.

BOTTOM CLEANING BIT 1/4 SHANK

UPC: 738685855607 SKU: Amana 45560 Categories: Amana Tool, Bottom Cleaning Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

This bit is intended for broad, very shallow cuts, where an exceptional finish is desired. Use it to clean up previously cut dadoes and grooves, or for surfacing cuts. The up-shear configuration improves chip removal, while the cutting-edge orientation produces a smooth surface.

Specifications

Diameter (D)	3/4
Cutting Height (B)	7/16
Shank (d)	1/4
Overall Length (L)	2-1/4
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
3/4 (19.05mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-1/2	2	45562
1 (25.40mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-1/2	2	45564
1 (25.40mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-1/2	2	45568
1-1/2	5/8 (15.88mm)	1/2 (12.70mm)	2-3/4	2	45566
1-1/2	5/8 (15.88mm)	1/4 (6.35mm)	2-3/4	2	45569

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
