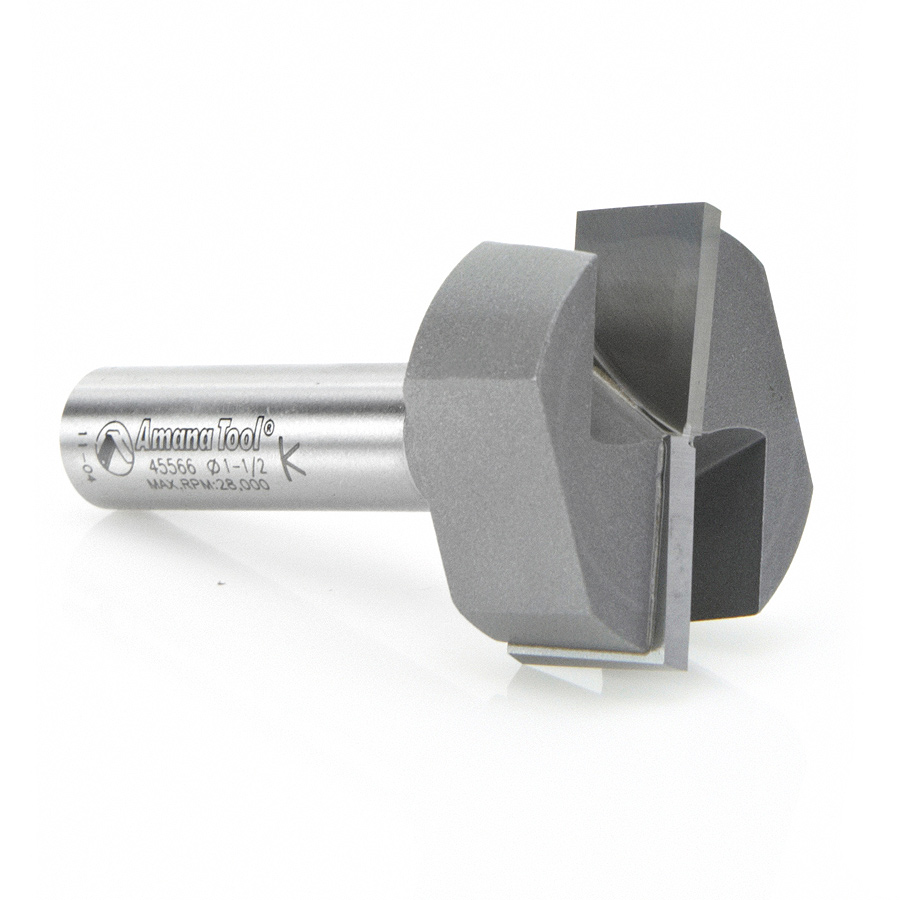

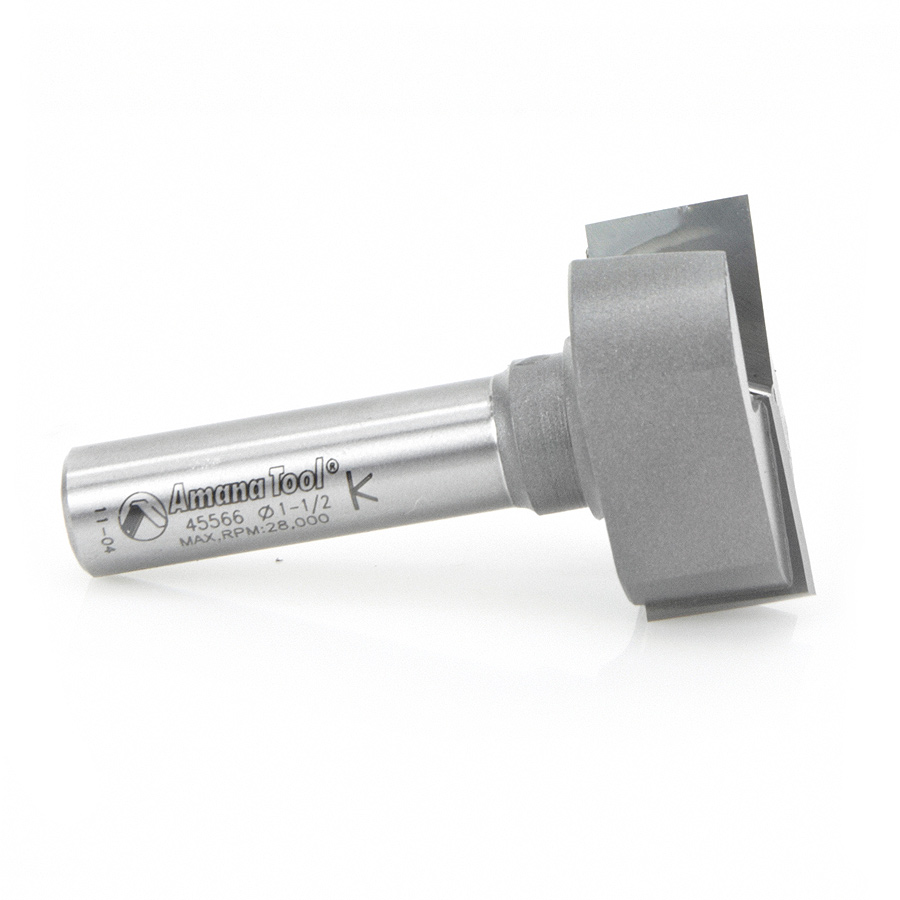

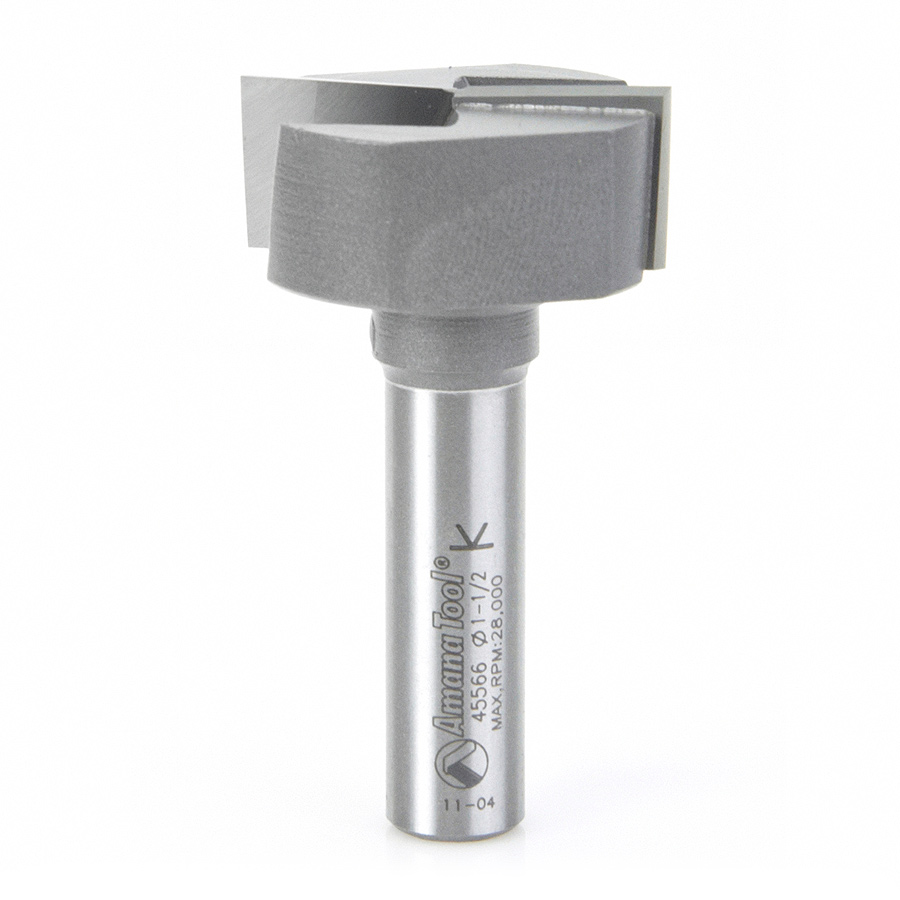

45566 Carbide Tipped Bottom Cleaning / Spoilboard 1-1/2 Dia x 5/8 x 1/2 Inch Shank Upshear Design

Amana 45566 Carbide Tipped Bottom Cleaning / Spoilboard 1-1/2 Dia x 5/8 x 1/2 Inch Shank Upshear Design

Name: Amana 45566 Carbide Tipped Bottom Cleaning / Spoilboard 1-1/2 Dia x 5/8 x 1/2 Inch Shank Upshear Design
SKU: Amana 45566
Availability: InStock

Original price was: $104.25.Current price is: $78.19.

BOTTOM CLEANING 1-1/2″x1/2 SHK

UPC: 738685855669 SKU: Amana 45566 Categories: Amana Tool, Bottom Cleaning Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

This bit is intended for broad, very shallow cuts, where an exceptional finish is desired. Use it to clean up previously cut dadoes and grooves, or for surfacing cuts. The up-shear configuration improves chip removal, while the cutting-edge orientation produces a smooth surface.

Vectric and Fusion 360 compatible tool files for 45566 available for download, click here.

Specifications

Diameter (D)	1-1/2
Cutting Height (B)	5/8
Shank (d)	1/2
Overall Length (L)	2-3/4
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
3/4 (19.05mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-1/4	2	45560
3/4 (19.05mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-1/2	2	45562
1 (25.40mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-1/2	2	45564
1 (25.40mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-1/2	2	45568
1-1/2	5/8 (15.88mm)	1/4 (6.35mm)	2-3/4	2	45569

Weight	0.3 lbs
