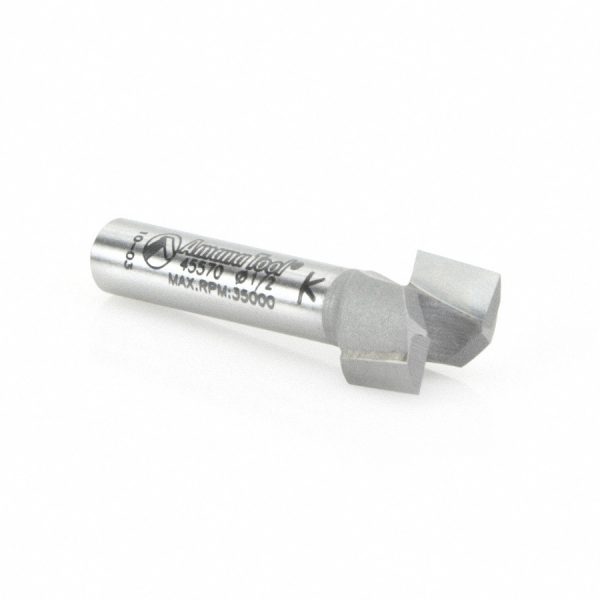

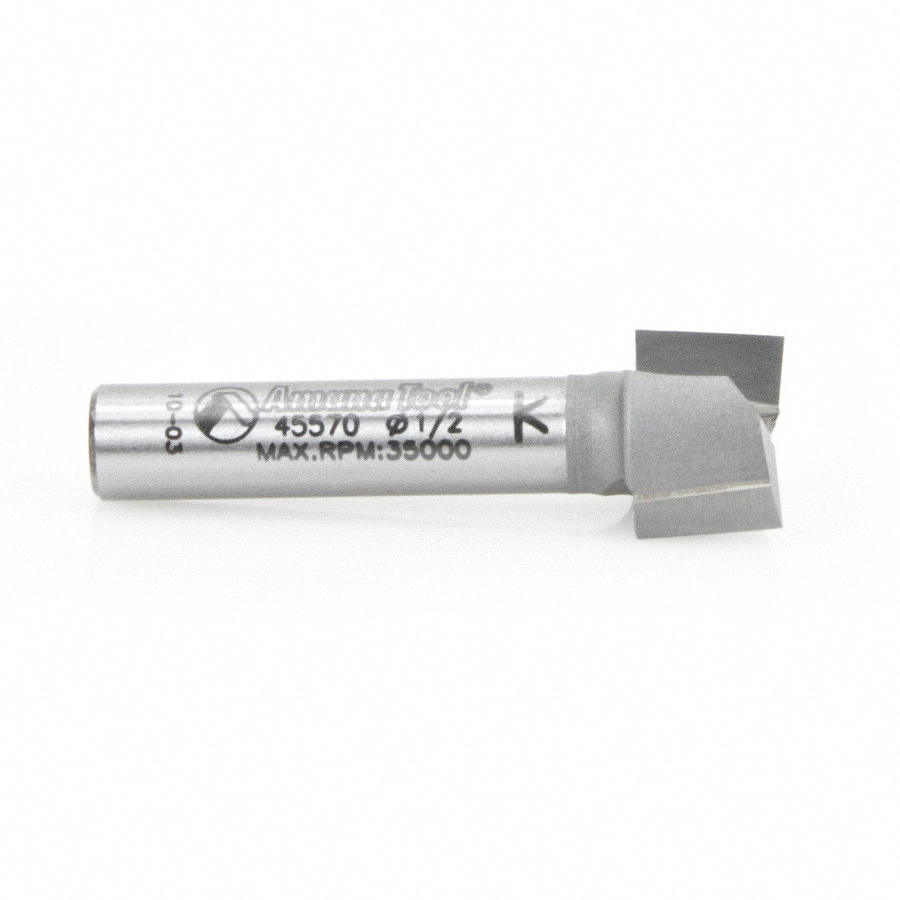

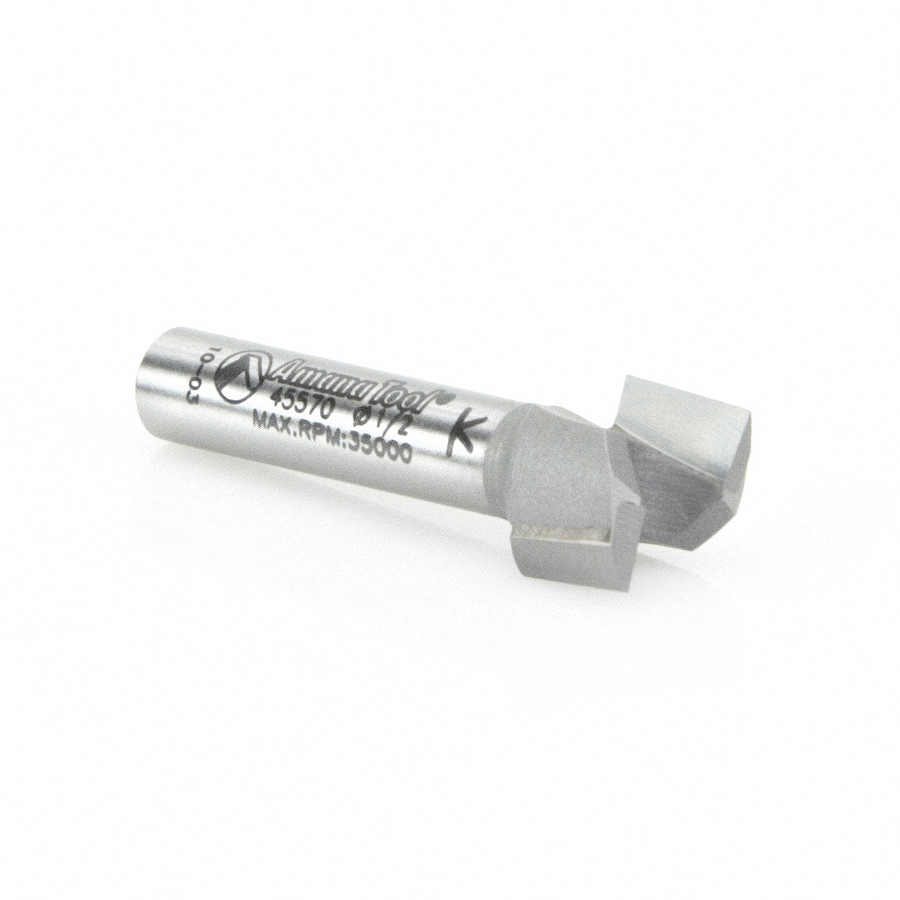

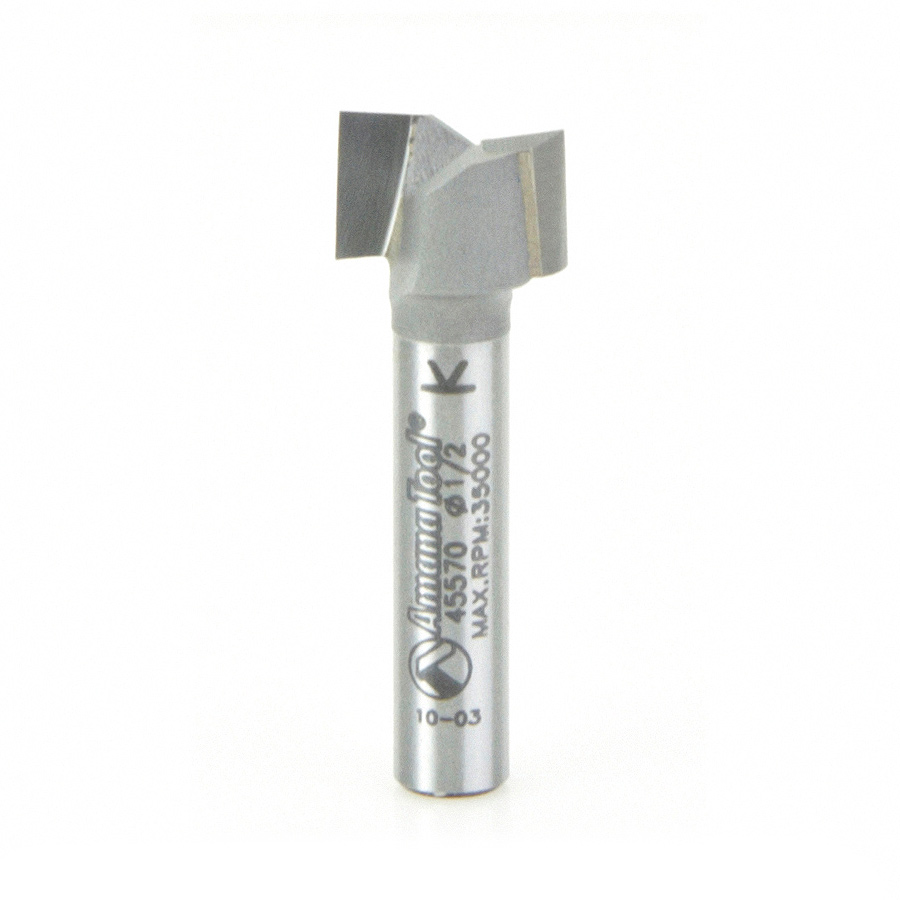

45570 Carbide Tipped Mortising 1/2 Dia x 5/16 x 1/4 Inch Shank

Amana 45570 Carbide Tipped Mortising 1/2 Dia x 5/16 x 1/4 Inch Shank

Name: Amana 45570 Carbide Tipped Mortising 1/2 Dia x 5/16 x 1/4 Inch Shank
SKU: Amana 45570
Availability: InStock

Original price was: $33.30.Current price is: $24.98.

MORTISING 1/2 DIA. 1/4 SHANK

UPC: 738685455708 SKU: Amana 45570 Categories: Amana Tool, Mortising Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Intended for hinge mortising, this bit is an excellent choice for cutting laps and tenons as well. The sides and bottom of the cut are exceptionally smooth. The down-shear design reduces chipping along the top edge of the cut, especially in laminates, veneered plywood and MDF. The large gullet between the cutting edges provides excellent chip clearance.

Specifications

Diameter (D)	1/2
Cutting Height (B)	5/16
Shank (d)	1/4
Overall Length (L)	1-7/16
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
3/4 (19.05mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	45576
1-1/4	1/2 (12.70mm)	1/2 (12.70mm)	2 (50.80mm)	2	45580

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
