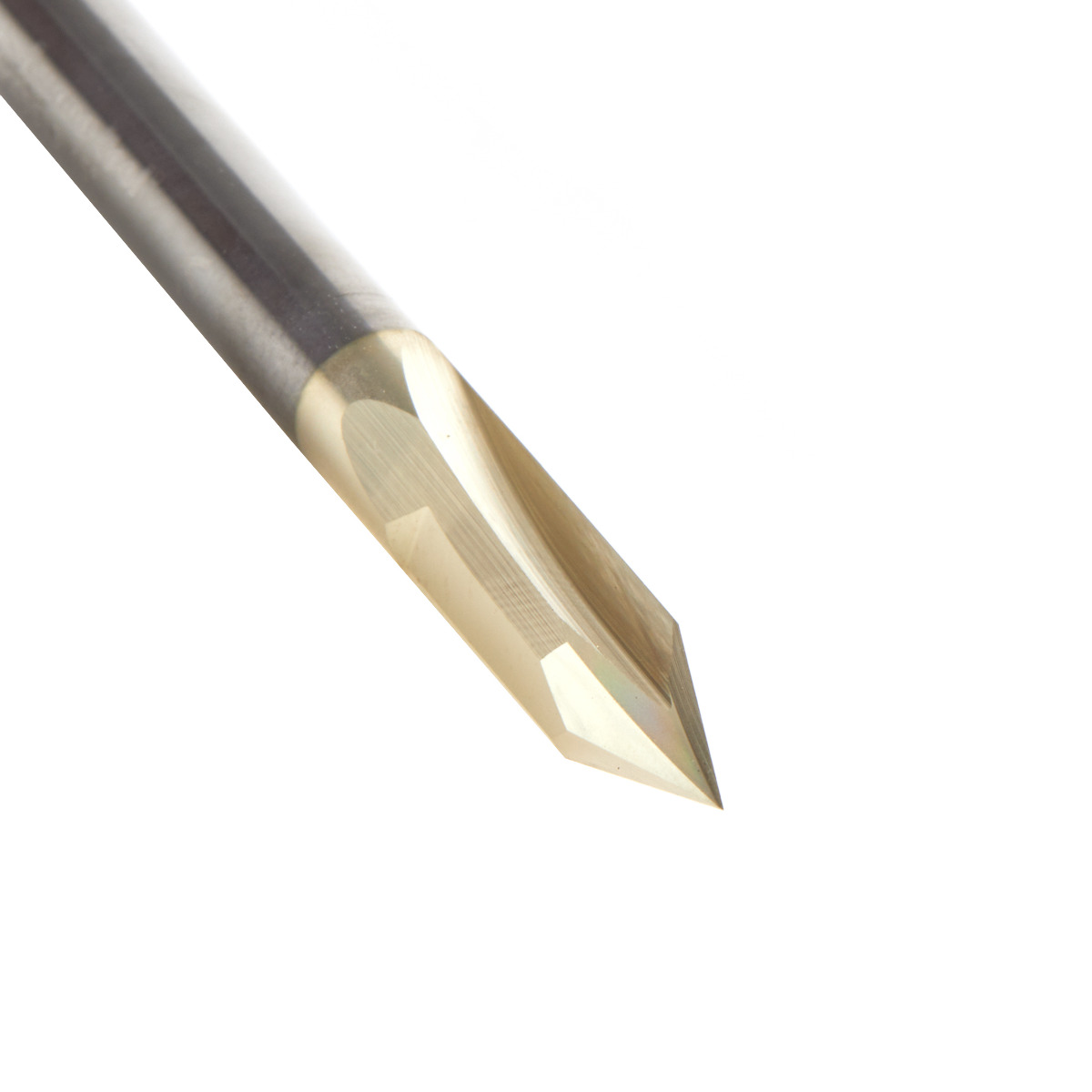

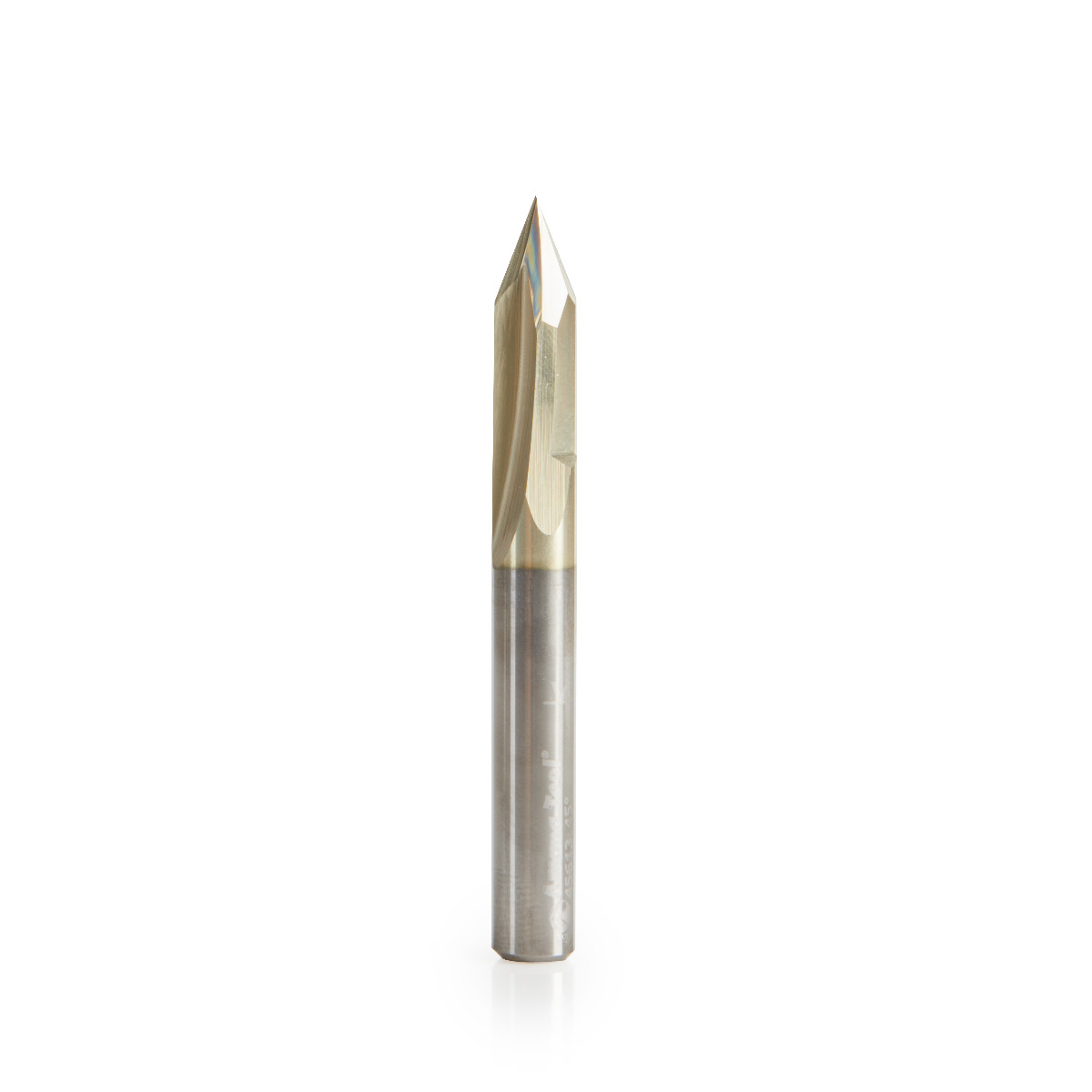

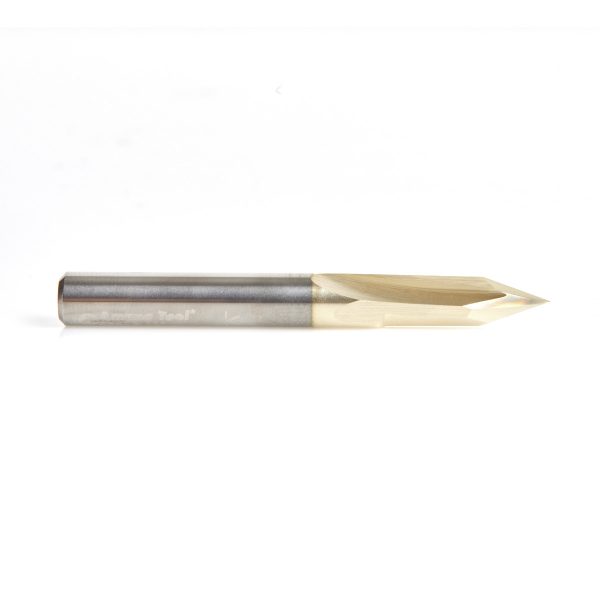

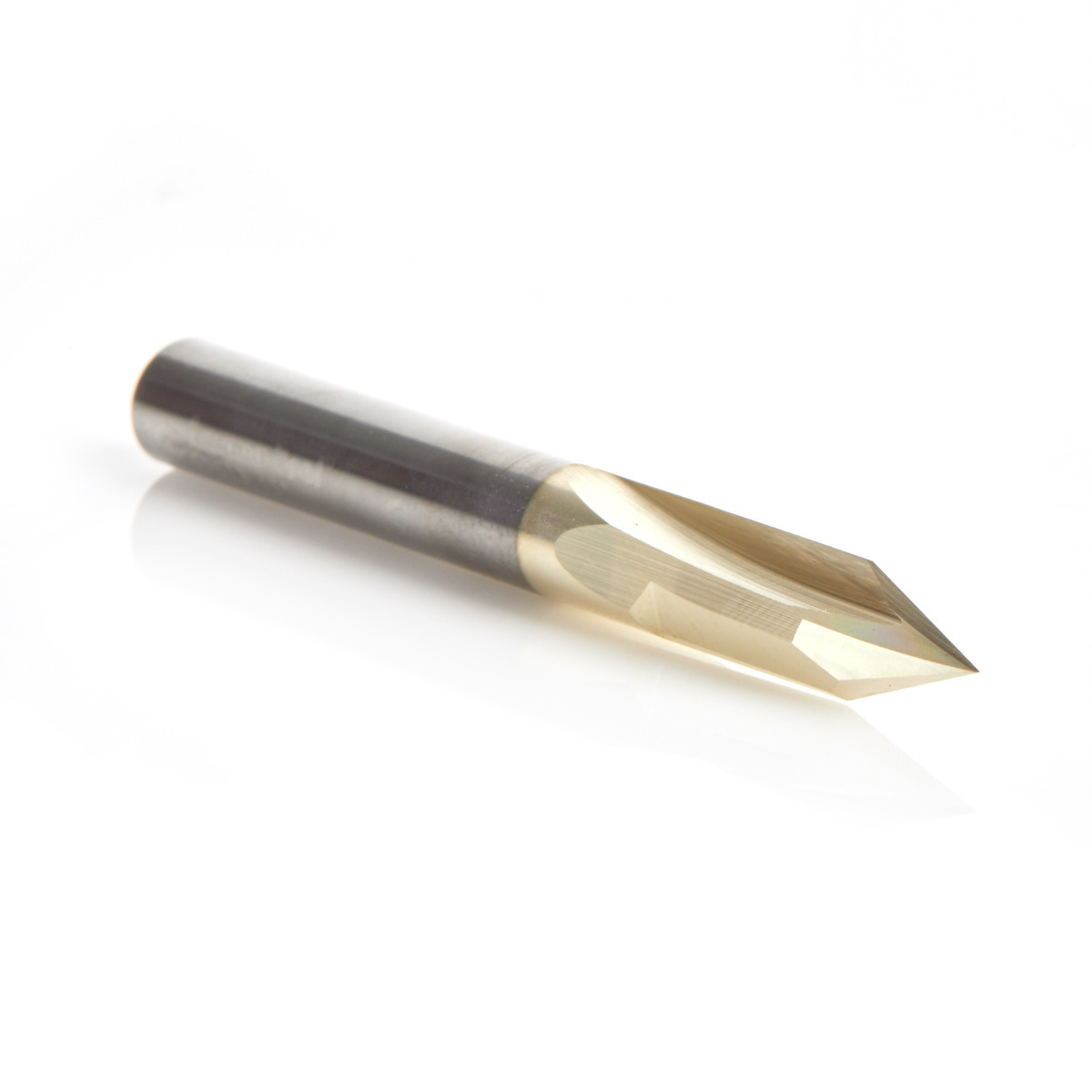

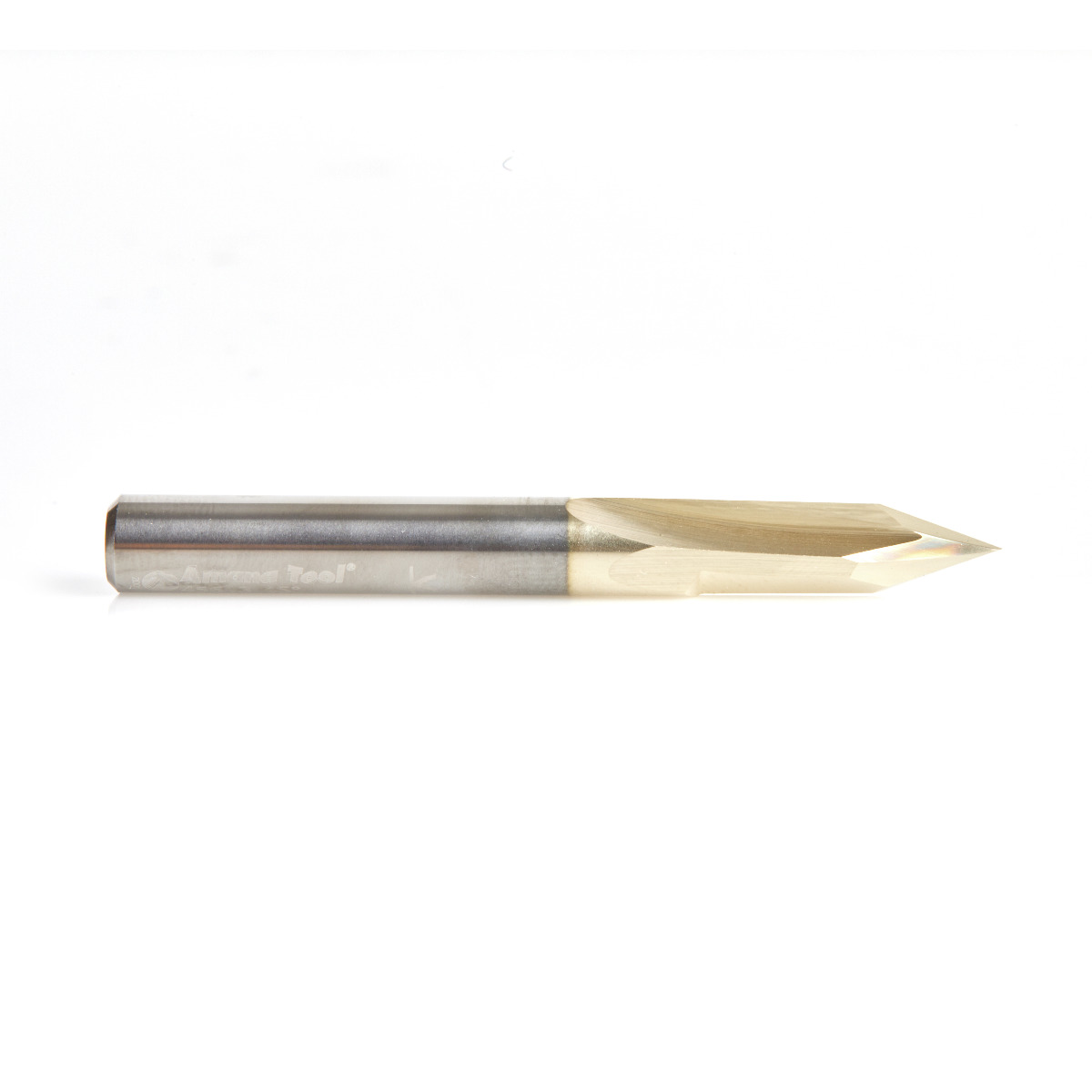

45613 "Zero-Point" 45 Degree V-Groove and Engraving 1/4 Dia x 0.310" x 1/4 Shank ZrN Coated Router Bit

Amana 45613 “Zero-Point” 45 Degree V-Groove and Engraving 1/4 Dia x 0.310″ x 1/4 Shank ZrN Coated Router Bit

Name: Amana 45613 "Zero-Point" 45 Degree V-Groove and Engraving 1/4 Dia x 0.310" x 1/4 Shank ZrN Coated Router Bit
SKU: Amana 45613
Availability: InStock

Original price was: $76.40.Current price is: $57.30.

1/4″ D ZrN 40D 2FL V GROOVE

UPC: 738685456132 SKU: Amana 45613 Categories: Amana Tool, Router Bits, Signmaking Router Bits, Solid Carbide Engraving Router Bits for Signmaking

Item Description

Designed for beveling or V-Grooving 45° the following materials:

Acrylonitrile-Butadiene-Styrene (ABS)
Aluminum, Brass, Bronze, Copper, Gold & Silver
Aluminum 5052
Composites
Fomex® with Aluminum Face
Hard Plastics
Hardwood
Laminated Chipboard/Plywood

MDF
Non-Ferrous Metals

P olycarbonate (Lexan™)†
Solid Surfaces (Corian®

Formica® ect)

Soft Plastics
Softwood
Veneer

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

Vectric compatible tool file for 45613 available for download,click here.

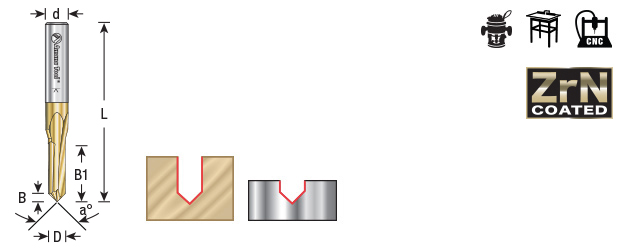

Specifications

(a°) Angle	45°
(D) Diameter	1/4
(B) Cutting Height	0.310"
B1	3/4
(d) Shank	1/4
Overall Length (L)	2-1/4
Flutes	2
Chip Load	0.003" – 0.006"

Other Sizes Available

(a°) Angle	(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Tool No.
90°	1/8 (3.18mm)	1/16 (1.59mm)	5/8 (15.88mm)	1/8 (3.18mm)	2 (50.80mm)	45608
90°	1/8 (3.18mm)	1/16 (1.59mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	45609
90°	3/16 (4.76mm)	3/32 (2.38mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	45610
90°	1/4 (6.35mm)	1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	45612
60°	1/4 (6.35mm)	0.214"0.21	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	45615
90°	1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	45626-Z
90°	3/8 (9.53mm)	3/16 (4.76mm)	3/4 (19.05mm)	3/8 (9.53mm)	2-1/2	45614

Weight	0.06 lbs
