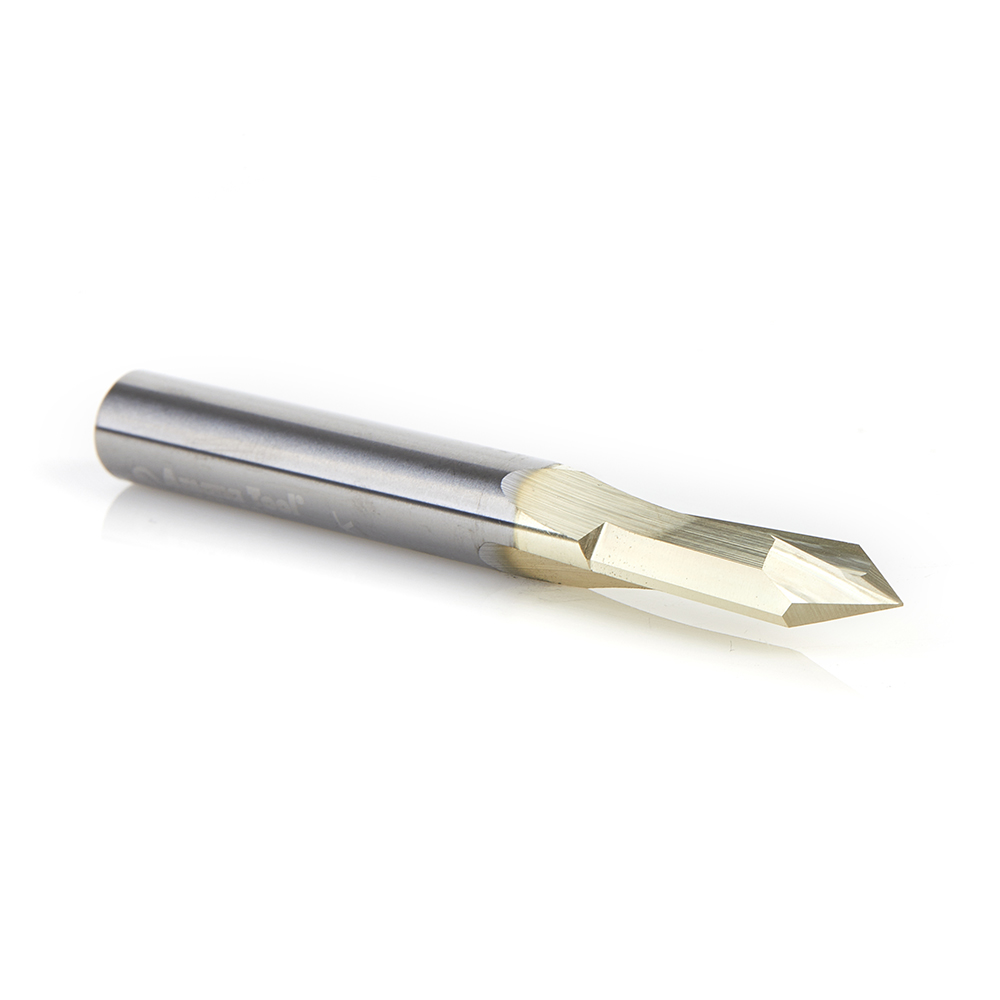

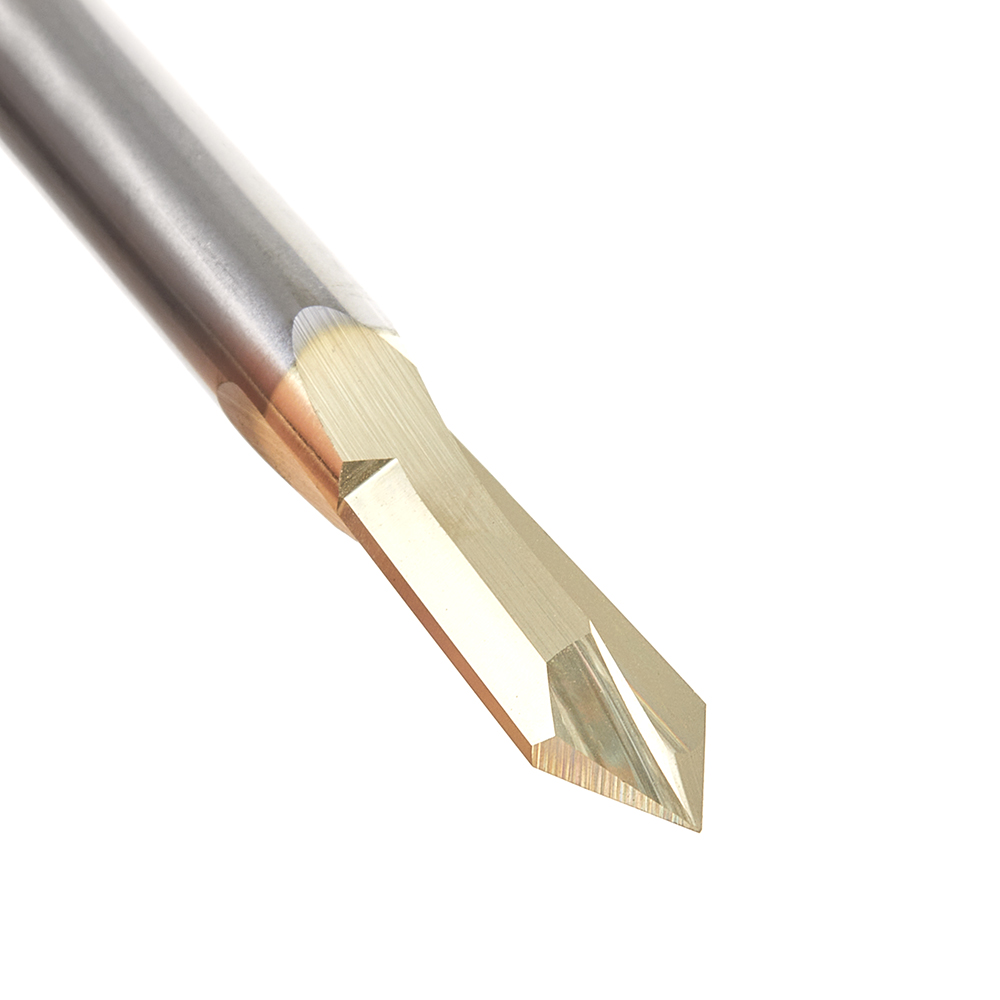

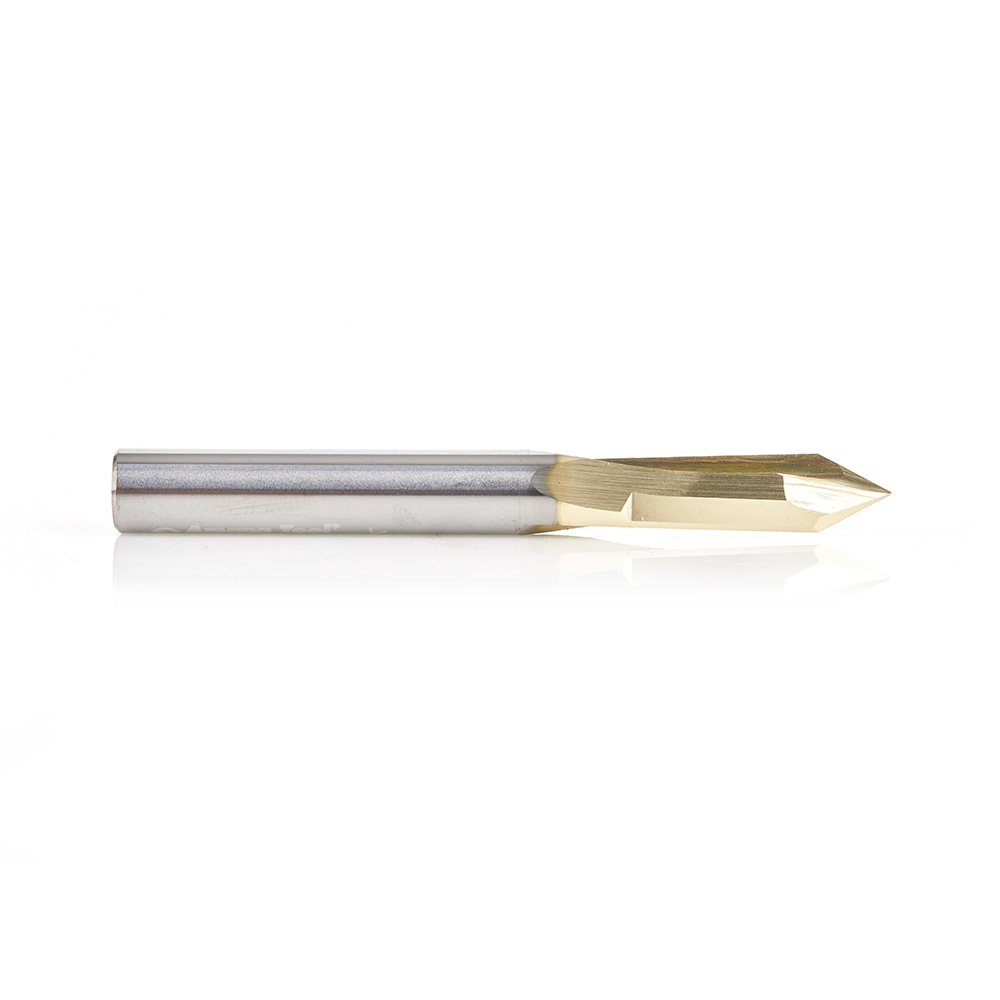

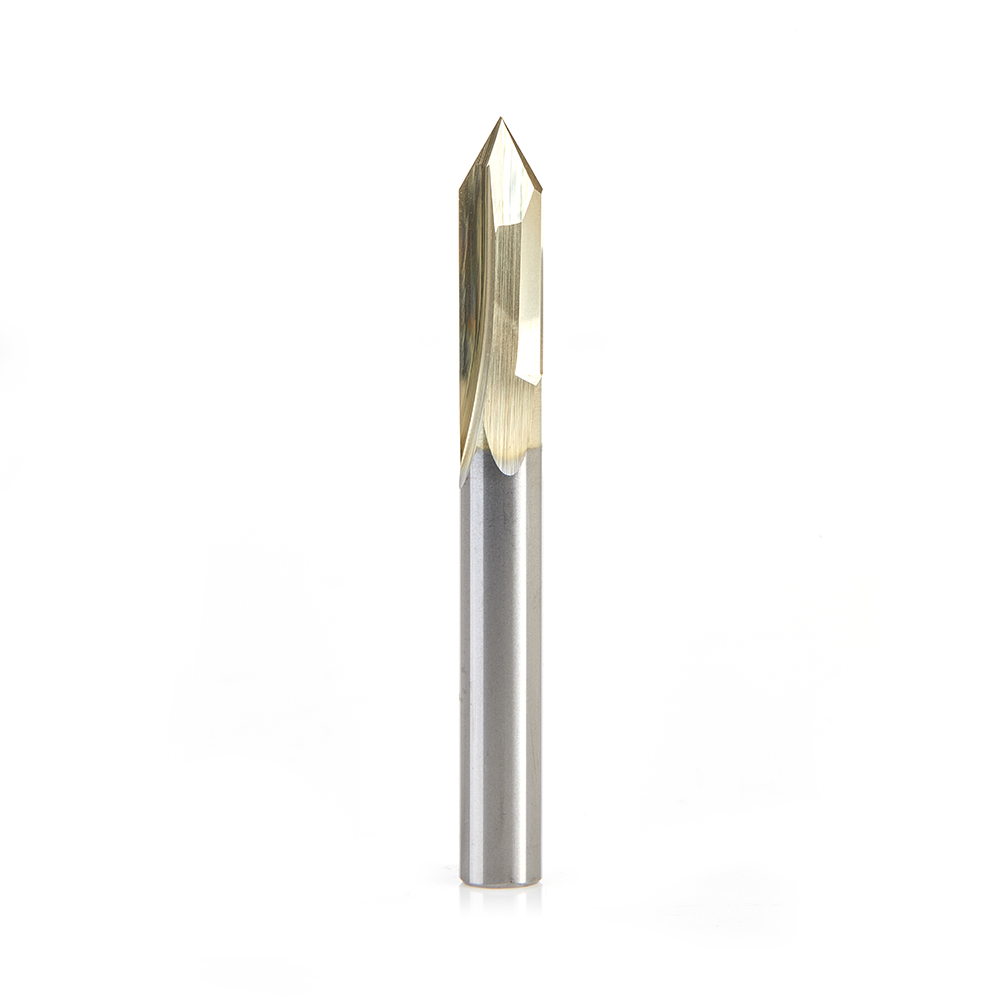

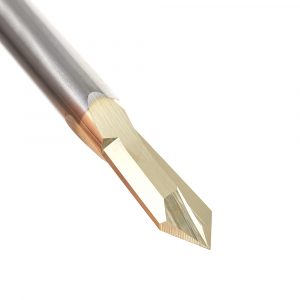

45615 "Zero-Point" 60 Degree V-Groove and Engraving 1/4 Dia x 0.214" x 1/4 Shank ZrN Coated Router Bit

Amana 45615 “Zero-Point” 60 Degree V-Groove and Engraving 1/4 Dia x 0.214″ x 1/4 Shank ZrN Coated Router Bit

Name: Amana 45615 "Zero-Point" 60 Degree V-Groove and Engraving 1/4 Dia x 0.214" x 1/4 Shank ZrN Coated Router Bit
SKU: Amana 45615
Availability: InStock

Original price was: $76.40.Current price is: $57.30.

1/4″ D ZrN 60D 2FL V GROOVE

UPC: 738685456156 SKU: Amana 45615 Categories: Amana Tool, Router Bits, Signmaking Router Bits, Solid Carbide Engraving Router Bits for Signmaking

Item Description

Designed for beveling or V-Grooving 60° the following materials:

Acrylonitrile-Butadiene-Styrene (ABS)
Aluminum, Brass, Bronze, Copper, Gold & Silver
Aluminum 5052
Composites
Fomex® with Aluminum Face
Hard Plastics
Hardwood
Laminated Chipboard/Plywood

MDF
Non-Ferrous Metals

P olycarbonate (Lexan™)†
Solid Surfaces (Corian®

Formica® ect)

Soft Plastics
Softwood
Veneer

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

Vectric compatible tool file for 45615 available for download,click here.

Specifications

(a°) Angle	60°
(D) Diameter	1/4
(B) Cutting Height	0.214"
B1	3/4
(d) Shank	1/4
Overall Length (L)	2-1/4
Flutes	2
Chip Load	0.003" – 0.006"

Other Sizes Available

(a°) Angle	(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Tool No.
90°	1/8 (3.18mm)	1/16 (1.59mm)	5/8 (15.88mm)	1/8 (3.18mm)	2 (50.80mm)	45608
90°	1/8 (3.18mm)	1/16 (1.59mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	45609
90°	3/16 (4.76mm)	3/32 (2.38mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	45610
90°	1/4 (6.35mm)	1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	45612
45°	1/4 (6.35mm)	0.310"0.31	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	45613
90°	1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	45626-Z
90°	3/8 (9.53mm)	3/16 (4.76mm)	3/4 (19.05mm)	3/8 (9.53mm)	2-1/2	45614

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
