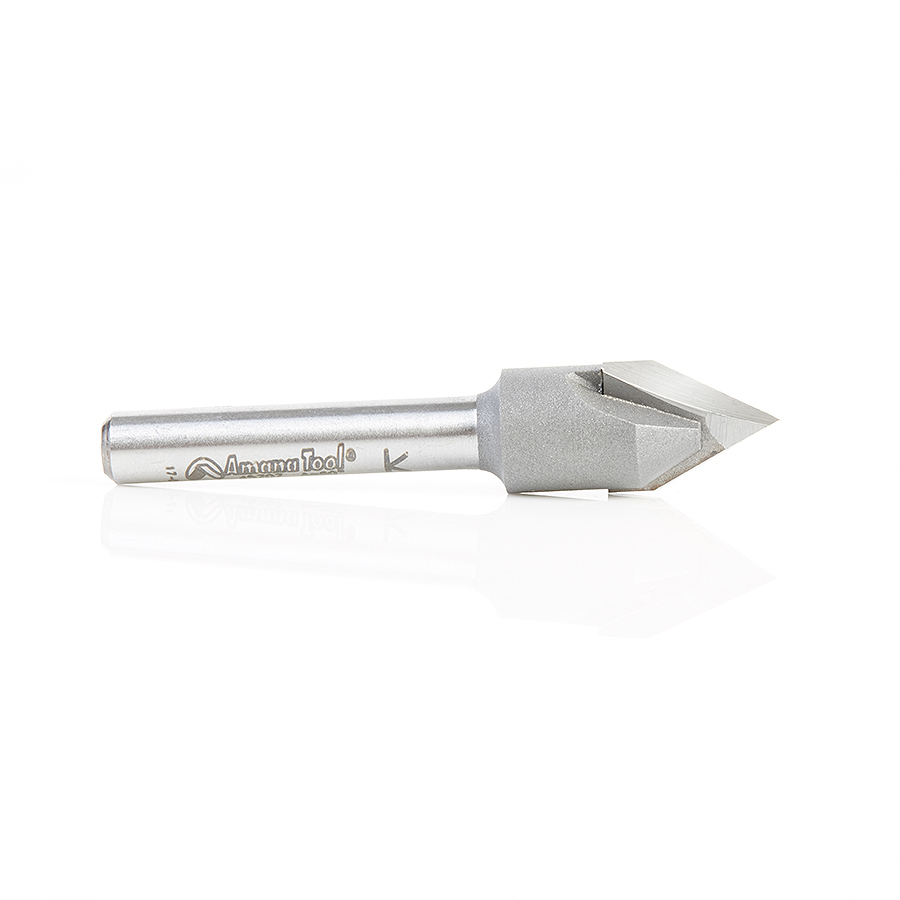

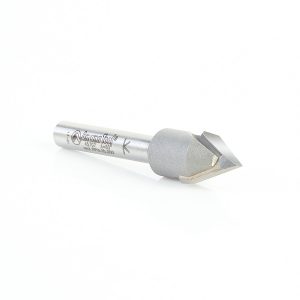

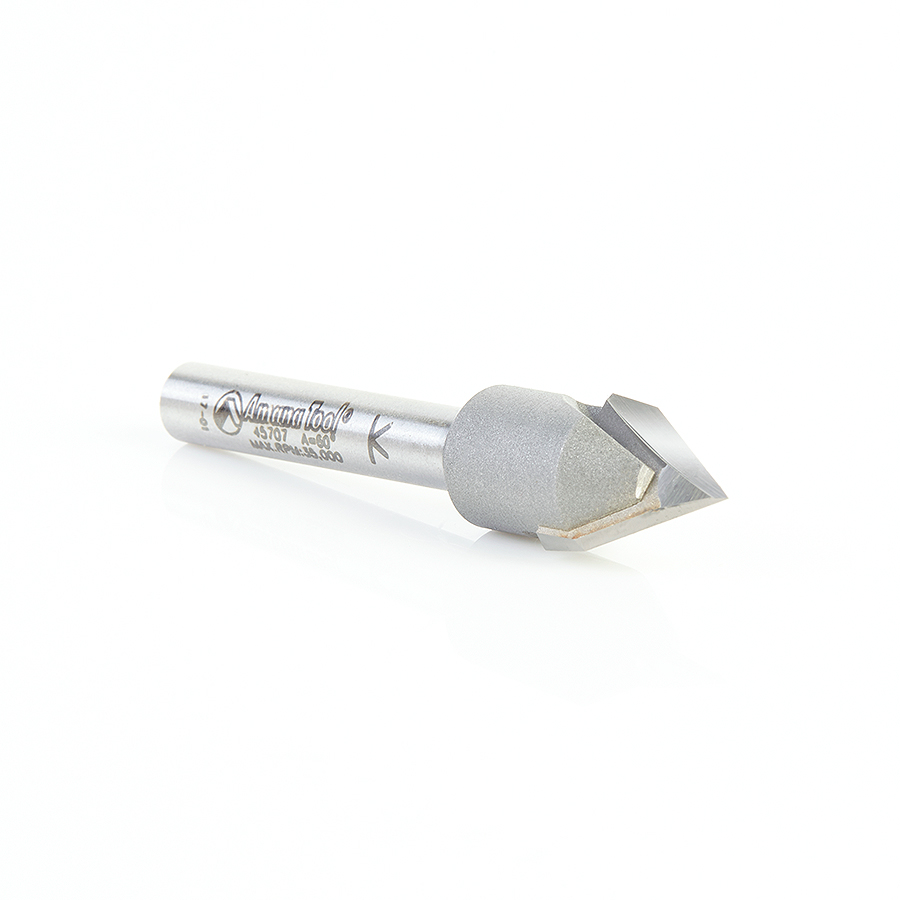

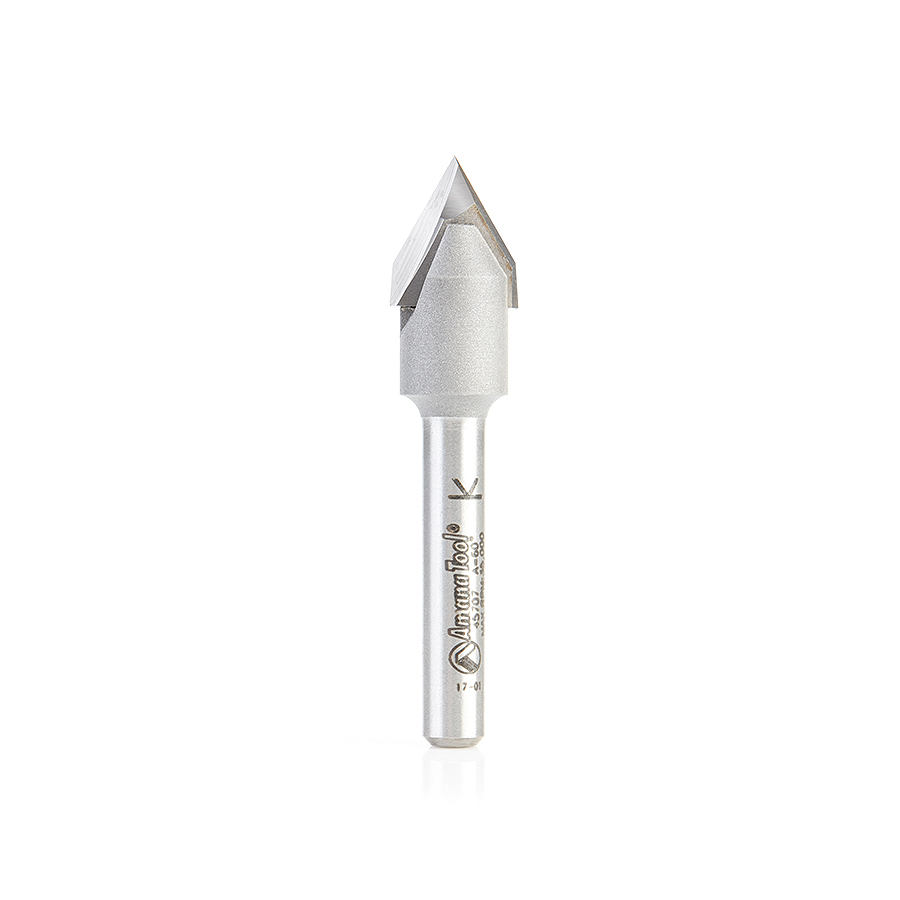

45707 Carbide Tipped "Zero Point" V-Groove 60 Deg x 1/2 Dia x 13/32 x 1/4 Inch Shank

Amana 45707 Carbide Tipped “Zero Point” V-Groove 60 Deg x 1/2 Dia x 13/32 x 1/4 Inch Shank

Name: Amana 45707 Carbide Tipped "Zero Point" V-Groove 60 Deg x 1/2 Dia x 13/32 x 1/4 Inch Shank
SKU: Amana 45707
Availability: InStock

Original price was: $59.15.Current price is: $44.37.

60D V GROOVE 1/2 DIA. 1/4SHANK

UPC: 738685457078 SKU: Amana 45707 Categories: Amana Tool, Router Bits, Signmaking Router Bits, V Groove Router Bits

Item Description

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

20lbs High Density Urethane
Acrylic
Composites
Composite Decking
Foam
Laminate
MDF/HDF
Melamine

Plywood
PVC Plastic
Sign Board
Solid Surface
Veneered Plywood
Wood
Xanita® Board

Vectric and Fusion 360 compatible tool files for 45707 available for download, click here.

Specifications

Angle (a°)	60°
Diameter (D)	1/2
Cutting Height (B)	13/32
B1	9/16
Shank (d)	1/4
Overall Length (L)	2-1/4
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Flutes	Tool No.
45°	1/2 (12.70mm)	5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	45711
90°	3/8 (9.53mm)	11/64 (4.37mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	2	45701
90°	1/2 (12.70mm)	15/64 (5.95mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	2	45703
–	–	–	–	–	–	—-	AMS-129

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
