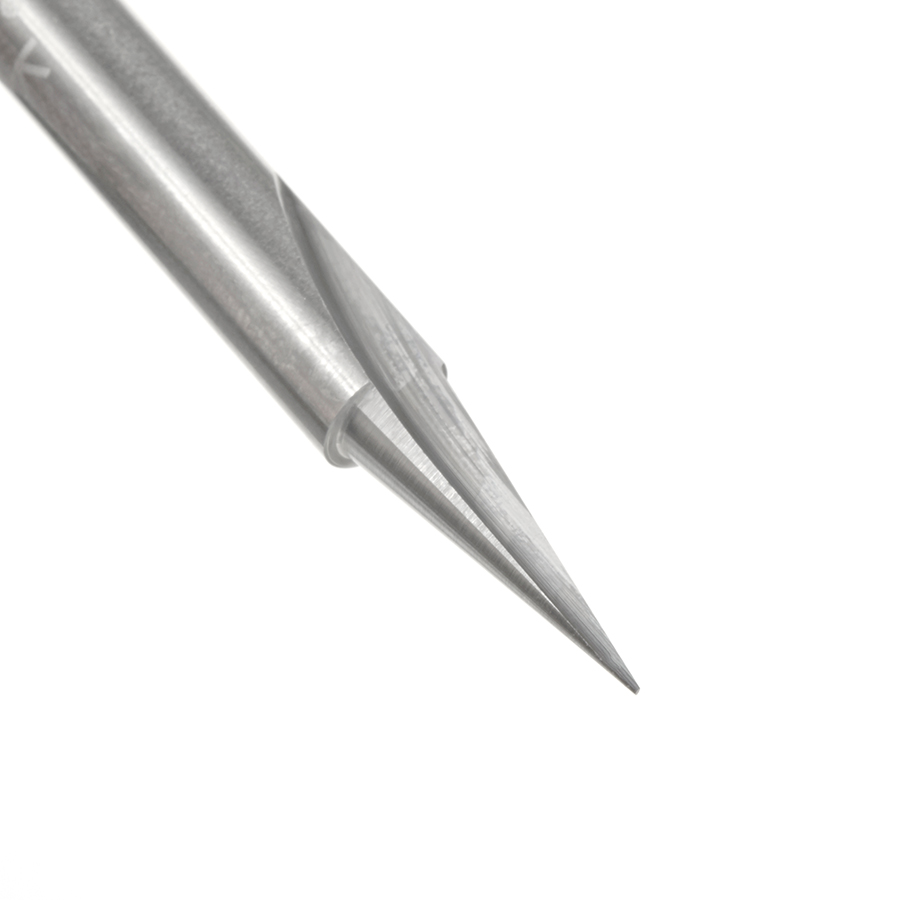

45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute

Amana 45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute

Name: Amana 45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute
SKU: Amana 45783
Availability: InStock

Original price was: $70.40.Current price is: $52.80.

SC CARVING LINER 18DVT. 1/4″SH

UPC: 738685457689 SKU: Amana 45783 Categories: Amana Tool, Router Bits, Signmaking Router Bits, Solid Carbide Carving Liner Router Bits

Item Description

For extra-fine carving and lettering details.

Excellent for Carving:

Aluminum
Brass
MDF/Laminates
Plywood
Silver
Wood

Vectric and Fusion 360 compatible tool files for 45783 available for download, click here.

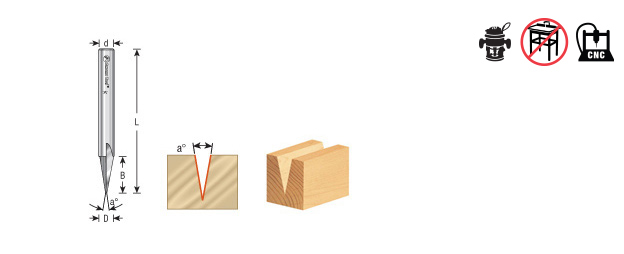

Specifications

Angle (a°)	18°
Diameter (D)	1/4
D1	0.030"
Cutting Height (B)	5/8
Shank (d)	1/4
Overall Length (L)	2-1/2
Flutes	1

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Description	Tool No.
15°	1/8 (3.18mm)	.07"0.07	0.400"0.40	1/8 (3.18mm)	2-1/4	–	40782
18°	1/4 (6.35mm)	0.030"0.03	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	5	45783-5
22°	1/4 (6.35mm)	0.017"0.02	0.648"0.65	1/4 (6.35mm)	2-1/2	–	40784

Weight	0.08 lbs
