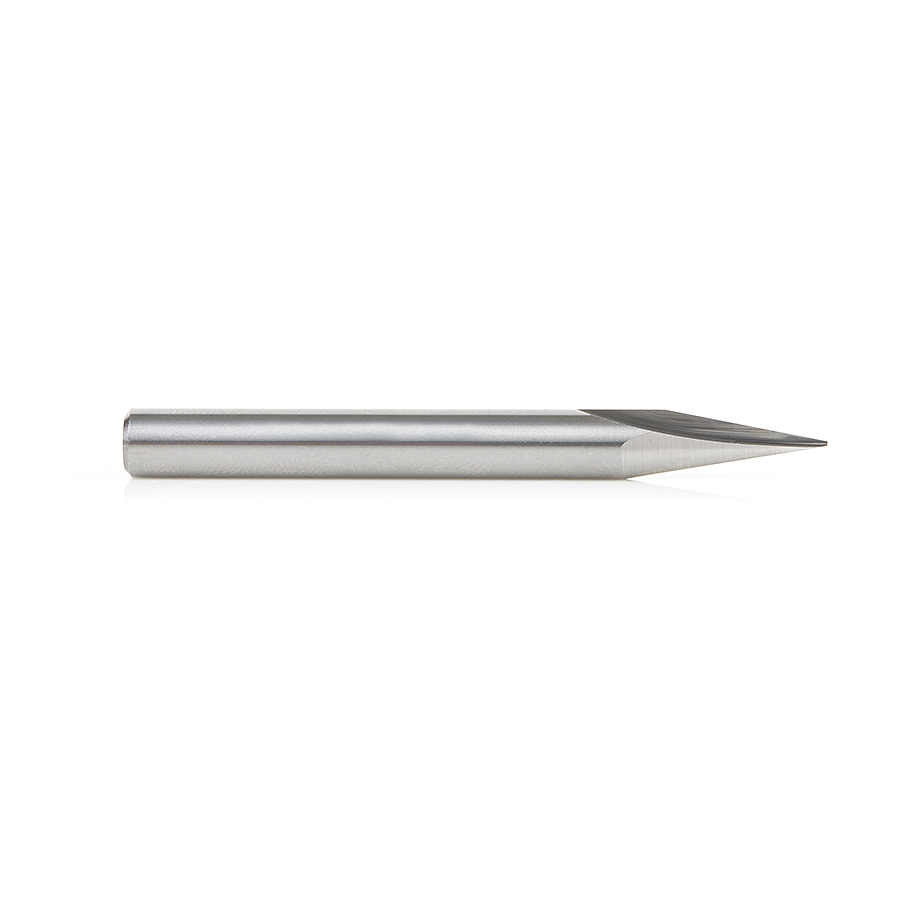

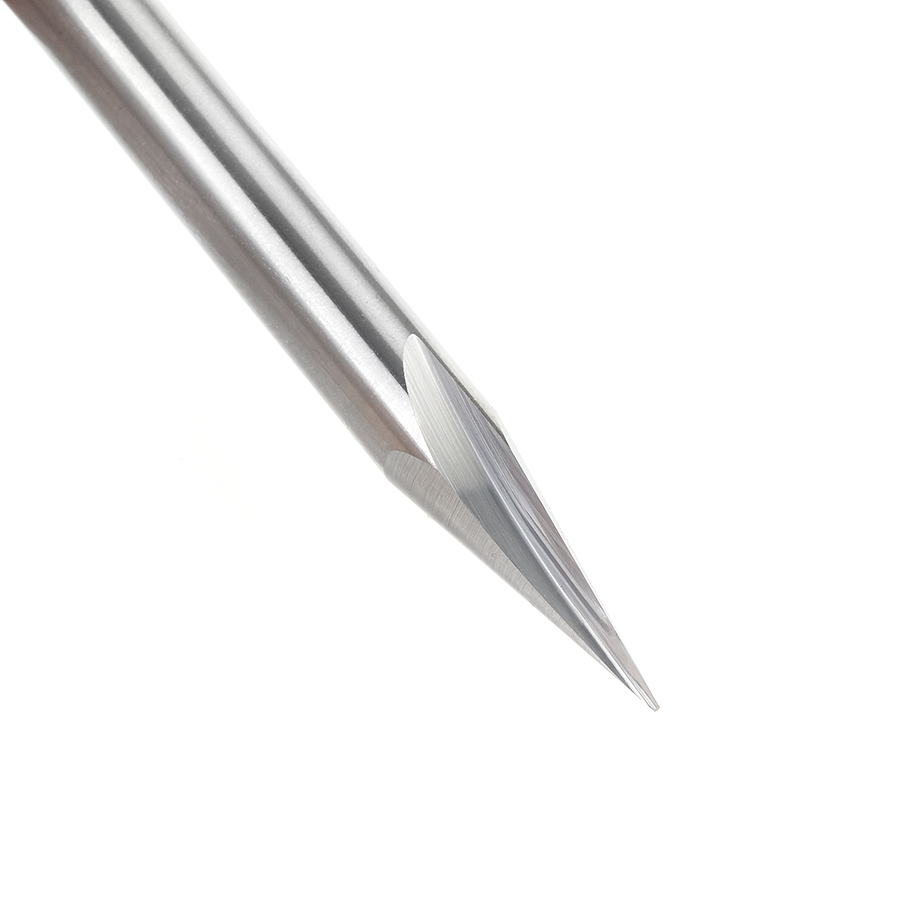

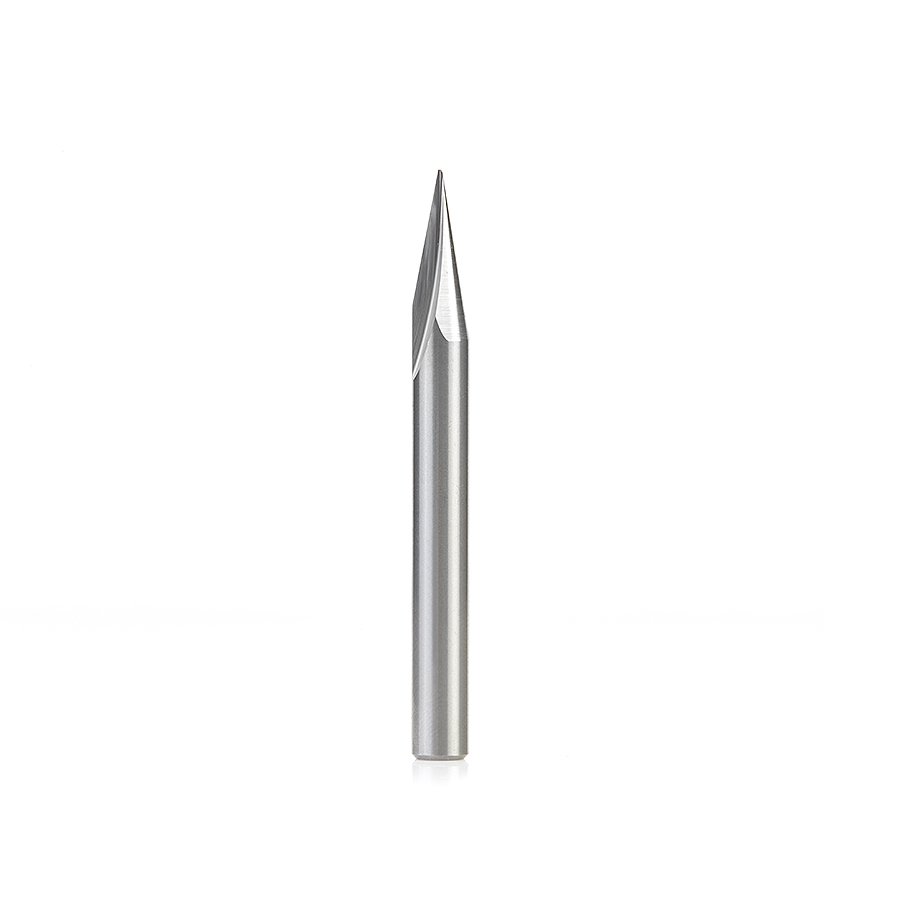

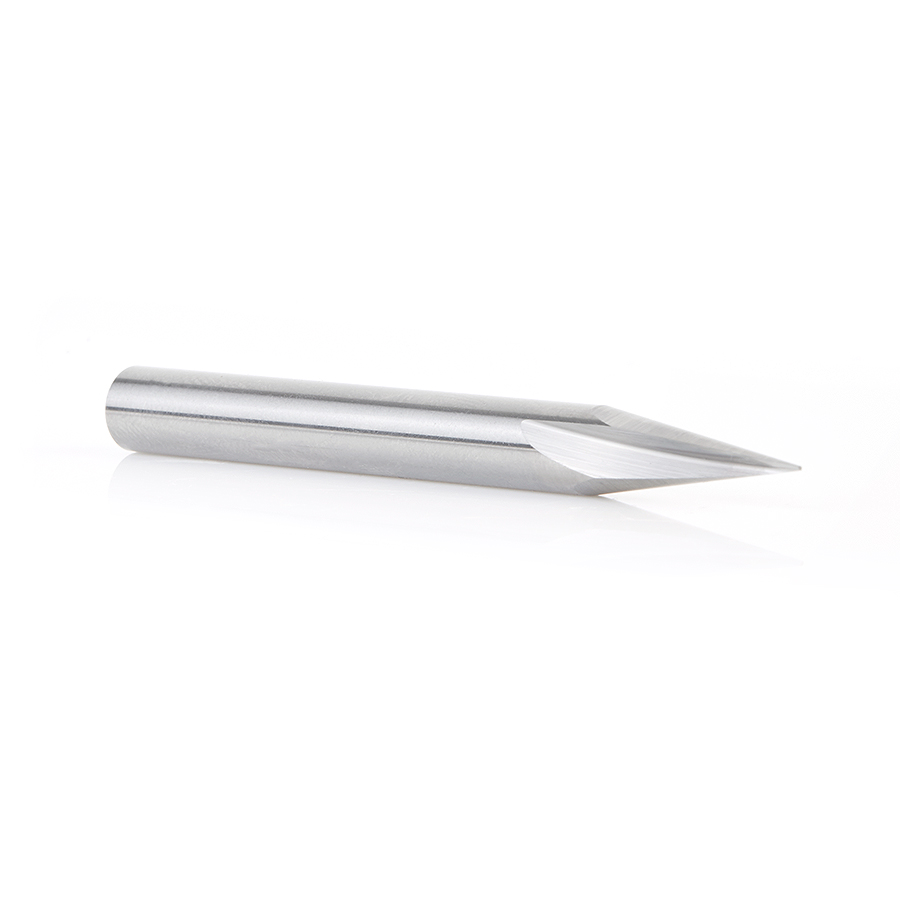

40784 Solid Carbide Carving Liner 22 Deg x 1/4 Dia x .648 x 1/4 Inch Shank x 1-Flute

Amana 40784 Solid Carbide Carving Liner 22 Deg x 1/4 Dia x .648 x 1/4 Inch Shank x 1-Flute

Name: Amana 40784 Solid Carbide Carving Liner 22 Deg x 1/4 Dia x .648 x 1/4 Inch Shank x 1-Flute
SKU: Amana 40784
Availability: InStock

Original price was: $63.75.Current price is: $47.82.

SC CARVING LINER 22DVPT 1/4″SH

UPC: 738685407844 SKU: Amana 40784 Categories: Amana Tool, Router Bits, Signmaking Router Bits, Solid Carbide Carving Liner Router Bits

Item Description

For extra-fine carving and lettering details.

Excellent for Carving:

Aluminum
Brass
MDF/Laminates
Plywood
Silver
Wood

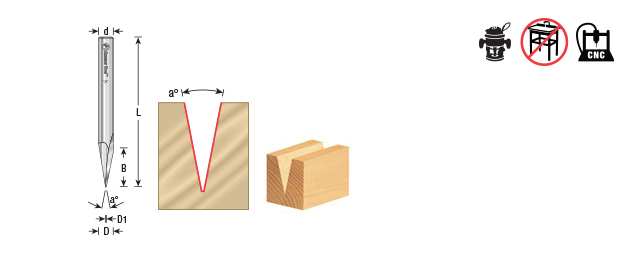

Specifications

Angle (a°)	22°
Diameter (D)	1/4
D1	0.017"
Cutting Height (B)	0.648"
Shank (d)	1/4
Overall Length (L)	2-1/2
Flutes	1

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Description	Tool No.
15°	1/8 (3.18mm)	.07"0.07	0.400"0.40	1/8 (3.18mm)	2-1/4	–	40782
18°	1/4 (6.35mm)	0.030"0.03	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	–	45783
18°	1/4 (6.35mm)	0.030"0.03	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	5	45783-5

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
