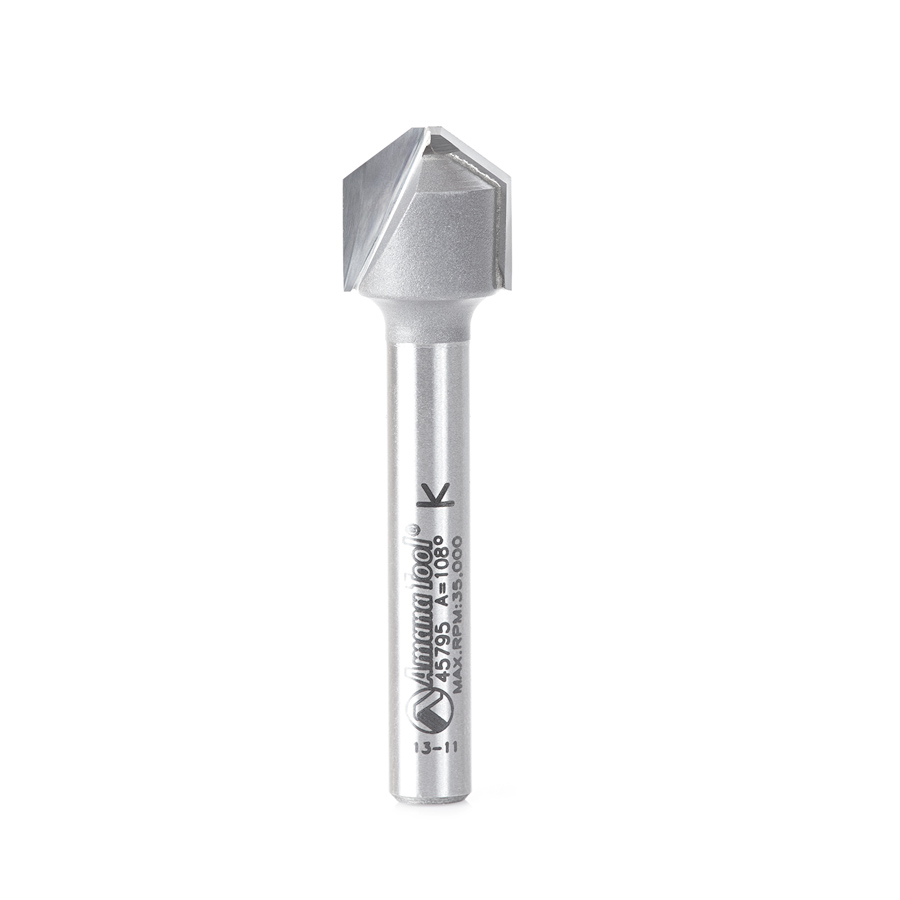

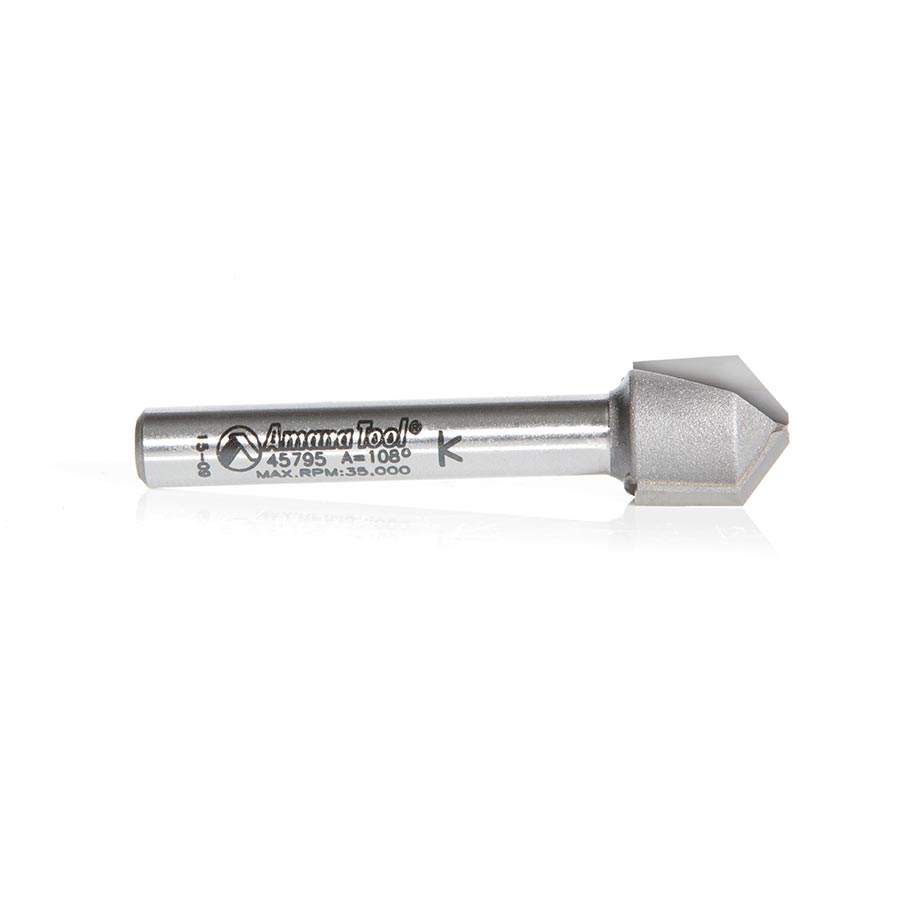

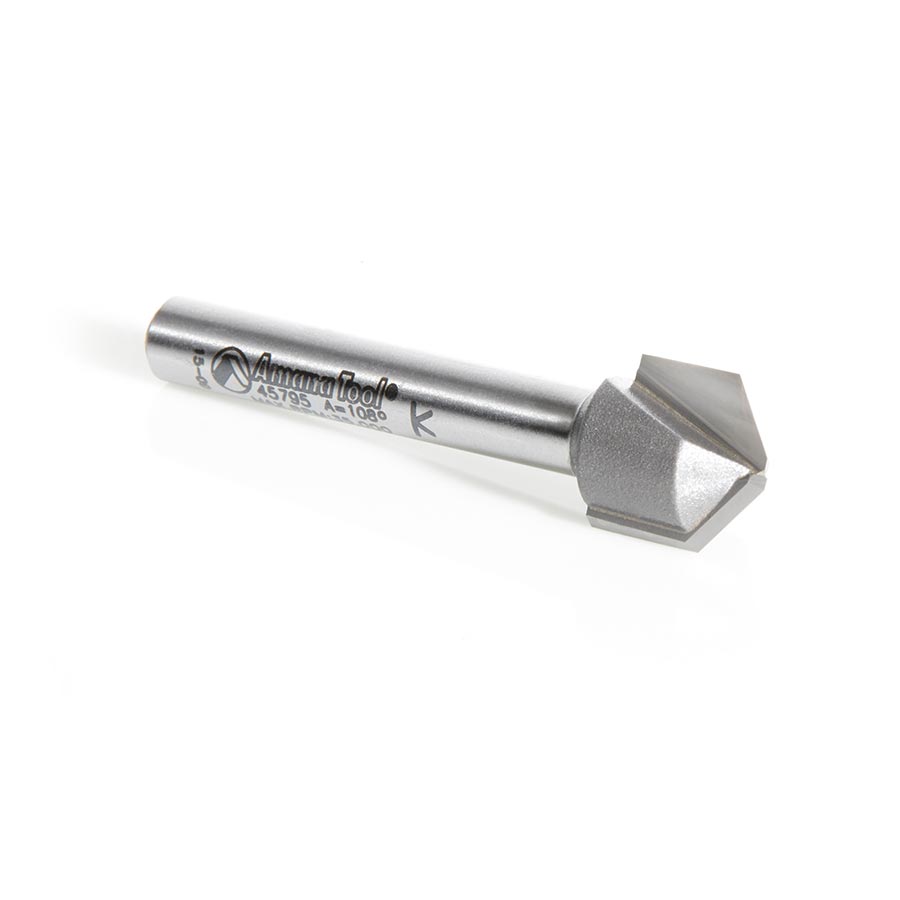

45795 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 5/32 x 1/2 Dia. x 1/4 Inch Shank

Amana 45795 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 5/32 x 1/2 Dia. x 1/4 Inch Shank

Name: Amana 45795 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 5/32 x 1/2 Dia. x 1/4 Inch Shank
SKU: Amana 45795
Availability: InStock

Original price was: $81.55.Current price is: $61.17.

108D .090″ V TIP ACM 1/4 SHANK

UPC: 738685457955 SKU: Amana 45795 Categories: Aluminum/Non Ferrous Metal Cutting Router Bits, Amana Tool, Router Bits

Item Description

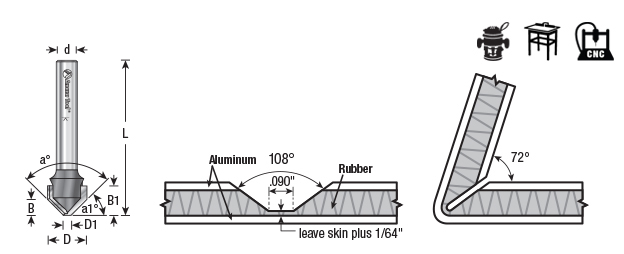

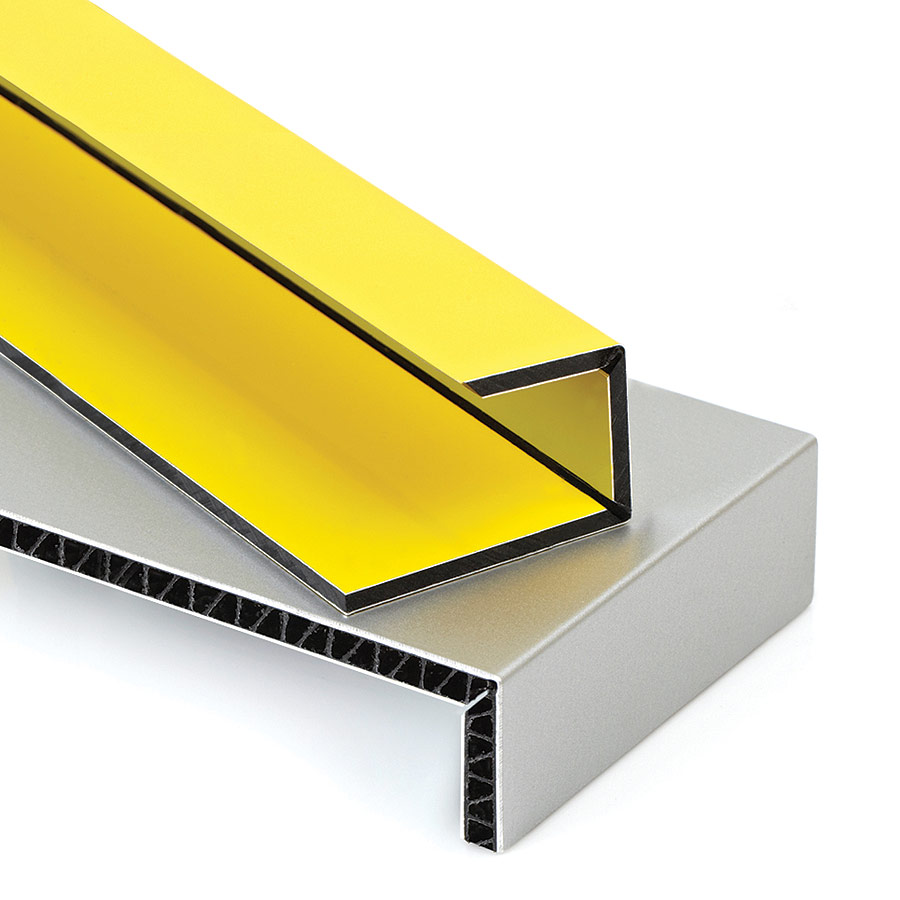

Designed for shaping Aluminum Composite (sandwich) Materials (ACM) with 108° angle V-grooves with flat bottoms. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Ideal for wall panel fabrication.

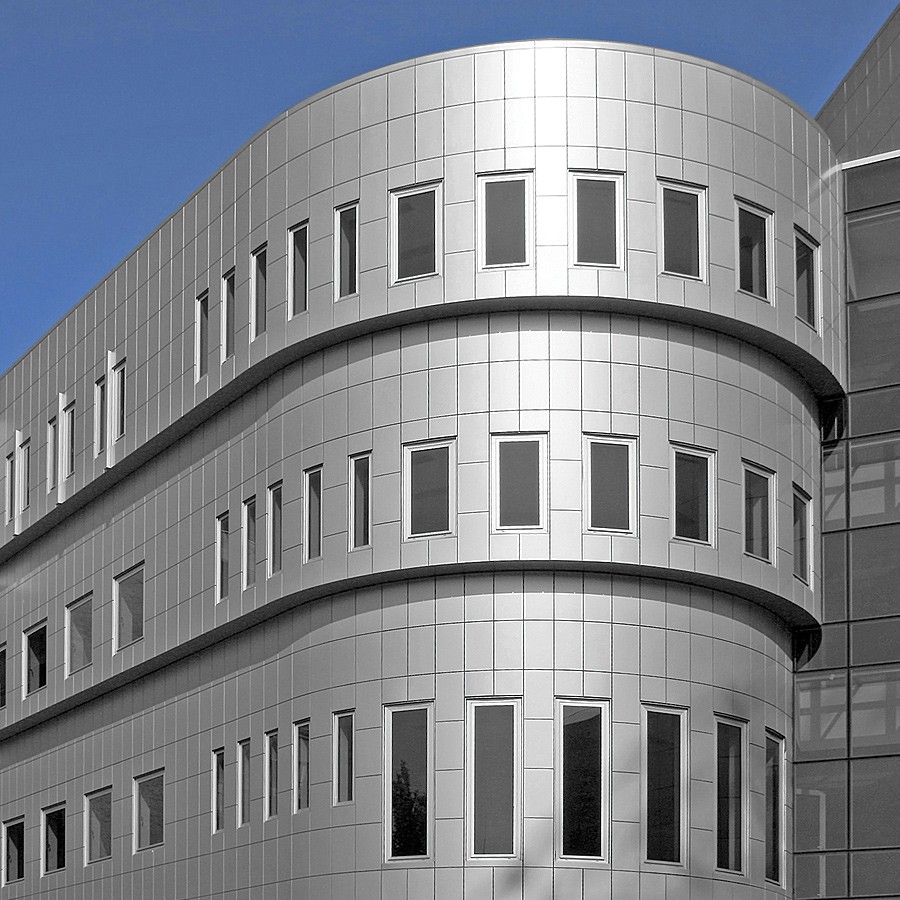

ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.

Designed for cutting and scoring aluminum sandwich materials including:

Acetate
Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
Aluminum 5052
Aluminum Composite Materials (ACM)
Aluminum Composite Panel (ACP)*
ALPOLIC® Copper Composite Material (CCM)
Alucobond®
Alupanel®
Bakelite
Dibond®
Durabond**

e-panel™
Etalbond®
Nylon
PE and FR Cores
Phenolics
Plastic/Acrylic
Plexiglas®
PVC
Thermoplastics
Titanium Composite Material (TCM)
Wood

Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.

Vectric and Fusion 360 compatible tool files for 45795 available for download, click here.

Specifications

Angle (a°)	108°
a1°	36°
Diameter (D)	1/2
D1	0.090"
Cutting Height (B)	5/32
B1	3/8
Shank (d)	1/4
Overall Length (L)	2
Max RPM	35,000
Type	Carbide Tipped V-Groove
Flutes	2

Other Sizes Available

Angle (a°)	a1°	Diameter (D)	D1	Cutting Height (B)	B1	Radius (R)	Shank (d)	Overall Length (L)	Type	Max RPM	Flutes	Tool No.
90°	45°	1/2 (12.70mm)	0.090"0.09	13/64 (5.16mm)	3/8 (9.53mm)	–	1/4 (6.35mm)	2-1/8	ZrN Coated V-Groove	28,000	2	45745
90°	45°	1/2 (12.70mm)	0.090"0.09	13/64 (5.16mm)	3/8 (9.53mm)	–	1/2 (12.70mm)	2-3/8	ZrN Coated V-Groove	28,000	2	45747
90°	45°	1/2 (12.70mm)	0.090"0.09	13/64 (5.16mm)	3/8 (9.53mm)	–	1/4 (6.35mm)	2-1/8	AlTiN Coated V-Groove	28,000	2	45762
90°	45°	1/2 (12.70mm)	0.090"0.09	13/64 (5.16mm)	3/8 (9.53mm)	–	1/2 (12.70mm)	2-3/8	AlTiN Coated V-Groove	28,000	2	45778
90°	45°	1/2 (12.70mm)	0.090"0.09	13/64 (5.16mm)	3/8 (9.53mm)	–	1/4 (6.35mm)	2 (50.80mm)	Carbide Tipped V-Groove	35,000	2	45792
90°	45°	1/2 (12.70mm)	0.090"0.09	13/64 (5.16mm)	3/8 (9.53mm)	–	1/4 (6.35mm)	2 (50.80mm)	Carbide Tipped V-Groove	35,000	2	45792-5
90°	45º	12.7mm	2.286mm	5.159375mm	9.525mm	–	6mm	50.8mm	Carbide Tipped V-Groove	35,000	2	45792-M
90°	45°	3/4 (19.05mm)	0.118"0.12	5/16 (7.94mm)	17/32 (13.49mm)	–	1/4 (6.35mm)	2-1/8	Carbide Tipped V-Groove	28,000	2	45793
90°	45°	1/2 (12.70mm)	0.090"0.09	13/64 (5.16mm)	3/8 (9.53mm)	–	1/2 (12.70mm)	2 (50.80mm)	Carbide Tipped V-Groove	28,000	2	45794
90°	45°	1/2 (12.70mm)	0.090"0.09	13/64 (5.16mm)	3/8 (9.53mm)	–	1/4 (6.35mm)	2 (50.80mm)	PCD Diamond V-Groove	20,000	2	DRB-450
90°	45°	1-1/2	0.090"0.09	45/64 (17.86mm)	1 (25.40mm)	–	1/2 (12.70mm)	3 (76.20mm)	Insert Carbide V-Groove	18,000	1	RC-1172
90°	45°	43/64 (17.07mm)	.090"0.09	19/64 (7.54mm)	27/64 (10.72mm)	–	1/2 (12.70mm)	2-9/32	Insert Carbide V-Groove	28,000	2	RC-45714
90°	45°	43/64 (17.07mm)	.090"0.09	19/64 (7.54mm)	27/64 (10.72mm)	–	1/4 (6.35mm)	2-9/32	Insert Carbide V-Groove	35,000	2	RC-45716
–	–	–	–	–	–	–	–	–	–	—-	—-	AMS-140
–	–	–	–	–	–	–	–	–	–	—-	—-	AMS-147
108°	36°	3/4 (19.05mm)	0.090"0.09	15/64 (5.95mm)	3/8 (9.53mm)	–	1/2 (12.70mm)	2-3/8	Carbide Tipped V-Groove	—-	2	45735
108°	36°	1/2 (12.70mm)	0.090"0.09	5/32 (3.97mm)	3/8 (9.53mm)	–	1/2 (12.70mm)	3 (76.20mm)	Carbide Tipped V-Groove	28,000	2	45736
108°	36°	1/2 (12.70mm)	0.090"0.09	5/32 (3.97mm)	3/8 (9.53mm)	–	1/4 (6.35mm)	2-1/8	AlTiN Coated V-Groove	28,000	2	45749
108°	36°	1/2 (12.70mm)	0.090"0.09	5/32 (3.97mm)	3/8 (9.53mm)	–	1/4 (6.35mm)	2-1/8	ZrN Coated V-Groove	28,000	2	45781
108°	36°	1/2 (12.70mm)	0.090"0.09	5/32 (3.97mm)	3/8 (9.53mm)	–	1/2 (12.70mm)	2-3/8	ZrN Coated V-Groove	28,000	2	45785
108°	36°	1/2 (12.70mm)	0.090"0.09	5/32 (3.97mm)	3/8 (9.53mm)	–	1/4 (6.35mm)	2 (50.80mm)	Carbide Tipped V-Groove	35,000	2	45795-5
108°	36°	1/2 (12.70mm)	0.090"0.09	5/32 (3.97mm)	3/8 (9.53mm)	–	1/2 (12.70mm)	2-3/64	Carbide Tipped V-Groove	28,000	2	45797
110°	35°	1-47/64	2mm	37/64 (14.68mm)	1 (25.40mm)	–	1/2 (12.70mm)	3-5/32	Insert Carbide V-Groove	18,000	1	RC-1175
135°	22.5°	3/4 (19.05mm)	0.078"0.08	1/8 (3.18mm)	1/2 (12.70mm)	–	1/4 (6.35mm)	2-1/4	ZrN Coated V-Groove	28,000	2	45741
135°	22.5°	3/4 (19.05mm)	0.078"0.08	1/8 (3.18mm)	1/2 (12.70mm)	–	1/2 (12.70mm)	2-1/2	ZrN Coated V-Groove	28,000	2	45743
135°	22.5°	3/4 (19.05mm)	0.078"0.08	1/8 (3.18mm)	1/2 (12.70mm)	–	1/2 (12.70mm)	2-1/2	Carbide Tipped V-Groove	28,000	2	45791
135°	22.5°	3/4 (19.05mm)	0.078"0.08	9/64 (3.57mm)	1/2 (12.70mm)	–	1/4 (6.35mm)	2-1/4	Carbide Tipped V-Groove	28,000	2	45798
155°	77.5°	3/4 (19.05mm)	0.118"0.12	1/8 (3.18mm)	1/2 (12.70mm)	–	1/2 (12.70mm)	2-1/2	Carbide Tipped V-Groove	28,000	2	45737

Weight	0.05 lbs
