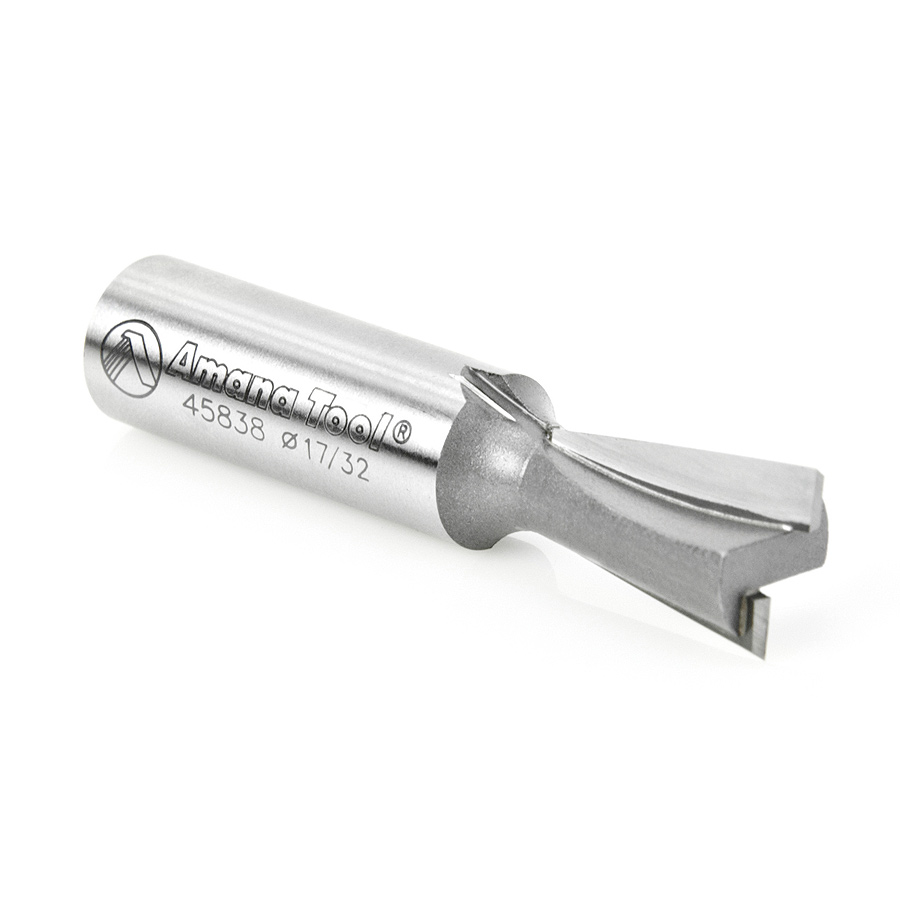

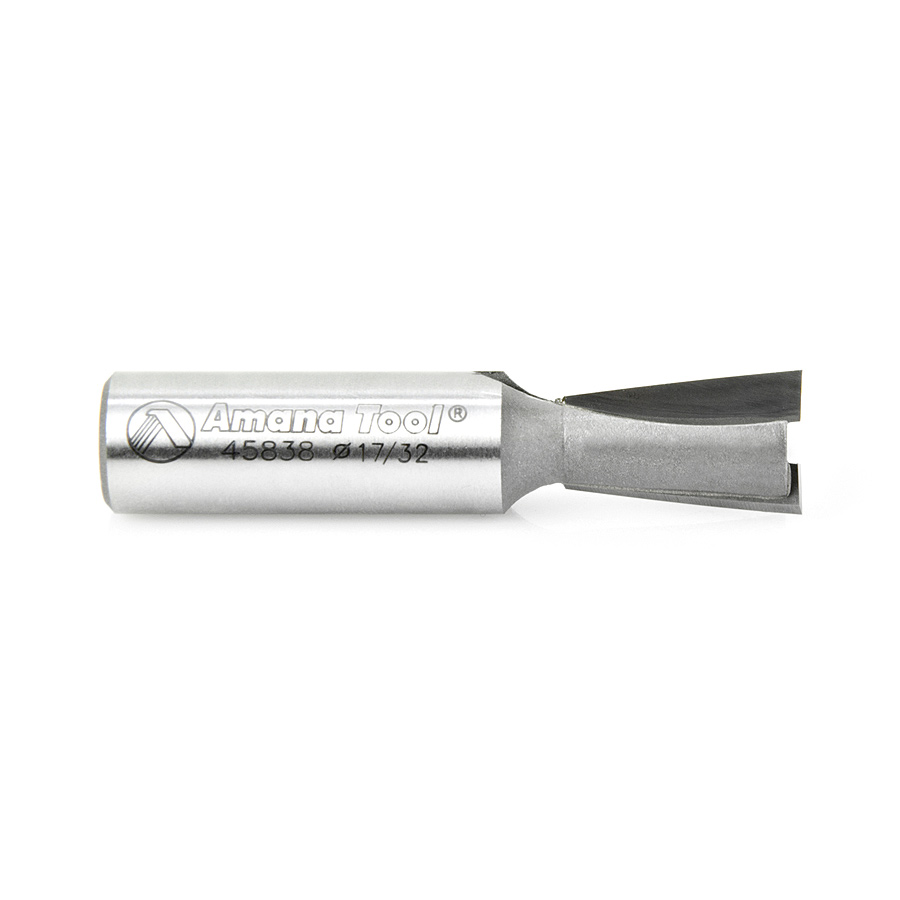

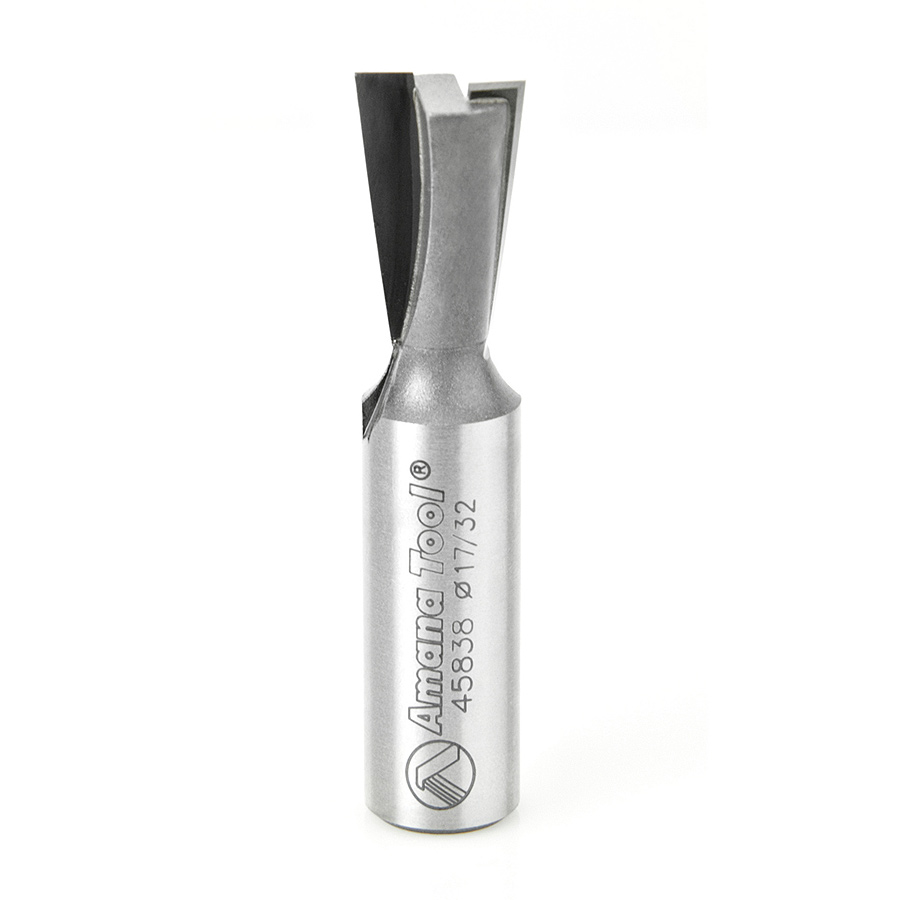

45838 Carbide Tipped Dovetail 7 Deg x 17/32 Dia x 13/16 x 1/2 Inch Shank

Amana 45838 Carbide Tipped Dovetail 7 Deg x 17/32 Dia x 13/16 x 1/2 Inch Shank

Name: Amana 45838 Carbide Tipped Dovetail 7 Deg x 17/32 Dia x 13/16 x 1/2 Inch Shank
SKU: Amana 45838
Availability: InStock

Original price was: $33.05.Current price is: $24.79.

DOVETAIL 17/32″ DIA 1/2 SHANK

UPC: 738685098387 SKU: Amana 45838 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

For the Keller™ Dovetail Templates and certain Incra® applications, 7° dovetail bits are required. (Bits for the Keller™ system are supplied with shank-mounted bearings.) This angle is also used in cutting stair stringers.

Specifications

Angle (a°)	7°
Diameter (D)	17/32
Cutting Height (B)	13/16
Shank (d)	1/2
Overall Length (L)	2-3/8
Flutes	2
Application	Porter Cable® Jig 4210 & 4212

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Application	Tool No.
6.24°	9/32 (7.14mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-13/32	2	4212	45837
7°	5/8 (15.88mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-5/8	2	Incra®Incra®Incra®Incra®	45808
7°	3/4 (19.05mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-5/8	2	Incra®Incra®Incra®Incra®	45810
7°	7/8 (22.23mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-1/2	2	Stair	45812
7°	1/2 (12.70mm)	25/32 (19.84mm)	1/2 (12.70mm)	3-1/8	2	Omnijig®	45831

Weight	0.12 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
