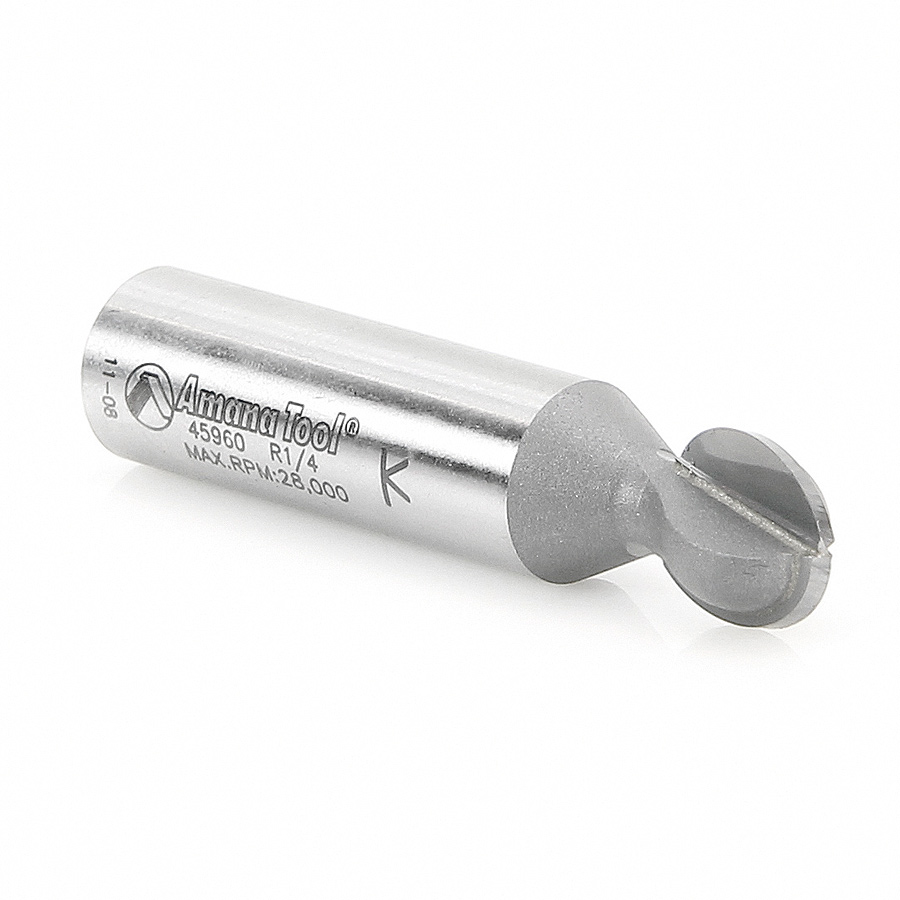

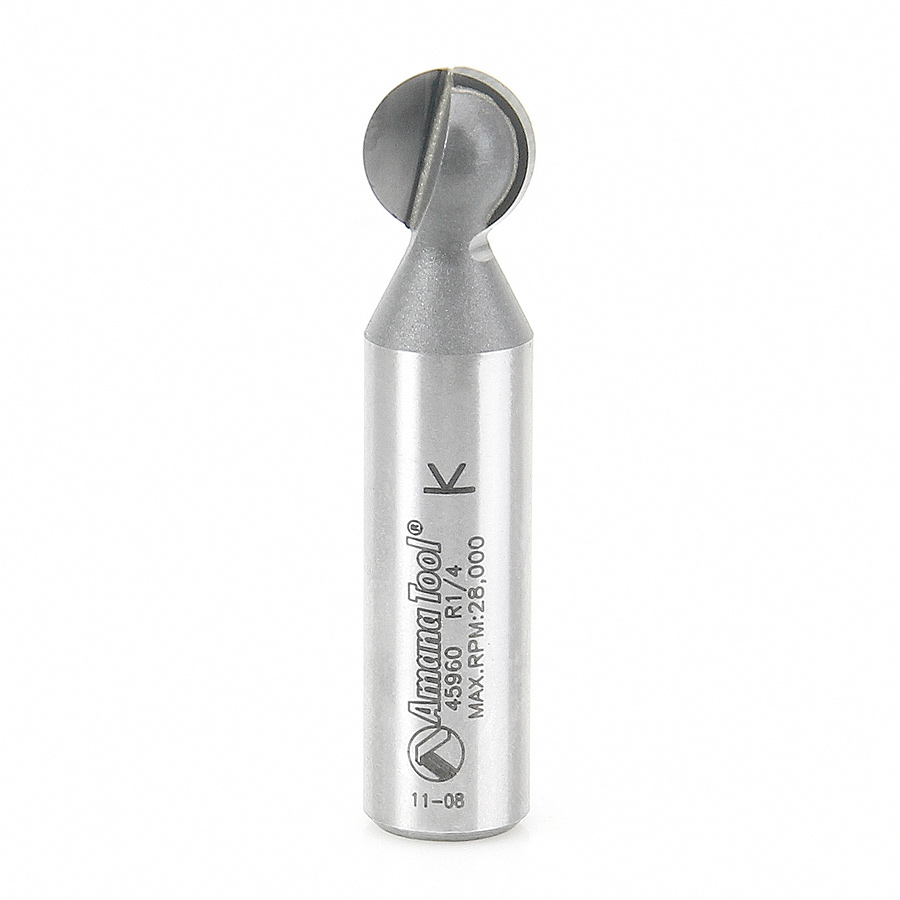

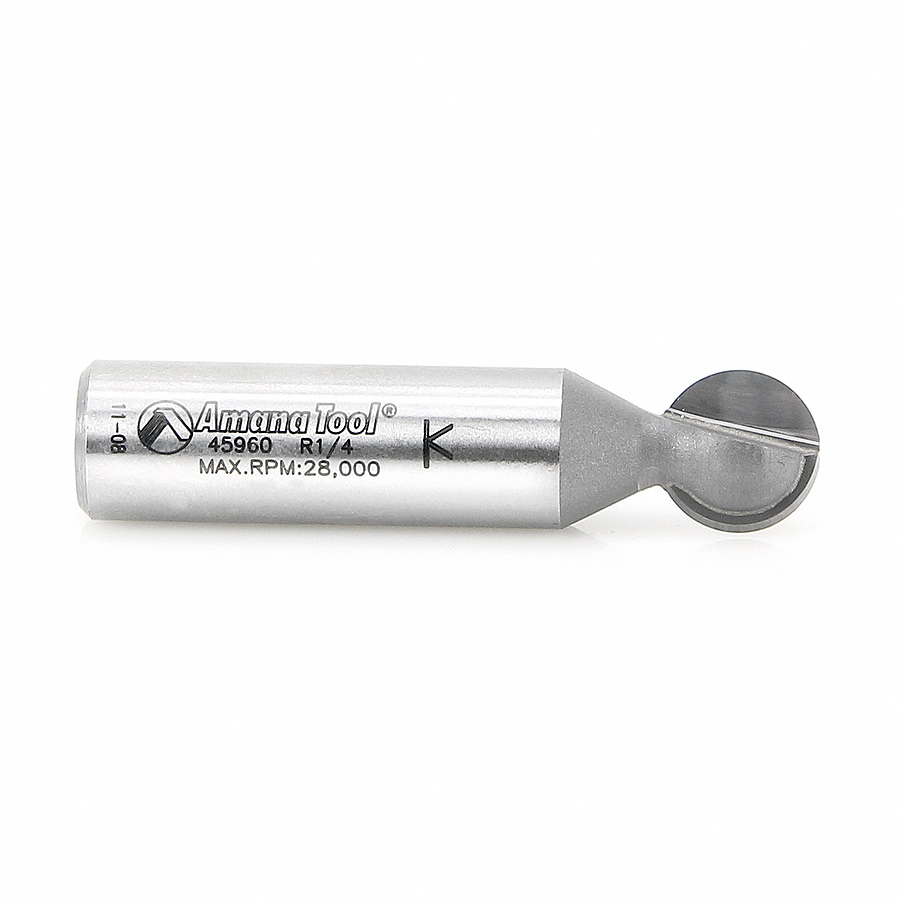

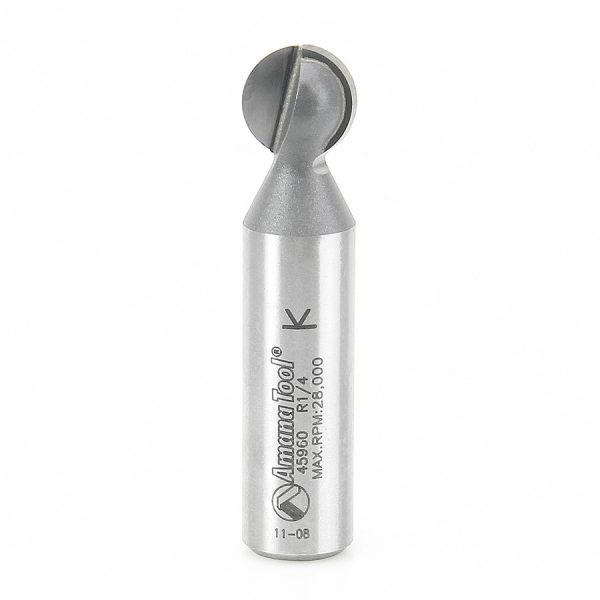

45960 Carbide Tipped Ball End 1/4 Radius x 7/16 Dia x 1/2 x 1/2 Inch Shank

Amana 45960 Carbide Tipped Ball End 1/4 Radius x 7/16 Dia x 1/2 x 1/2 Inch Shank

Name: Amana 45960 Carbide Tipped Ball End 1/4 Radius x 7/16 Dia x 1/2 x 1/2 Inch Shank
SKU: Amana 45960
Availability: InStock

Original price was: $51.25.Current price is: $38.44.

PLUNGE BALL 1/2 DIA. 1/2 SHANK

UPC: 738685859605 SKU: Amana 45960 Categories: Amana Tool, Ball End Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.

Note:** Profile is useful as a ‘conduit’ for cables, pipes, etc.

Vectric compatible tool file for 45960 available for download,click here.

Specifications

Diameter (D)	1/2
D1	1/4
Radius (R)	1/4
Cutting Height (B)	7/16
Shank (d)	1/2
Overall Length (L)	2-1/4
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
5/8 (15.88mm)	9/32 (7.14mm)	5/16 (7.94mm)	9/16 (14.29mm)	1/2 (12.70mm)	2-3/8	2	45962
3/4 (19.05mm)	5/16 (7.94mm)	3/8 (9.53mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-1/2	2	45964
1 (25.40mm)	11/32 (8.73mm)	1/2 (12.70mm)	15/16 (23.81mm)	1/2 (12.70mm)	2-3/4	2	45968
–	–	–	–	1/2 (12.70mm)	–	—-	AMS-557

Weight	0.12 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
