Sale!

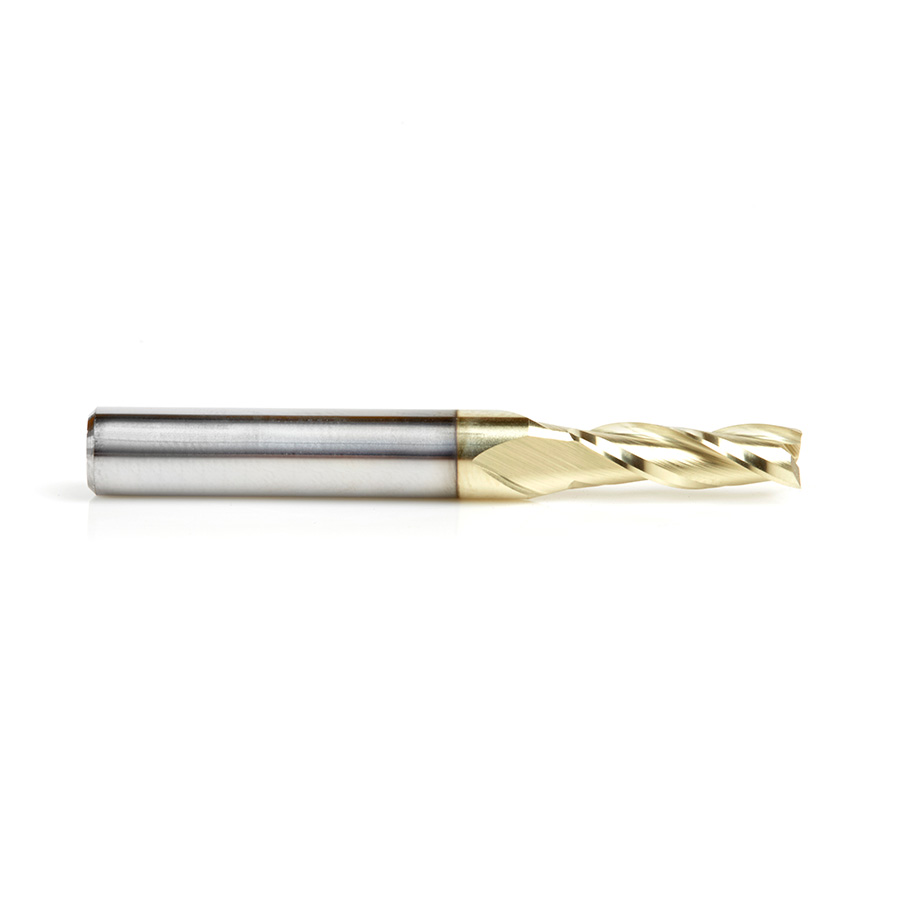

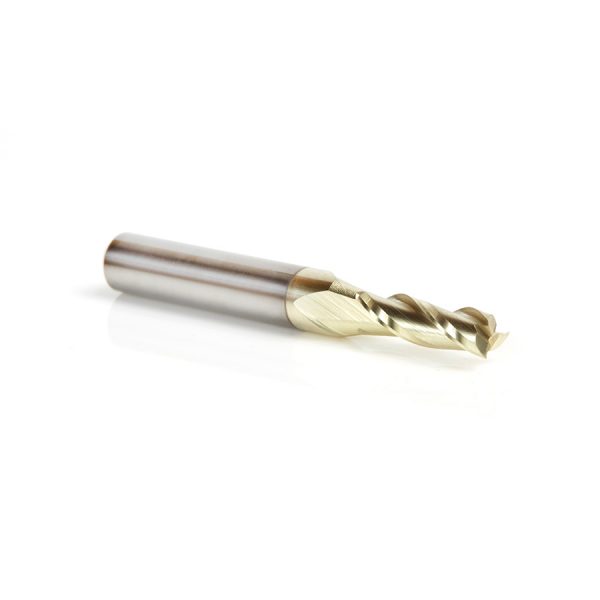

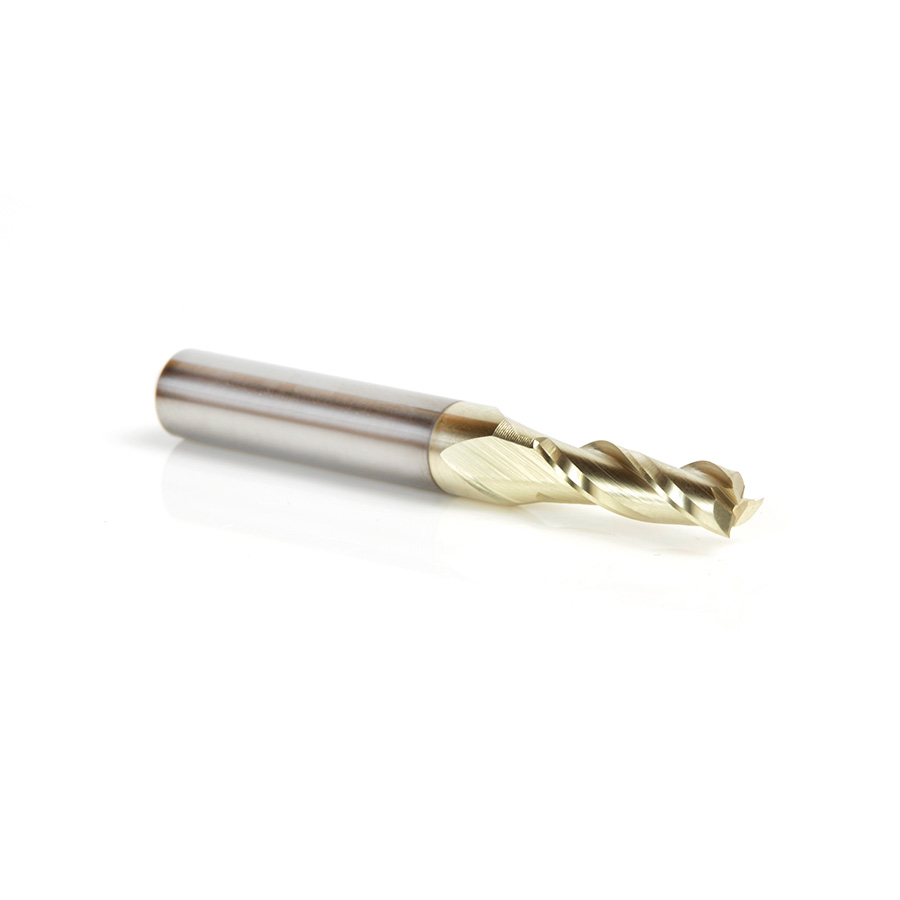

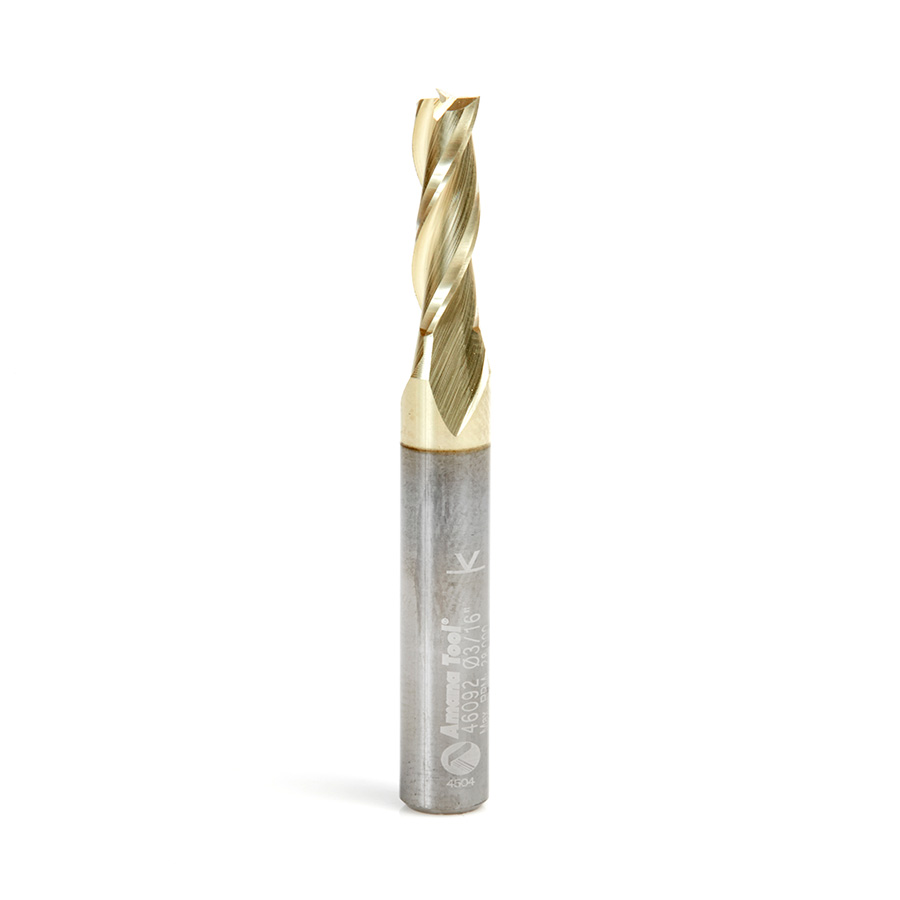

46092 Solid Carbide Up-Cut Spiral 3/16 Dia x 5/8 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit

Amana 46092 Solid Carbide Up-Cut Spiral 3/16 Dia x 5/8 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit

Name: Amana 46092 Solid Carbide Up-Cut Spiral 3/16 Dia x 5/8 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass &amp; Phenolic Cutting ZrN Coated Router Bit
SKU: Amana 46092
Availability: InStock

Original price was: $61.65.Current price is: $46.24.

3/16 FIBERGLASS, COMPOSITE 3FL

UPC: 738685460924 SKU: Amana 46092 Categories: Amana Tool, CNC Router Bits, Composite, Fiberglass & Phenolic Cutting CNC Router Bits, Solid Carbide Spiral Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bits

Item Description

Amana Tool®’s Modern Materials Finishing Geometry (MMFG) incorporates high shear, multi-flute and a ZrN coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring ZrN ceramic coating addresses these challenges with a winning geometry combination.

Excellent for cutting:

Plastic
Acrylic Stone
Aluminum
Acrylonitrile-Butadiene-Styrene (ABS)
Carbon Fiber Reinforced Polymer (CFRP)
Composite
Corian
Coroplast®*
Fiberglass

Fiberglass PCB Board
HDPE
High Impact Polystyrene (HIPS)
Low Density Polyethylene (LDPE)
Phenolics
Poly (methyl methacrylate) (PMMA)
Polycarbonate (Lexan™)†
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Thermoplastic Polyolefin (TPO)

A soft plastic cardboard made with super soft super flexible PVC.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

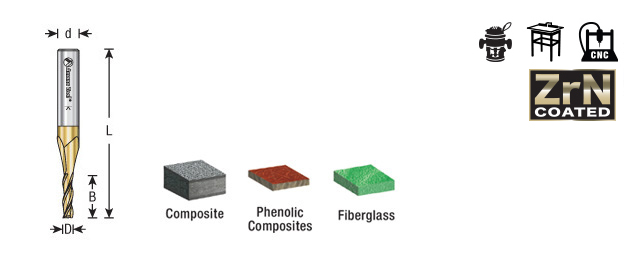

Specifications

Direction	Up-Cut
(D) Diameter	3/16
(B) Cutting Height	5/8
(d) Shank	1/4
Overall Length (L)	2-1/2
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	Up-Cut	46040
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	3	Up-Cut	46090
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	3	Up-Cut	46091
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	2	Up-Cut	46042
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46043
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	3	Up-Cut	46094
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	3	Down-Cut	46097
3/8 (9.53mm)	7/8 (22.23mm)	3/8 (9.53mm)	2-1/2	2	Up-Cut	46045
1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	2	Up-Cut	46047

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
