46098 Solid Carbide Medium Burr with 135 Degree Drill Point Fiberglass and Composite Cutting 1/4 Dia x 3/4 x 1/4 Shank Router Bit

Amana 46098 Solid Carbide Medium Burr with 135 Degree Drill Point Fiberglass and Composite Cutting 1/4 Dia x 3/4 x 1/4 Shank Router Bit

Original price was: $62.30.Current price is: $46.73.

FIBERGLASS BIT 1/4 DIA. FINE

Item Description

Amana Tool’s FiberGlass Router (FGR) burs incorporate reciprocating diamond-fluted geometry strong negative rake angles and generous fluting to provide the best cutting action in a wide variety of woven resin bond fiberglass and composite materials.

Combining the proven performance of a diamond-cut geometry with the capacity to plunge while leaving a minimum of top-side burr. 135º drillpoint minimizes part deflection on thin or otherwise unsupported workpieces.

Excellent for Cutting:

Carbon Fiber
Edging and Slotting All Carbon Fiber Reinforced Polymer – Plastic Materials (CFRP)
Composite Materials
Fiberglass
Fiberglass PCB Board
Fiber Reinforced Plastic (FRP)
Glass Reinforced Plastic (GRP)

G10 / FR-4 and G11 / FR-5 Glass Epoxy Composite Laminate Material
Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
Phenolic
Thermoset Composites
Thermosetting Plastics

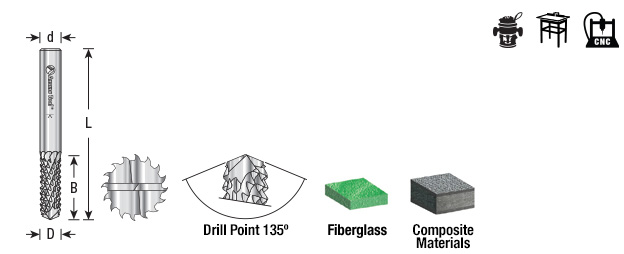

Specifications

(D) Diameter	1/4
(B) Cutting Height	3/4
(d) Shank	1/4
Overall Length (L)	2
Type	Drill End

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Type	Tool No.
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Drill End	48001

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
