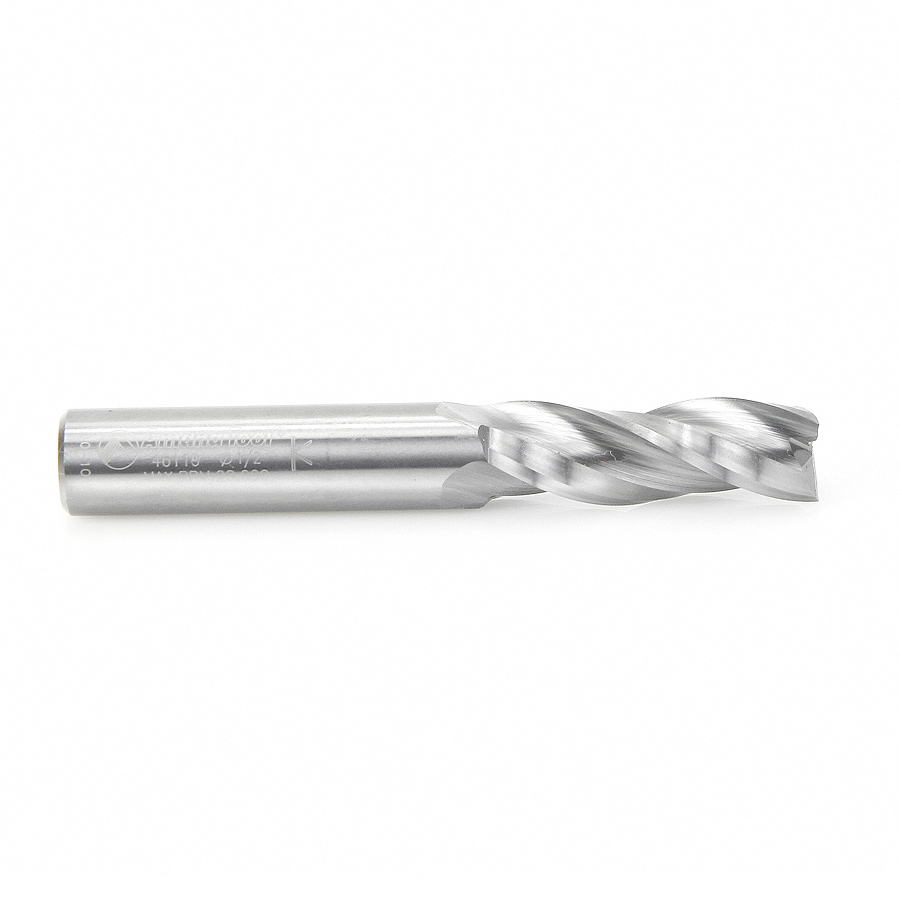

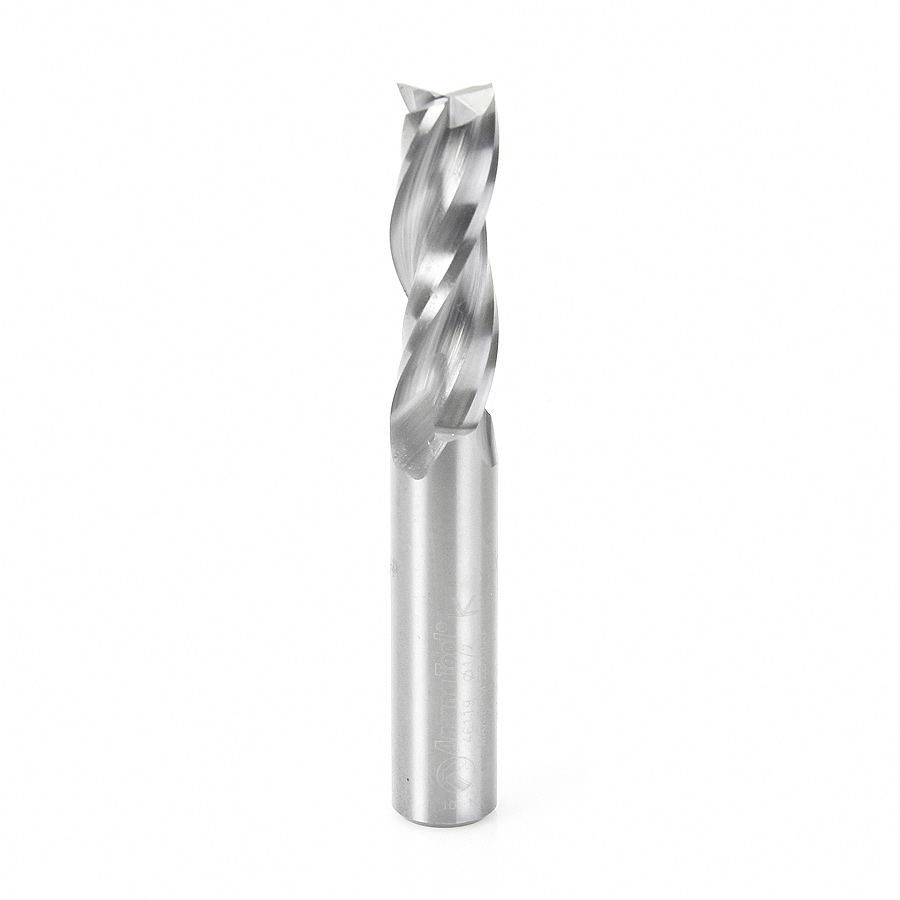

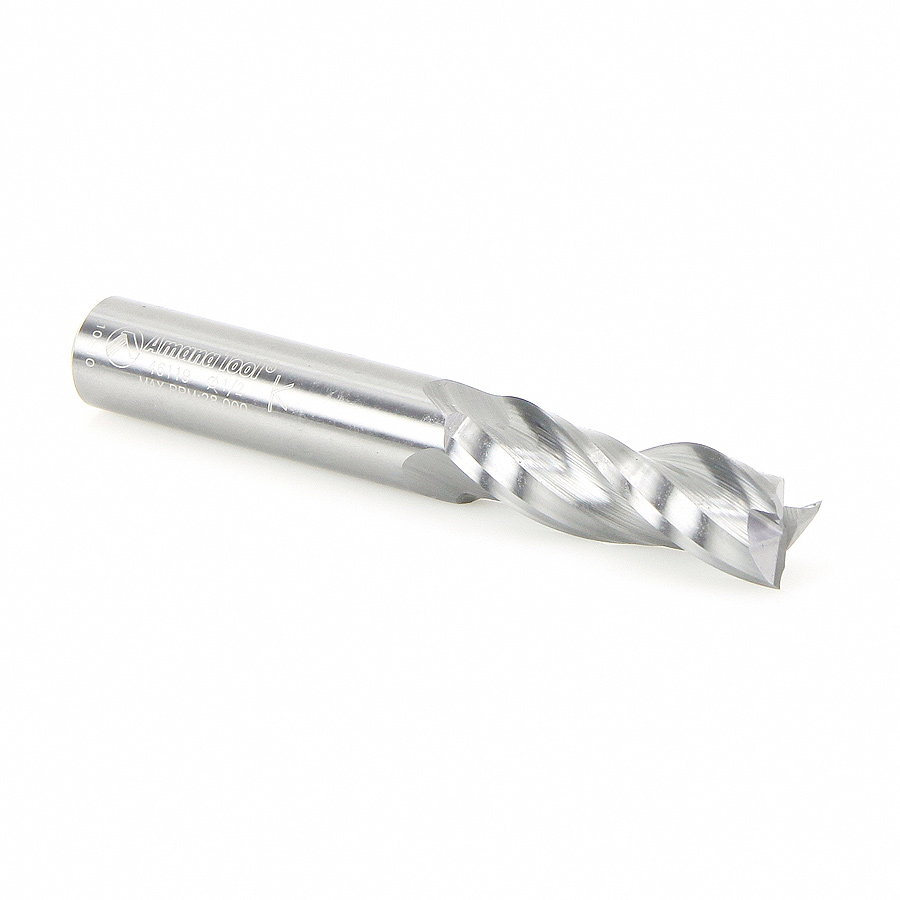

46116 Solid Carbide Spiral Plunge 1/2 Dia x 1-1/2 x 1/2 Inch Shank Up-Cut, 3-Flute

Amana 46116 Solid Carbide Spiral Plunge 1/2 Dia x 1-1/2 x 1/2 Inch Shank Up-Cut, 3-Flute

Name: Amana 46116 Solid Carbide Spiral Plunge 1/2 Dia x 1-1/2 x 1/2 Inch Shank Up-Cut, 3-Flute
SKU: Amana 46116
Availability: InStock

Original price was: $175.45.Current price is: $131.59.

SOLID CARBIDE SPIRAL 1/2″ DIA.

UPC: 738685461167 SKU: Amana 46116 Categories: Amana Tool, CNC Router Bits, Solid Carbide Spiral 3 Flute Plunge CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Great for production settings and excellent for creating grooves and dado cuts in softwood hardwood plywood and composite materials. ‘Up-Cut’ spiral. Three-flute design for very high quality finish.

Recommended RPM 20,000-21,000.

Vectric and Fusion 360 tool files for 46116 available for download,click here.

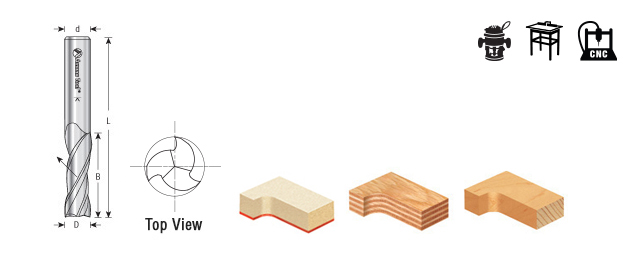

Specifications

Direction	Up-Cut
(D) Diameter	1/2
(B) Cutting Height	1-1/2
(d) Shank	1/2
Overall Length (L)	3-1/2
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	3	Up-Cut	46114
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	3	Down-Cut	46214
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	3	Down-Cut	46214-5
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	3	Up-Cut	46118
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-1/2	3	Down-Cut	46216
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	3	Down-Cut	46218

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
