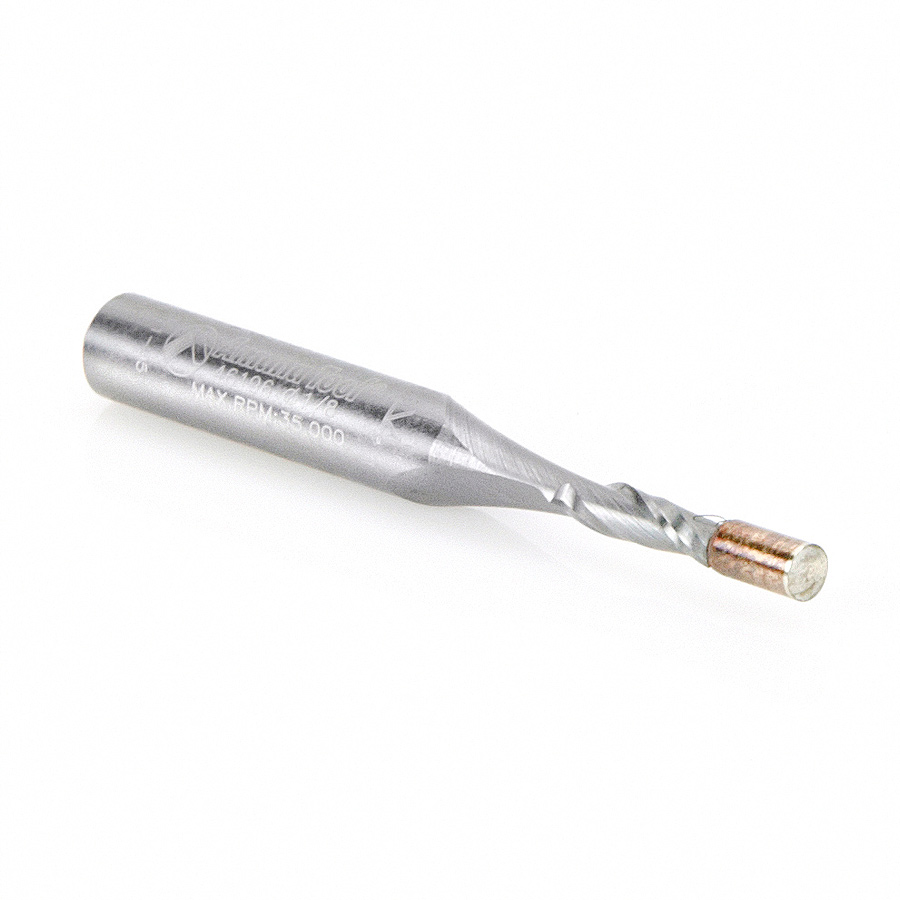

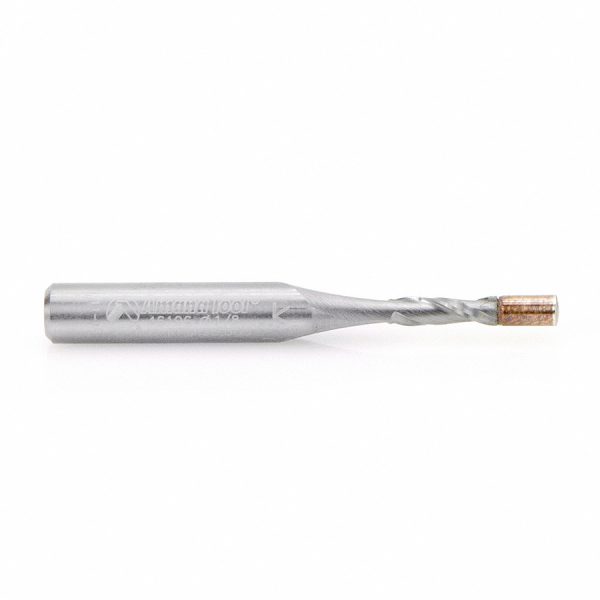

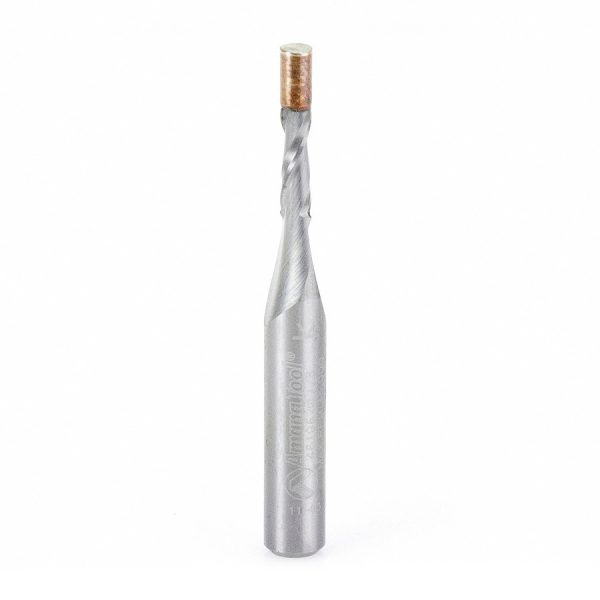

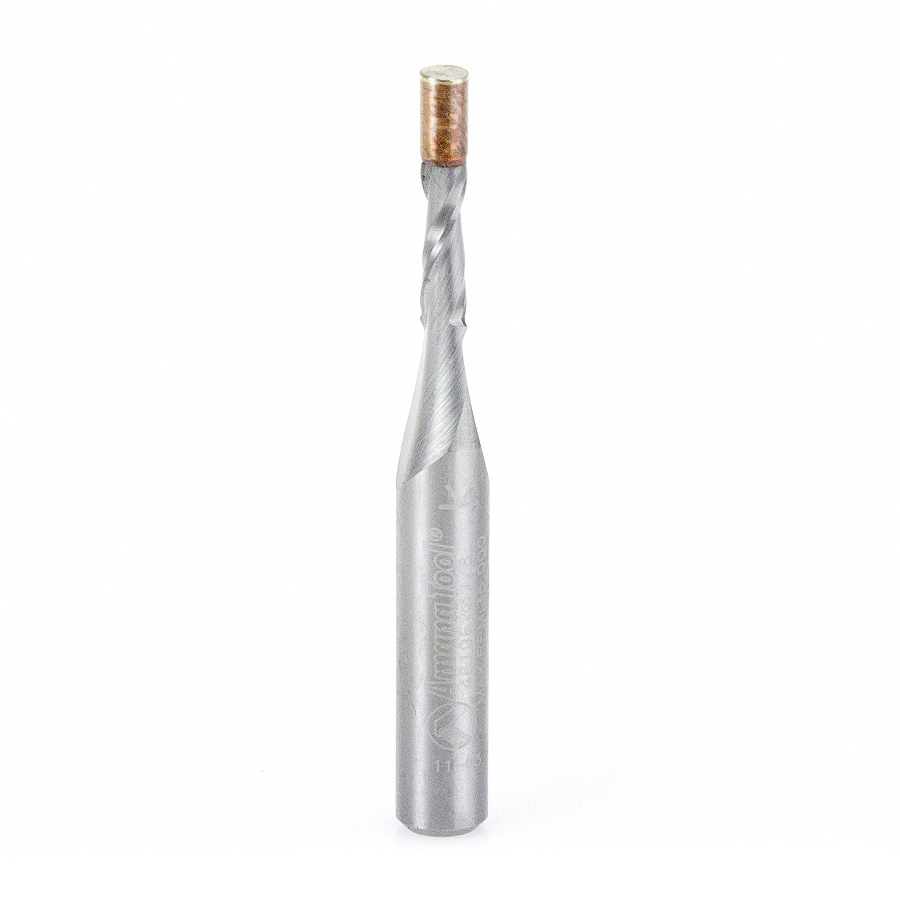

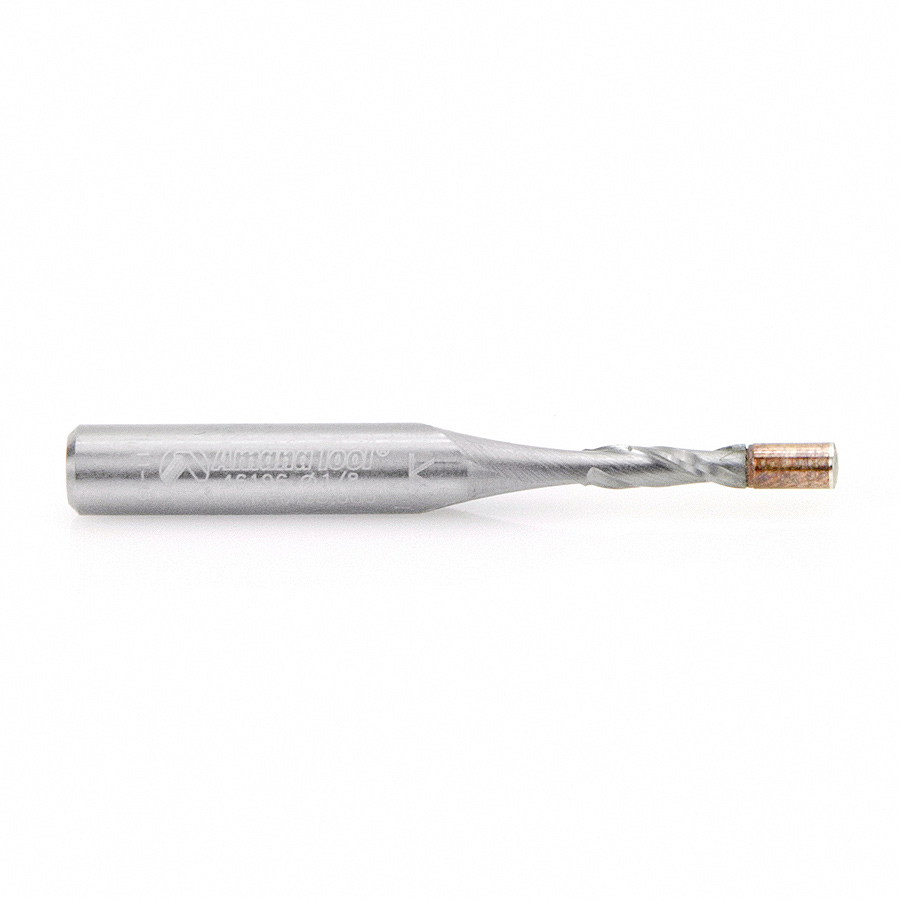

46196 Solid Carbide UltraTrim Spiral 1/8 Dia x 3/8 x 1/4 Inch Shank with Brass Pilot Guide Up-Cut

Amana 46196 Solid Carbide UltraTrim Spiral 1/8 Dia x 3/8 x 1/4 Inch Shank with Brass Pilot Guide Up-Cut

Name: Amana 46196 Solid Carbide UltraTrim Spiral 1/8 Dia x 3/8 x 1/4 Inch Shank with Brass Pilot Guide Up-Cut
SKU: Amana 46196
Availability: InStock

Original price was: $102.45.Current price is: $76.84.

S.C SPIRAL FLUSH TRIM 1/8″D UP

UPC: 738685946190 SKU: Amana 46196 Categories: Amana Tool, Router Bits, Solid Carbide Ultratrim Sprial Trim Router Bits, Trimming Router Bits

Item Description

This Spiral flush trim bit is used for acrylic, wood and MDF up to a 1/4″ thick, for getting into tight corners with a small radius and great for cleaning out your edges. Due to extremely small cutting diameter this bit is not guaranteed. Brass pilot guide.

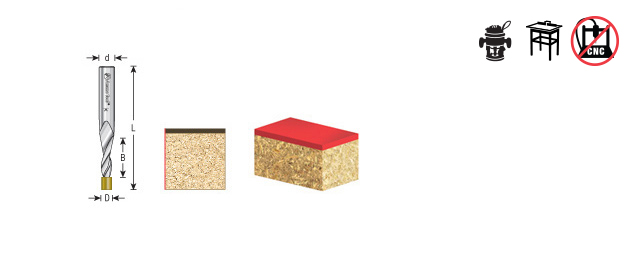

Specifications

Direction	Up-Cut
Diameter (D)	1/8
Cutting Height (B)	3/8
Shank (d)	1/4
Overall Length (L)	2
Type	Up-Cut

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Direction	Tool No.
1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	Down-Cut	46296
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	Up-Cut	46197
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	Down-Cut	46297
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	Down-Cut	46297-5

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
