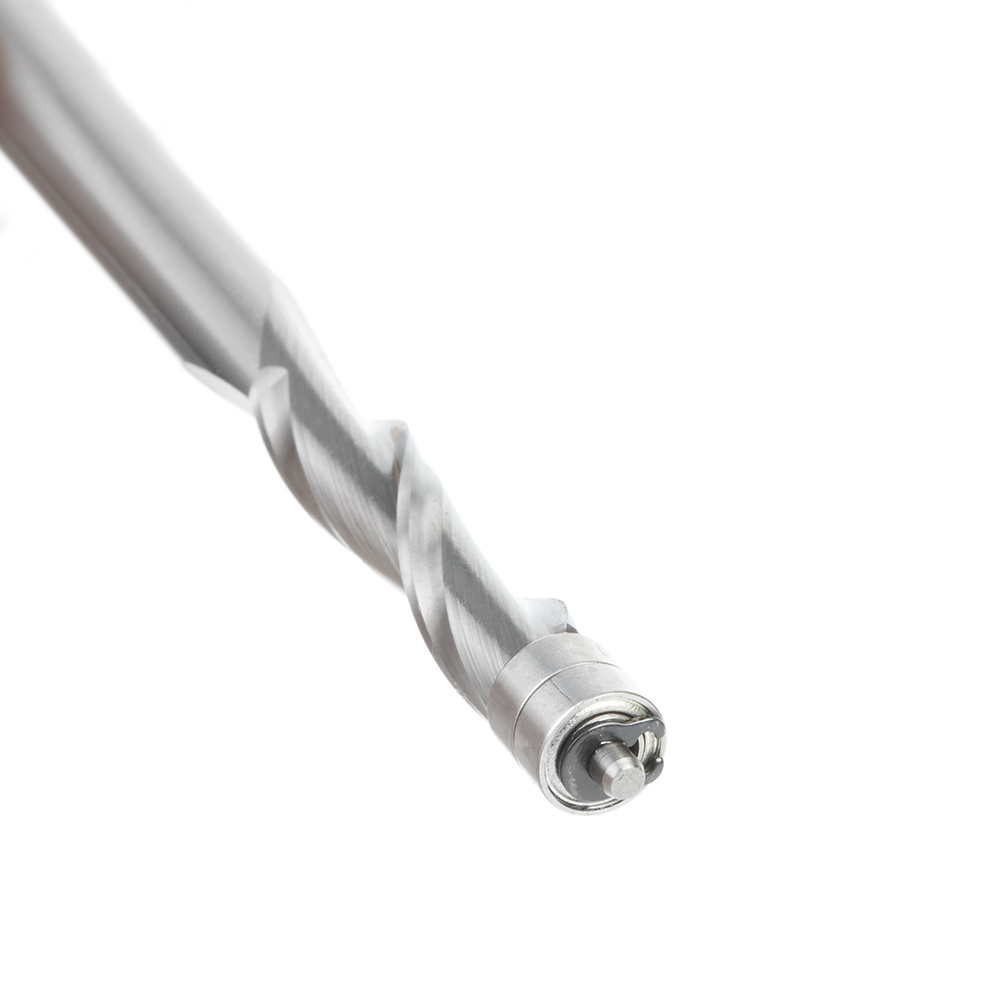

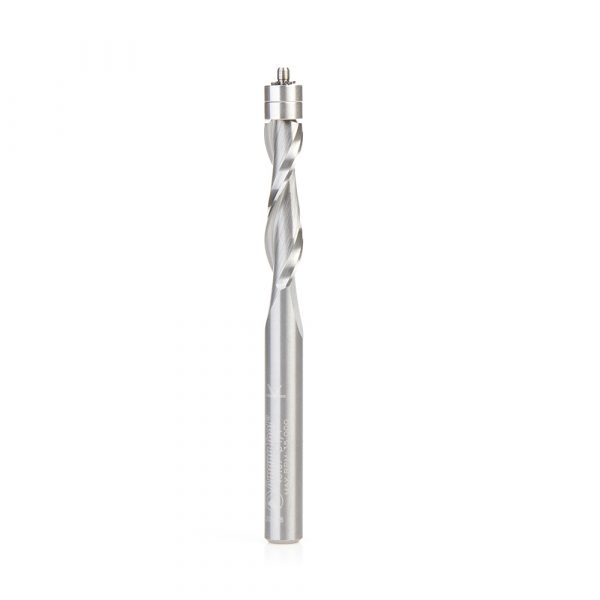

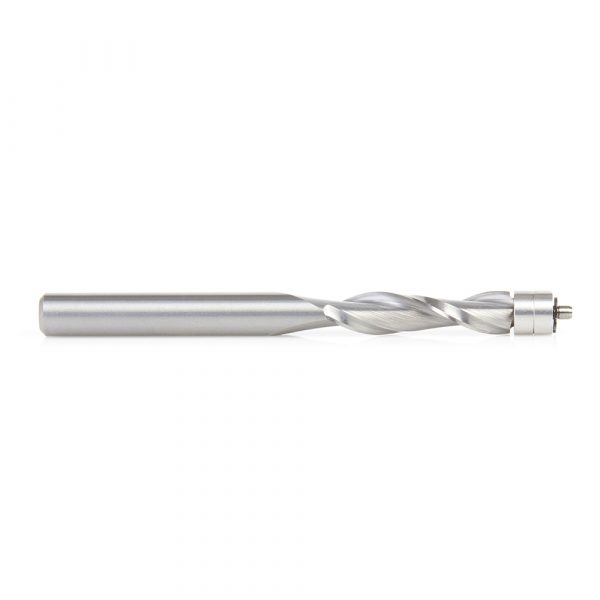

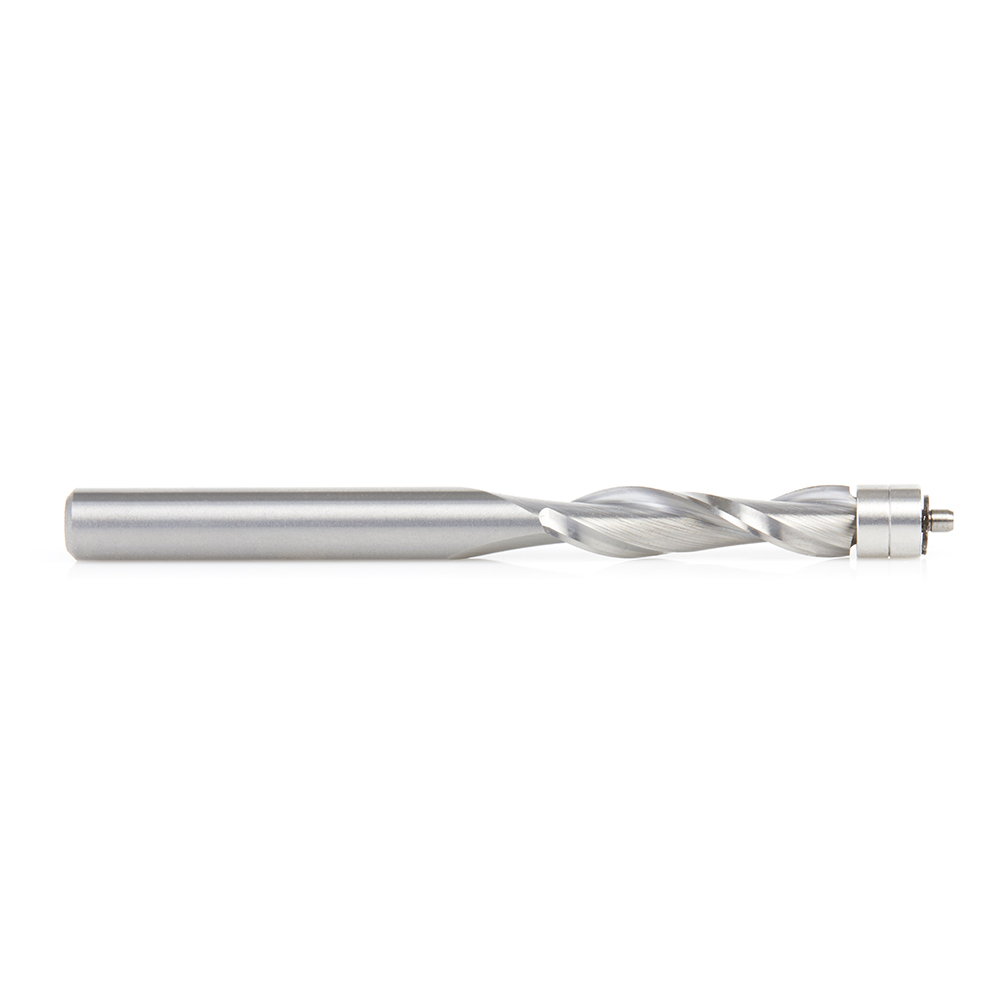

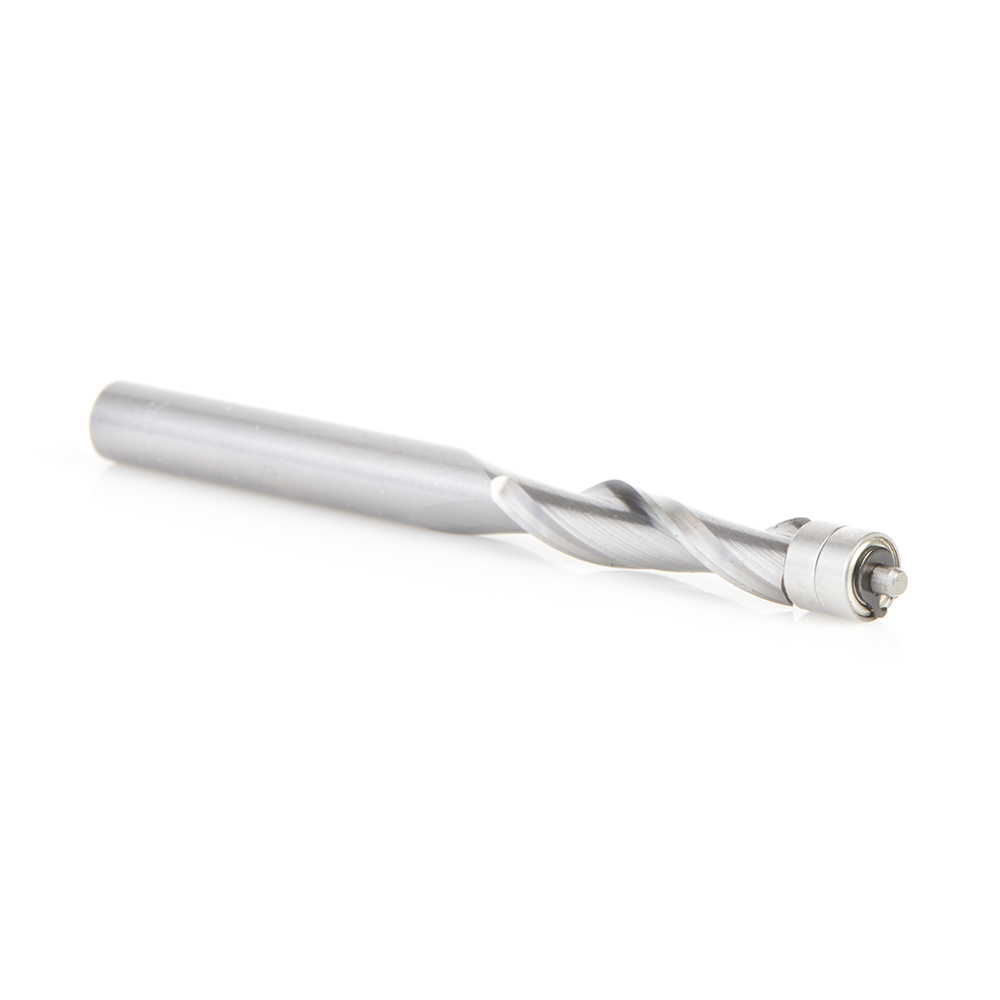

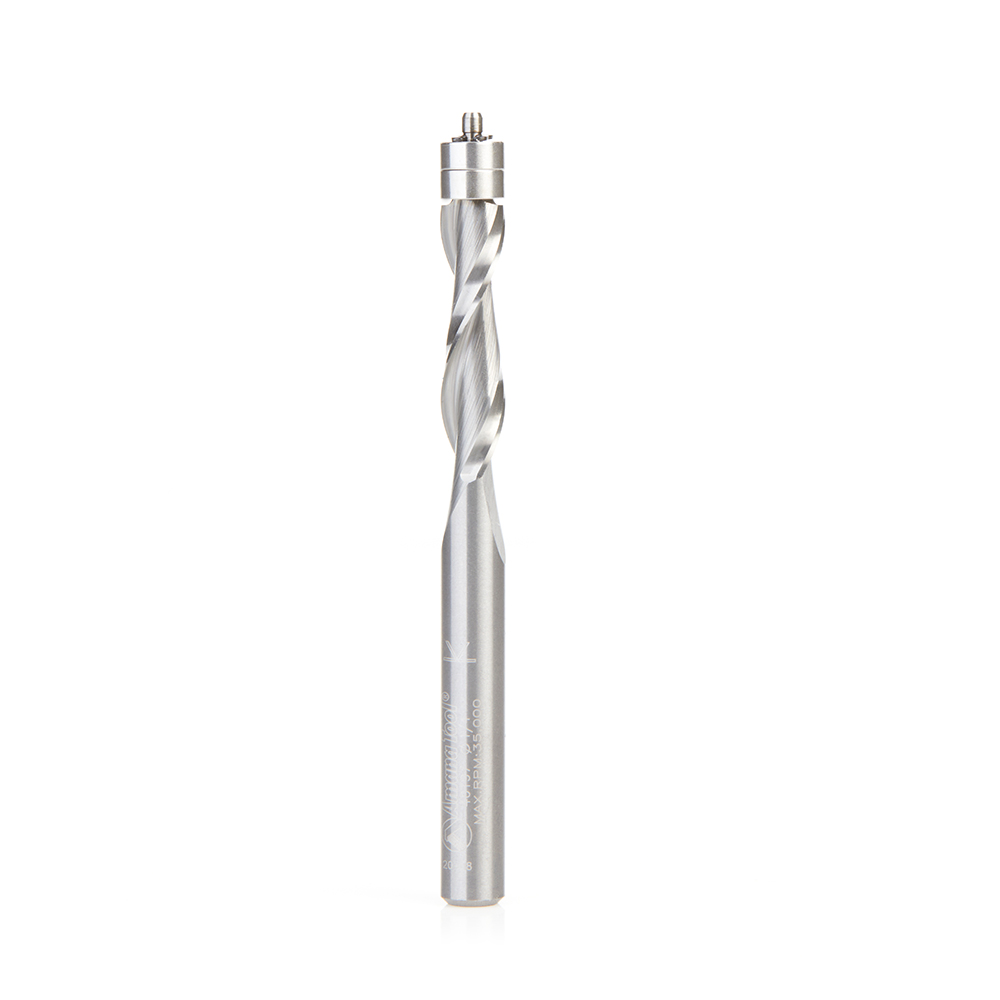

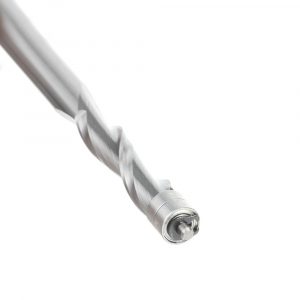

46197 Solid Carbide UltraTrim Spiral 1/4 Dia x 1 Inch x 1/4 Shank with Double Ball Bearing Up-Cut

Amana 46197 Solid Carbide UltraTrim Spiral 1/4 Dia x 1 Inch x 1/4 Shank with Double Ball Bearing Up-Cut

Name: Amana 46197 Solid Carbide UltraTrim Spiral 1/4 Dia x 1 Inch x 1/4 Shank with Double Ball Bearing Up-Cut
SKU: Amana 46197
Availability: InStock

Original price was: $128.10.Current price is: $96.08.

S.C SPIRAL FLUSH TRIM 1/4″D UP

UPC: 738685461976 SKU: Amana 46197 Categories: Amana Tool, Router Bits, Solid Carbide Ultratrim Sprial Trim Router Bits, Trimming Router Bits

Item Description

This spiral flush trim bit is mainly used for acrylic, wood and MDF up to a 1/2″ thickness. Double ball bearing pressed.

Replacement Parts

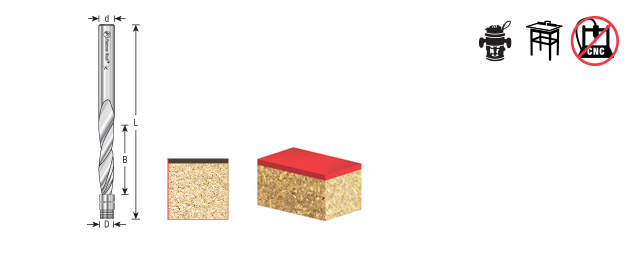

Specifications

Direction	Up-Cut
Diameter (D)	1/4
Cutting Height (B)	1
Shank (d)	1/4
Overall Length (L)	3
Type	Up-Cut
Replacement Bearing	47723 (2)
Locking Ring	47779

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Direction	Tool No.
1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	46196
1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	Down-Cut	46296
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	Down-Cut	46297
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	Down-Cut	46297-5

Weight	0.08 lbs
