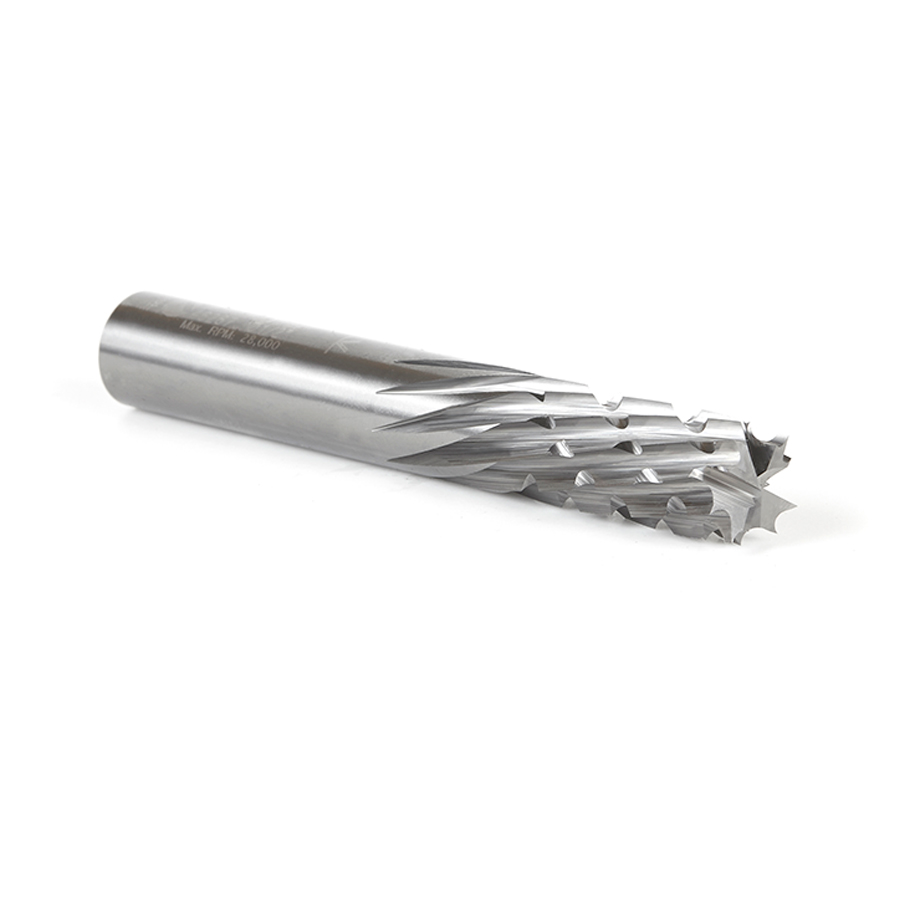

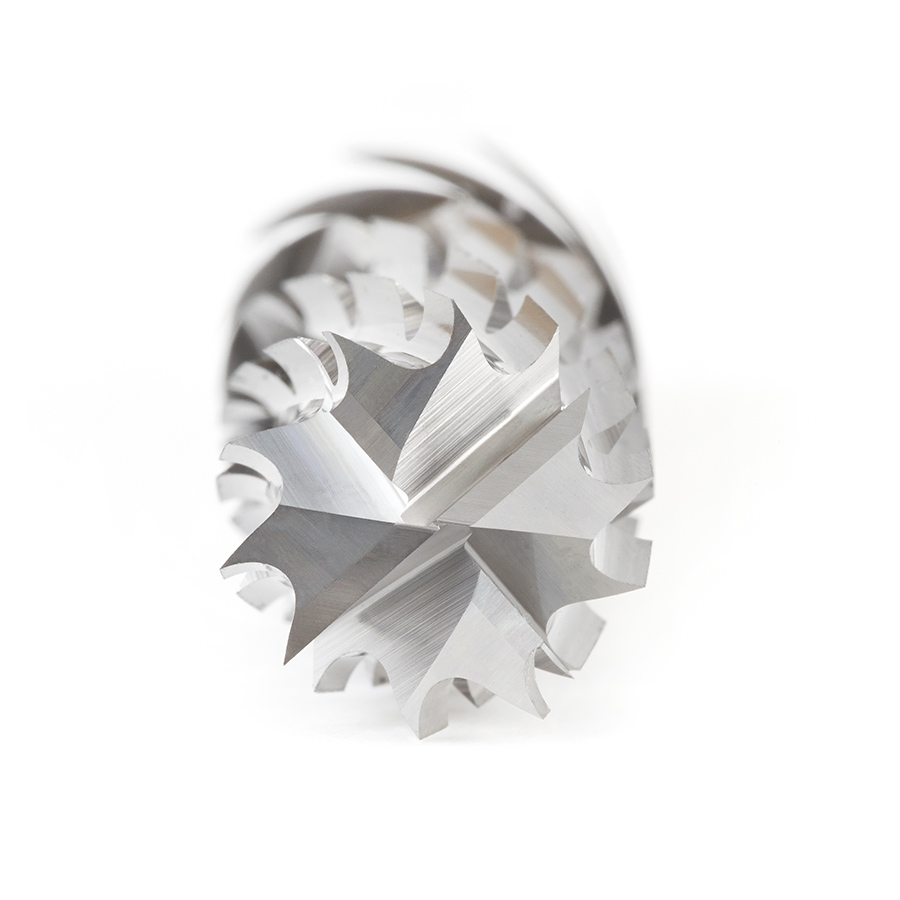

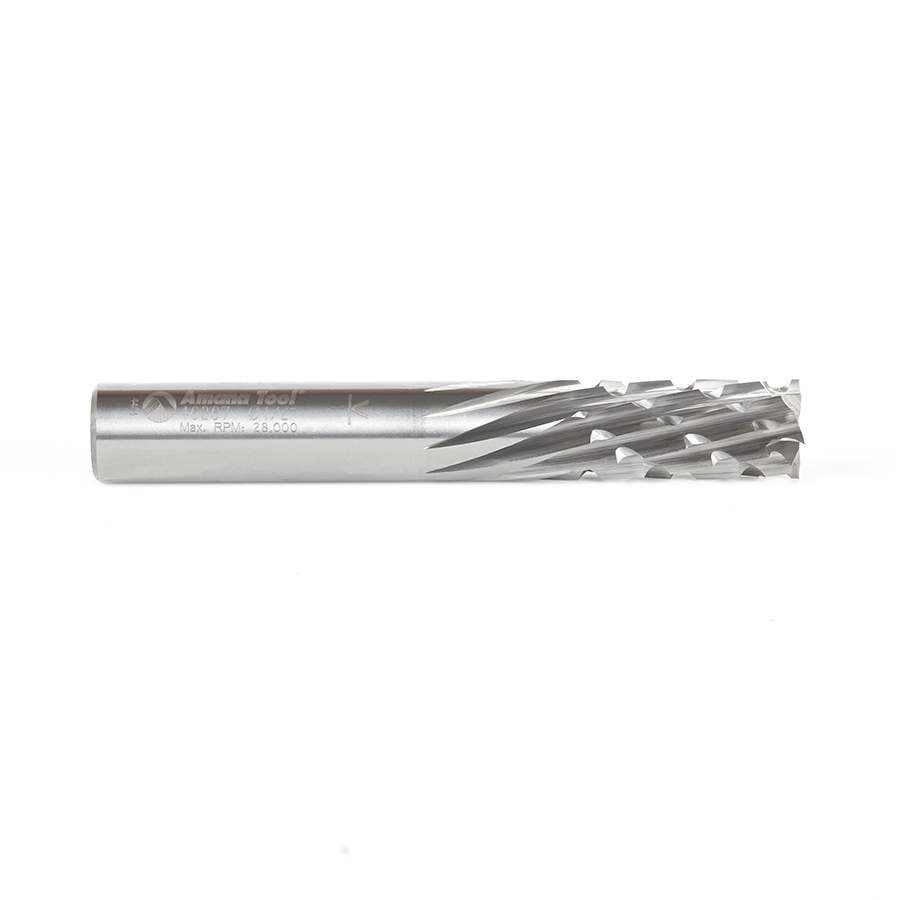

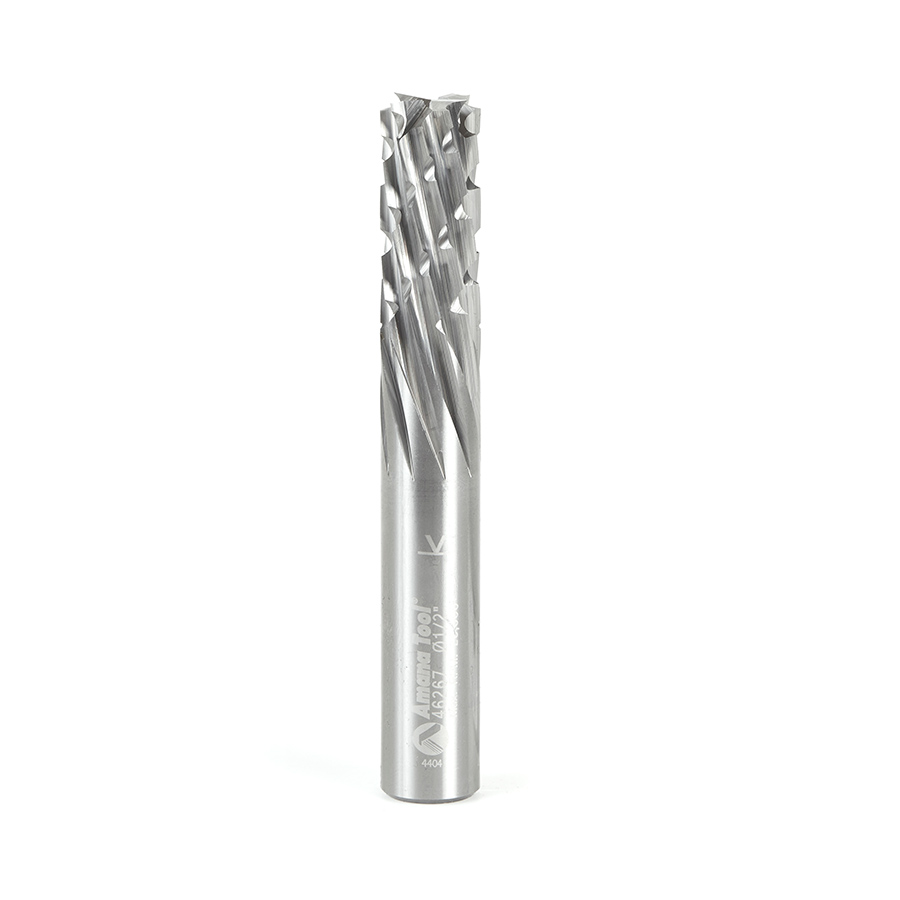

46267 Solid Carbide CNC Carbon Graphite & Spiral Carbon Fiber Panel Cutting 1/2 Dia x 1-1/8 x 1/2 Shank x 3-1/2 Inch Long Down-Cut Router Bits

Amana 46267 Solid Carbide CNC Carbon Graphite & Spiral Carbon Fiber Panel Cutting 1/2 Dia x 1-1/8 x 1/2 Shank x 3-1/2 Inch Long Down-Cut Router Bits

Name: Amana 46267 Solid Carbide CNC Carbon Graphite &amp; Spiral Carbon Fiber Panel Cutting 1/2 Dia x 1-1/8 x 1/2 Shank x 3-1/2 Inch Long Down-Cut Router Bits
SKU: Amana 46267
Availability: InStock

Original price was: $159.45.Current price is: $119.59.

CARBON GRAPHITE 1/2″ DIAMETER

UPC: 738685462676 SKU: Amana 46267 Categories: Amana Tool, CNC Router Bits, Composite, Fiberglass & Phenolic Cutting CNC Router Bits, Solid Carbide Carbon Graphite and Carbon Fiber Panel Cutting Router Bits

Item Description

Introducing Amana Tools®’s carbon graphite and carbon fiber cutting solid carbide router bits designed to produce a minimum failure in composite materials such as layers separating and a significant loss of mechanical toughness.

The rapidly growing use of Carbon Fiber Reinforced Polymers (CFRP) necessitates tooling designed to effectively meet the challenges of such composites. Experts have recognized the need for a tool geometry combining a highly abrasion-resistant carbide substrate generous fluting and an impact zone that not only “shatters” the hard carbon fibers but also keeps heat down.

These industrial router bits combat abrasion heat and the breakdown of composites for clean, accurate cuts.

Excellent for cutting:

Carbon Fiber
Carbon Fiber Reinforced Polymer (CFRP)
Carbon Graphite
Composite Materials
Fiberglass
Fiberglass PCB Board
Fiber Reinforced Plastic (FRP)
Glass Fiber Reinforced Polymer – Plastic Materials (GFR)
Glass Reinforced Plastic (GRP)
G10 = High-pressure fiberglass laminate, a kind of composite material

G10 / FR-4 Glass Epoxy Composite Laminate Material
G11 / FR-5 Glass Epoxy Composite Laminate Material
Kevlar
Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
Phenolic
Phenolic “Garolite” G-7
Plastic PVC & Acrylic
Thermoset Composites
Thermosetting Plastics

Specifications

(D) Diameter	1/2
(B) Cutting Height	1-1/8
(d) Shank	1/2
Overall Length (L)	3-1/2
Flutes	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Tool No.
3mm	13mm	3mm	50mm	10	48450
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	46260
3/16 (4.76mm)	5/8 (15.88mm)	3/16 (4.76mm)	2 (50.80mm)	1	46262
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	3 (76.20mm)	1	46264
1/4 (6.35mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	1	46265
3/8 (9.53mm)	1-1/8	3/8 (9.53mm)	3-1/2	1	46266
1/2 (12.70mm)	2-1/8	1/2 (12.70mm)	4 (101.60mm)	1	46268

Weight	0.32 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
