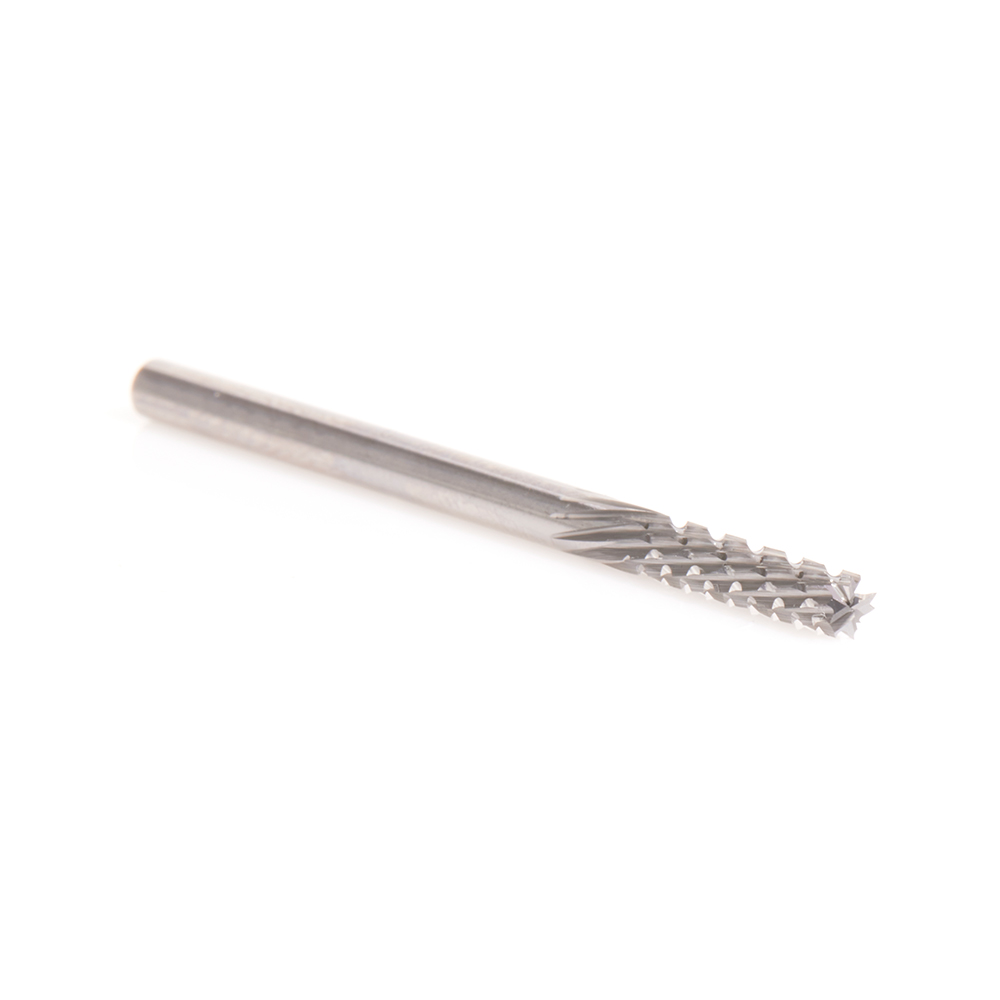

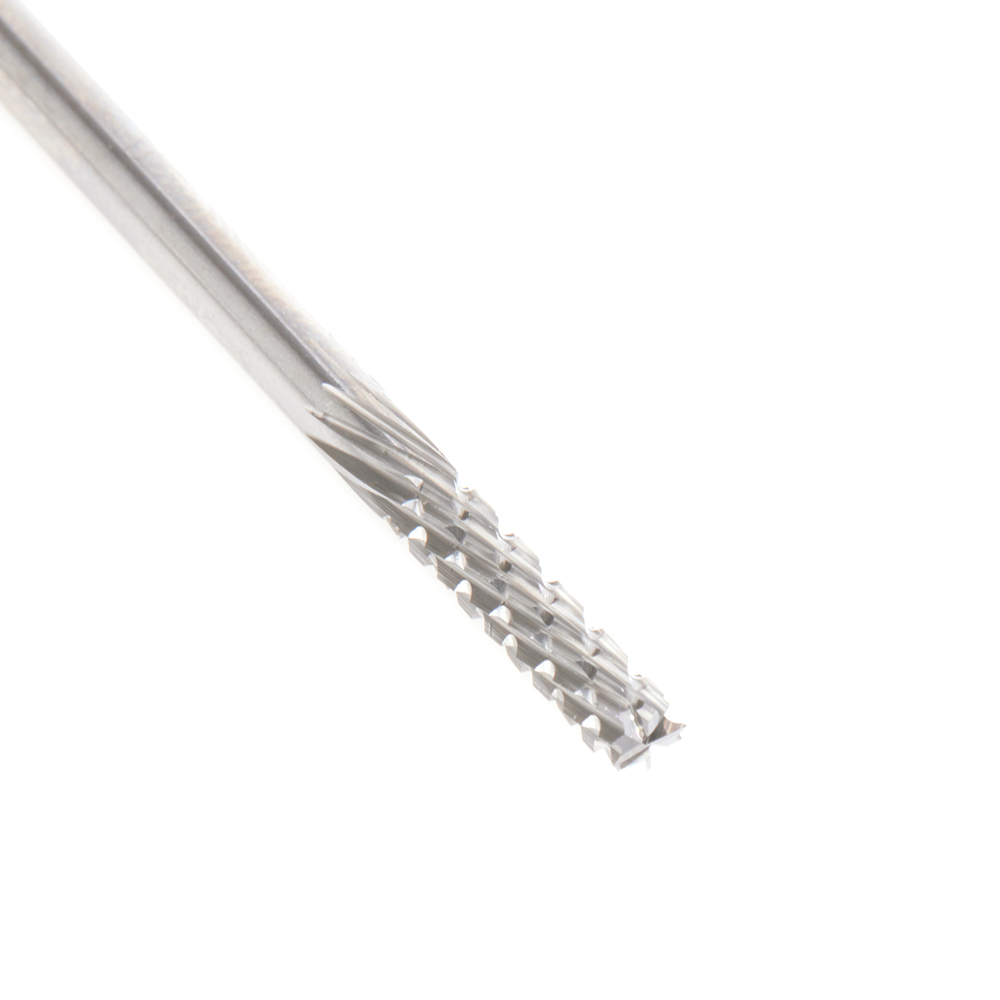

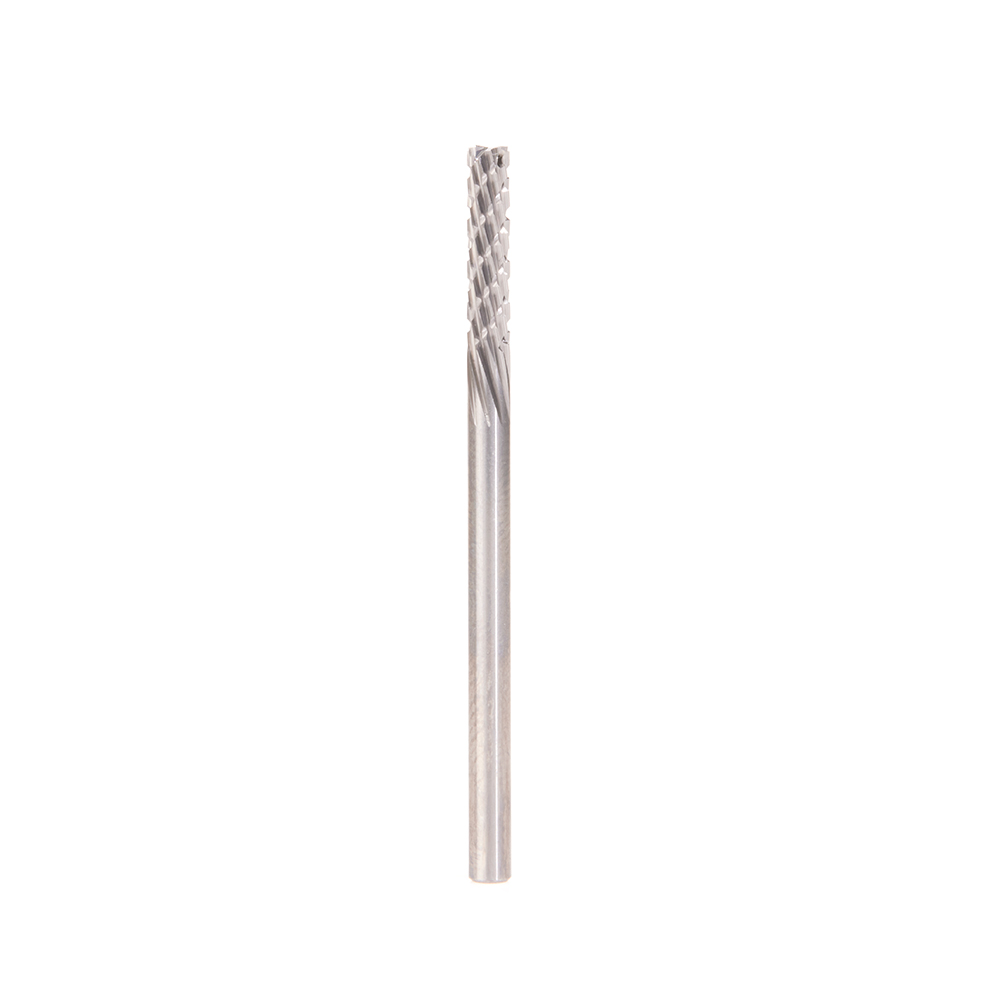

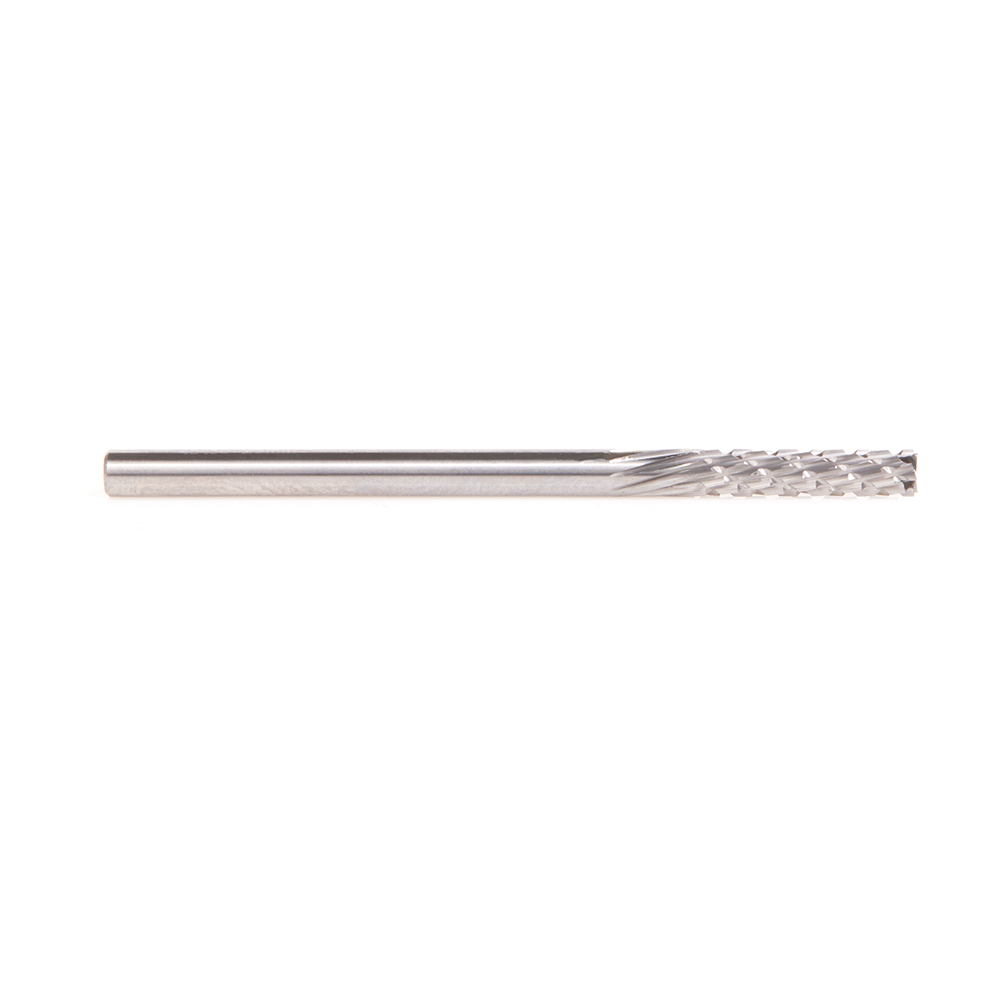

48450 Solid Carbide CNC Spiral Carbon Graphite & Carbon Fiber Panel Cutting 3mm Dia x 13mm x 3mm Shank x 50mm Long Down-Cut Router Bit

Amana 48450 Solid Carbide CNC Spiral Carbon Graphite & Carbon Fiber Panel Cutting 3mm Dia x 13mm x 3mm Shank x 50mm Long Down-Cut Router Bit

Name: Amana 48450 Solid Carbide CNC Spiral Carbon Graphite &amp; Carbon Fiber Panel Cutting 3mm Dia x 13mm x 3mm Shank x 50mm Long Down-Cut Router Bit
SKU: Amana 48450
Availability: InStock

Original price was: $38.45.Current price is: $28.84.

CARBON GRAPHITE 3mm DIA

UPC: 738685048450 SKU: Amana 48450 Categories: Amana Tool, CNC Router Bits, Composite, Fiberglass & Phenolic Cutting CNC Router Bits, Solid Carbide Carbon Graphite and Carbon Fiber Panel Cutting Router Bits

Item Description

Introducing Amana Tools®’s carbon graphite and carbon fiber cutting solid carbide router bits designed to produce a minimum failure in composite materials such as layers separating and a significant loss of mechanical toughness.

The rapidly growing use of Carbon Fiber Reinforced Polymers (CFRP) necessitates tooling designed to effectively meet the challenges of such composites. Experts have recognized the need for a tool geometry combining a highly abrasion-resistant carbide substrate generous fluting and an impact zone that not only “shatters” the hard carbon fibers but also keeps heat down.

These industrial router bits combat abrasion heat and the breakdown of composites for clean, accurate cuts.

Excellent for cutting:

Carbon Fiber
Carbon Fiber Reinforced Polymer (CFRP)
Carbon Graphite
Composite Materials
Fiberglass
Fiberglass PCB Board
Fiber Reinforced Plastic (FRP)
Glass Fiber Reinforced Polymer – Plastic Materials (GFR)
Glass Reinforced Plastic (GRP)
G10 = High-pressure fiberglass laminate, a kind of composite material

G10 / FR-4 Glass Epoxy Composite Laminate Material
G11 / FR-5 Glass Epoxy Composite Laminate Material
Kevlar
Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
Phenolic
Phenolic “Garolite” G-7
Plastic PVC & Acrylic
Thermoset Composites
Thermosetting Plastics

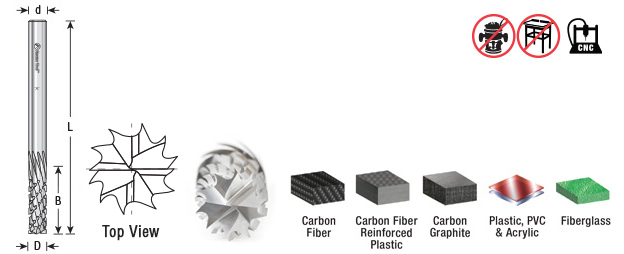

Specifications

(D) Diameter	3mm
(B) Cutting Height	13mm
(d) Shank	3mm
Overall Length (L)	50mm
Flutes	10

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Tool No.
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	46260
3/16 (4.76mm)	5/8 (15.88mm)	3/16 (4.76mm)	2 (50.80mm)	1	46262
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	3 (76.20mm)	1	46264
1/4 (6.35mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	1	46265
3/8 (9.53mm)	1-1/8	3/8 (9.53mm)	3-1/2	1	46266
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	3-1/2	1	46267
1/2 (12.70mm)	2-1/8	1/2 (12.70mm)	4 (101.60mm)	1	46268

Weight	0.02 lbs
