46341 Solid Carbide Spiral Plunge for Solid Wood 1/8 Dia x 1/2 x 1/4 Inch Shank Down-Cut

Amana 46341 Solid Carbide Spiral Plunge for Solid Wood 1/8 Dia x 1/2 x 1/4 Inch Shank Down-Cut

Name: Amana 46341 Solid Carbide Spiral Plunge for Solid Wood 1/8 Dia x 1/2 x 1/4 Inch Shank Down-Cut
SKU: Amana 46341
Availability: InStock

Original price was: $48.85.Current price is: $36.64.

S.C.x SOLID WOOD 1/8″ DIA.

UPC: 738685463413 SKU: Amana 46341 Categories: Amana Tool, CNC Router Bits, Solid Carbide Spiral Plunge Router Bits for Solid Wood, Spiral & Compression CNC Router Bits

Item Description

Specially designed for speed and finish when working with solid hardwood. The combination of acute spiral flute shear angles with face ground helix yield high feed rates, fast plunge action, quick direction changes, deep penetration and mirror finish. Recommended RPM 20,000-21,000.

Vectric and Fusion 360 compatible tool files for 46341 available for download, click here.

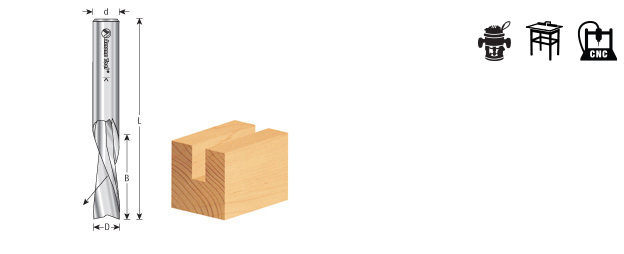

Specifications

Direction	Down-Cut
(D) Diameter	1/8
(B) Cutting Height	1/2
(d) Shank	1/4
Overall Length (L)	2
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Direction	Tool No.
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	Up-Cut	46240
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	46241
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	46340
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	46245
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	Down-Cut	46345
7/32 (5.56mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Up-Cut	46247
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Up-Cut	46248
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Up-Cut	46249
1/4 (6.35mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	Up-Cut	46250
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Down-Cut	46348
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Down-Cut	46349
1/4 (6.35mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	Down-Cut	46365
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	46257
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	Up-Cut	46259
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3-1/4	Up-Cut	46259S
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	46357
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	Down-Cut	46359
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	46261
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	Up-Cut	46263
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	46361
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	Down-Cut	46363

Weight	0.06 lbs
