Sale!

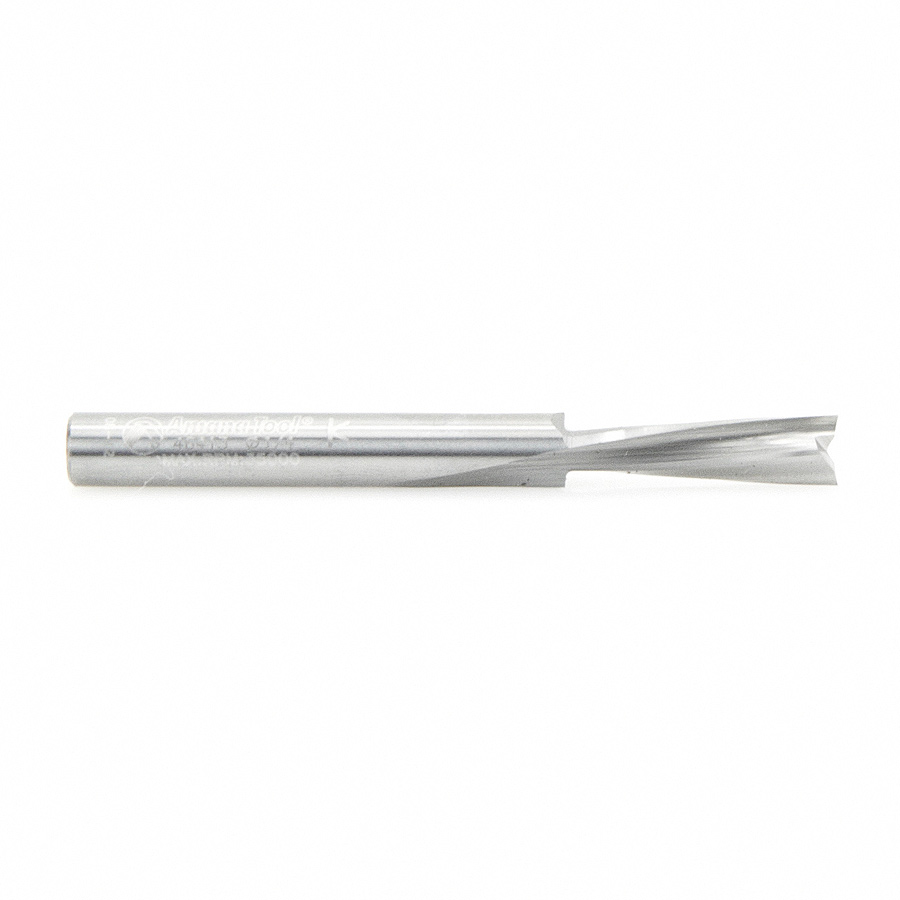

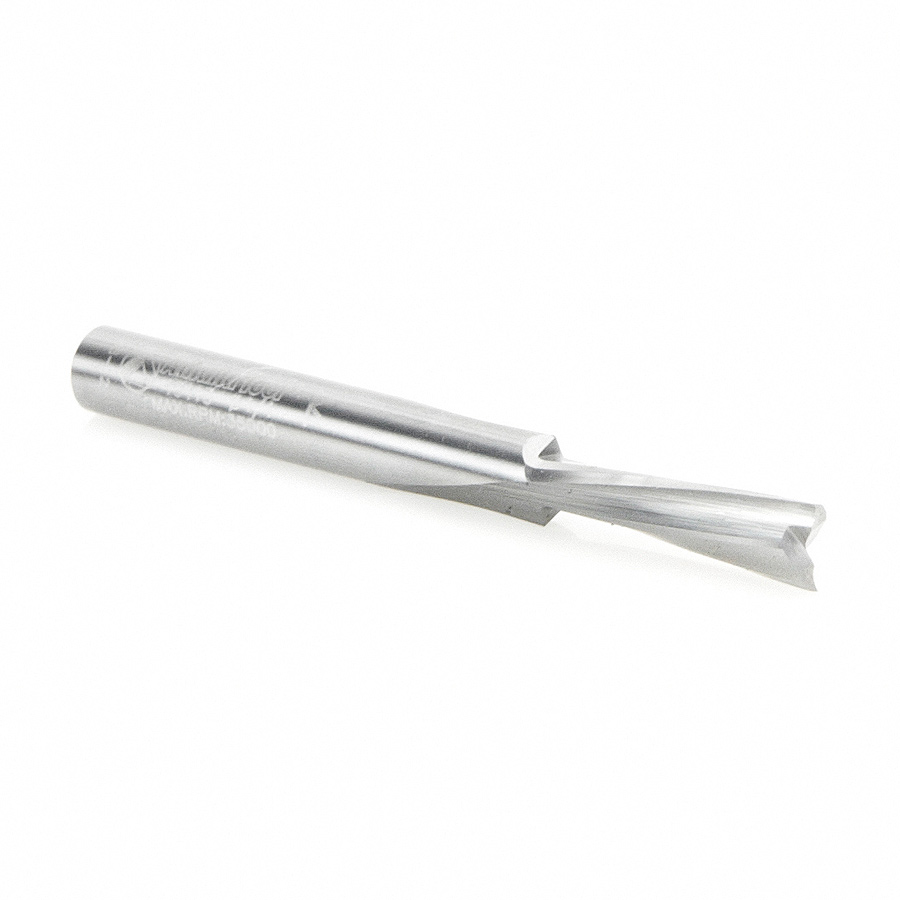

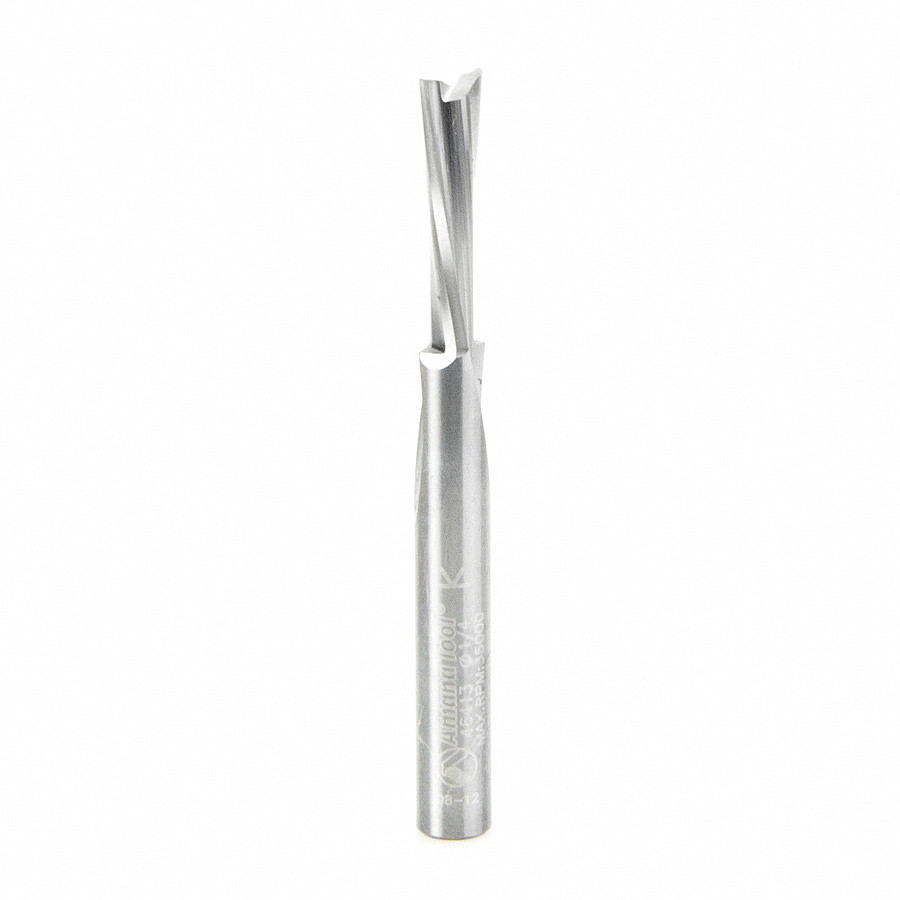

46413 Solid Carbide Slow Spiral O Flute Acrylic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut Router Bit

Amana 46413 Solid Carbide Slow Spiral O Flute Acrylic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut Router Bit

Name: Amana 46413 Solid Carbide Slow Spiral O Flute Acrylic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut Router Bit
SKU: Amana 46413
Availability: InStock

Original price was: $57.50.Current price is: $43.13.

S.C.’O’ FLUTE DOWN SPIRAL 1/4″

UPC: 738685464137 SKU: Amana 46413 Categories: Amana Tool, Plastic Cutting Router Bits, Router Bits, Solid Carbide Slow Spiral 'O' Flute Acrylic Cutting Router Bits

Item Description

Provides smooth finish in acrylic materials, and both soft and hard plastics.

Excellent for cutting:

Acrylic Stone
Acrylonitrile Butadiene Styrene (ABS)
Corian
Coroplast®*
Epoxy
Expanded PVC
Fomex®
High Pressure Laminates (HPL)
Hydroxy-Terminated Polyether (HTPE)
Low Density Polyethylene (LDPE)
LubX®
Perspex® Cast Acrylic Sheet

Poly (methyl methacrylate) (PMMA)
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
PVC
Sign Foam
StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
Teflon®
Thermoplastic Polyolefin (TPO)
Urethane

A soft plastic cardboard made with super soft, super flexible PVC.

Fusion 360 compatible tool files for 46413 available for download, click here.

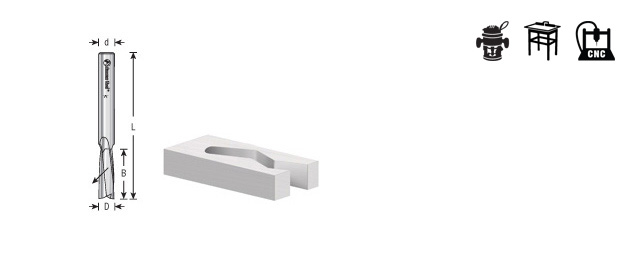

Specifications

Direction	Down-Cut
Diameter (D)	1/4
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-1/2
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Direction	Tool No.
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46311
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	2	Up-Cut	46313
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	46327
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	Down-Cut	46411
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Down-Cut	46427
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	Up-Cut	46391
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	Down-Cut	46492

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
