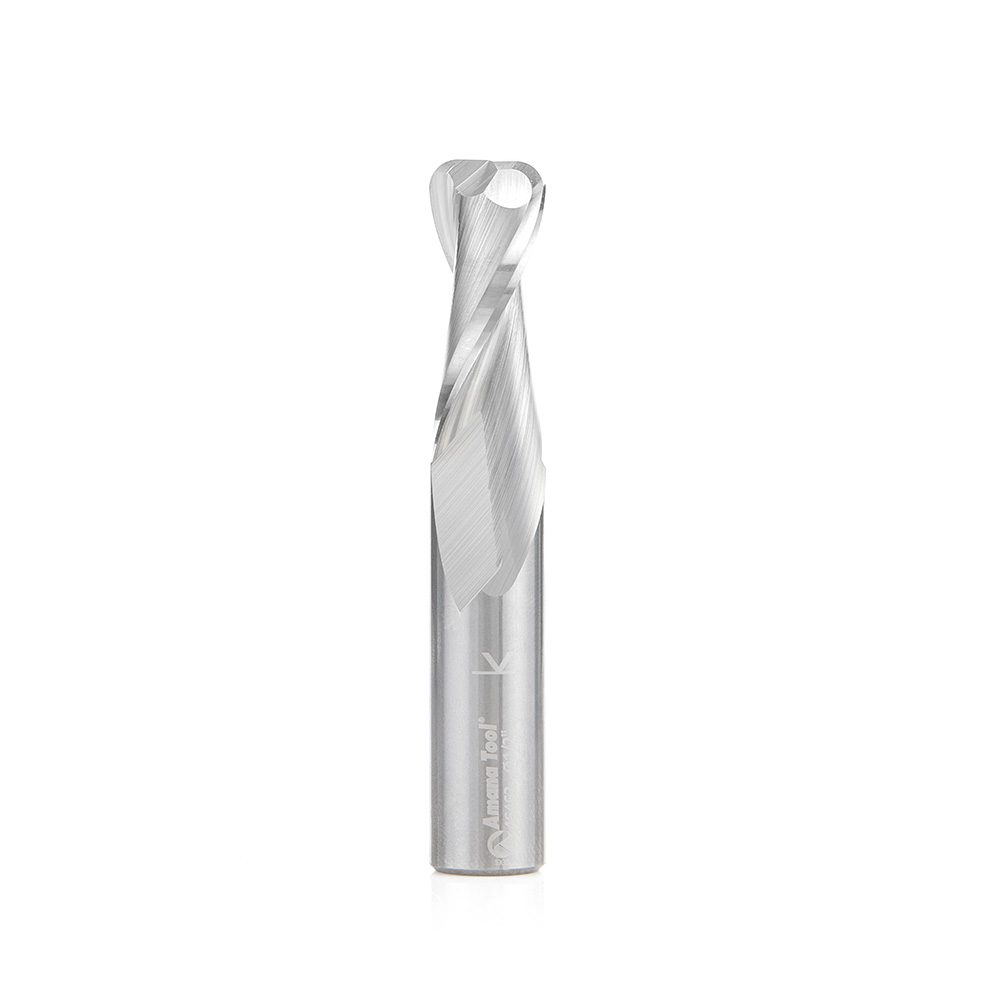

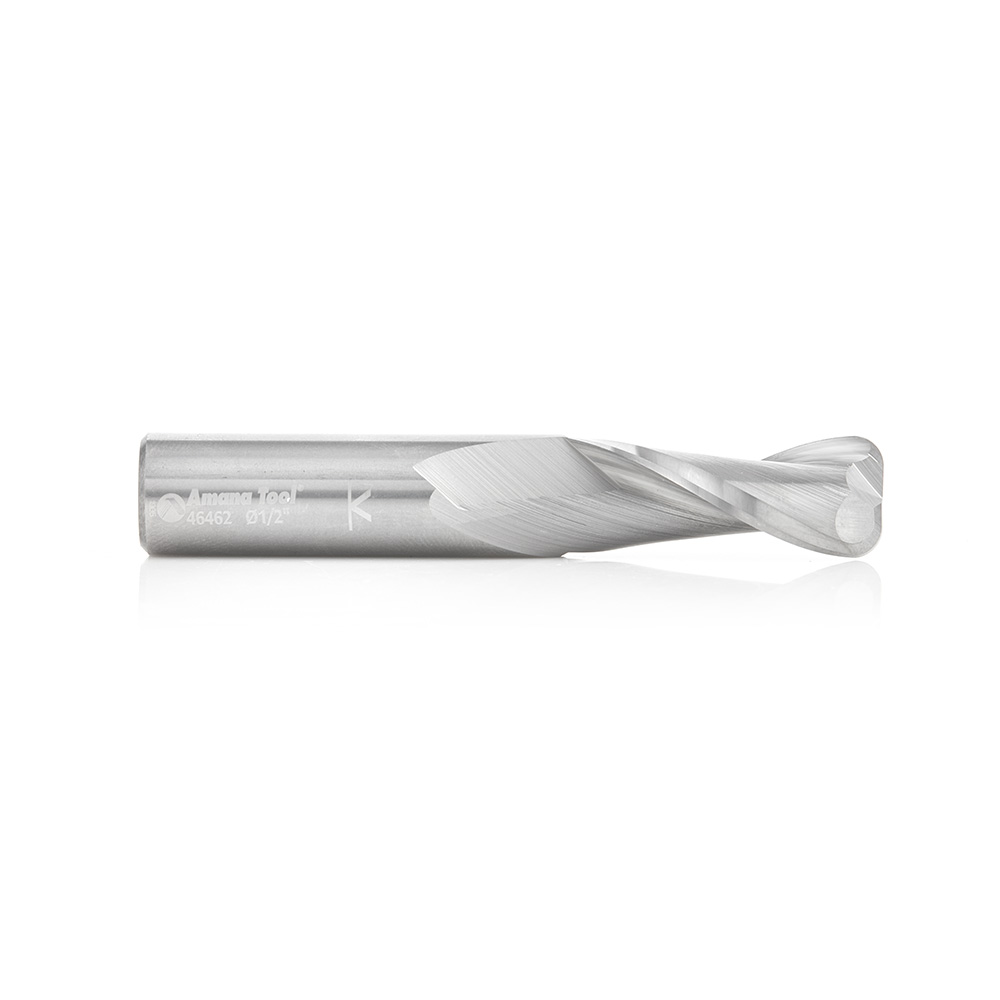

46462 Solid Carbide Spiral Plunge with Corner Radius 1/8 Radius x 1/2 Dia x 1-1/4 x 1/2 Inch Shank Up-Cut

Amana 46462 Solid Carbide Spiral Plunge with Corner Radius 1/8 Radius x 1/2 Dia x 1-1/4 x 1/2 Inch Shank Up-Cut

Name: Amana 46462 Solid Carbide Spiral Plunge with Corner Radius 1/8 Radius x 1/2 Dia x 1-1/4 x 1/2 Inch Shank Up-Cut
SKU: Amana 46462
Availability: InStock

Original price was: $147.15.Current price is: $110.37.

S.C SPIRAL COVENOSE UPCUT 1/2D

UPC: 738685464625 SKU: Amana 46462 Categories: Amana Tool, CNC Router Bits, Solid Carbide Spiral Plunge CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

For carving, lettering, decorative doors and sign manufacturing.

Leaves an excellent finish and expels chips quickly.

Excellent for Cutting:

Aluminum
MDF
Soft/Hard Plastic
Soft/Hard Wood

Vectric and Fusion 360 compatible tool files for 46462 available for download, click here.

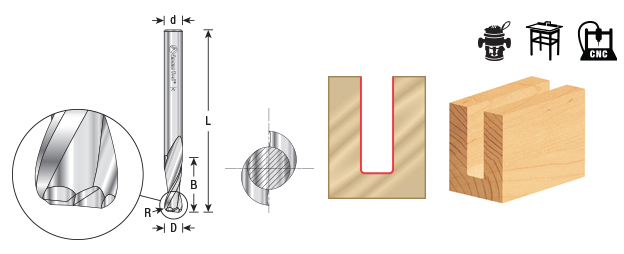

Specifications

Direction	Up-Cut
(D) Diameter	1/2
(R) Radius	1/8
(B) Cutting Height	1-1/4
(d) Shank	1/2
Overall Length (L)	3
Flutes	2

Other Sizes Available

Direction	(D) Diameter	(R) Radius	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Tool No.
Up-Cut	1/4 (6.35mm)	1/16 (1.59mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	2	46460

Weight	0.26 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
