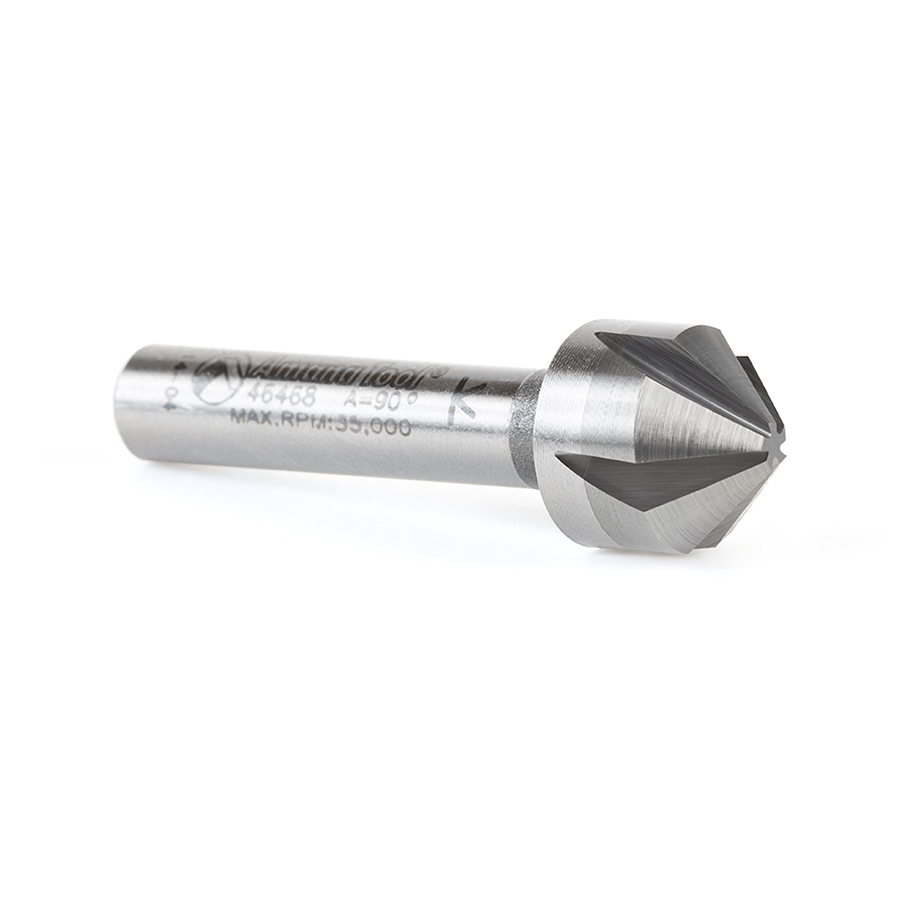

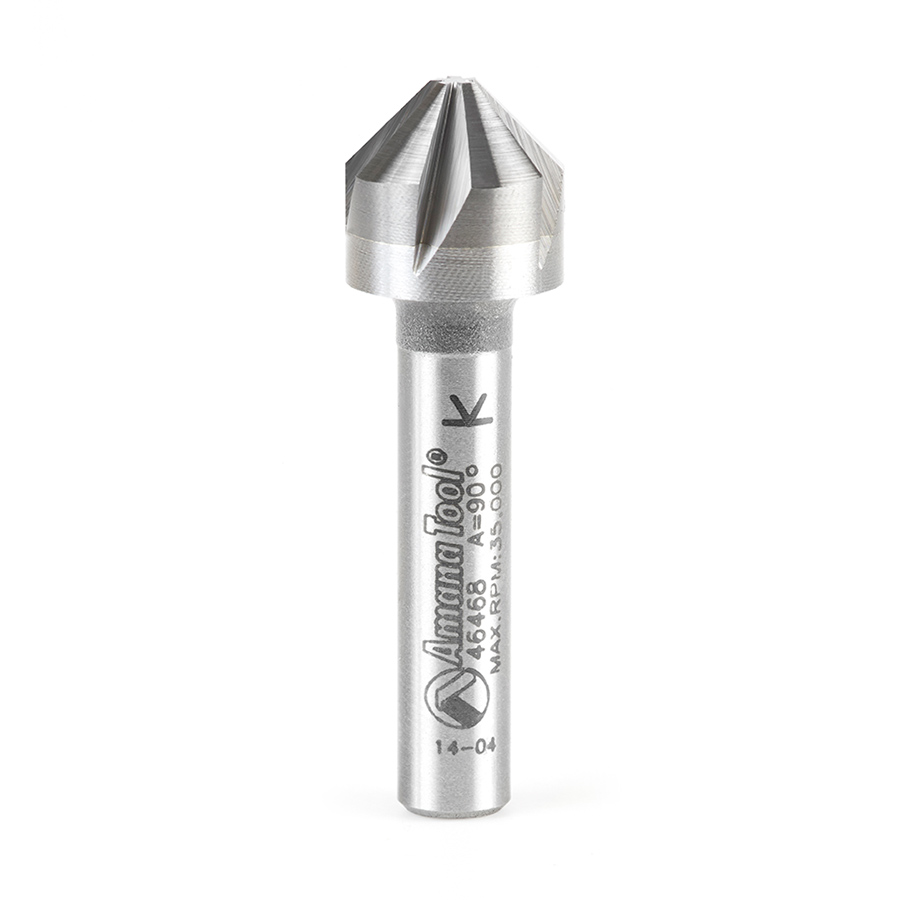

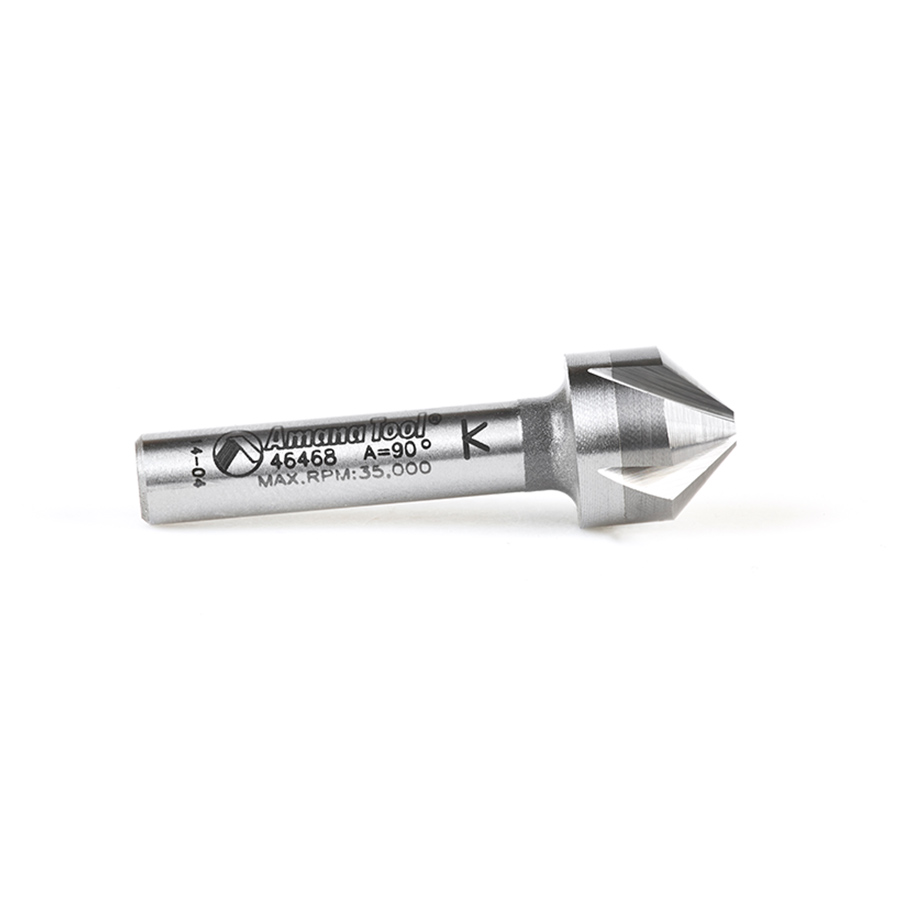

46468 Solid Carbide CNC 90 Degree Angle x 1/2 Dia x 5mm x 1/4 Shank x 1-9/16 Inch Long 5 Flute Countersink and Chamfer Router Bit

Amana 46468 Solid Carbide CNC 90 Degree Angle x 1/2 Dia x 5mm x 1/4 Shank x 1-9/16 Inch Long 5 Flute Countersink and Chamfer Router Bit

Name: Amana 46468 Solid Carbide CNC 90 Degree Angle x 1/2 Dia x 5mm x 1/4 Shank x 1-9/16 Inch Long 5 Flute Countersink and Chamfer Router Bit
SKU: Amana 46468
Availability: InStock

Original price was: $127.60.Current price is: $95.70.

1/2″ DIA 90D COUNTERSINK

UPC: 738685464687 SKU: Amana 46468 Categories: Amana Tool, CNC Router Bits, Composite, Fiberglass & Phenolic Cutting CNC Router Bits, Solid Carbide Countersink Router Bits for Composite Materials

Item Description

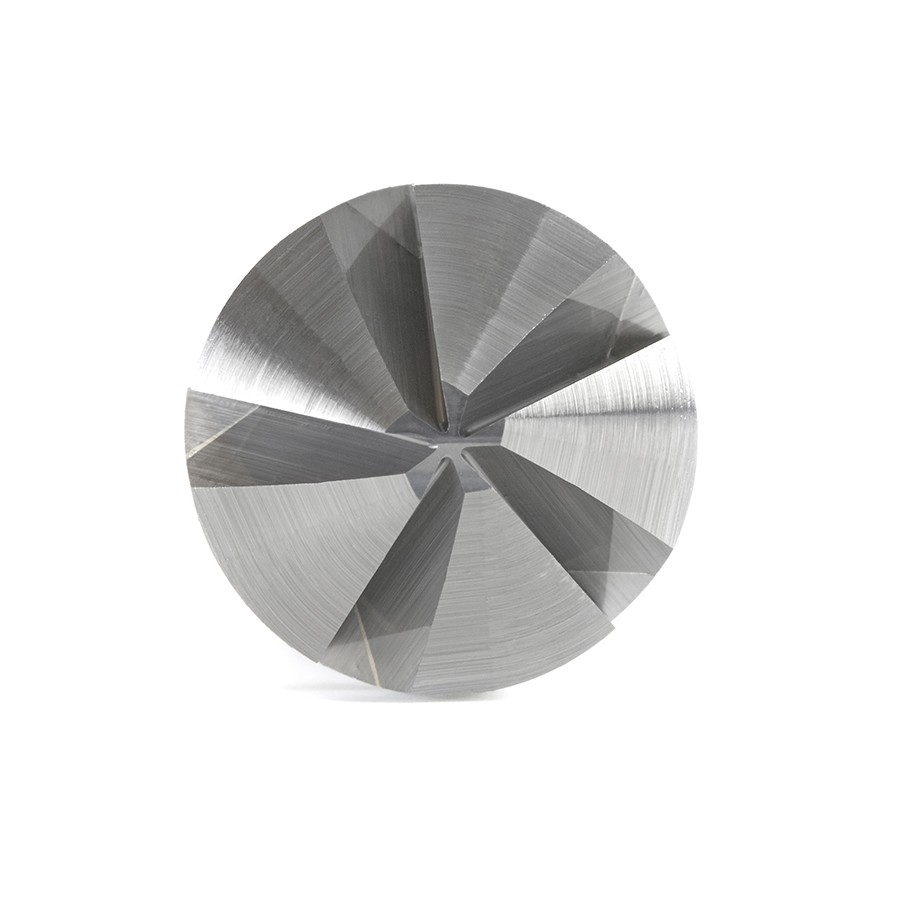

5 flute • Solid carbide head on brazed steel shank offers long-lasting durability

Designed for making 90 degree countersinks and chamfering.

These bits make it possible to chamfer edges, holes and contours with a ‘’contour’’ or ‘’bore” CNC operation and still have the option to use a sufficient lead-in distance.

Item no. 46468 utilizes a 3mm diameter tip width, making cuts into the tightest corners and smallest details achievable.

Excellent for:

GFR (Glass Fiber Reinforced Polymer – Plastic Materials)
CFRP (Carbon Fiber Reinforced Polymer – Plastic Materials)
FRP (Fiber Reinforced Plastic)
Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
MMC (Metal Matrix Composite)
Honeycomb
Thermoset Composites
Thermosetting Plastics

CNC Countersink

Drilling countersinks with these bits on the CNC machine is a great way to save time and have your pieces look great every time!

With the adjustable depth drill bit you can adjust them for whatever size material you’re working with. They are best used with a drilling toolpath, utilizing the peck drill option at .25″ per pass with a .125″ retract height.

For best results run at 3,000 RPM with a 30 IPM (Inches Per Minute) plunge rate. No feed rate needs to be set with these as they only move up and down with the Z axis, not side to side. If your software doesn’t allow a 0 feed rate, you can enter 1 IPM(Inch Per Minute) in the feed rate as a placeholder.

For countersinks with 1/4″ round shank, use 1/4″ spring collet.

For countersinks with 5/16″ round shank, use 7-8mm spring collet.

For countersinks with 3/8″ round shank, use 9-10mm spring collet.

Specifications

(a°) Angle	90°
(D) Diameter	1/2
D1	3mm
(B) Cutting Height	5mm
(d) Shank	1/4
Overall Length (L)	1-9/16

Other Sizes Available

(a°) Angle	(D) Diameter	D1	(B) Cutting Height	(d) Shank	Overall Length (L)	Tool No.
90°	1/2 (12.70mm)	1/32 (0.79mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	46467

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
