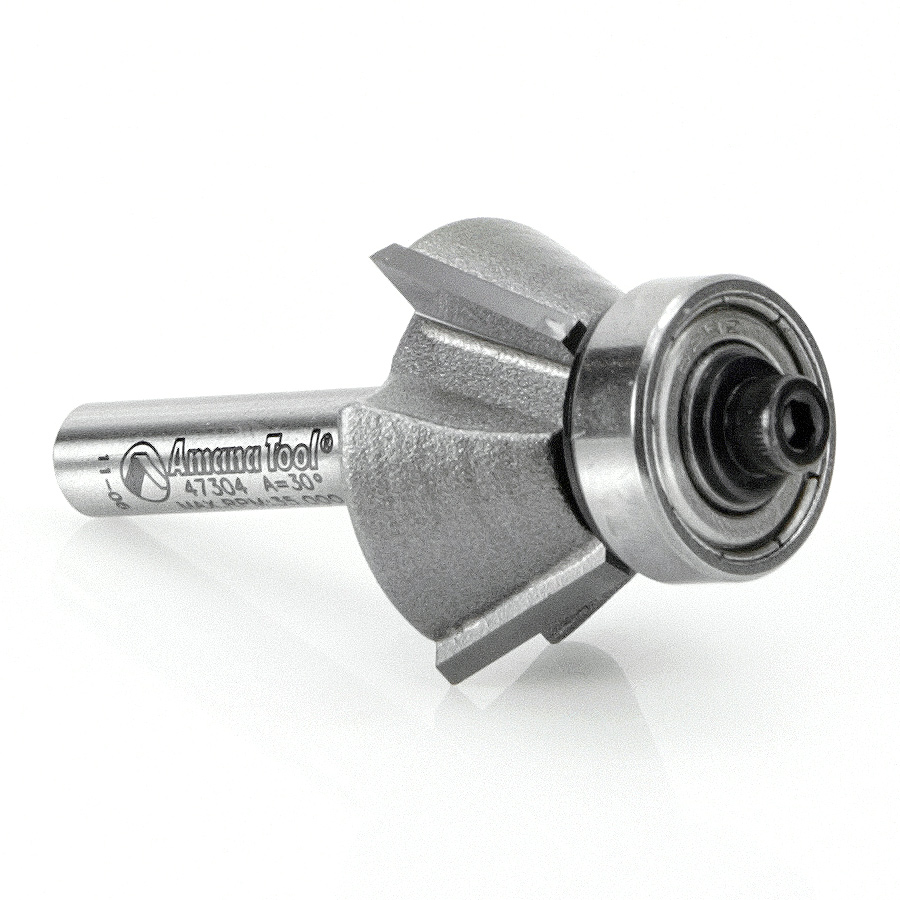

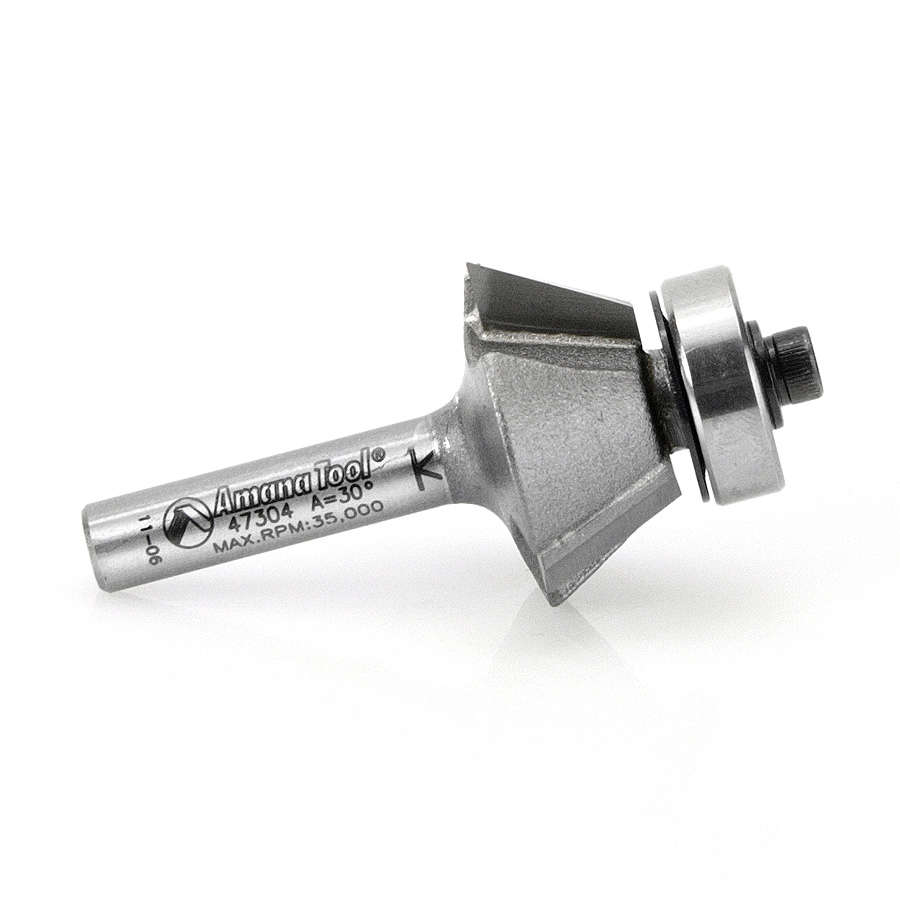

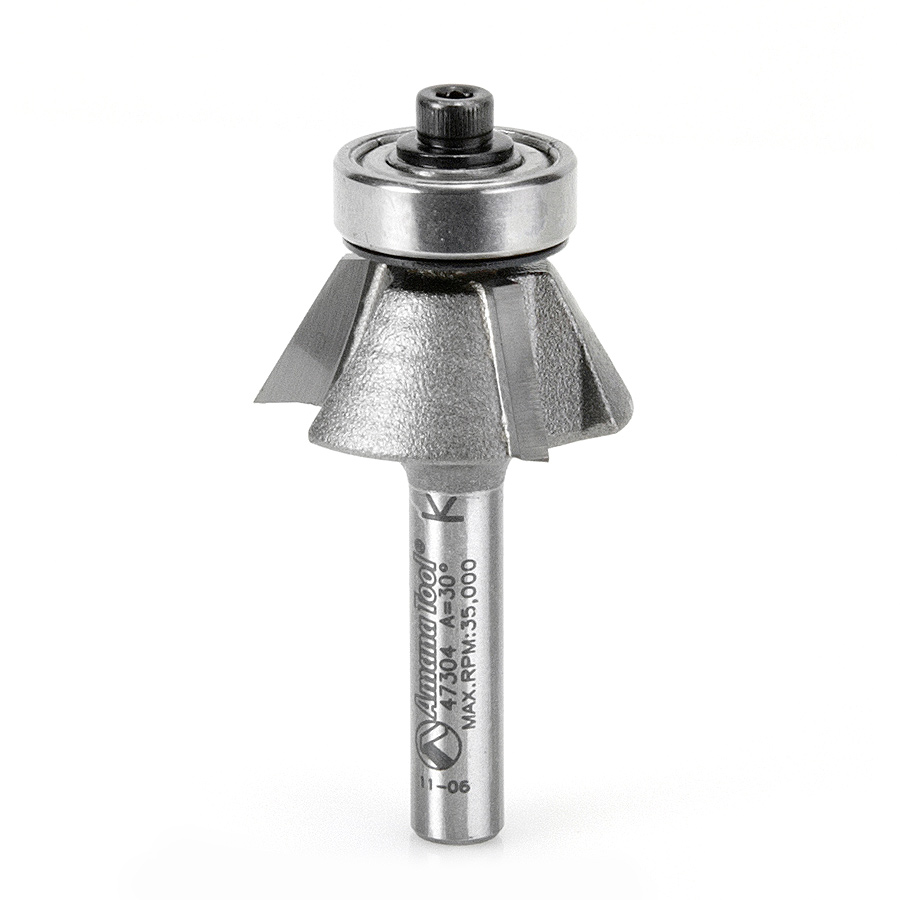

47304 Carbide Tipped Bevel Laminate Trim 30 Deg x 1-3/32 Dia x 7/16 x 1/4 Inch Shank with Ball Bearing 3-Flute

Amana 47304 Carbide Tipped Bevel Laminate Trim 30 Deg x 1-3/32 Dia x 7/16 x 1/4 Inch Shank with Ball Bearing 3-Flute

Name: Amana 47304 Carbide Tipped Bevel Laminate Trim 30 Deg x 1-3/32 Dia x 7/16 x 1/4 Inch Shank with Ball Bearing 3-Flute
SKU: Amana 47304
Availability: InStock

Original price was: $59.05.Current price is: $44.29.

BEVEL TRIM 30 DEGREE 3 FLUTE.

UPC: 738685473047 SKU: Amana 47304 Categories: Amana Tool, Bevel Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

The solid construction of this carbide-tipped bit reduces vibration, and its three-flute configuration produces a very smooth cut. Intended for use in a standard router.

Specifications

Angle (a°)	30°
Diameter (D)	1-3/32
D1	16mm
Cutting Height (B)	7/16
Shank (d)	1/4
Overall Length (L)	2
Replacement Bearing	47716
Flutes	3

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
7°	3/4 (19.05mm)	16mm	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	3	47716	47302
15°	51/64 (20.24mm)	16mm	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	3	47716	47301
22°	15/16 (23.81mm)	16mm	7/16 (11.11mm)	1/4 (6.35mm)	1-7/8	3	47716	47300
45°	1-19/64	1/2 (12.70mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	3	47706	47306
45°	1-19/64	1/2 (12.70mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-3/8	3	47706	47308
45°	1-3/4	5/8 (15.88mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-13/16	4	47712	47309

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
