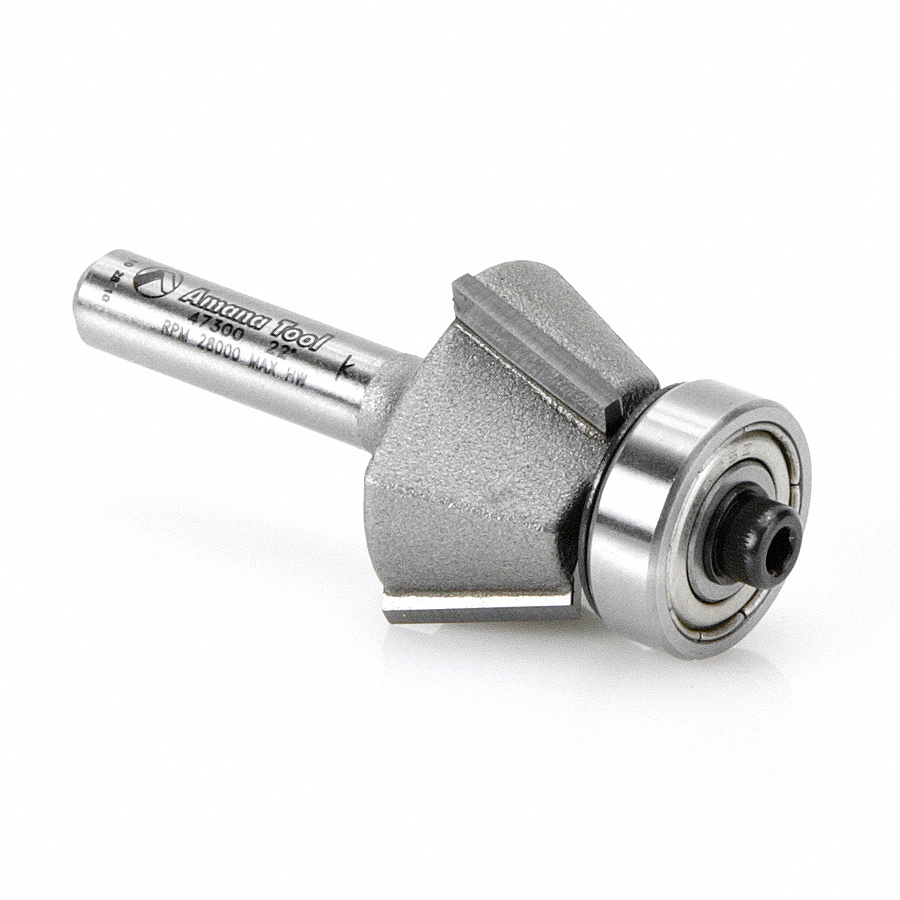

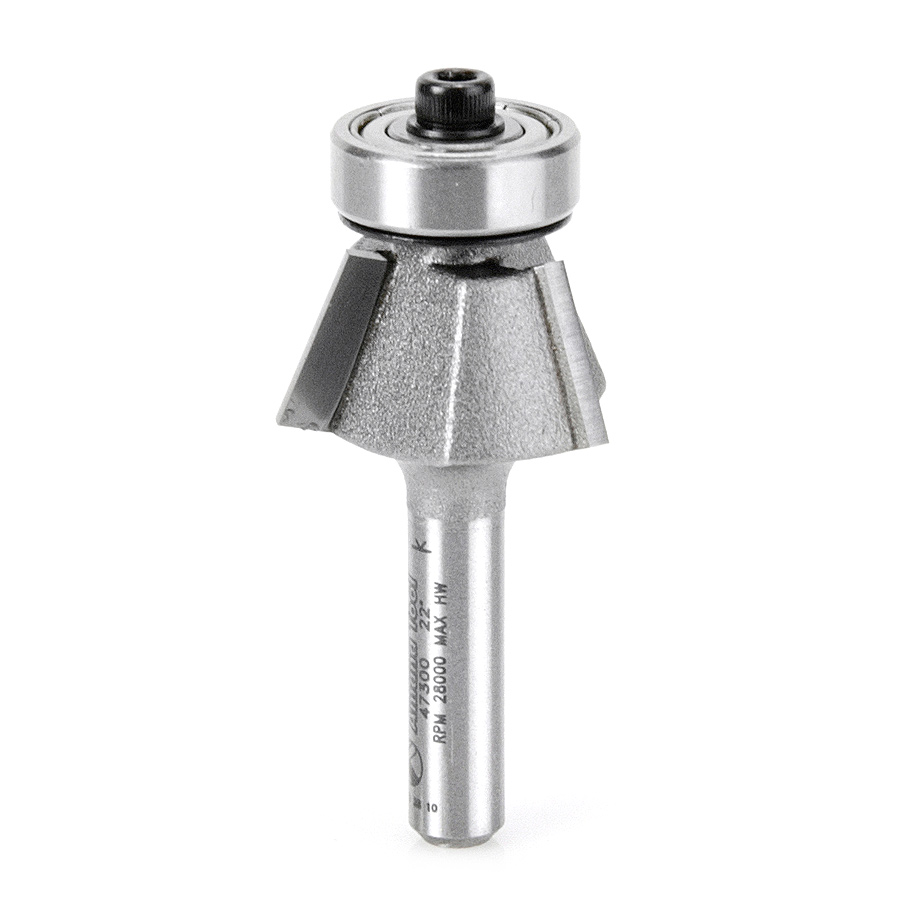

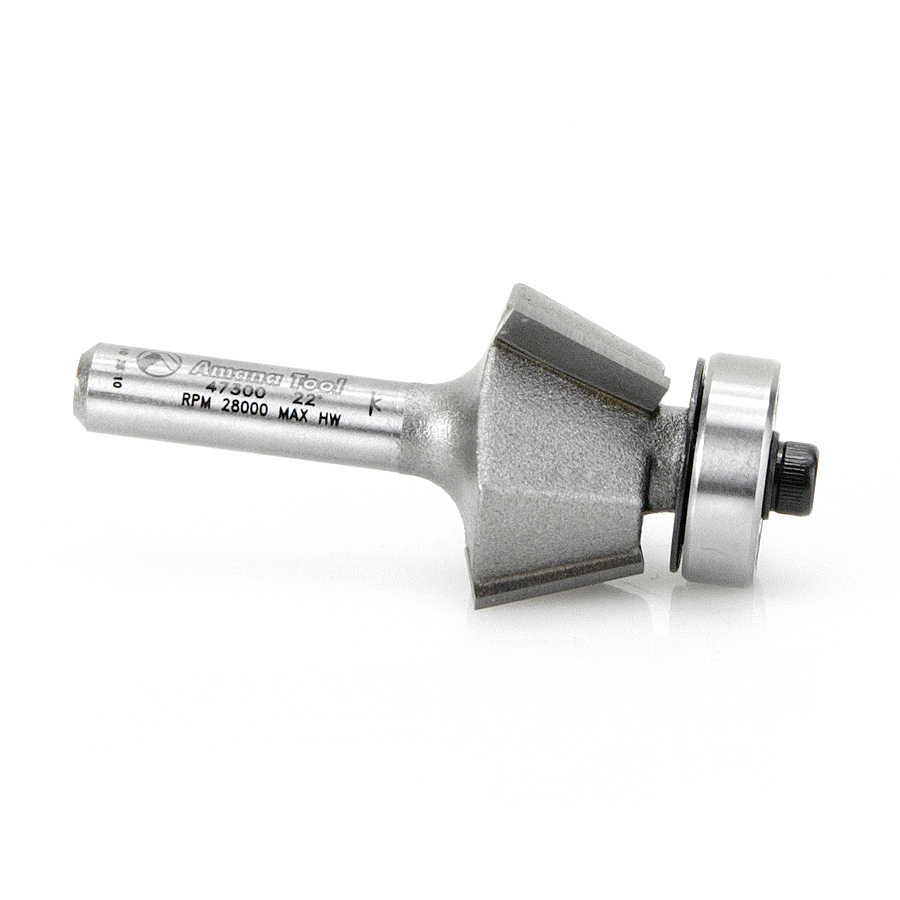

47300 Carbide Tipped Bevel Laminate Trim 22 Deg x 15/16 Dia x 7/16 x 1/4 Inch Shank with Ball Bearing 3-Flute

Amana 47300 Carbide Tipped Bevel Laminate Trim 22 Deg x 15/16 Dia x 7/16 x 1/4 Inch Shank with Ball Bearing 3-Flute

Name: Amana 47300 Carbide Tipped Bevel Laminate Trim 22 Deg x 15/16 Dia x 7/16 x 1/4 Inch Shank with Ball Bearing 3-Flute
SKU: Amana 47300
Availability: InStock

Original price was: $54.85.Current price is: $41.14.

BEVEL TRIM 22 DEGREE 3 FLUTE

UPC: 738685873007 SKU: Amana 47300 Categories: Amana Tool, Bevel Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

The solid construction of this carbide-tipped bit reduces vibration, and its three-flute configuration produces a very smooth cut. Intended for use in a standard router.

Specifications

Angle (a°)	22°
Diameter (D)	15/16
D1	16mm
Cutting Height (B)	7/16
Shank (d)	1/4
Overall Length (L)	1-7/8
Replacement Bearing	47716
Flutes	3

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
7°	3/4 (19.05mm)	16mm	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	3	47716	47302
15°	51/64 (20.24mm)	16mm	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	3	47716	47301
30°	1-3/32	16mm	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	3	47716	47304
45°	1-19/64	1/2 (12.70mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	3	47706	47306
45°	1-19/64	1/2 (12.70mm)	7/16 (11.11mm)	1/2 (12.70mm)	2-3/8	3	47706	47308
45°	1-3/4	5/8 (15.88mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-13/16	4	47712	47309

Weight	0.1 lbs
