Sale!

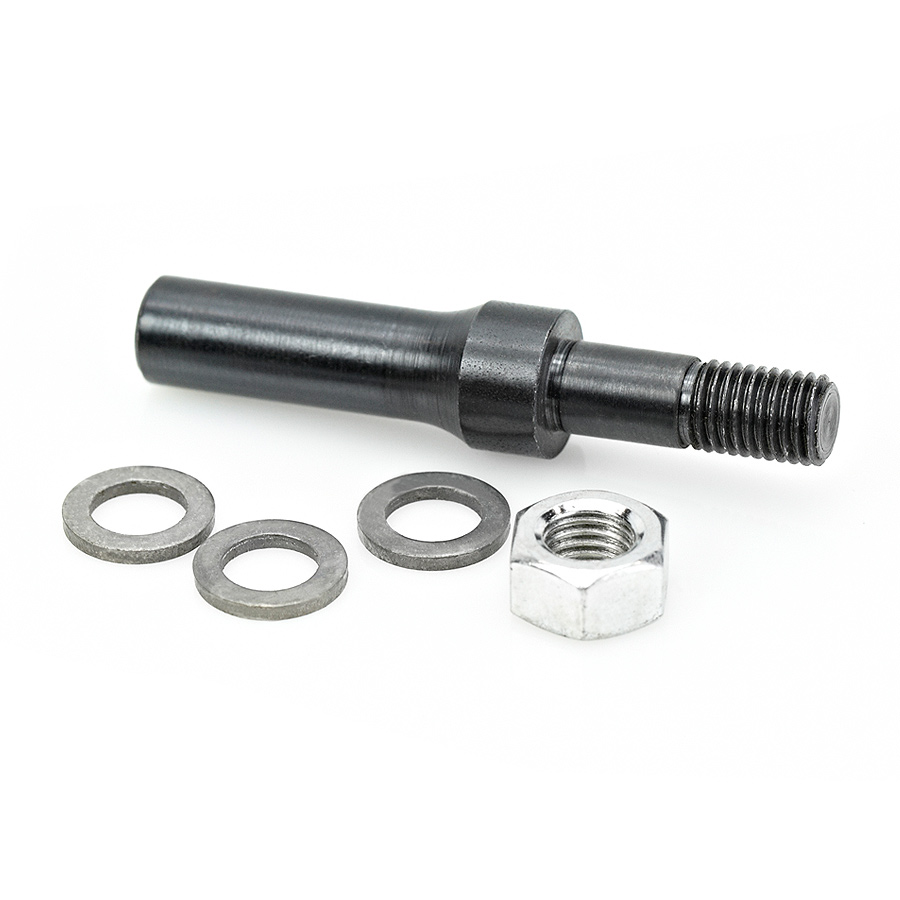

Amana 47602 Router Arbor with Hex Nuts and Washers 5/16-24 NF Dia x 7/8 Height x 3/8 Shank

Name: Amana 47602 Router Arbor with Hex Nuts and Washers 5/16-24 NF Dia x 7/8 Height x 3/8 Shank
SKU: Amana 47602
Availability: InStock

Original price was: $8.95.Current price is: $6.72.

3/8 ARBORS, NUTS AND WASHERS

UPC: 738685876022 SKU: Amana 47602 Categories: Amana Tool, Router Arbors with Hex Nut and Washers, Router Bit Parts & Accessories, Router Bits

Item Description

Groove edges for T-moldings, splines or biscuits, and other purposes. Rout tongue-and-groove joinery. Slotting cutters are available with either 2-wing or 3-wing cutters. Use in a handheld or table-mounted router.

Specifications

Diameter (D)	5/16-24 NF
Shank (d)	3/8
Overall Length (L)	2-3/8
L1	1-1/4
Application	2 & 3-Wing slotting assemblies, and single 4-wing trim cutter assemblies.
B	7/8

Other Sizes Available

Application	Diameter (D)	Shank (d)	L1	B	Overall Length (L)	Tool No.
2 &	5/16-24	1/4 (6.35mm)	1-1/4	7/8 (22.23mm)	2-3/8	47600
2 &	5/16-24	6mm	1-1/4	7/8 (22.23mm)	2-3/8	47600M
2 &	5/16-24	1/2 (12.70mm)	1-3/8	1 (25.40mm)	2-3/8	47604
General	1/4-28	1/4 (6.35mm)	1-1/4	7/8 (22.23mm)	2-3/8	47610
55400.	5/16-24	1/2 (12.70mm)	1-1/2	1-3/8	3-1/8	47612
49770.	5/16-24	1/2 (12.70mm)	1-7/16	2-9/16	4-3/16	47618
55392.	5/16-24	1/2 (12.70mm)	1-3/8	2-1/8	3-3/4	47620

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
