47648 1/4 Inch Shank CNC Extension Adapter for 1/8 Inch Shank Router Bits

Amana 47648 1/4 Inch Shank CNC Extension Adapter for 1/8 Inch Shank Router Bits

Name: Amana 47648 1/4 Inch Shank CNC Extension Adapter for 1/8 Inch Shank Router Bits
SKU: Amana 47648
Availability: InStock

Original price was: $71.85.Current price is: $53.89.

CNC EXTENSION 1/8 ID X 1/4 SHK

UPC: 738685476482 SKU: Amana 47648 Categories: Adapter/Holders, Amana Tool, CNC Router Bit Replacement Parts and Accessories, CNC Router Bits

Item Description

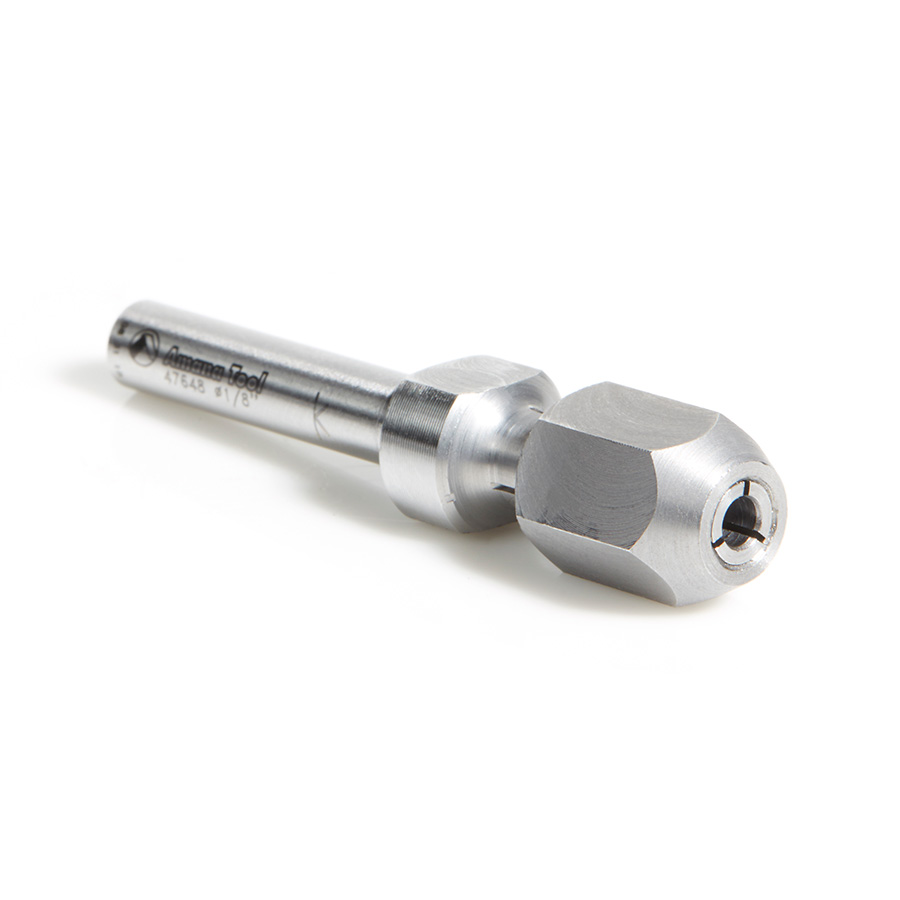

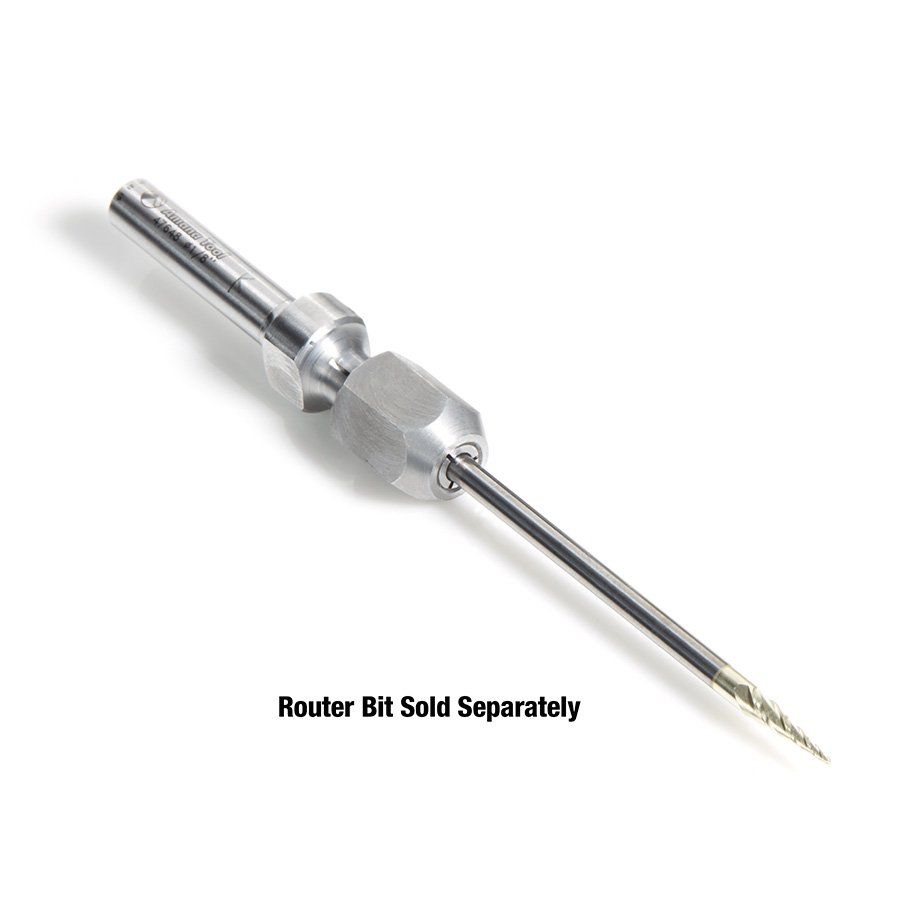

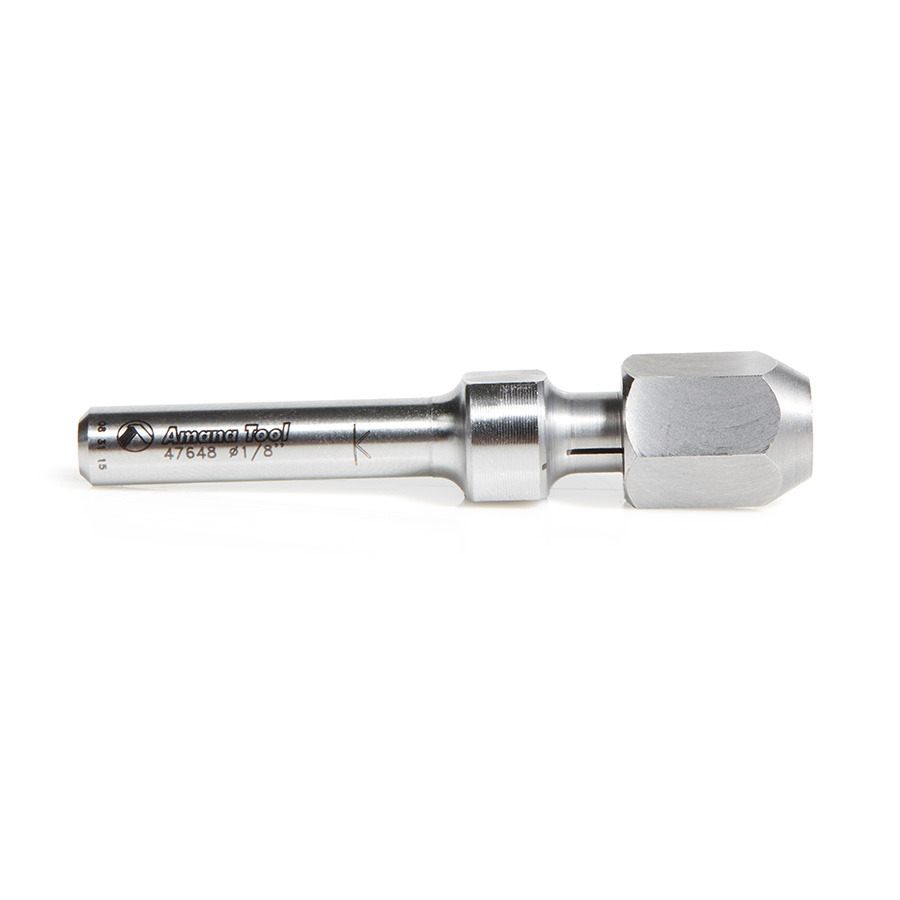

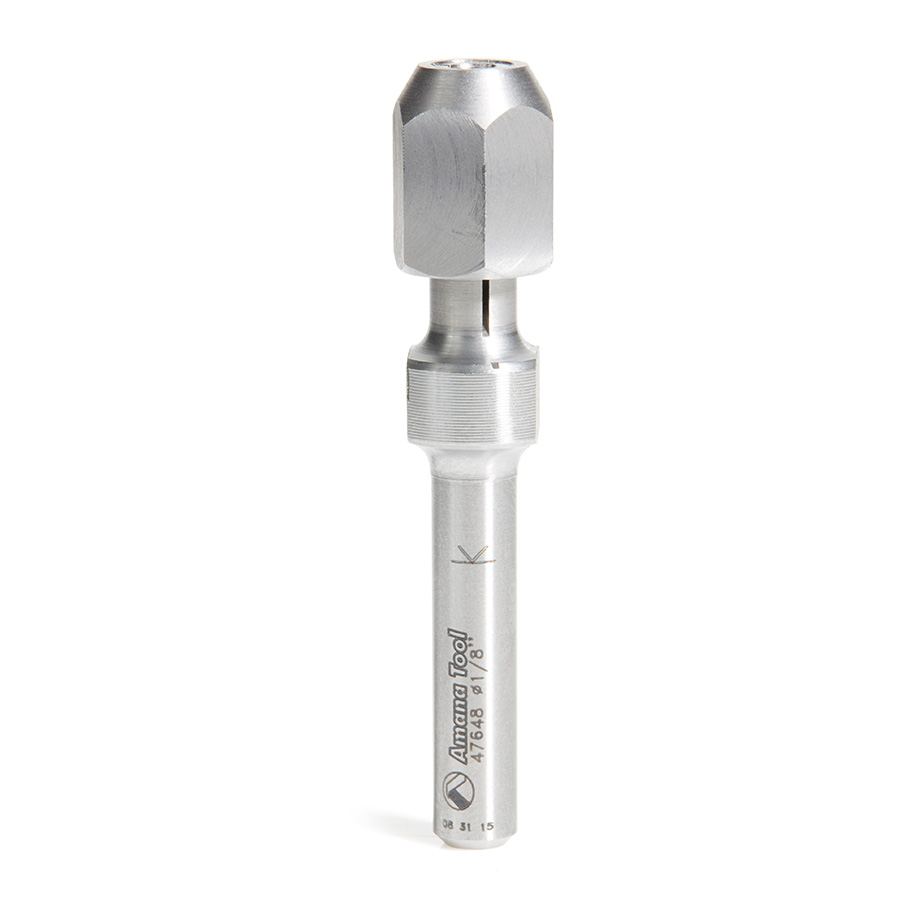

CNC Extender Adapter made especially for 1/8″ shank router bits.

Total Indicated Run-out (TIR) is 0.00118″ (0.03mm)

Max RPM 18,000

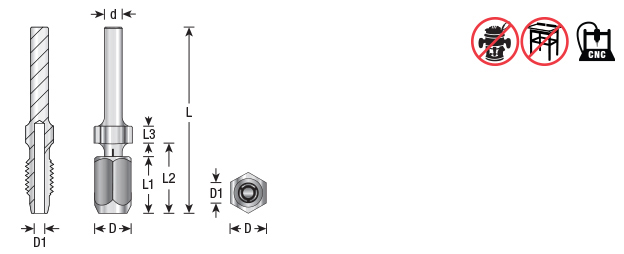

Specifications

(D) Diameter	7/16
D1	1/8
(d) Shank	1/4
Overall Length (L)	2-1/4
L1	19/32
Max RPM	18,000
L2	13/16
L3	1/4

Other Sizes Available

D1	(d) Shank	(D) Diameter	Overall Length (L)	L1	L2	L3	Tool No.
1/4 (6.35mm)	1/4 (6.35mm)	5/8 (15.88mm)	2-5/8	15/16 (23.81mm)	1-3/16	1/4 (6.35mm)	47642
1/4 (6.35mm)	1/2 (12.70mm)	3/4 (19.05mm)	3-7/16	1-1/4	1-15/32	5/16 (7.94mm)	47640
1/2 (12.70mm)	1/2 (12.70mm)	1 (25.40mm)	3-5/8	1-25/32	1-9/16	13/32 (10.32mm)	47641

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
