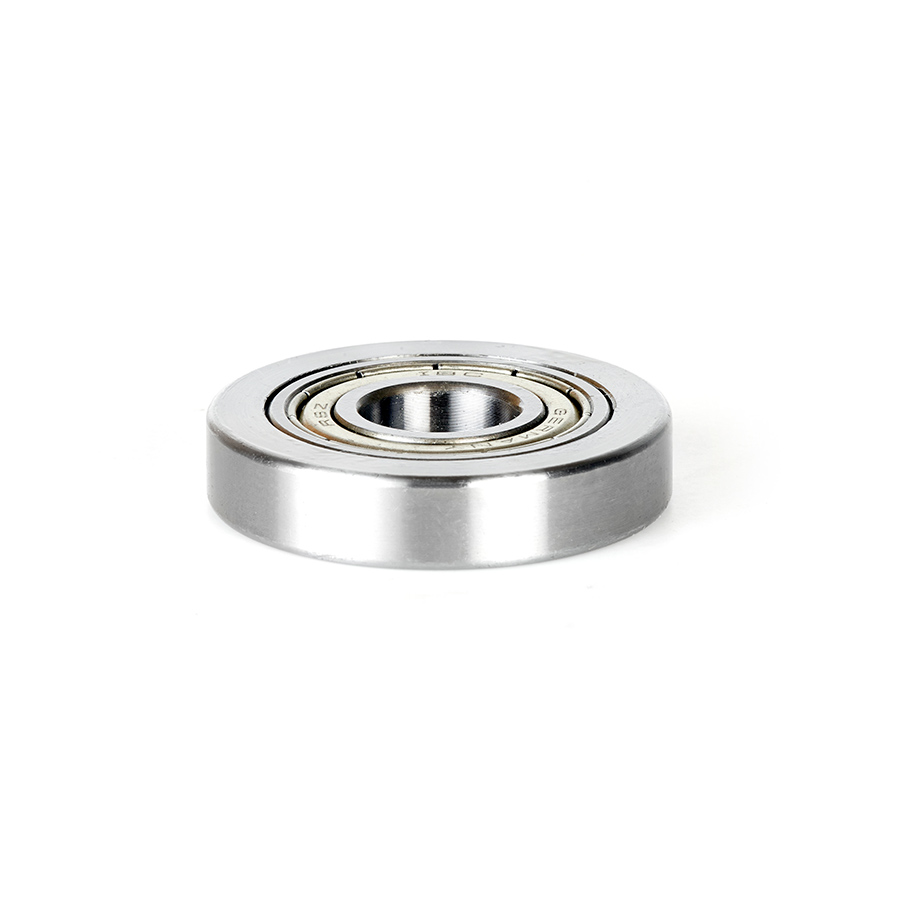

Amana 47806 Ball Bearing Rub Collar 1-1/2 O.D. x 5/16 Height for 1/2 Spindle

Name: Amana 47806 Ball Bearing Rub Collar 1-1/2 O.D. x 5/16 Height for 1/2 Spindle
SKU: Amana 47806
Availability: InStock

Original price was: $38.80.Current price is: $29.10.

RUB COLLAR 1-1/2 O.D & 1/2 I.D

UPC: 738685478066 SKU: Amana 47806 Categories: Amana Tool, Ball Bearing Rub Collars for 1/2, 3/4 and 1-1/4 Inch Spindles, Shaper Cutter Parts & Accessories, Shaper Cutters

Item Description

Designed for template shaping such as arched or cathedral doors, etc. Features

a ball bearing center with a steel sleeve and is available with either 1/2,” 3/4″

and 1-1/4″ inside diameter. Includes 2 steel shims .

Replacement Parts

Tool No.	steel shims	Rub collar shim
47806	55358	55358

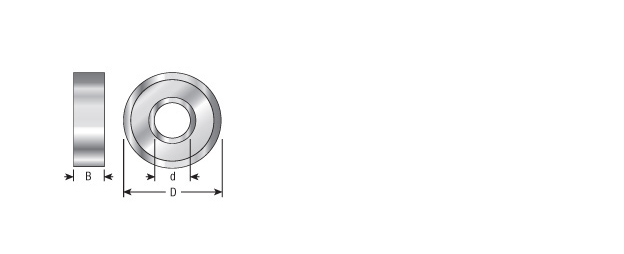

Specifications

(D) Diameter	1-1/2
(d) Bore	1/2
B	.315 (5/16)

Other Sizes Available

(d) Bore	(D) Diameter	B	Tool No.
1/2 (12.70mm)	1.250 (31.75mm)	5/16 (7.94mm)	C-002
1/2 (12.70mm)	1-1/8	–	47800
3/4 (19.05mm)	1.500 (38.10mm)	9.5mm	C-044
3/4 (19.05mm)	1.625 (41.40mm)	7/16 (11.11mm)	C-005
3/4 (19.05mm)	1.750 (44.45mm)	7/16 (11.11mm)	C-006
1-1/4	1.850 (46.99mm)	9mm	C-045
3/4 (19.05mm)	1.874 (47.50mm)	7/16 (11.11mm)	C-008
3/4 (19.05mm)	1.937 (49.28mm)	7/16 (11.11mm)	C-004
3/4 (19.05mm)	1.964 (49.78mm)	7/16 (11.11mm)	C-009
1-1/4	2.000 (50.80mm)	9mm	C-050
3/4 (19.05mm)	2.031 (51.56mm)	7/16 (11.11mm)	C-039
3/4 (19.05mm)	2.106 (53.59mm)	7/16 (11.11mm)	C-023
3/4 (19.05mm)	2.153 (54.61mm)	7/16 (11.11mm)	C-024
3/4 (19.05mm)	2.295 (58.42mm)	7/16 (11.11mm)	C-014
3/4 (19.05mm)	2.468 (62.74mm)	7/16 (11.11mm)	C-028
3/4 (19.05mm)	2.500 (63.50mm)	7/16 (11.11mm)	C-016
1-1/4	2.531 (64.26mm)	1/2 (12.70mm)	C-018
1-1/4	2.688 (68.33mm)	1/2 (12.70mm)	C-019
1-1/4	2.874 (72.90mm)	1/2 (12.70mm)	C-020
3/4 (19.05mm)	2-5/8	.437	47822
1-1/4	3.250 (82.55mm)	1/2 (12.70mm)	C-033
1-1/4	3.500 (88.90mm)	1/2 (12.70mm)	C-035
1-1/4	3.750 (95.25mm)	1/2 (12.70mm)	C-038
1-1/4	2-1/2	5/8 (15.88mm)	C-017

Weight	0.13 lbs
