49340 Multi-Rabbet Six Different Rabbet Depths 1-3/8 Dia x 1/2 x 1/4 Inch Shank

Amana 49340 Multi-Rabbet Six Different Rabbet Depths 1-3/8 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 49340 Multi-Rabbet Six Different Rabbet Depths 1-3/8 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 49340
Availability: InStock

Original price was: $86.10.Current price is: $64.58.

RABBETTING 1-3/8 DIA.1/4 SHANK

UPC: 738685893401 SKU: Amana 49340 Categories: Amana Tool, Jointing Router Bits, Rabbeting Router Bits, Router Bits

Item Description

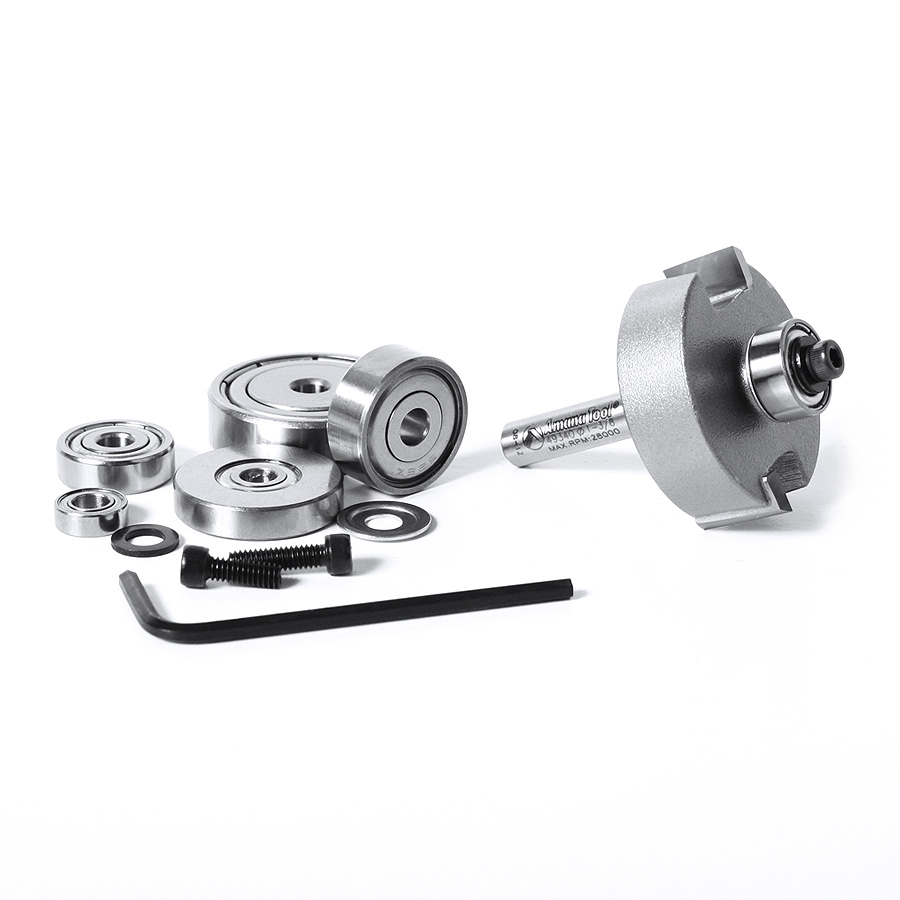

The Multi-Rabbet bit steps in 1/16″ increments from a 1/8″ cut width to 1/2″, simply by switching ball-bearing guides. Five different bearings are provided. Depth of cut capacity of 1/2″. Use in a handheld or table-mounted router.

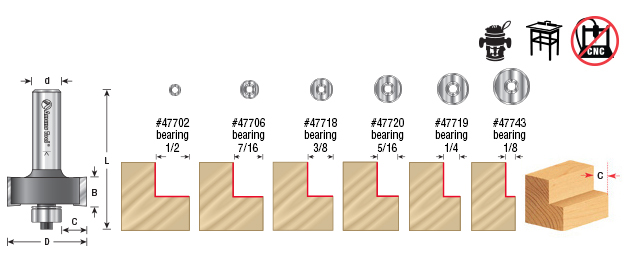

Specifications

Diameter (D)	1-3/8
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2
Flutes	2
C	1/8, 1/4, 5/16, 3/8, 7/16, 1/2

Other Sizes Available

Diameter (D)	C	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1-3/8	1/2	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	49350
1-3/8	1/2	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	2	49350-5

Weight	0.26 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
