Sale!

49352 Multi-Rabbet Five Different Rabbet Depths 1-3/8 Dia x 1 x 1/2 Inch Shank 4 Flute Router Bit

Amana 49352 Multi-Rabbet Five Different Rabbet Depths 1-3/8 Dia x 1 x 1/2 Inch Shank 4 Flute Router Bit

Name: Amana 49352 Multi-Rabbet Five Different Rabbet Depths 1-3/8 Dia x 1 x 1/2 Inch Shank 4 Flute Router Bit
SKU: Amana 49352
Availability: InStock

Original price was: $143.55.Current price is: $107.67.

RABBETT 4FL 1-3/8D 1/2SHK SET

UPC: 738685493526 SKU: Amana 49352 Categories: Amana Tool, Jointing Router Bits, Rabbeting Router Bits, Router Bits

Item Description

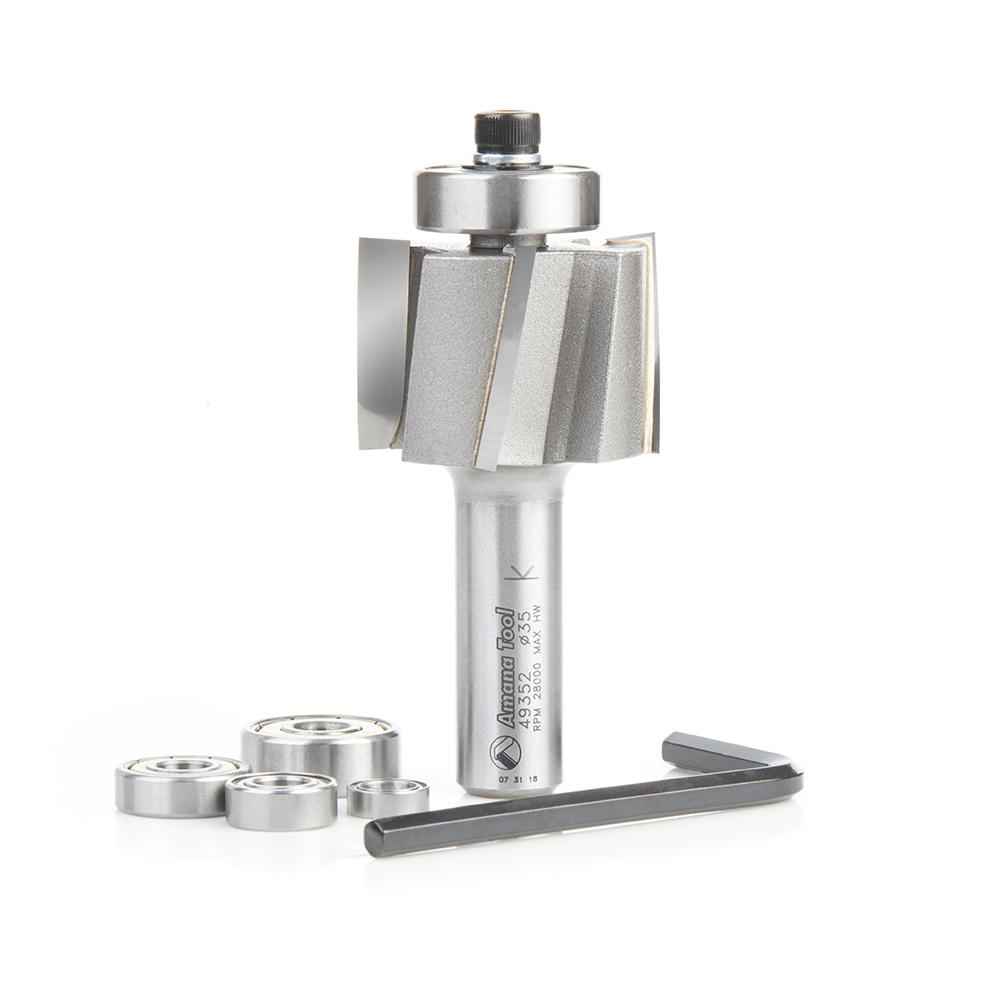

The Multi-Rabbet bit steps in 1/16″ increments from a 1/4″ cut width to 1/2″, simply by switching ball-bearing guides. Five different bearings are provided. Depth of cut capacity of 1/2″. Use in a handheld or table-mounted router.

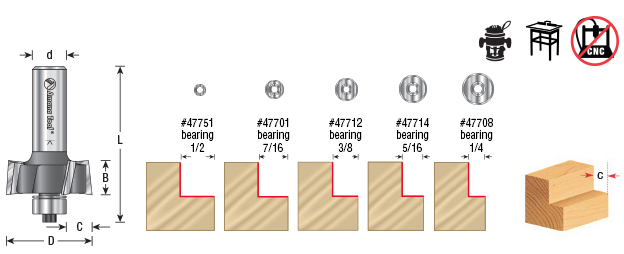

Specifications

Diameter (D)	1-3/8
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	2-15/16
Flutes	4
C	1/4, 5/16, 3/8, 7/16, 1/2

Weight	0.48 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
