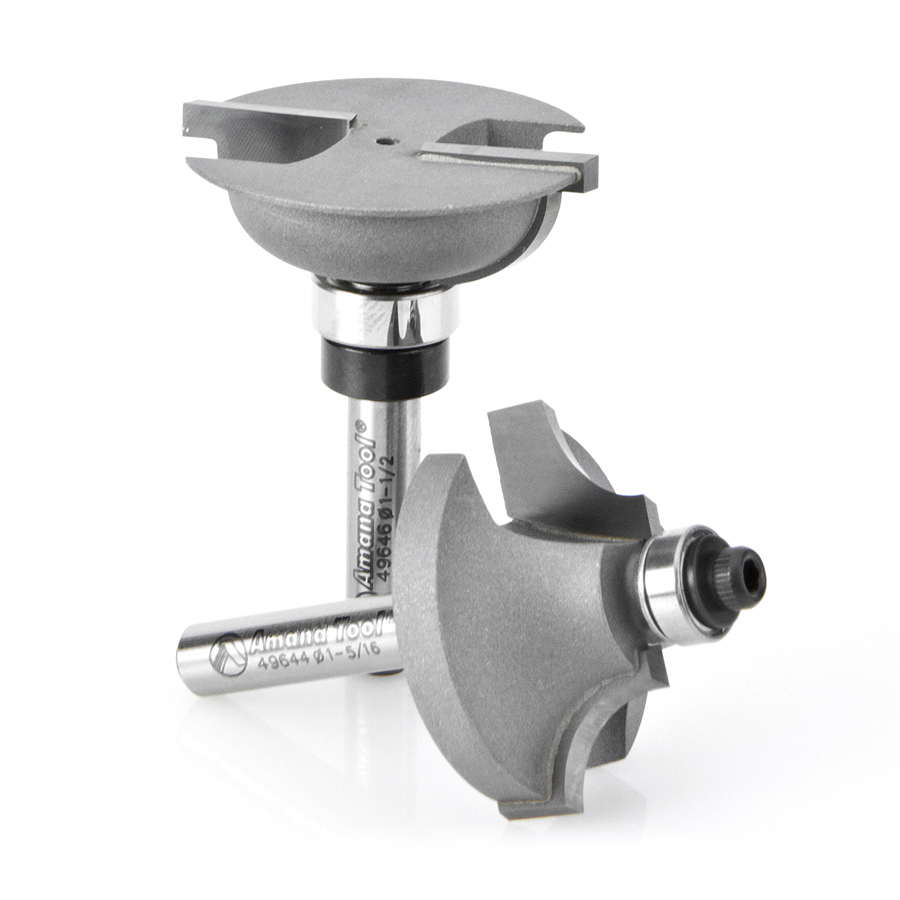

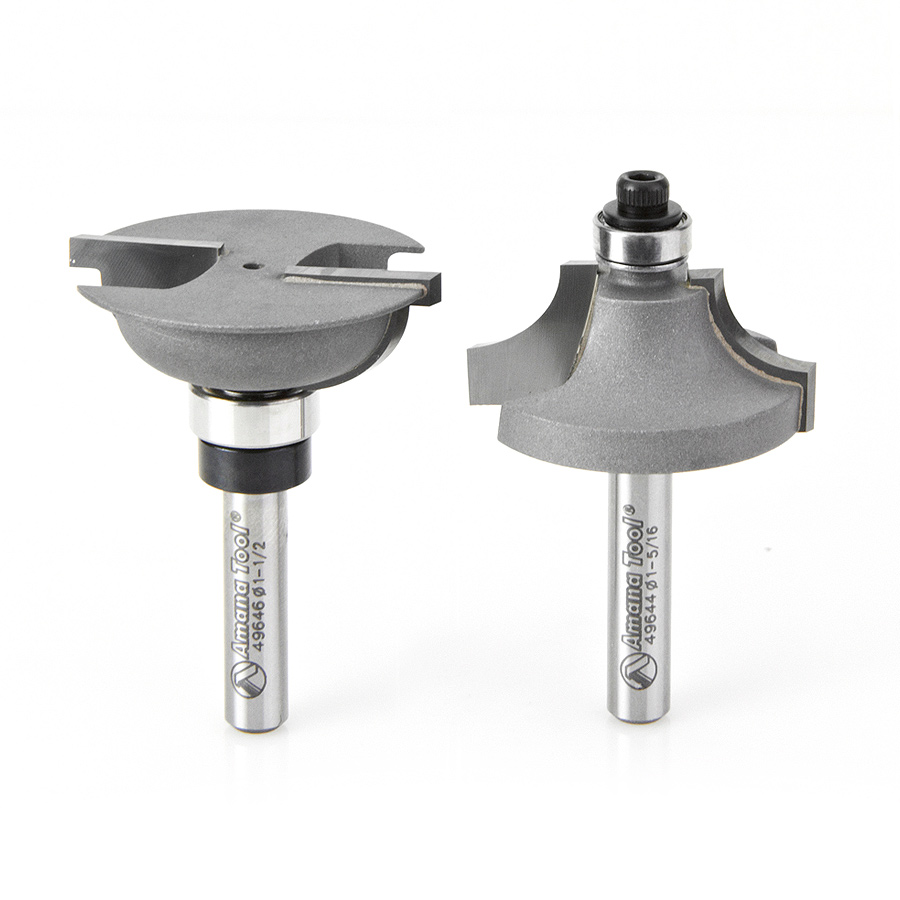

49647 Carbide Tipped Bead Stile and Rail 1/4 Inch Shank Set

Amana 49647 Carbide Tipped Bead Stile and Rail 1/4 Inch Shank Set

Name: Amana 49647 Carbide Tipped Bead Stile and Rail 1/4 Inch Shank Set
SKU: Amana 49647
Availability: InStock

Original price was: $105.70.Current price is: $79.28.

STILE AND RAIL SET 1/4 SHANK

UPC: 738685496473 SKU: Amana 49647 Categories: Amana Tool, Door Making Router Bits, Profile Router Bits for Glass Doors, Router Bits

Item Description

Our Profile Cutters are a unique and versatile series that can be used for general profile routing, glass doors and windows, as well as stile and rail work. (The panel groove and stub tenon must be cut separately.) The inverted hand cutters will produce copes that nest perfectly into the profiles cut by the matching “regular” bits. In addition, the inverted head allows you to profile edges that are out of the reach of regular profile bits. These 1/4” shank bits will fit any router. All are equipped with ball bearing guides, either on the tip or on the shank.

Specifications

Type	49644 & 49646 Set

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	B1	Type	Replacement Bearing	Flutes	Angle (a°)	Tool No.
1-5/16	23/64 (9.13mm)	19/32 (15.08mm)	1/4 (6.35mm)	2-3/16	17/64 (6.75mm)	Bead Stile	47702	2	–	49644
1-7/16	23/64 (9.13mm)	15/32 (11.91mm)	1/4 (6.35mm)	1-59/64	1/8 (3.18mm)	Bead Rail	47701	2	–	49646
1-1/8	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1/4 (6.35mm)	Bead Stile	47702	2	–	49640
1-1/4	1/4 (6.35mm)	5/16 (7.94mm)	1/4 (6.35mm)	2 (50.80mm)	7/64 (2.78mm)	Bead Rail	47701	2	–	49642

Weight	0.34 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
