49730 Carbide Tipped Variable Double Chamfer 30 Degree Top x 45 Degree Bottom x 1-3/8 Dia x 9/16 x 1/2 Inch Shank with Center Ball Bearing

Amana 49730 Carbide Tipped Variable Double Chamfer 30 Degree Top x 45 Degree Bottom x 1-3/8 Dia x 9/16 x 1/2 Inch Shank with Center Ball Bearing

Name: Amana 49730 Carbide Tipped Variable Double Chamfer 30 Degree Top x 45 Degree Bottom x 1-3/8 Dia x 9/16 x 1/2 Inch Shank with Center Ball Bearing
SKU: Amana 49730
Availability: InStock

Original price was: $192.15.Current price is: $144.12.

VARIABLE CHAMFER BIT ASSEMBLY

UPC: 738685897300 SKU: Amana 49730 Categories: Amana Tool, Profiling Router Bits, Router Bits, Variable Double Chamfer Assembly

Item Description

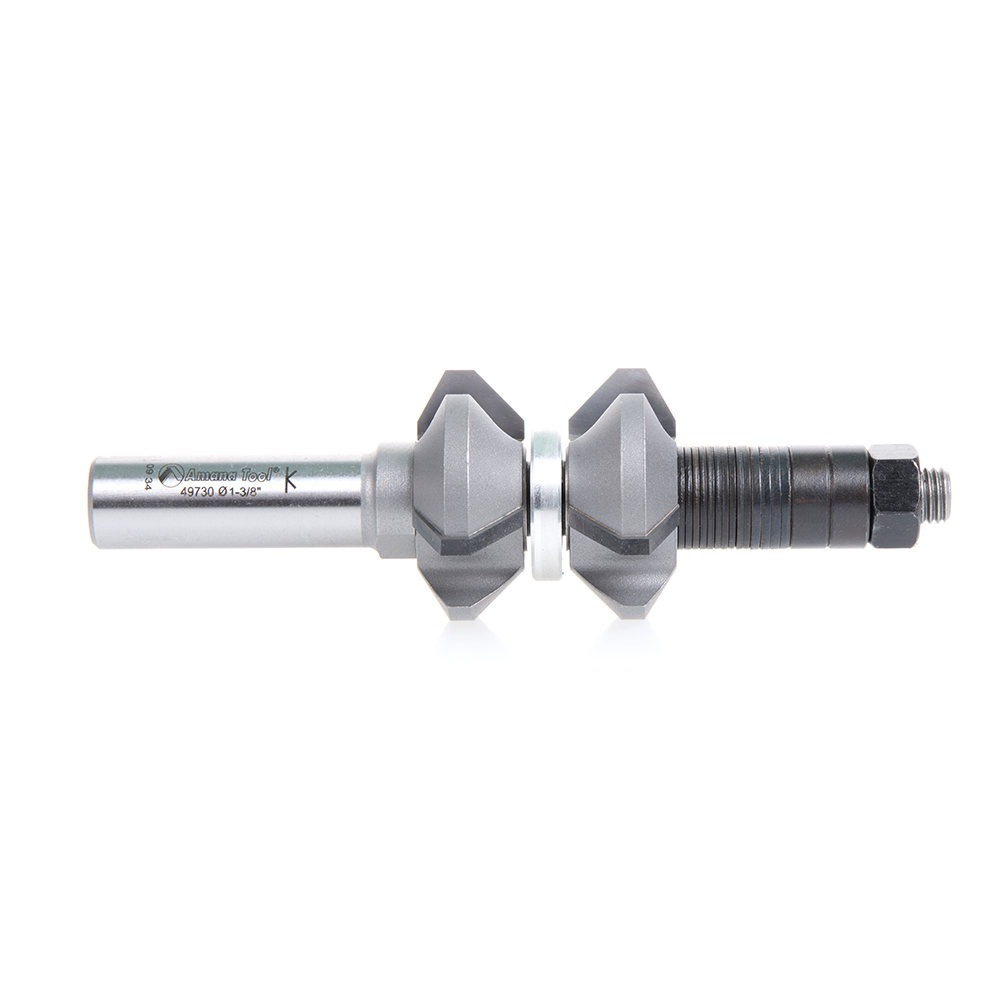

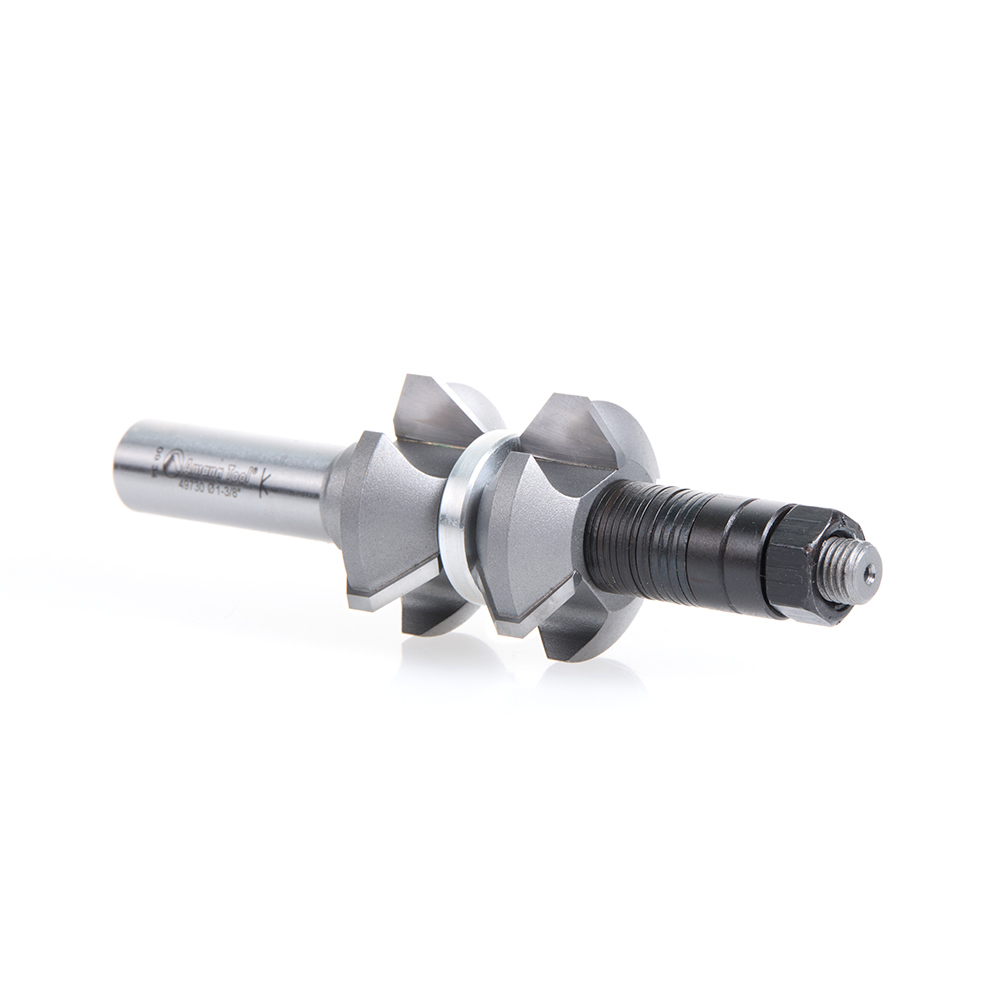

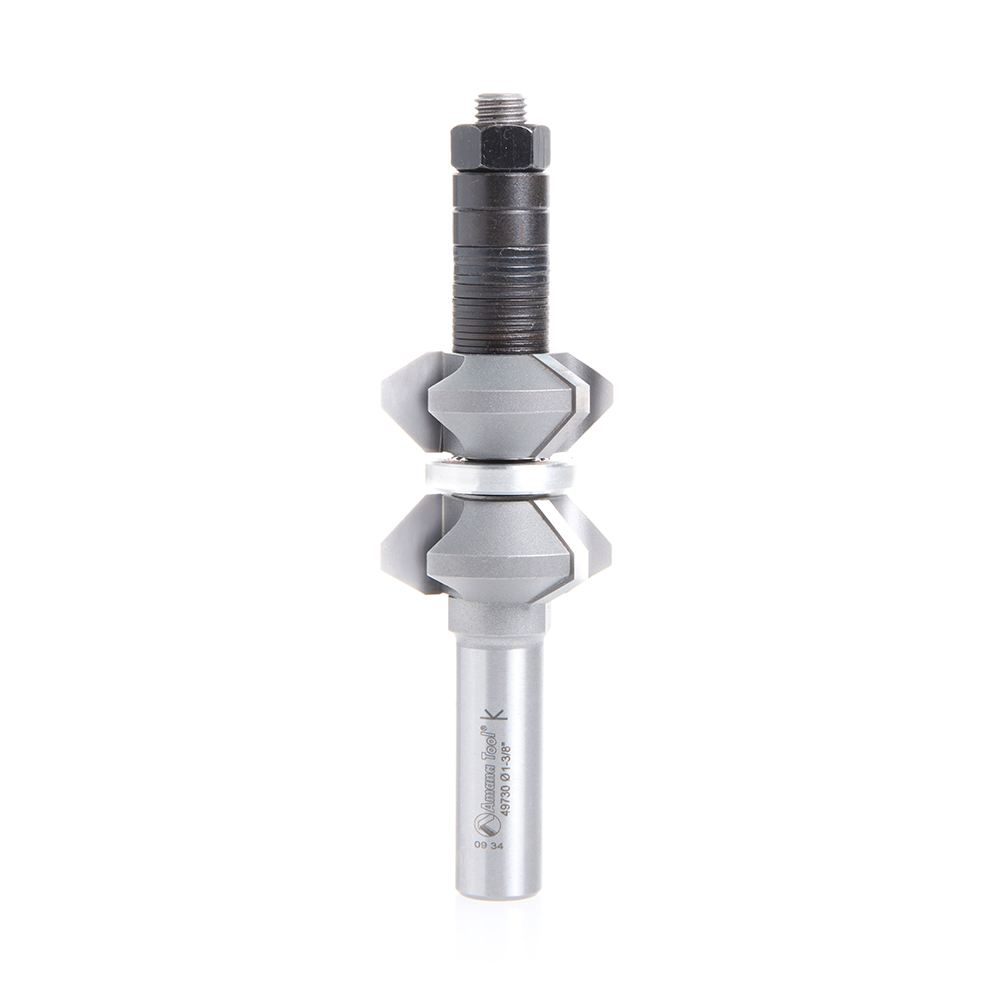

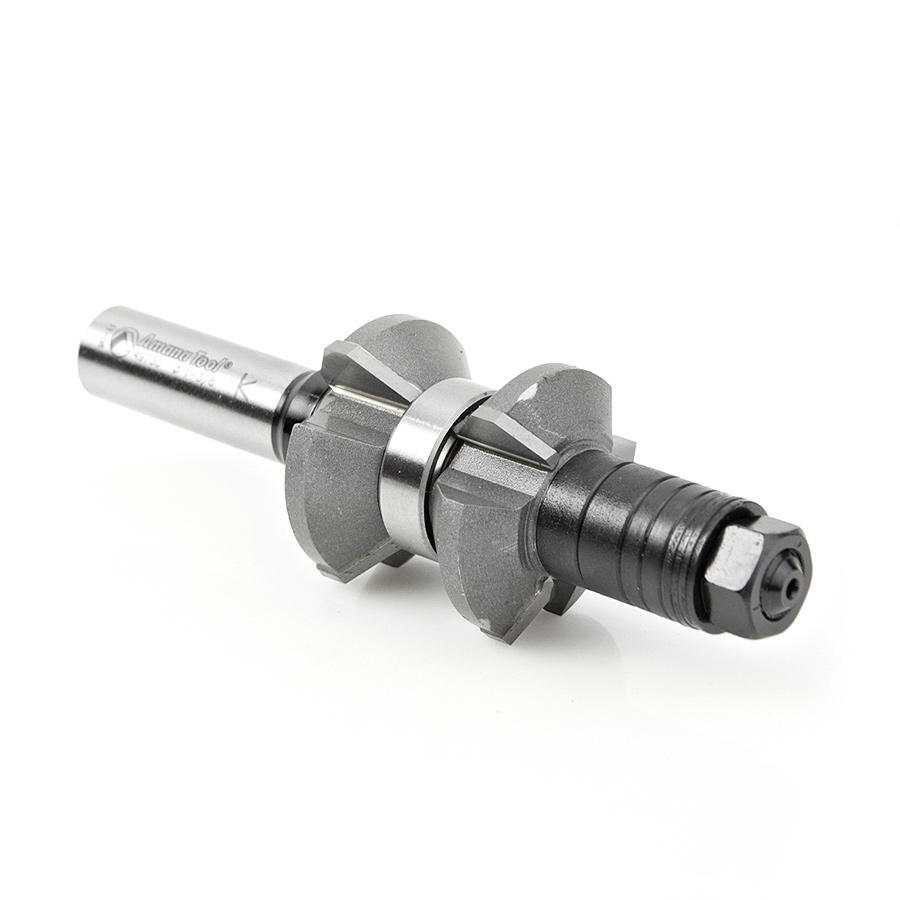

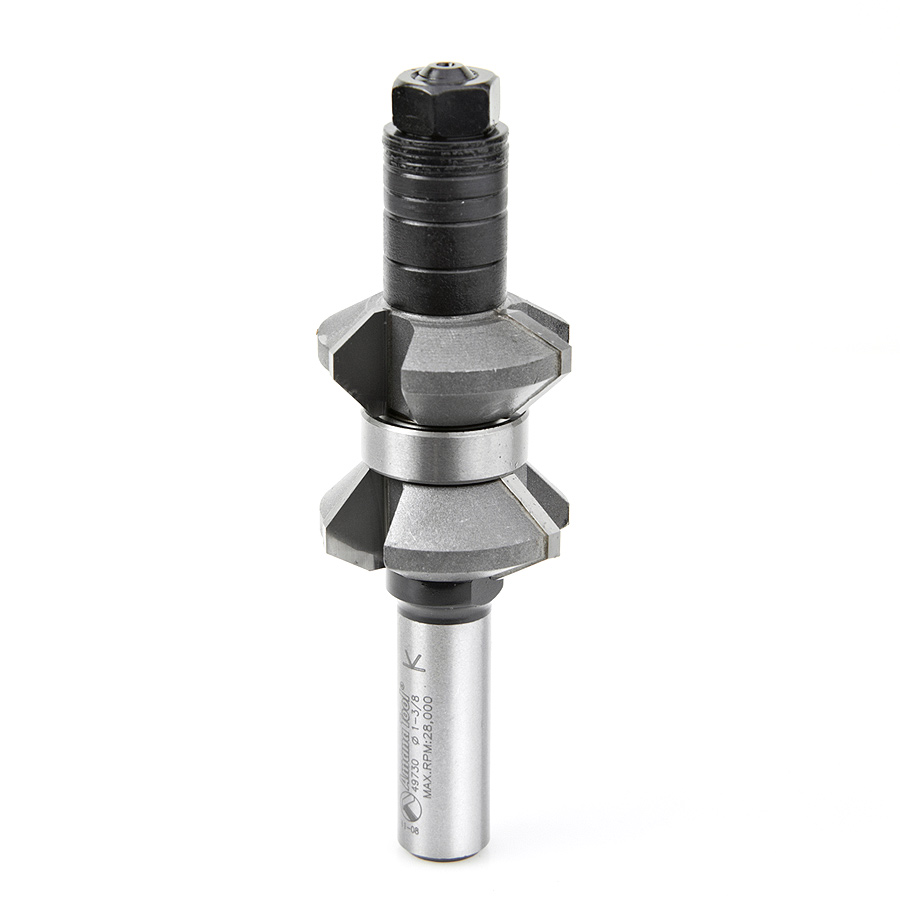

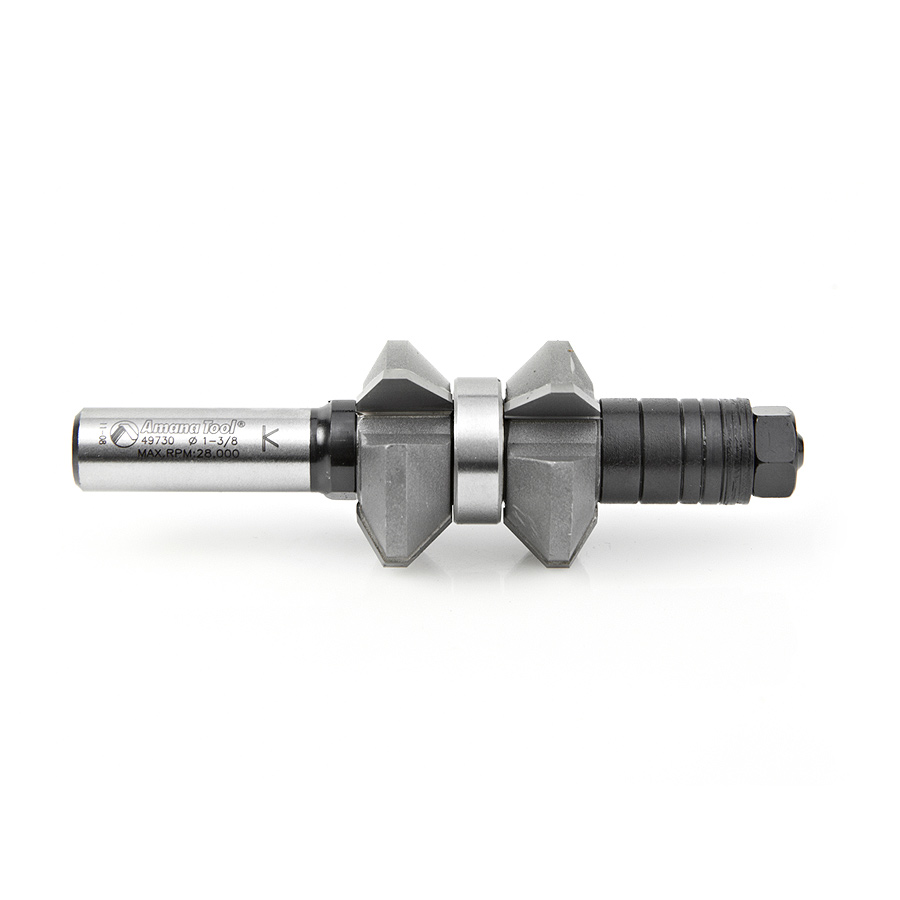

Chamfer both corners of an edge in one pass with this assembly. Switch from 30° or 45° chamfers by switching cutter positions on the arbor. Interchangeable spacers adjust assembly to accommodate different stock thicknesses. The assembly includes the arbor, a pair of multi-angle cutters, pilot bearing, spacers and shims. Replacement parts are available separately. For best results use in a router table.

Excellent for cutting:

Acrylic
Laminate
MDF/HDF
Melamine
Wood
Plywood

Replacement Parts

Tool No.	Bearing(s)	Hex Nut
49730	47708	67088

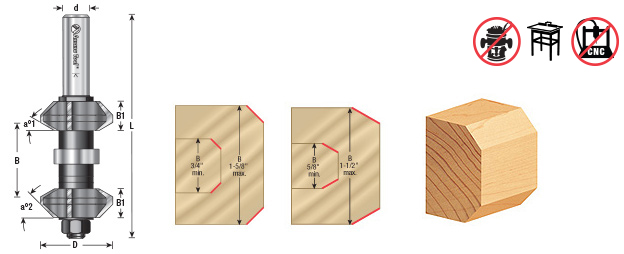

Specifications

a1°	30°
Diameter (D)	1-3/8
B1	9/16
Shank (d)	1/2
Overall Length (L)	4-1/4
a2°	45°
# Wings	3

Weight	0.48 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
