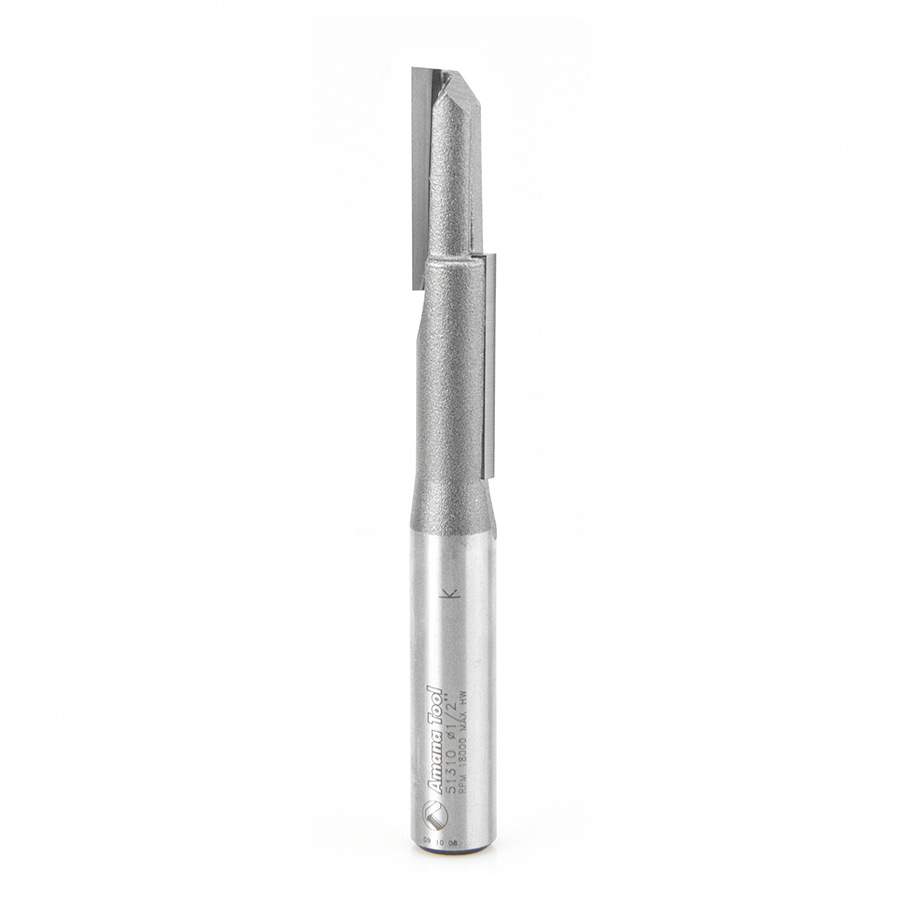

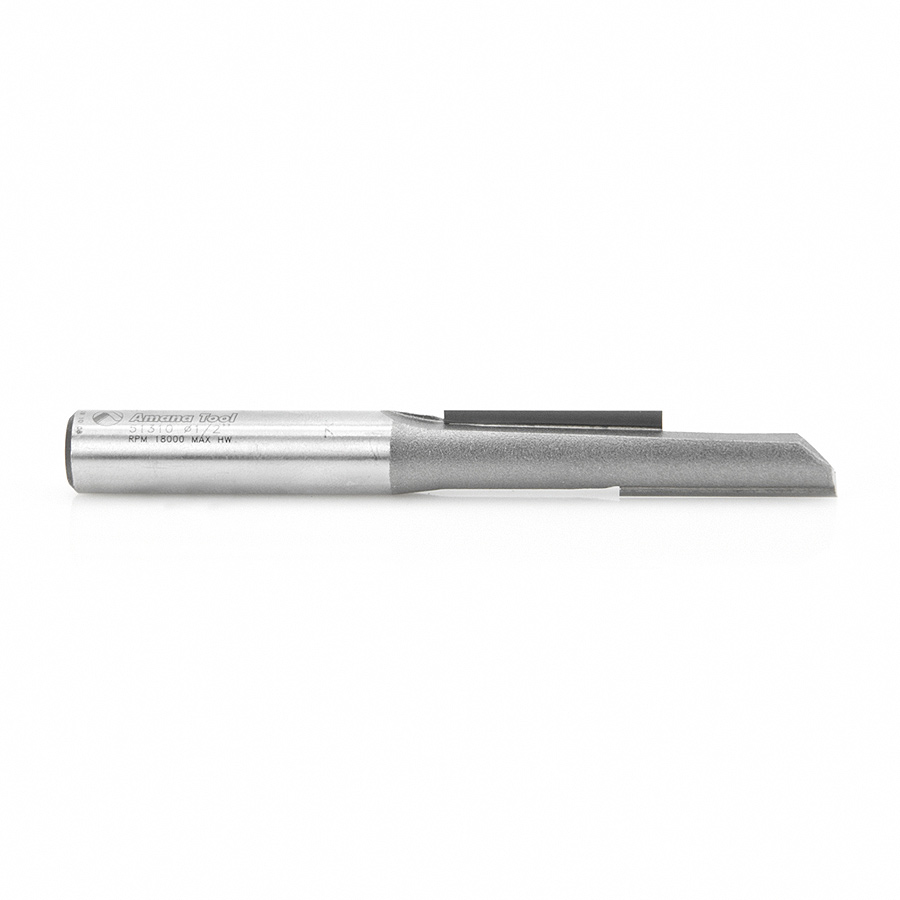

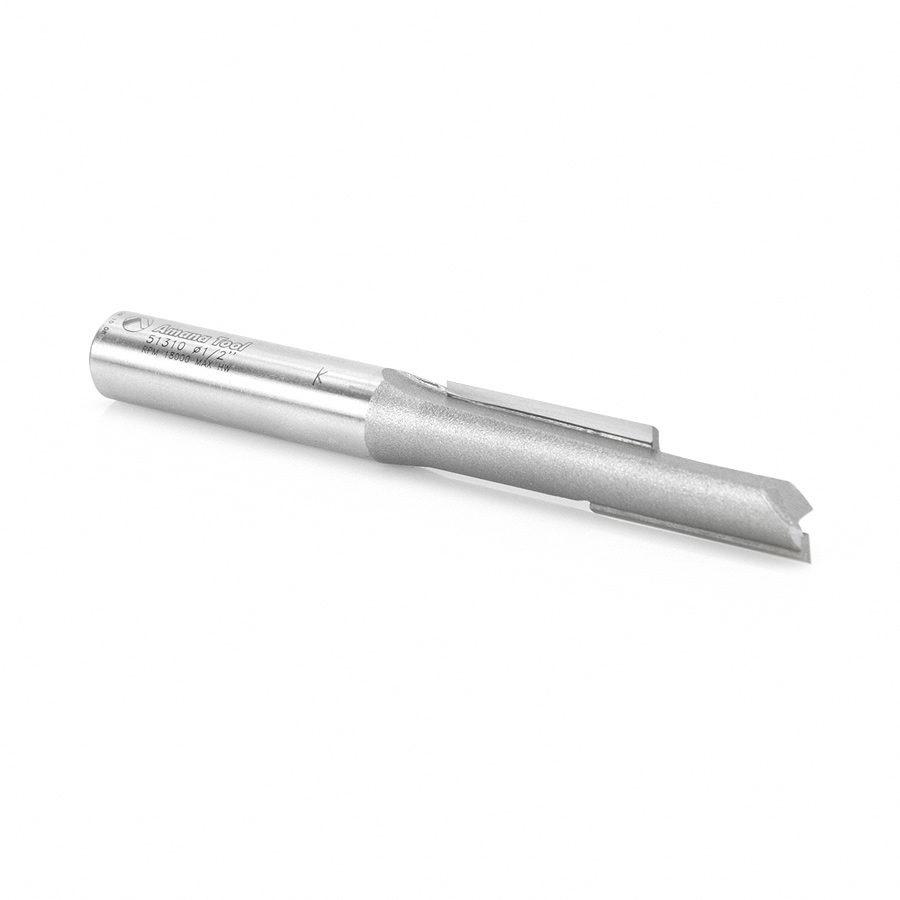

51310 Carbide Tipped Stagger Tooth Plunge 1/2 Dia x 2-1/4 x 1/2 Inch Shank

Amana 51310 Carbide Tipped Stagger Tooth Plunge 1/2 Dia x 2-1/4 x 1/2 Inch Shank

Name: Amana 51310 Carbide Tipped Stagger Tooth Plunge 1/2 Dia x 2-1/4 x 1/2 Inch Shank
SKU: Amana 51310
Availability: InStock

Original price was: $65.45.Current price is: $49.09.

STAGEER TOOTH 1/2 DIA 1/2 SHK

UPC: 738685153109 SKU: Amana 51310 Categories: Amana Tool, Router Bits, Stagger Tooth Panel Pilot Router Bits, Straight Plunge Router Bits

Item Description

Two cutting edges spaced 180 degrees apart, each half the length of its flute. One extends from the tip to the middle of the flute, the other from the middle to end. The configuration combines the cutting speed and chip clearance of a single-flute bit with the finish of a double-flute bit. Excellent bit for cutting dense or abrasive man-made materials and panel goods.

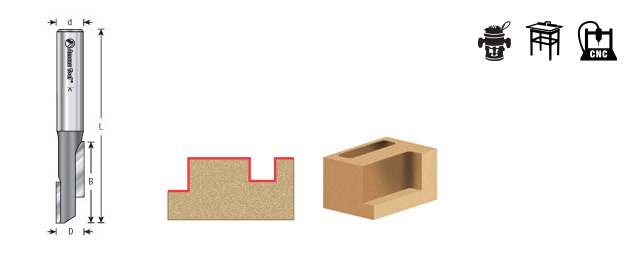

Specifications

Diameter (D)	1/2
Cutting Height (B)	2-1/4
Shank (d)	1/2
Overall Length (L)	4-1/2
Flutes	Stagger

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	Stagger	51300
3/8 (9.53mm)	1-3/8	3/8 (9.53mm)	3 (76.20mm)	Stagger	51302
3/8 (9.53mm)	1-1/2	1/2 (12.70mm)	3-1/8	Stagger	51304
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-1/8	Stagger	51306
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	Stagger	51308
1/2 (12.70mm)	2-1/8	1/2 (12.70mm)	4-1/4	Stagger	51309
1/2 (12.70mm)	2-1/2	1/2 (12.70mm)	4-1/2	Stagger	51311
1/2 (12.70mm)	2-5/8	1/2 (12.70mm)	4-3/4	Stagger	51313
1/2 (12.70mm)	2-5/8	1/2 (12.70mm)	5-1/2	Stagger	51323
1/2 (12.70mm)	3-1/2	1/2 (12.70mm)	6-1/4	Stagger	51325
5/8 (15.88mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	Stagger	51315

Weight	0.22 lbs
