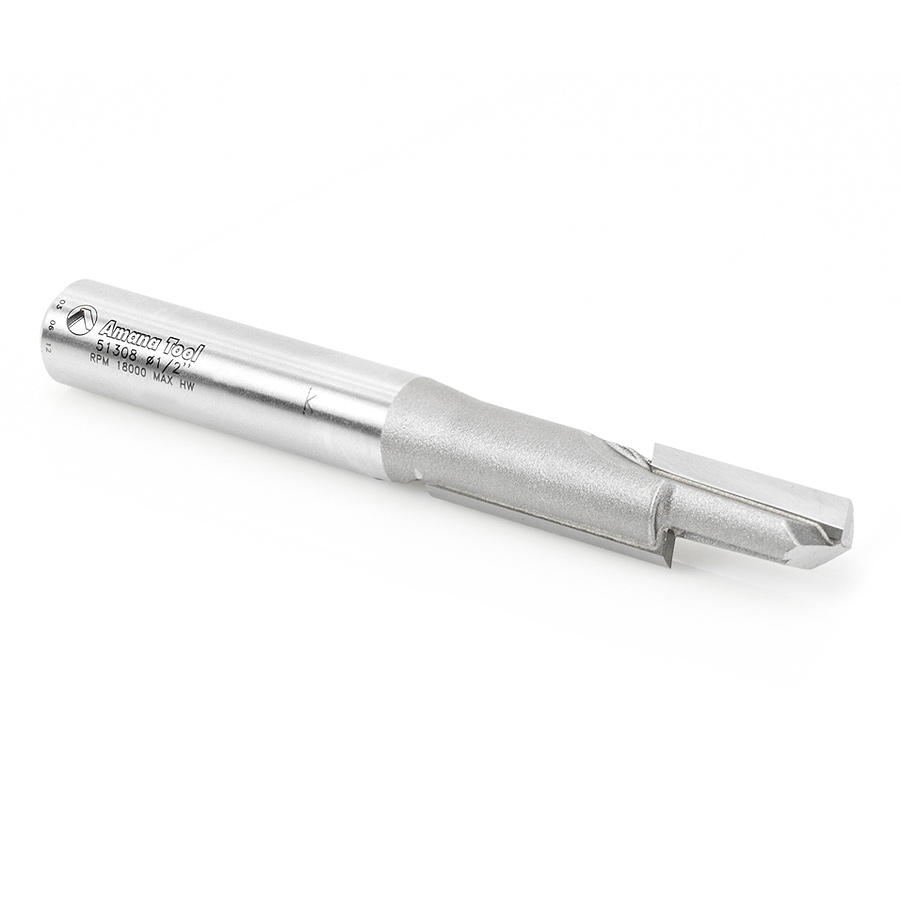

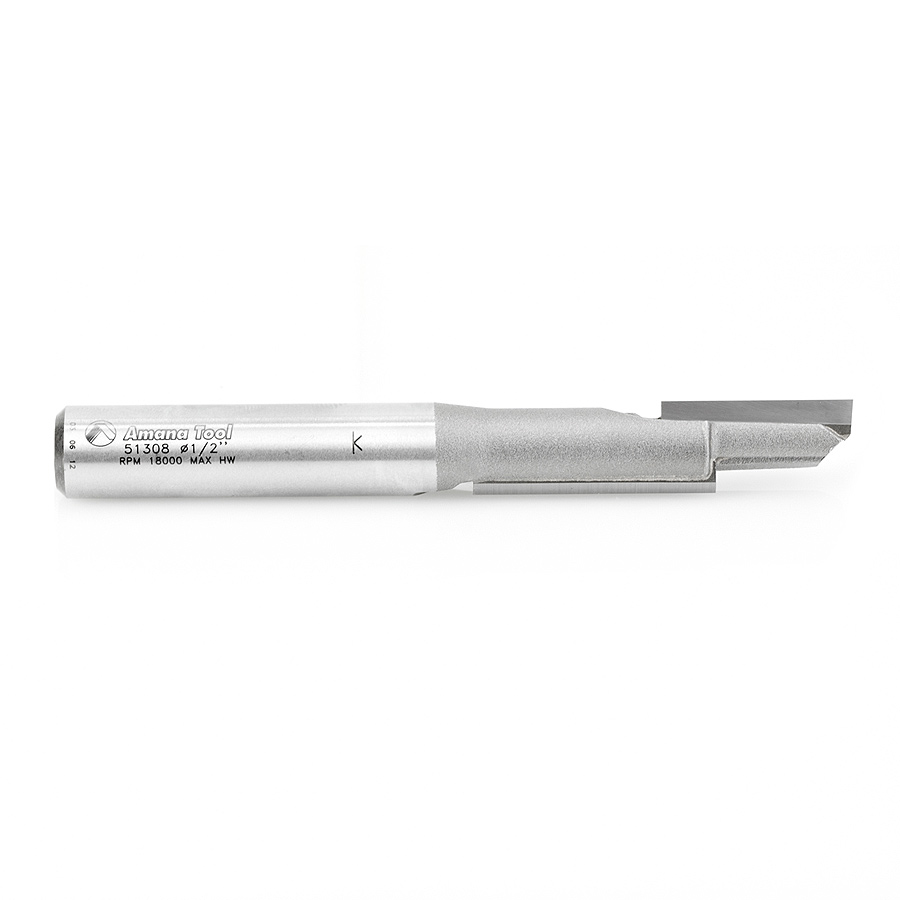

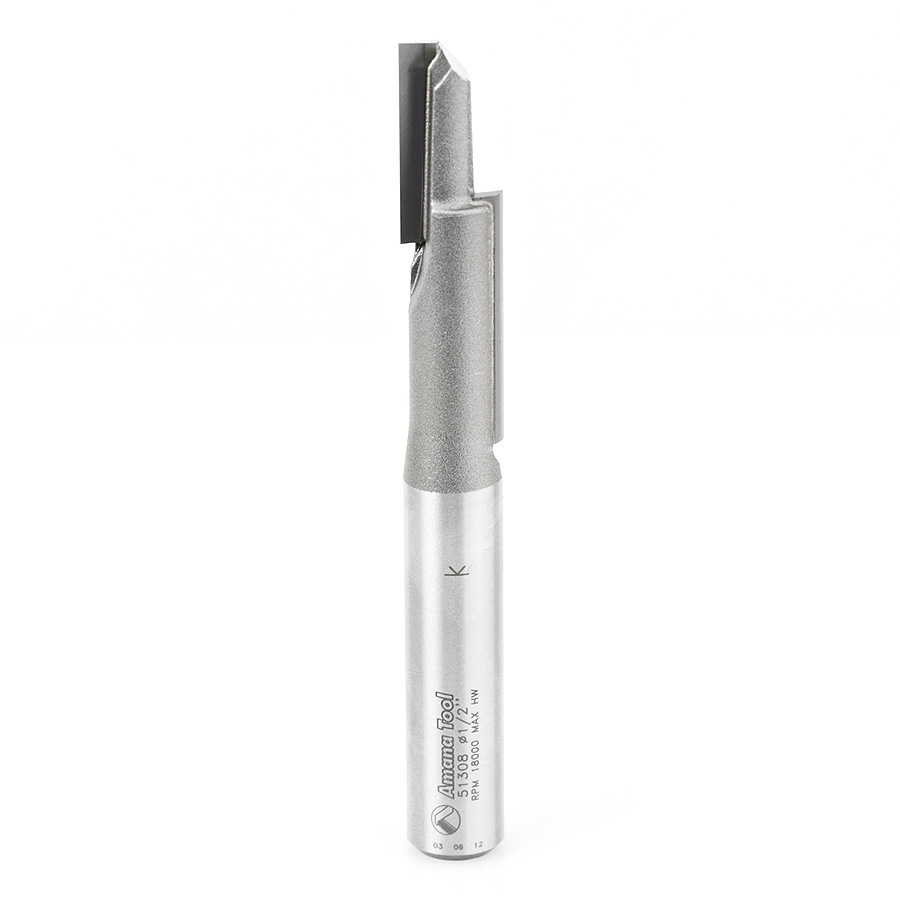

51308 Carbide Tipped Stagger Tooth Plunge 1/2 Dia x 2 Inch x 1/2 Shank

Amana 51308 Carbide Tipped Stagger Tooth Plunge 1/2 Dia x 2 Inch x 1/2 Shank

Original price was: $51.80.Current price is: $38.85.

STAGGER TOOTH 1/2 DIA 1/2 SHK

Item Description

Two cutting edges spaced 180 degrees apart, each half the length of its flute. One extends from the tip to the middle of the flute, the other from the middle to end. The configuration combines the cutting speed and chip clearance of a single-flute bit with the finish of a double-flute bit. Excellent bit for cutting dense or abrasive man-made materials and panel goods.

Specifications

Diameter (D)	1/2
Cutting Height (B)	2
Shank (d)	1/2
Overall Length (L)	4-1/4
Flutes	Stagger

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	Stagger	51300
3/8 (9.53mm)	1-3/8	3/8 (9.53mm)	3 (76.20mm)	Stagger	51302
3/8 (9.53mm)	1-1/2	1/2 (12.70mm)	3-1/8	Stagger	51304
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-1/8	Stagger	51306
1/2 (12.70mm)	2-1/8	1/2 (12.70mm)	4-1/4	Stagger	51309
1/2 (12.70mm)	2-1/4	1/2 (12.70mm)	4-1/2	Stagger	51310
1/2 (12.70mm)	2-1/2	1/2 (12.70mm)	4-1/2	Stagger	51311
1/2 (12.70mm)	2-5/8	1/2 (12.70mm)	4-3/4	Stagger	51313
1/2 (12.70mm)	2-5/8	1/2 (12.70mm)	5-1/2	Stagger	51323
1/2 (12.70mm)	3-1/2	1/2 (12.70mm)	6-1/4	Stagger	51325
5/8 (15.88mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	Stagger	51315

Weight	0.22 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
