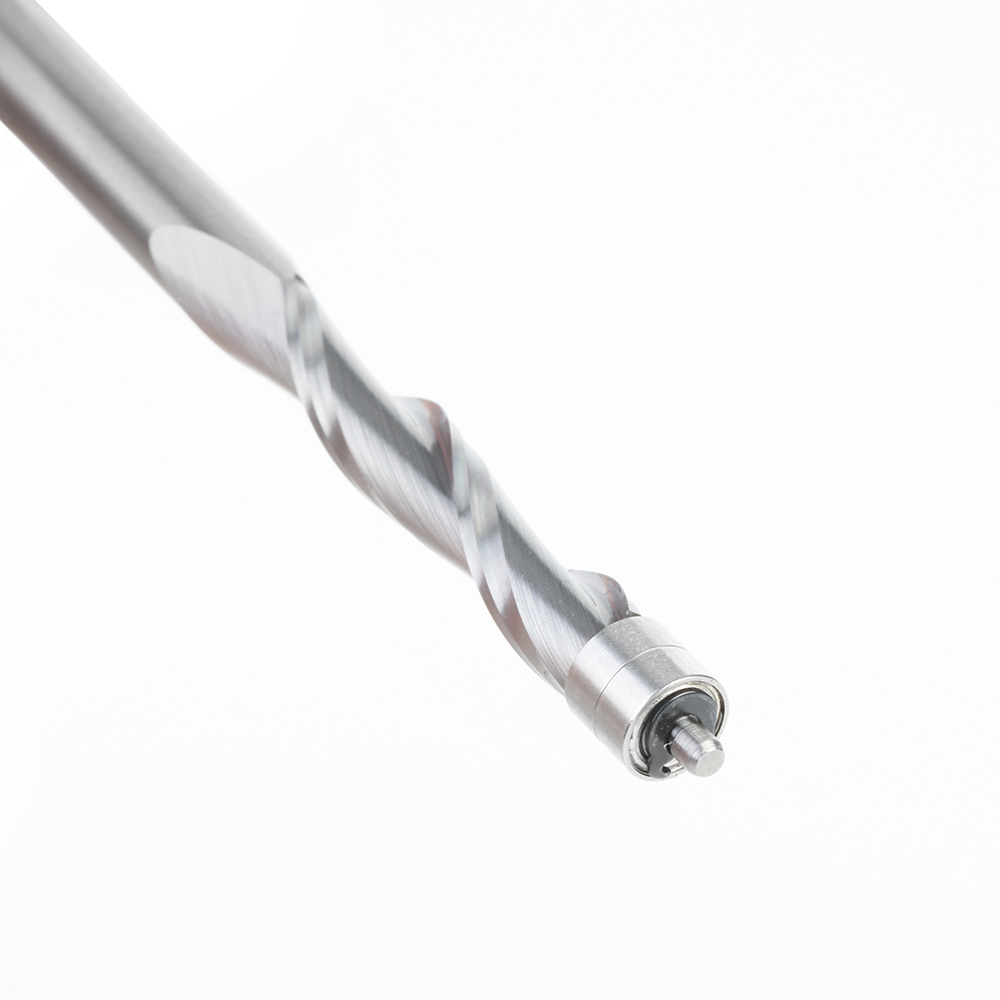

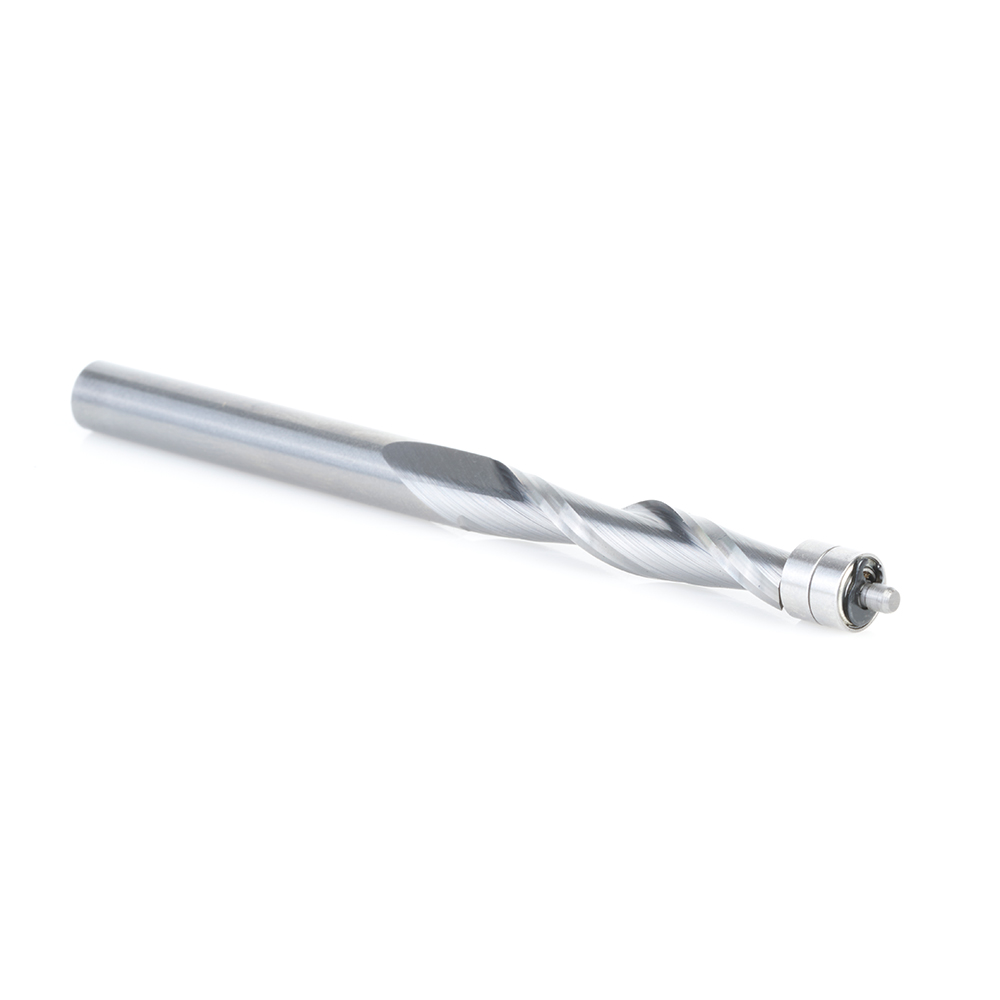

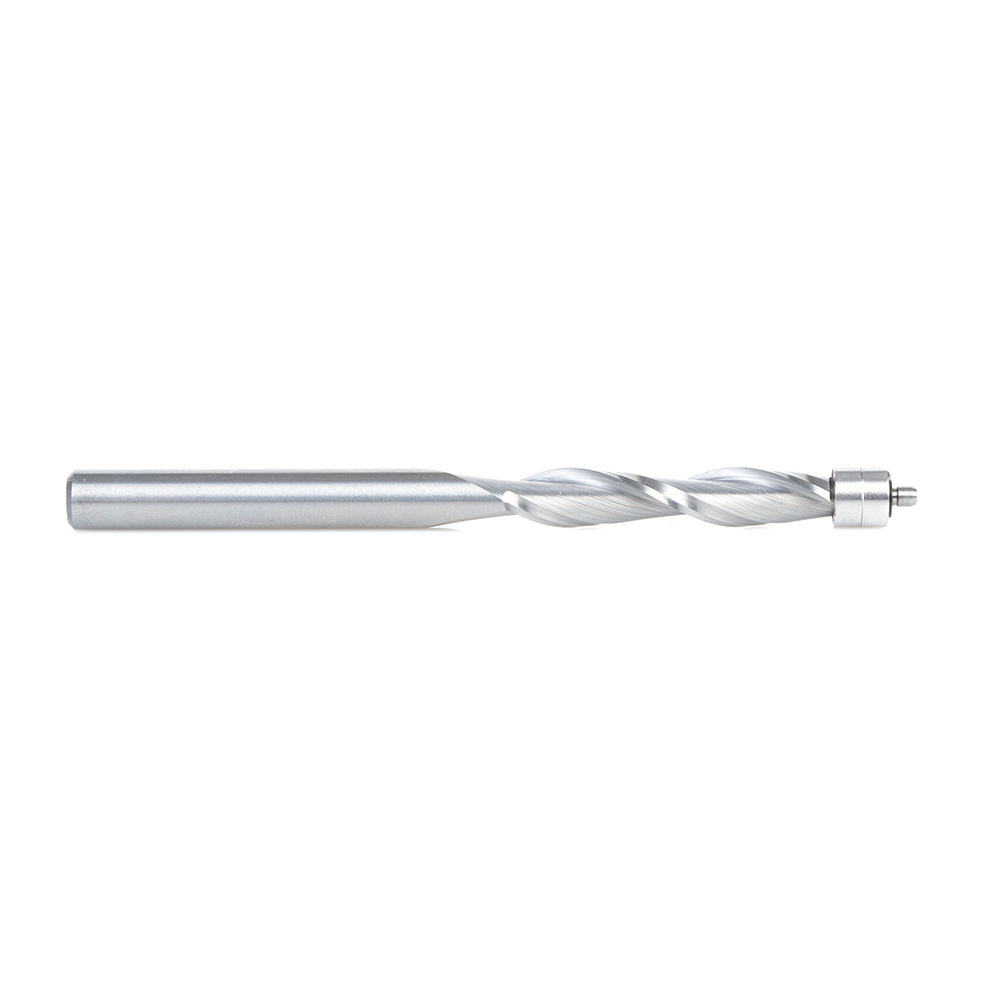

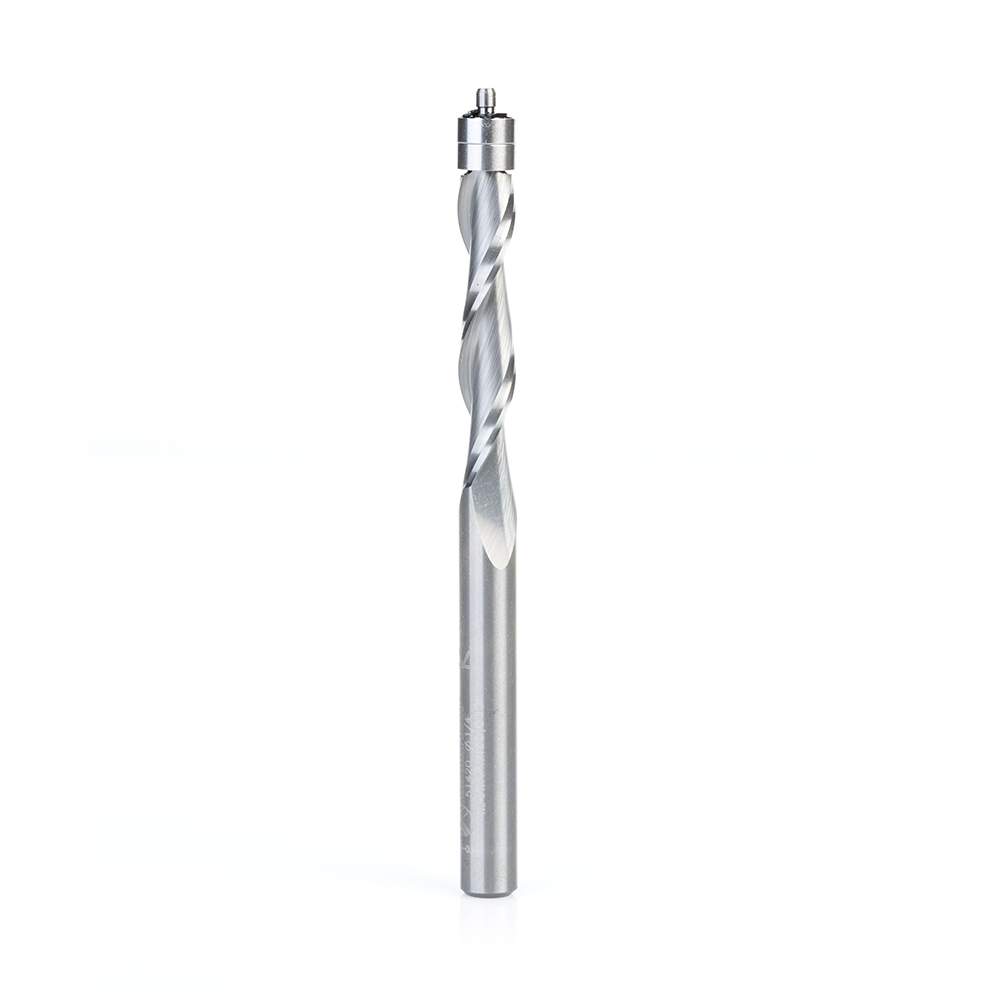

51420 Solid Carbide Aluminum Cutting Flush Trim Spiral Up-Cut 1/4 Dia x 1-1/4 x 1/4 Inch Shank

Amana 51420 Solid Carbide Aluminum Cutting Flush Trim Spiral Up-Cut 1/4 Dia x 1-1/4 x 1/4 Inch Shank

Name: Amana 51420 Solid Carbide Aluminum Cutting Flush Trim Spiral Up-Cut 1/4 Dia x 1-1/4 x 1/4 Inch Shank
SKU: Amana 51420
Availability: InStock

Original price was: $166.55.Current price is: $124.92.

ALUMINUM FLUSH TRIM 1/4 DIA UP

UPC: 738685514207 SKU: Amana 51420 Categories: Aluminum/Non Ferrous Metal Cutting Router Bits, Amana Tool, Router Bits

Item Description

This flush trim router bit was designed to eject chips up for clean cuts in aluminum and ACM materials. Perfect for routing aluminum using a template. Features a special carbide grade to perform high-quality cuts in aluminum.

Excellent For:

Aluminum
Aluminum Composite Materials (ACM)
MDF
Wood

Replacement Parts

Tool No.	Bearing(s)	Snap Ring
51422	47723	47779

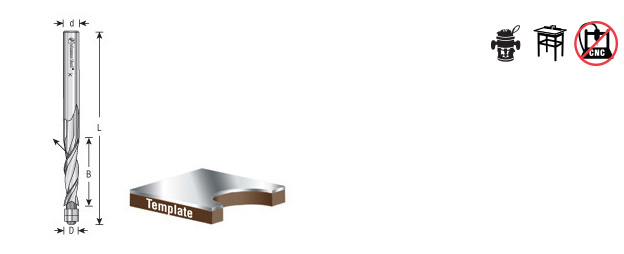

Specifications

Direction	Up-Cut
Diameter (D)	1/4
Cutting Height (B)	1-1/4
Shank (d)	1/4
Overall Length (L)	3-1/2
Type	Up-Cut
Replacement Bearing	47723 (2)
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Direction	Tool No.
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	3 (76.20mm)	Up-Cut	51422
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3-1/2	Down-Cut	51520
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	3 (76.20mm)	Down-Cut	51522

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
