Sale!

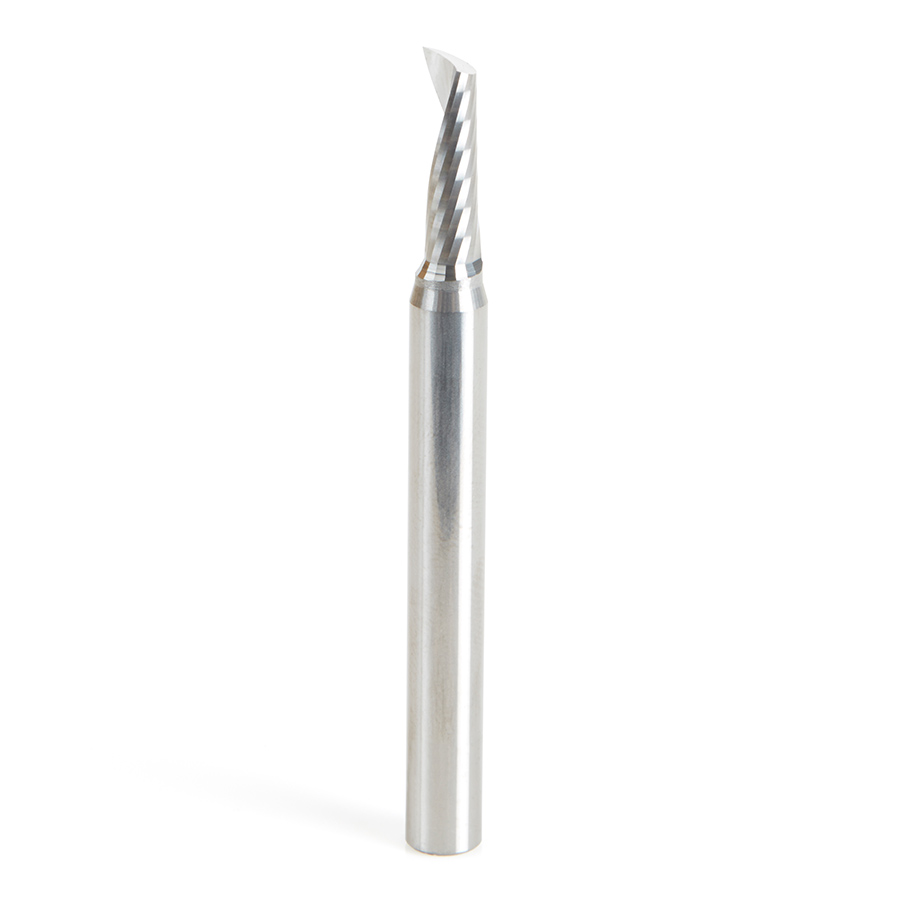

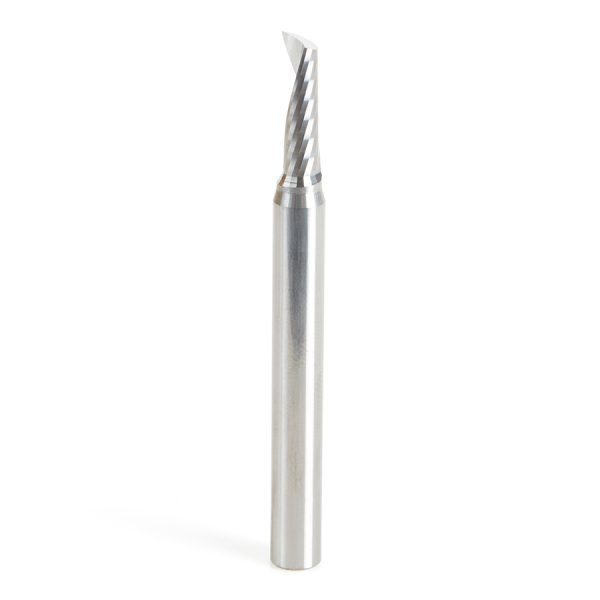

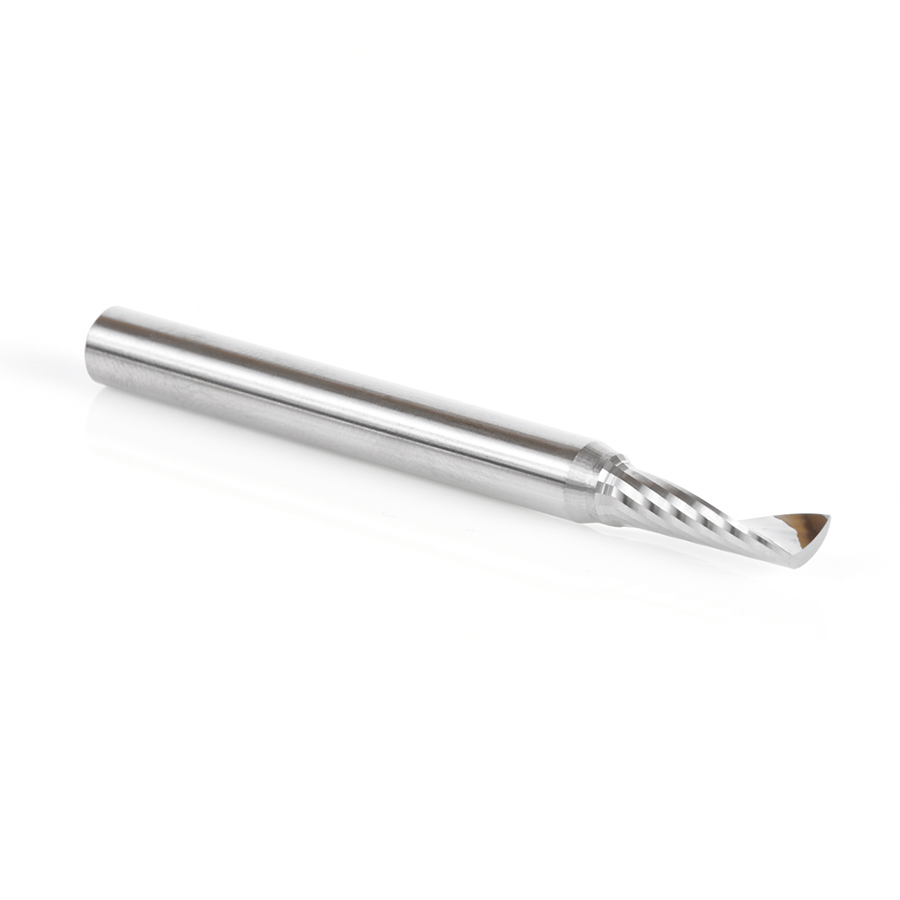

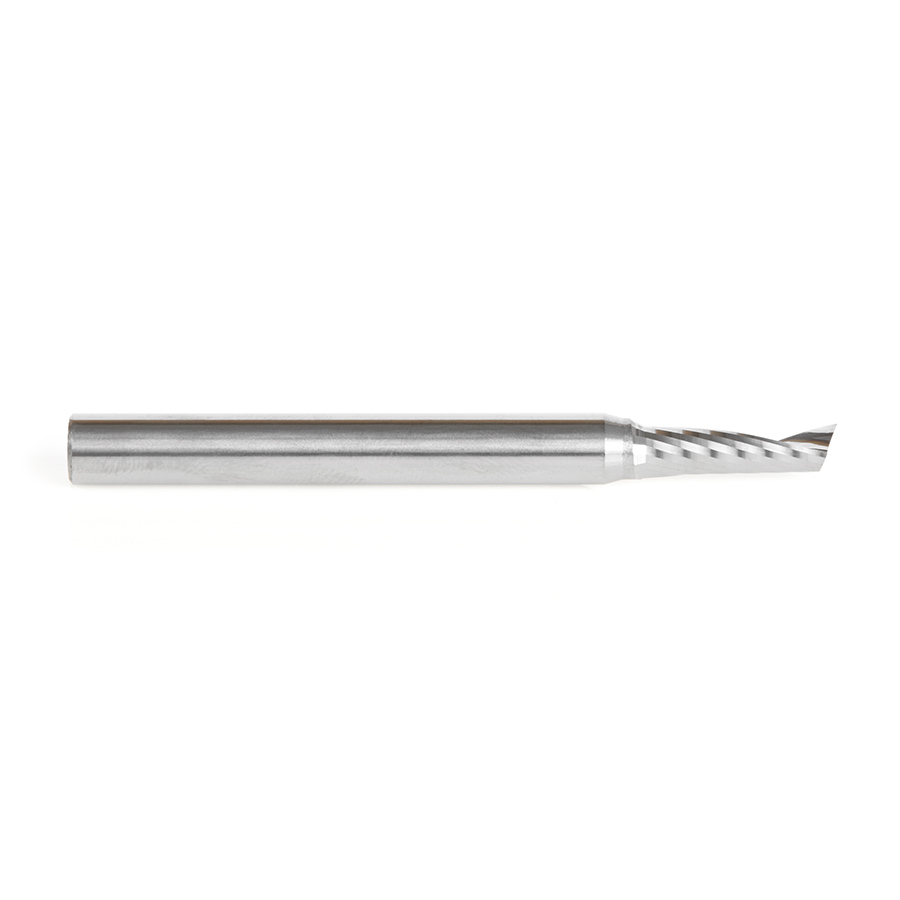

Amana 51494 Metric Solid Carbide CNC Spiral ‘O’ Single Flute, Aluminum Cutting 5mm Dia x 16mm x 6mm Shank x 63mm Long Up-Cut Router Bit

Name: Amana 51494 Metric Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 5mm Dia x 16mm x 6mm Shank x 63mm Long Up-Cut Router Bit
SKU: Amana 51494
Availability: InStock

Original price was: $79.75.Current price is: $59.82.

5mmDx6mm SHK SPIRAL O ALUMINUM

UPC: 738685514948 SKU: Amana 51494 Categories: Aluminum/Non Ferrous Metal Cutting Router Bits, Amana Tool, Router Bits

Item Description

To be used only on CNC machines and routers with automatic feeding.

Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix right hand cut.

Specifically designed for a variety CNC machining applications excellent for cutting:

ALPOLIC® Copper Composite

Material (CCM)

Alucobond®
Aluminum
Aluminum 5052
Aluminum 6061
Aluminum Alloys
Aluminum Composite

Materials (ACM)

Aluminum Composite Panel (ACP)*
Alupanel®
Brass
Copper

Dibond®
Durabond**
e-panel™
Etalbond®
Fomex® with Aluminum Face
Gold
Non-Ferrous Metals
Plastic
Silver
Solid Surface
Titanium Composite Material (TCM)
Wood

Ideal for industrial applications our spiral ‘O’ flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive.

Benefits of Mirror-Finish:

Razor sharp cutting edge
Effortless chip removal
Helps prevent chip re-welding
Extends tool life
Exceptional cut quality
Dissipates heat well and prevents melting

Aluminum composite panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for building facades external cladding insulation and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.

Warning:** Never attempt to cut ferrous metals with these bits.

Inspect cut quality adjust feed / speed accordingly.

For optimal results and extended tool life use mist lubricant system or air cooling.

Maximum RPM:**35,000

Vectric and Fusion 360 compatible tool files for 51494 available for download,click here.

Specifications

Direction	Up-Cut
(D) Diameter	5mm
(B) Cutting Height	16mm
(d) Shank	6mm
Overall Length (L)	63mm
Flutes	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Description	Tool No.
1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Up-Cut	–	51470
1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Up-Cut	5	51470-5
1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Down-Cut	–	51770
2mm	6mm	6mm	64mm	1	Up-Cut	–	57300
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51472
2.5mm	6mm	6mm	64mm	1	Up-Cut	–	57301
3mm	8mm	3mm	30mm	1	Up-Cut	–	51371
3mm	8mm	6mm	63mm	1	Up-Cut	–	51490
3mm	12mm	6mm	64mm	1	Up-Cut	–	57302
3mm	12mm	6mm	50mm	1	Down-Cut	–	57307
1/8 (3.18mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-1/2	1	Up-Cut	–	51373
1/8 (3.18mm)	5/16 (7.94mm)	1/8 (3.18mm)	1-1/2	1	Up-Cut	–	51406
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51454
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51454-5
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51459
1/8 (3.18mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Up-Cut	–	51471
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51474
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51474-5
1/8 (3.18mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51482
1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51486
1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	5	51486-5
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	Down-Cut	–	51501
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51503
1/8 (3.18mm)	5/16 (7.94mm)	1/8 (3.18mm)	1-1/2	1	Down-Cut	–	51506
1/8 (3.18mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Down-Cut	–	51771
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51772
5/32 (3.97mm)	5/16 (7.94mm)	3/16 (4.76mm)	2 (50.80mm)	1	Up-Cut	–	51473
4mm	20mm	6mm	63mm	1	Up-Cut	–	51492
5/32 (3.97mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51840
4mm	8mm	4mm	66mm	1	Up-Cut	–	57303
3/16 (4.76mm)	1/2 (12.70mm)	3/16 (4.76mm)	2 (50.80mm)	1	Up-Cut	–	51374
3/16 (4.76mm)	5/8 (15.88mm)	3/16 (4.76mm)	2 (50.80mm)	1	Up-Cut	–	51375
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51408
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51408-5
3/16 (4.76mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51456
3/16 (4.76mm)	3/8 (9.53mm)	3/16 (4.76mm)	1-1/2	1	Up-Cut	–	51475
3/16 (4.76mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51477
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51478
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51508
3/16 (4.76mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51773
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51838
6mm	20mm	6mm	64mm	1	Up-Cut	–	51496
6mm	8mm	6mm	64mm	1	Up-Cut	–	57304
6mm	32mm	6mm	76mm	1	Down-Cut	–	57308
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51377
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51377-5
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51401
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51402
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51402-5
1/4 (6.35mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51458
1/4 (6.35mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51476
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51479
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51480
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	5	51480-5
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51481
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51502
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51774
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Down-Cut	–	51775
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	1	Down-Cut	–	51776
9/32 (7.14mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51451
5/16 (7.94mm)	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	1	Up-Cut	–	51483
8mm	25mm	8mm	64mm	1	Up-Cut	–	51498
5/16 (7.94mm)	9/16 (14.29mm)	5/16 (7.94mm)	2-1/2	1	Up-Cut	–	51642
8mm	38mm	8mm	76mm	1	Up-Cut	–	57305
11/32 (8.73mm)	9/16 (14.29mm)	3/8 (9.53mm)	2-1/2	1	Up-Cut	–	51457
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	3 (76.20mm)	1	Up-Cut	–	51378
3/8 (9.53mm)	3/4 (19.05mm)	3/8 (9.53mm)	3 (76.20mm)	1	Up-Cut	–	51484
3/8 (9.53mm)	1-1/8	3/8 (9.53mm)	3 (76.20mm)	1	Up-Cut	–	51485
3/8 (9.53mm)	1-3/8	3/8 (9.53mm)	3-1/2	1	Up-Cut	–	51643
3/8 (9.53mm)	7/8 (22.23mm)	3/8 (9.53mm)	2-1/2	1	Up-Cut	–	51844
10mm	30mm	10mm	76mm	1	Up-Cut	–	57306
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	2-1/2	1	Up-Cut	–	51379
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	3-1/2	1	Up-Cut	–	51487
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	1	Up-Cut	–	51489
1/2 (12.70mm)	1-3/8	1/2 (12.70mm)	3-1/2	1	Up-Cut	–	51644
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	1	Up-Cut	–	51846
–	–	1/4 (6.35mm)	–	—-	–	–	AMS-160
–	–	1/8 (3.18mm)	–	—-	–	–	AMS-161

Weight	0.06 lbs
