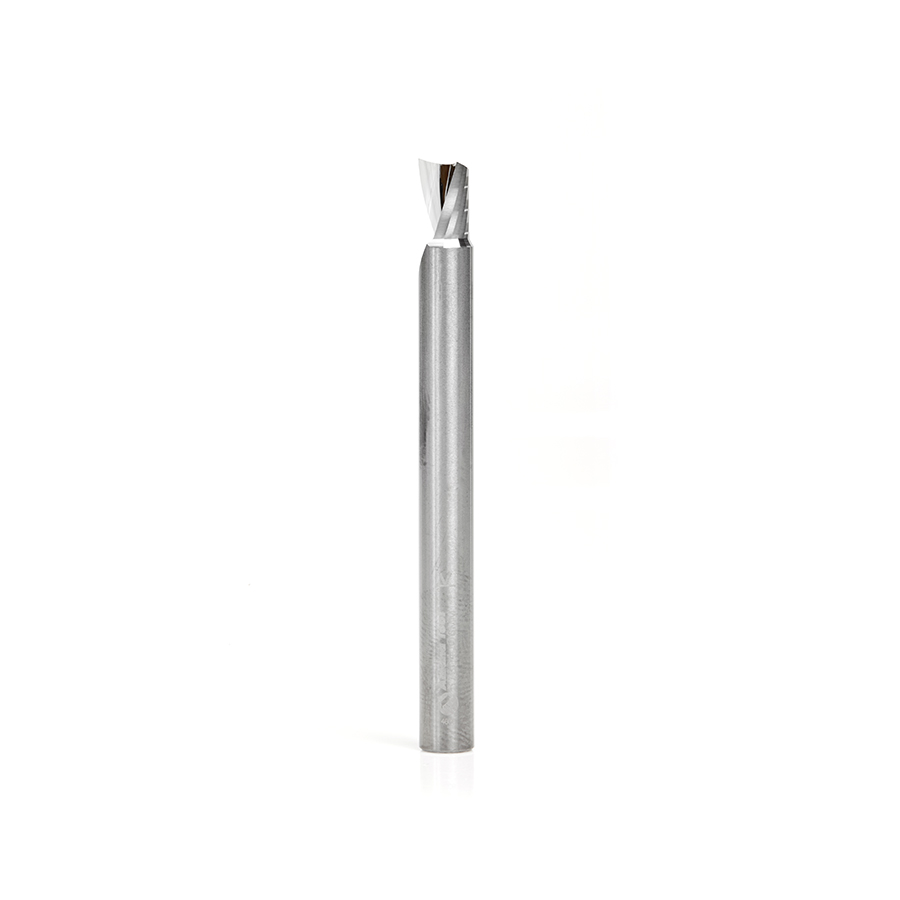

Amana 57304 Metric Solid Carbide CNC Spiral ‘O’ Single Flute, Aluminum Cutting 6mm Dia x 8mm x 6mm Shank x 64mm Long Up-Cut Router Bit

Name: Amana 57304 Metric Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 6mm Dia x 8mm x 6mm Shank x 64mm Long Up-Cut Router Bit
SKU: Amana 57304
Availability: InStock

Original price was: $76.65.Current price is: $57.49.

6mmx6mmSHANK SPIRAL O ALUMINUM

UPC: 738685573044 SKU: Amana 57304 Categories: Aluminum/Non Ferrous Metal Cutting Router Bits, Amana Tool, Router Bits

Item Description

To be used only on CNC machines and routers with automatic feeding.

Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix right hand cut.

Specifically designed for a variety CNC machining applications excellent for cutting:

ALPOLIC® Copper Composite

Material (CCM)

Alucobond®
Aluminum
Aluminum 5052
Aluminum 6061
Aluminum Alloys
Aluminum Composite

Materials (ACM)

Aluminum Composite Panel (ACP)*
Alupanel®
Brass
Copper

Dibond®
Durabond**
e-panel™
Etalbond®
Fomex® with Aluminum Face
Gold
Non-Ferrous Metals
Plastic
Silver
Solid Surface
Titanium Composite Material (TCM)
Wood

Ideal for industrial applications our spiral ‘O’ flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive.

Benefits of Mirror-Finish:

Razor sharp cutting edge
Effortless chip removal
Helps prevent chip re-welding
Extends tool life
Exceptional cut quality
Dissipates heat well and prevents melting

Aluminum composite panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for building facades external cladding insulation and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.

Warning:** Never attempt to cut ferrous metals with these bits.

Inspect cut quality adjust feed / speed accordingly.

For optimal results and extended tool life use mist lubricant system or air cooling.

Maximum RPM:**35,000

Specifications

Direction	Up-Cut
(D) Diameter	6mm
(B) Cutting Height	8mm
(d) Shank	6mm
Overall Length (L)	64mm
Flutes	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Description	Tool No.
1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Up-Cut	–	51470
1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Up-Cut	5	51470-5
1/16 (1.59mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Down-Cut	–	51770
2mm	6mm	6mm	64mm	1	Up-Cut	–	57300
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51472
2.5mm	6mm	6mm	64mm	1	Up-Cut	–	57301
3mm	8mm	3mm	30mm	1	Up-Cut	–	51371
3mm	8mm	6mm	63mm	1	Up-Cut	–	51490
3mm	12mm	6mm	64mm	1	Up-Cut	–	57302
3mm	12mm	6mm	50mm	1	Down-Cut	–	57307
1/8 (3.18mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-1/2	1	Up-Cut	–	51373
1/8 (3.18mm)	5/16 (7.94mm)	1/8 (3.18mm)	1-1/2	1	Up-Cut	–	51406
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51454
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51454-5
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	Up-Cut	–	51459
1/8 (3.18mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Up-Cut	–	51471
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51474
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51474-5
1/8 (3.18mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51482
1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51486
1/8 (3.18mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	5	51486-5
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	1	Down-Cut	–	51501
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51503
1/8 (3.18mm)	5/16 (7.94mm)	1/8 (3.18mm)	1-1/2	1	Down-Cut	–	51506
1/8 (3.18mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-1/2	1	Down-Cut	–	51771
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51772
5/32 (3.97mm)	5/16 (7.94mm)	3/16 (4.76mm)	2 (50.80mm)	1	Up-Cut	–	51473
4mm	20mm	6mm	63mm	1	Up-Cut	–	51492
5/32 (3.97mm)	9/16 (14.29mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51840
4mm	8mm	4mm	66mm	1	Up-Cut	–	57303
3/16 (4.76mm)	1/2 (12.70mm)	3/16 (4.76mm)	2 (50.80mm)	1	Up-Cut	–	51374
3/16 (4.76mm)	5/8 (15.88mm)	3/16 (4.76mm)	2 (50.80mm)	1	Up-Cut	–	51375
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51408
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51408-5
3/16 (4.76mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51456
3/16 (4.76mm)	3/8 (9.53mm)	3/16 (4.76mm)	1-1/2	1	Up-Cut	–	51475
3/16 (4.76mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51477
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51478
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51508
3/16 (4.76mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51773
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51838
5mm	16mm	6mm	63mm	1	Up-Cut	–	51494
6mm	20mm	6mm	64mm	1	Up-Cut	–	51496
6mm	32mm	6mm	76mm	1	Down-Cut	–	57308
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51377
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51377-5
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51401
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51402
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	5	51402-5
1/4 (6.35mm)	7/8 (22.23mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51458
1/4 (6.35mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51476
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51479
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	–	51480
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Up-Cut	5	51480-5
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	1	Up-Cut	–	51481
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51502
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	1	Down-Cut	–	51774
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	1	Down-Cut	–	51775
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	1	Down-Cut	–	51776
9/32 (7.14mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	1	Up-Cut	–	51451
5/16 (7.94mm)	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	1	Up-Cut	–	51483
8mm	25mm	8mm	64mm	1	Up-Cut	–	51498
5/16 (7.94mm)	9/16 (14.29mm)	5/16 (7.94mm)	2-1/2	1	Up-Cut	–	51642
8mm	38mm	8mm	76mm	1	Up-Cut	–	57305
11/32 (8.73mm)	9/16 (14.29mm)	3/8 (9.53mm)	2-1/2	1	Up-Cut	–	51457
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	3 (76.20mm)	1	Up-Cut	–	51378
3/8 (9.53mm)	3/4 (19.05mm)	3/8 (9.53mm)	3 (76.20mm)	1	Up-Cut	–	51484
3/8 (9.53mm)	1-1/8	3/8 (9.53mm)	3 (76.20mm)	1	Up-Cut	–	51485
3/8 (9.53mm)	1-3/8	3/8 (9.53mm)	3-1/2	1	Up-Cut	–	51643
3/8 (9.53mm)	7/8 (22.23mm)	3/8 (9.53mm)	2-1/2	1	Up-Cut	–	51844
10mm	30mm	10mm	76mm	1	Up-Cut	–	57306
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	2-1/2	1	Up-Cut	–	51379
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	3-1/2	1	Up-Cut	–	51487
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	1	Up-Cut	–	51489
1/2 (12.70mm)	1-3/8	1/2 (12.70mm)	3-1/2	1	Up-Cut	–	51644
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	1	Up-Cut	–	51846
–	–	1/4 (6.35mm)	–	—-	–	–	AMS-160
–	–	1/8 (3.18mm)	–	—-	–	–	AMS-161

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
