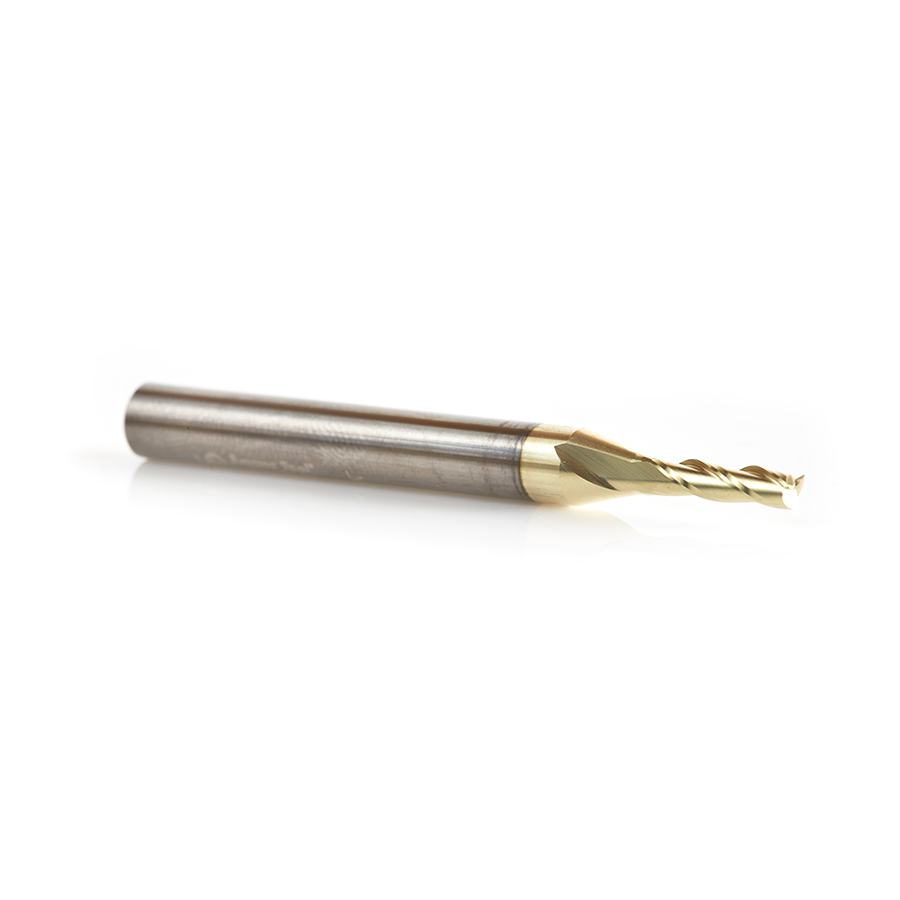

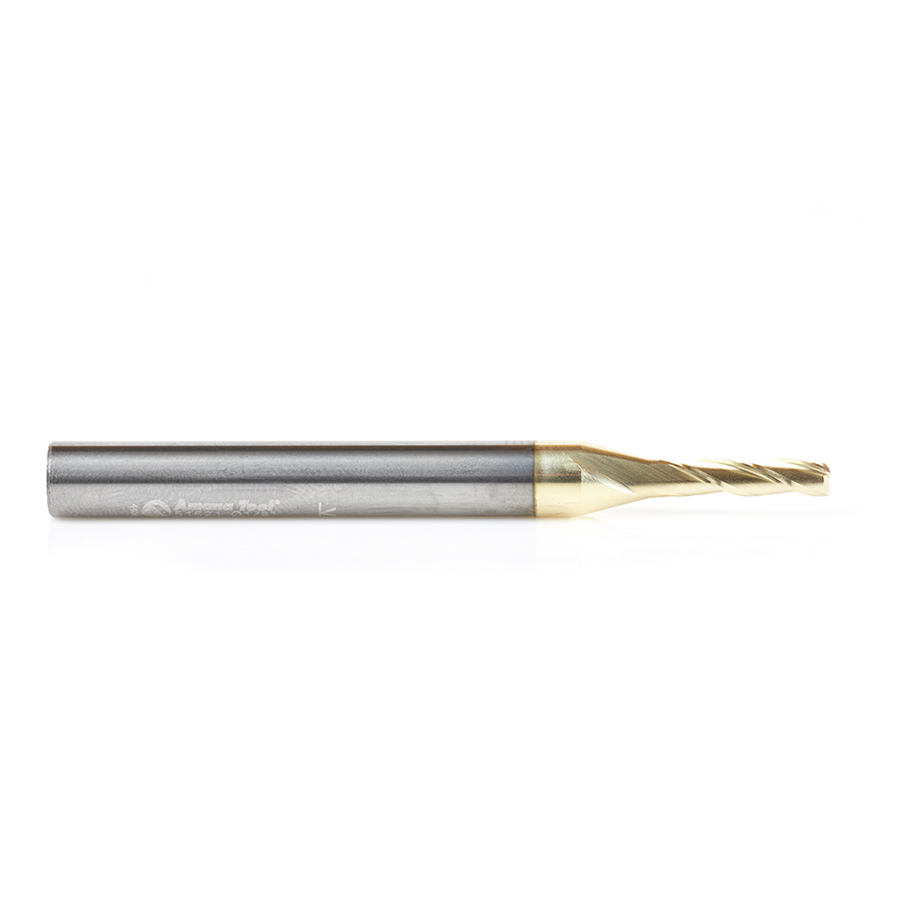

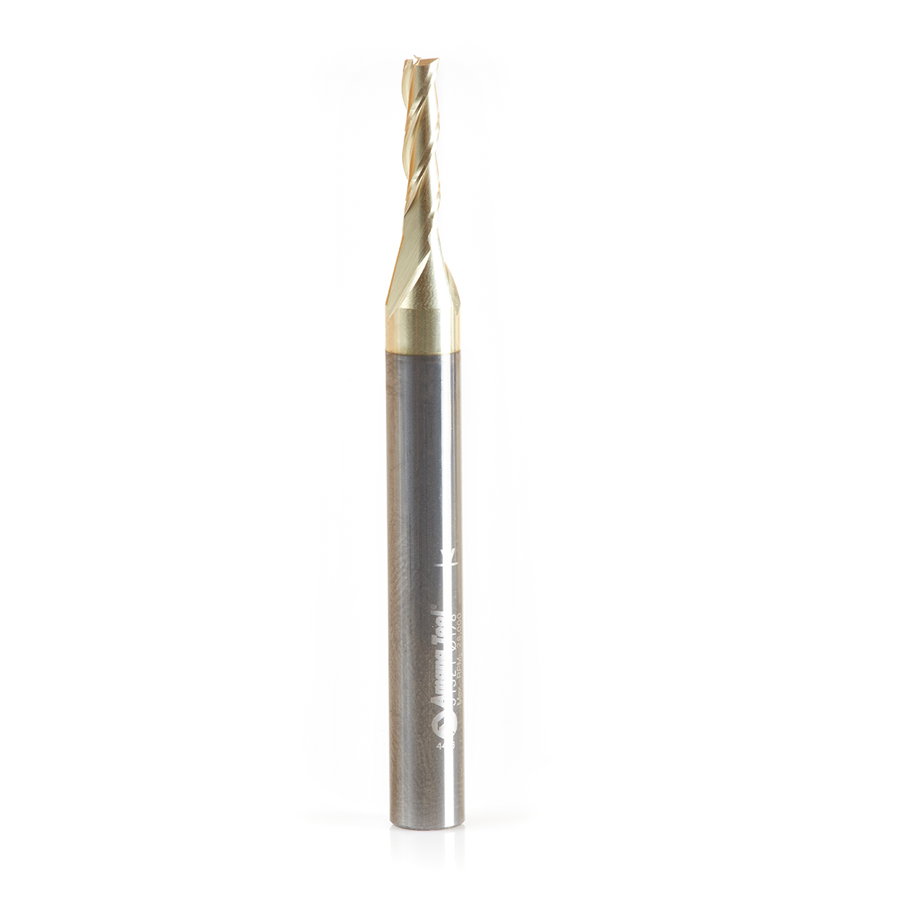

51521 Solid Carbide CNC Spiral for Glass Reinforced Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank Up-Cut ZrN Coated Router Bit

Amana 51521 Solid Carbide CNC Spiral for Glass Reinforced Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank Up-Cut ZrN Coated Router Bit

Name: Amana 51521 Solid Carbide CNC Spiral for Glass Reinforced Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank Up-Cut ZrN Coated Router Bit
SKU: Amana 51521
Availability: InStock

Original price was: $84.60.Current price is: $63.45.

1/8″DIA UPCUT FIBERGLASS ZrN

UPC: 738685515211 SKU: Amana 51521 Categories: Amana Tool, CNC Router Bits, Composite, Fiberglass & Phenolic Cutting CNC Router Bits, Solid Carbide Glass Reinforced Plastic Cutting ZrN Coated Spiral Bits

Item Description

Fiberglass-impregnated materials are well known for their abrasiveness along with a tendency to fray or shred during machining along with heat created by the router bit.

Amana Tool’s response to these challenges is an extremely free-cutting, multi-edge Glass Reinforced Plastic (GRP) multi-flute tool that shears the material without shredding or imparting unnecessary heat.

Excellent for cutting:

Acrylonitrile-Butadiene-Styrene (ABS)
Carbon Fiber Reinforced Polymer (CFRP)
Composite Materials
Coroplast®
Fiberglass
Fiberglass PCB Board
Fiber Reinforced Plastic (FRP)

High Impact Polystyrene (HIPS)
Low Density Polyethylene (LDPE)
Poly (methyl methacrylate) (PMMA)
Polycarbonate (Lexan™)†
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Thermoplastic Polyolefin (TPO)

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

Specifications

Direction	Up-Cut
(D) Diameter	1/8
(B) Cutting Height	1/2
(d) Shank	1/4
Overall Length (L)	2-1/2
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	4	Up-Cut	51525
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	4	Down-Cut	51535

Weight	0.06 lbs
