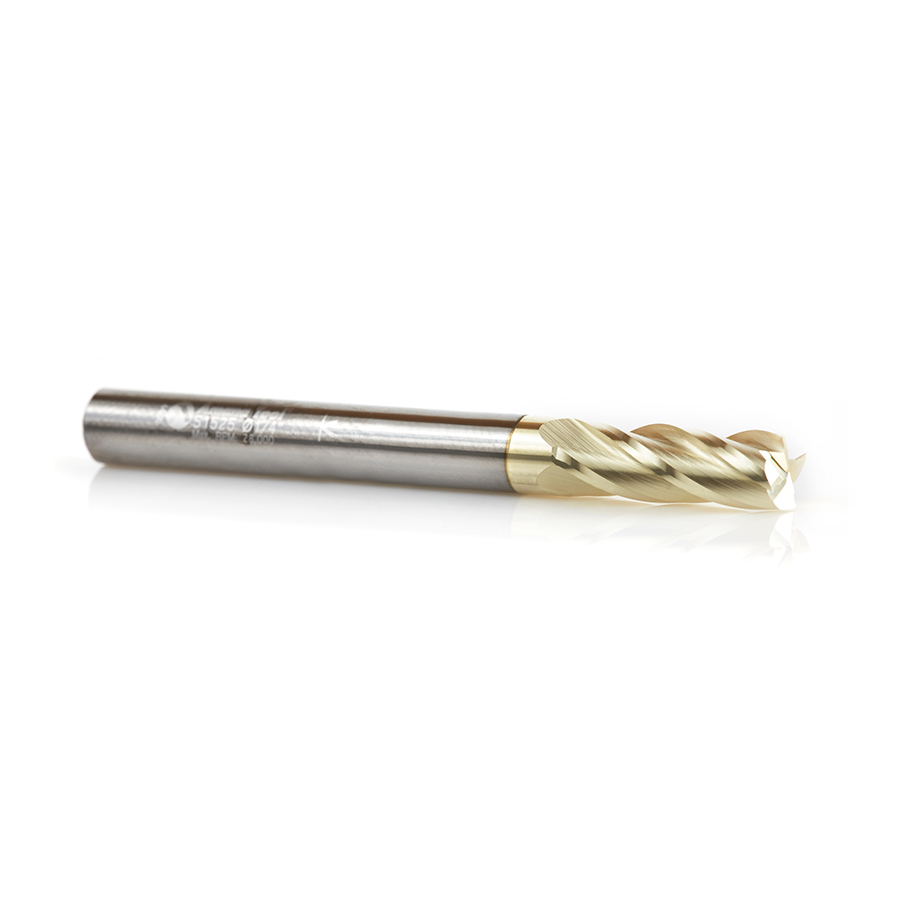

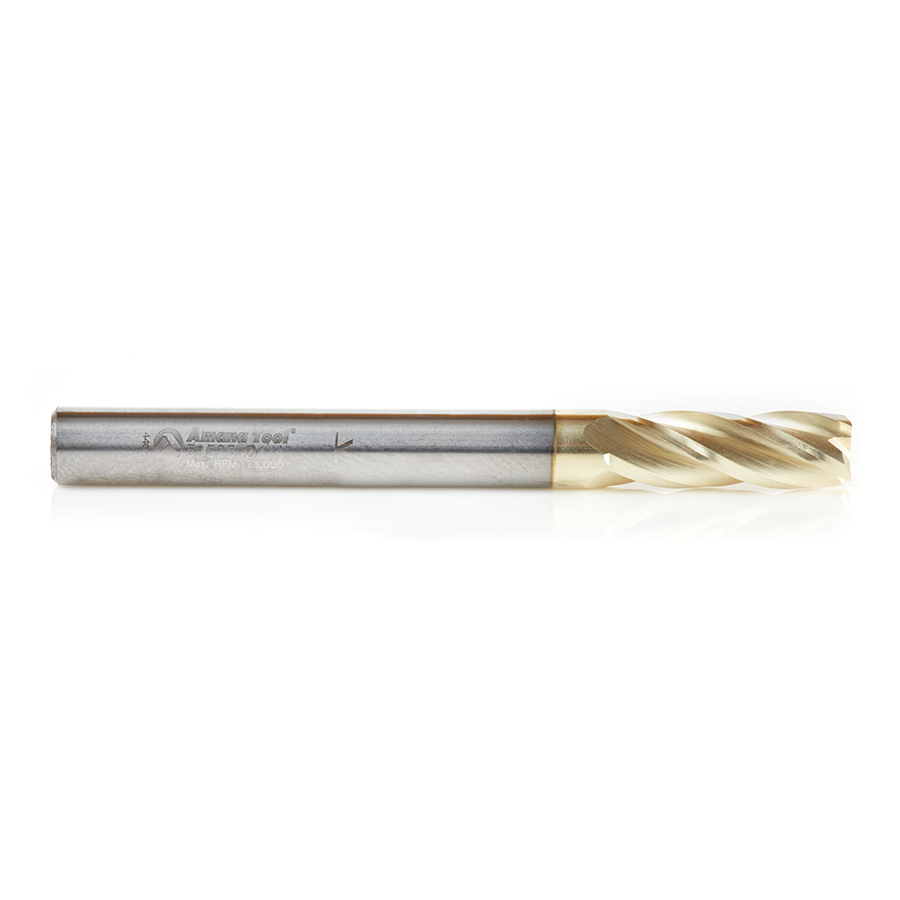

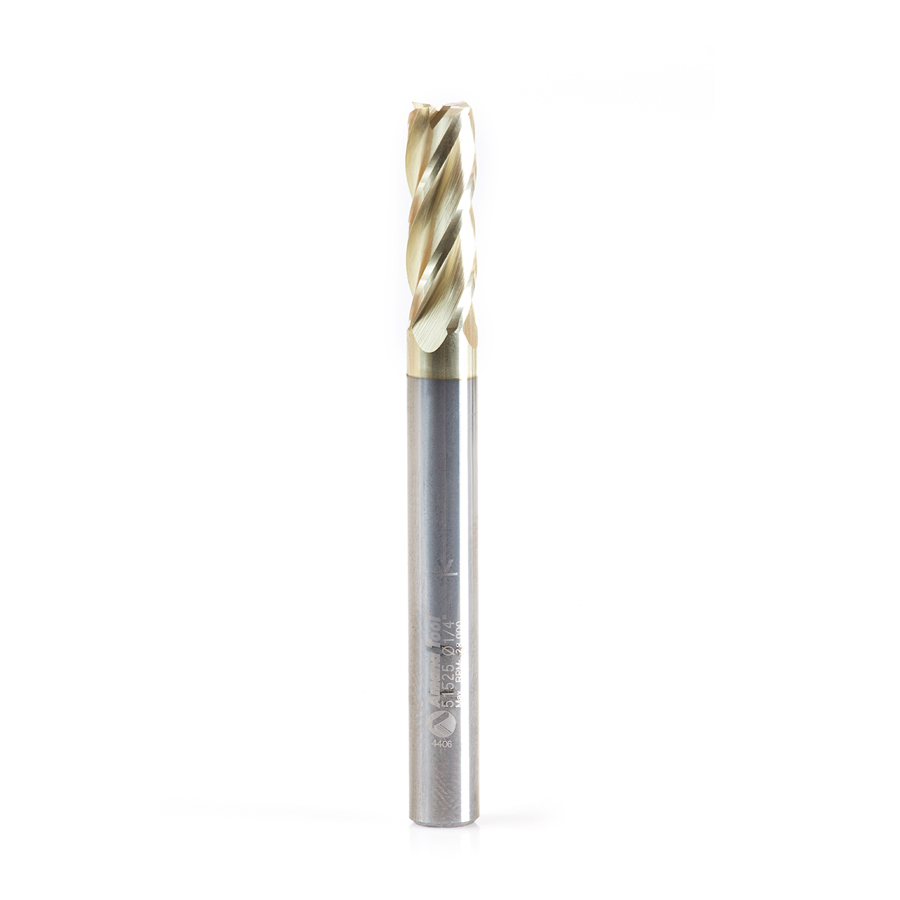

51525 Solid Carbide CNC Spiral for Glass Reinforced Plastic Cutting 1/4 Dia x 3/4 x 1/4 Shank Up-Cut ZrN Coated Router Bit

Amana 51525 Solid Carbide CNC Spiral for Glass Reinforced Plastic Cutting 1/4 Dia x 3/4 x 1/4 Shank Up-Cut ZrN Coated Router Bit

Name: Amana 51525 Solid Carbide CNC Spiral for Glass Reinforced Plastic Cutting 1/4 Dia x 3/4 x 1/4 Shank Up-Cut ZrN Coated Router Bit
SKU: Amana 51525
Availability: InStock

Original price was: $95.70.Current price is: $71.78.

1/4″DIA UPCUT FIBERGLASS ZrN

UPC: 738685515259 SKU: Amana 51525 Categories: Amana Tool, CNC Router Bits, Composite, Fiberglass & Phenolic Cutting CNC Router Bits, Solid Carbide Glass Reinforced Plastic Cutting ZrN Coated Spiral Bits

Item Description

Fiberglass-impregnated materials are well known for their abrasiveness along with a tendency to fray or shred during machining along with heat created by the router bit.

Amana Tool’s response to these challenges is an extremely free-cutting, multi-edge Glass Reinforced Plastic (GRP) multi-flute tool that shears the material without shredding or imparting unnecessary heat.

Excellent for cutting:

Acrylonitrile-Butadiene-Styrene (ABS)
Carbon Fiber Reinforced Polymer (CFRP)
Composite Materials
Coroplast®
Fiberglass
Fiberglass PCB Board
Fiber Reinforced Plastic (FRP)

High Impact Polystyrene (HIPS)
Low Density Polyethylene (LDPE)
Poly (methyl methacrylate) (PMMA)
Polycarbonate (Lexan™)†
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Thermoplastic Polyolefin (TPO)

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

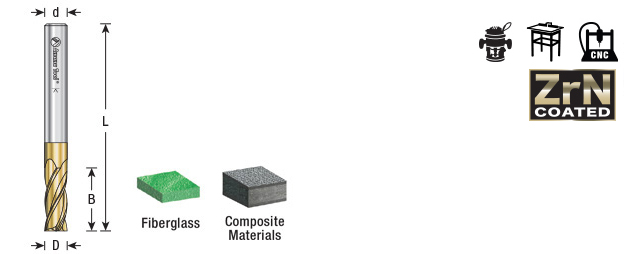

Specifications

Direction	Up-Cut
(D) Diameter	1/4
(B) Cutting Height	3/4
(d) Shank	1/4
Overall Length (L)	2-1/4
Flutes	4

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Flutes	Direction	Tool No.
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	3	Up-Cut	51521
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	4	Down-Cut	51535

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
