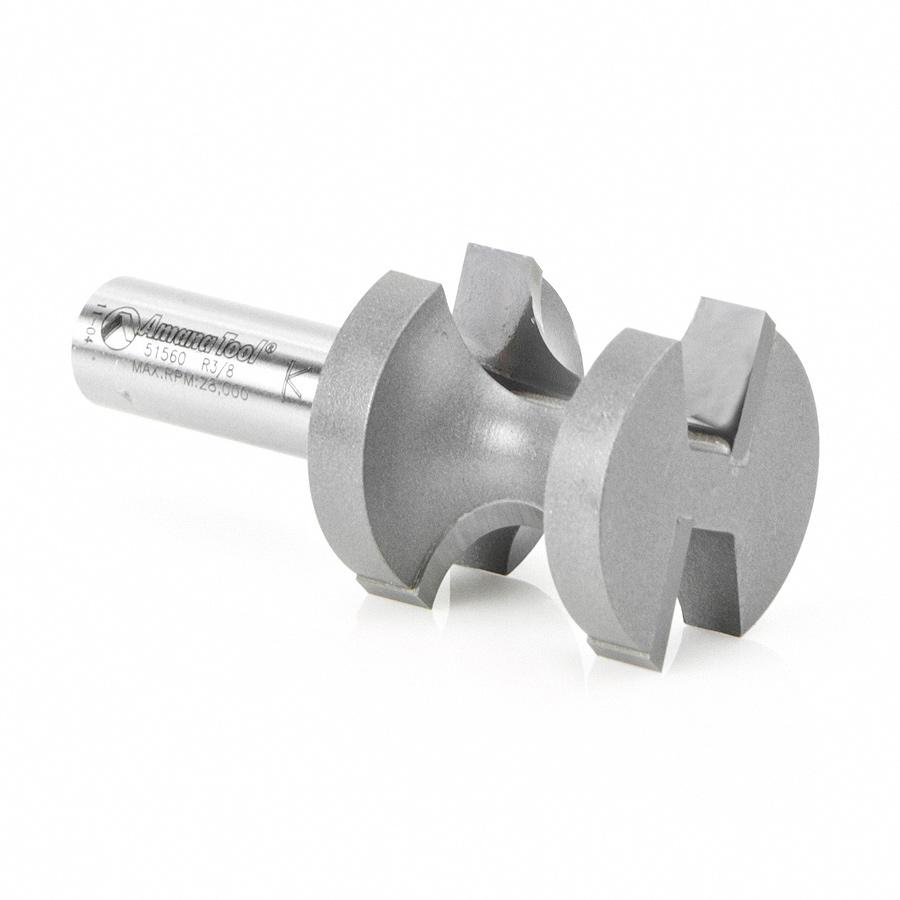

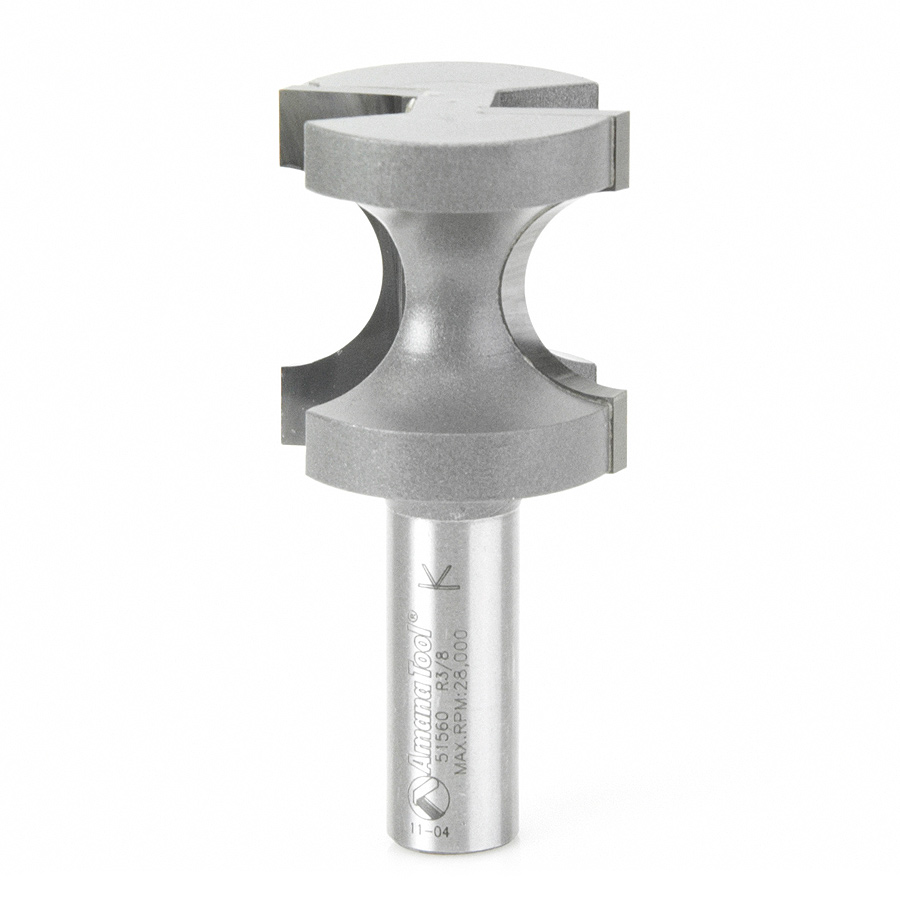

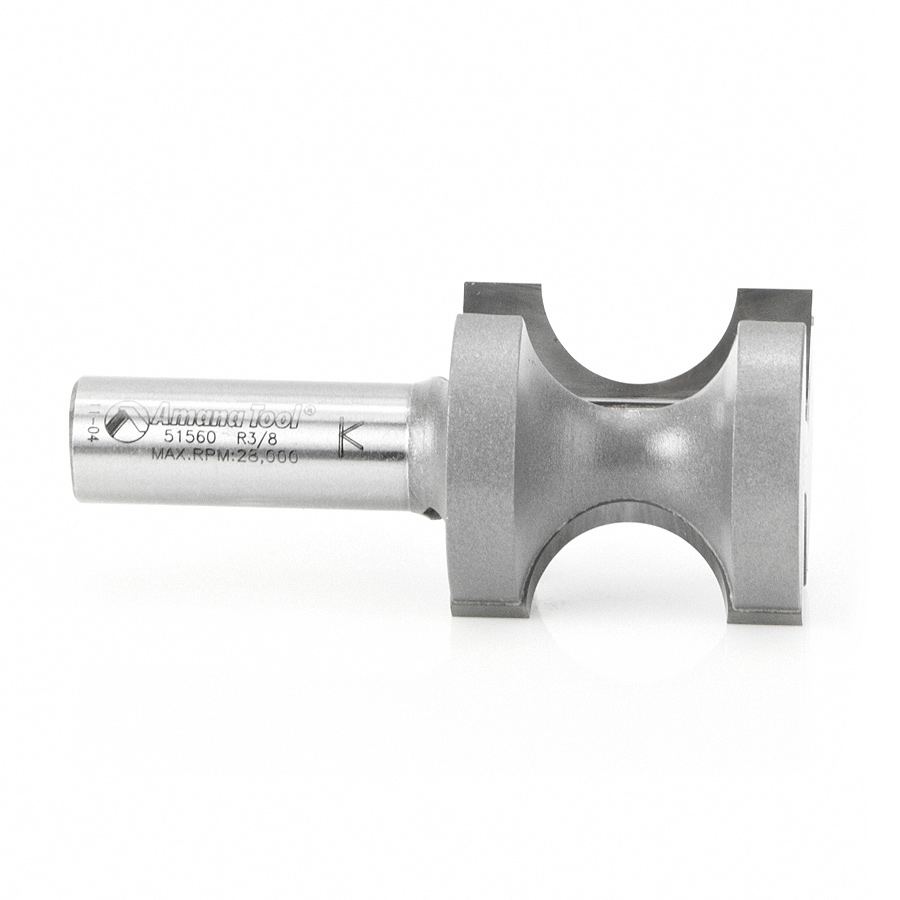

51560 Carbide Tipped Bullnose 3/8 Radius x 1-3/8 Dia x 1-27/64 x 1/2 Inch Shank

Amana 51560 Carbide Tipped Bullnose 3/8 Radius x 1-3/8 Dia x 1-27/64 x 1/2 Inch Shank

Name: Amana 51560 Carbide Tipped Bullnose 3/8 Radius x 1-3/8 Dia x 1-27/64 x 1/2 Inch Shank
SKU: Amana 51560
Availability: InStock

Original price was: $115.35.Current price is: $86.52.

BULL NOSE 3/8″ RAD. 1/2″ SHANK

UPC: 738685155608 SKU: Amana 51560 Categories: Amana Tool, Bullnose Router Bits, Profiling Router Bits, Router Bits

Item Description

Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and making moldings. The “nose diameter” (M) is the thickness of stock that can be nosed, i.e., given a full 180-degree roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table. Maximum RPM 20,000.

Specifications

Diameter (D)	1-3/8
Radius (R)	3/8
Cutting Height (B)	1-27/64
Shank (d)	1/2
Overall Length (L)	2-63/64
M	3/4
Flutes	2

Other Sizes Available

Radius (R)	M	Cutting Height (B)	Diameter (D)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
17/64 (6.75mm)	35/64 (13.89mm)	1 (25.40mm)	1-1/32	1/2 (12.70mm)	2-1/2	2	–	51558
5/64 (1.98mm)	5/32 (3.97mm)	1/2 (12.70mm)	17/32 (13.49mm)	1/4 (6.35mm)	1-3/4	2	–	51540
5/64 (1.98mm)	5/32 (3.97mm)	1/2 (12.70mm)	17/32 (13.49mm)	1/2 (12.70mm)	2 (50.80mm)	2	–	51550
1/16 (1.59mm)	1/8 (3.18mm)	1/2 (12.70mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	2	47706	51565
9/64 (3.57mm)	9/32 (7.14mm)	3/4 (19.05mm)	21/32 (16.67mm)	1/4 (6.35mm)	1-7/8	2	–	51544
3/32 (2.38mm)	3/16 (4.76mm)	21/32 (16.67mm)	21/32 (16.67mm)	1/2 (12.70mm)	2 (50.80mm)	2	–	51551
9/64 (3.57mm)	9/32 (7.14mm)	3/4 (19.05mm)	21/32 (16.67mm)	1/2 (12.70mm)	2-1/4	2	–	51554
3/32 (2.38mm)	3/16 (4.76mm)	1/2 (12.70mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-1/8	2	47706	51567
1/8 (3.18mm)	1/4 (6.35mm)	9/16 (14.29mm)	23/32 (18.26mm)	1/4 (6.35mm)	1-11/16	2	–	51543
1/8 (3.18mm)	1/4 (6.35mm)	9/16 (14.29mm)	23/32 (18.26mm)	1/2 (12.70mm)	2-1/16	2	–	51553
1/8 (3.18mm)	1/4 (6.35mm)	3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-3/8	2	47706	51568
7/64 (2.78mm)	15/64 (5.95mm)	3/4 (19.05mm)	55/64 (21.83mm)	1/2 (12.70mm)	2-23/64	2	–	51552
3/16 (4.76mm)	3/8 (9.53mm)	7/8 (22.23mm)	7/8 (22.23mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	51545
3/16 (4.76mm)	3/8 (9.53mm)	7/8 (22.23mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/8	2	–	51555
13/64 (5.16mm)	27/64 (10.72mm)	3/4 (19.05mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-1/4	2	–	51556
13/64 (5.16mm)	3/8 (9.53mm)	3/4 (19.05mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	2	47706	51569
1/4 (6.35mm)	1/2 (12.70mm)	1 (25.40mm)	1 (25.40mm)	1/2 (12.70mm)	2-1/2	2	–	51557
1/4 (6.35mm)	1/2 (12.70mm)	1 (25.40mm)	1-1/8	1/4 (6.35mm)	2-17/64	2	–	51547
5/16 (7.94mm)	5/8 (15.88mm)	1 (25.40mm)	1-1/8	1/2 (12.70mm)	2-1/2	2	–	51559
3/8 (9.53mm)	3/4 (19.05mm)	1-5/16	1-3/8	1/2 (12.70mm)	3-1/4	2	47716	51572
5/8 (15.88mm)	1-1/4	2 (50.80mm)	2 (50.80mm)	1/2 (12.70mm)	3-1/2	2	–	51564
3/4 (19.05mm)	1-1/2	2 (50.80mm)	2-3/8	1/2 (12.70mm)	3-7/8	3	–	51566
7/16 (11.11mm)	7/8 (22.23mm)	1-1/2	1-1/2	1/2 (12.70mm)	3 (76.20mm)	2	–	51549
1/2 (12.70mm)	1 (25.40mm)	1-9/16	1-11/16	1/2 (12.70mm)	3-1/16	2	–	51562
9/16 (14.29mm)	1-1/8	1-1/2	1-13/16	1/2 (12.70mm)	3 (76.20mm)	2	–	51563
1/2 (12.70mm)	1 (25.40mm)	1-19/32	1-13/16	1/2 (12.70mm)	3-1/2	2	47714	51574

Weight	0.34 lbs
