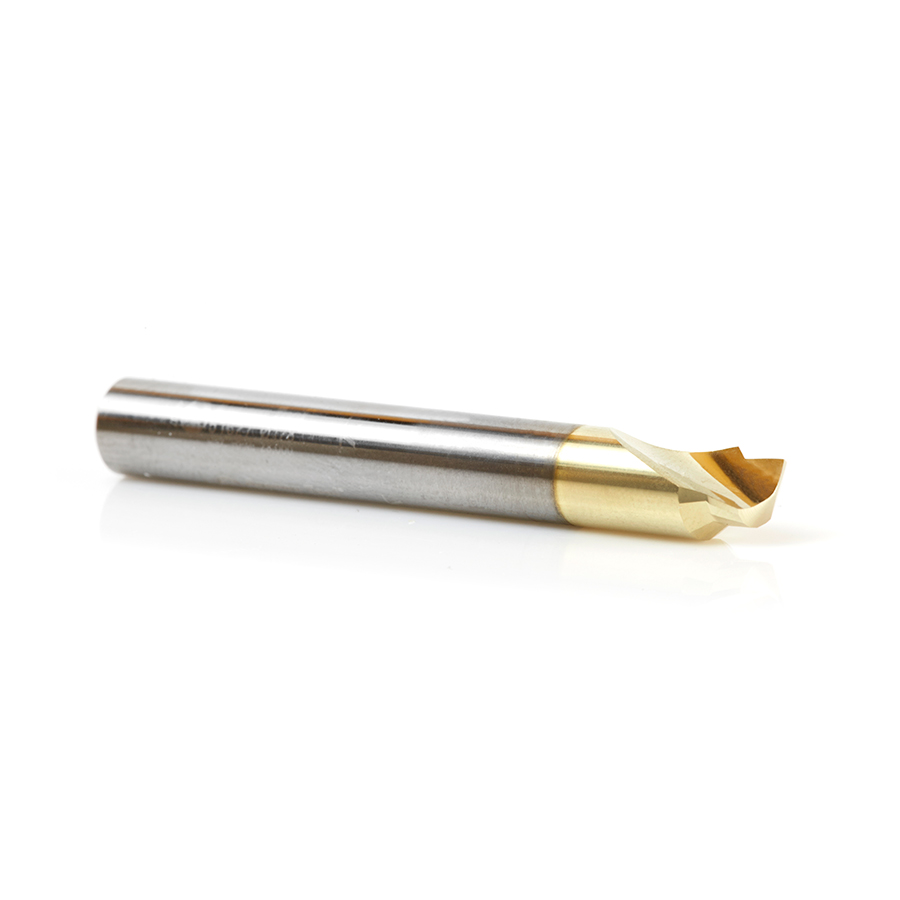

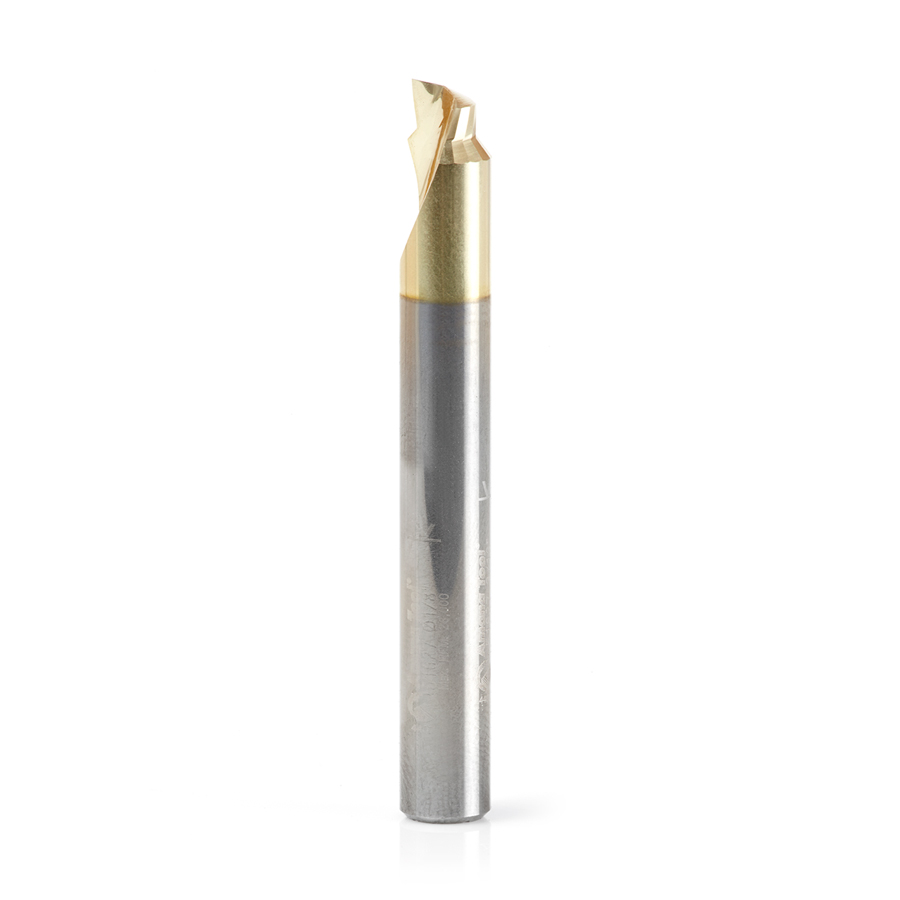

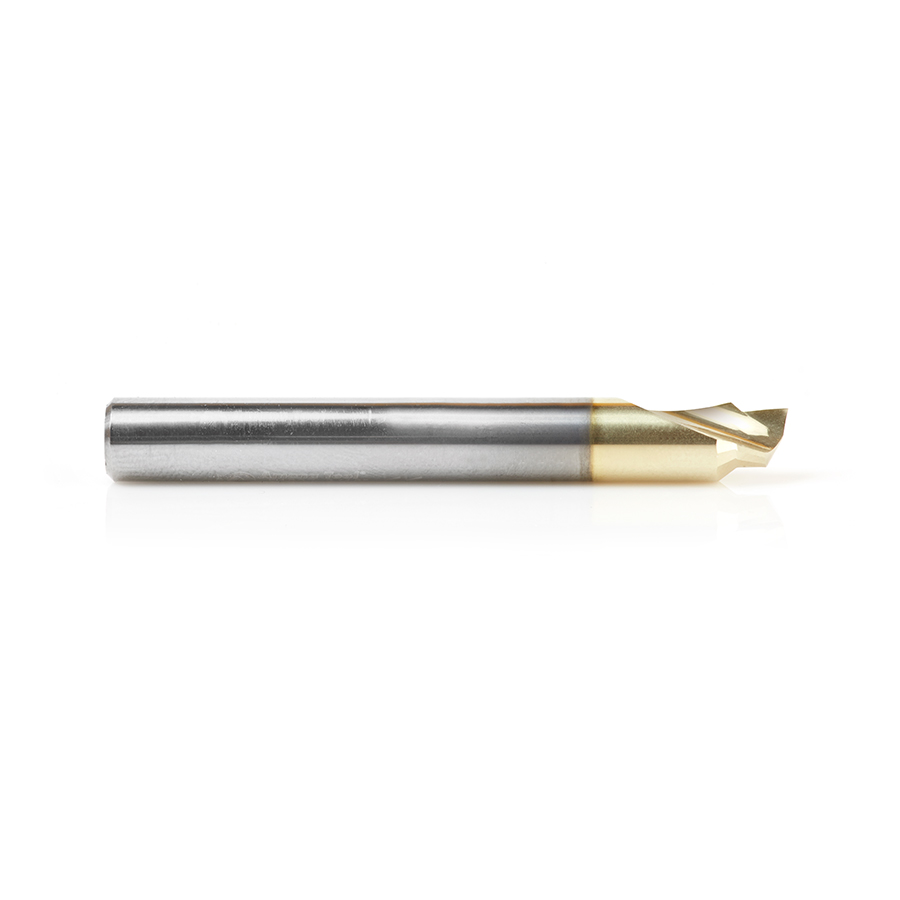

51627 Solid Carbide Aluminum Chamfer Edge 3/16 Dia x 1/8 x 1/4 Shank ZrN Coated Up-Cut End Mill

Amana 51627 Solid Carbide Aluminum Chamfer Edge 3/16 Dia x 1/8 x 1/4 Shank ZrN Coated Up-Cut End Mill

Original price was: $91.75.Current price is: $68.82.

3/16D 45D CHAMFER ENDMILL ZrN

UPC: 738685725160 SKU: Amana 51627 Categories: Aluminum/Non Ferrous Metal Cutting CNC Router Bits, Amana Tool, CNC Router Bits, Solid Carbide Aluminum Chamfer Edge End Mill with ZrN coating

Item Description

Designed to route a finished appearance into aluminum, brass, copper & non-ferrous metals in one pass these Amana Tool end mills utilize the ‘O’ flute up-cut design for a super-clean finish. By combining the up-cut design along with the common 45° chamfer, you can maximize your efficiency by routing one single pass.

Excellent for cutting:

Aluminum
Aluminum 5052
Brass
Copper
Fomex® with Aluminum Face

Gold
Non-Ferrous Metals
Silver
Acrylonitrile-Butadiene-Styrene (ABS)
Lexan™

The ZrN coating creates a harder and tougher cutting ceramic over carbide edge allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting.

Amana’s combination end mill/router bits offer the flexibility to cut the radius along with the proven performance of the up-cut design for superior chip ejection.

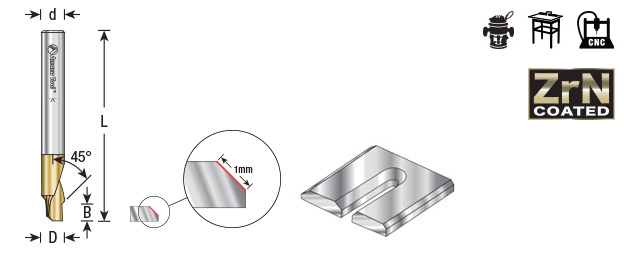

Specifications

Direction	Up-Cut
(a°) Angle	45°
(D) Diameter	3/16
(B) Cutting Height	1/8
(d) Shank	1/4
Overall Length (L)	2
Type	Chamfer
Flutes	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(R) Radius	(d) Shank	Overall Length (L)	Type	Tool No.
3/16 (4.76mm)	3/32 (2.38mm)	3/64 (1.19mm)	1/4 (6.35mm)	2 (50.80mm)	Radius	51620
3/16 (4.76mm)	1/8 (3.18mm)	3/64 (1.19mm)	1/4 (6.35mm)	2 (50.80mm)	Radius	51622
3/16 (4.76mm)	3/32 (2.38mm)	–	1/4 (6.35mm)	2 (50.80mm)	Chamfer	51625

Weight	0.06 lbs
