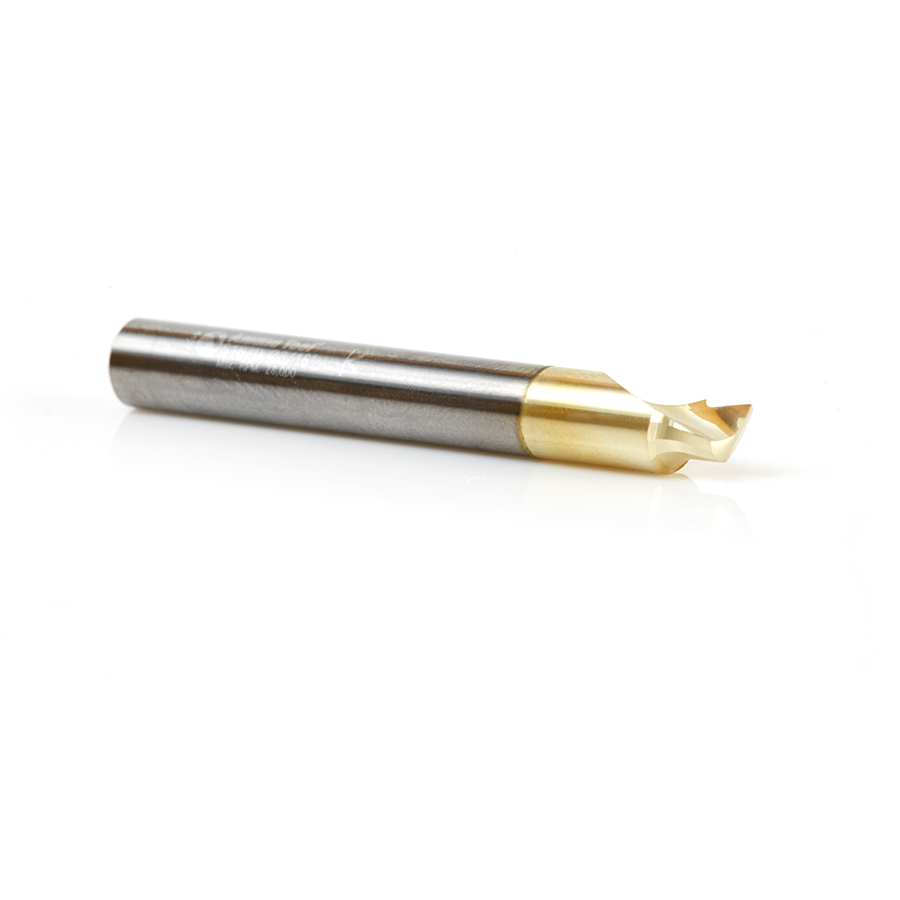

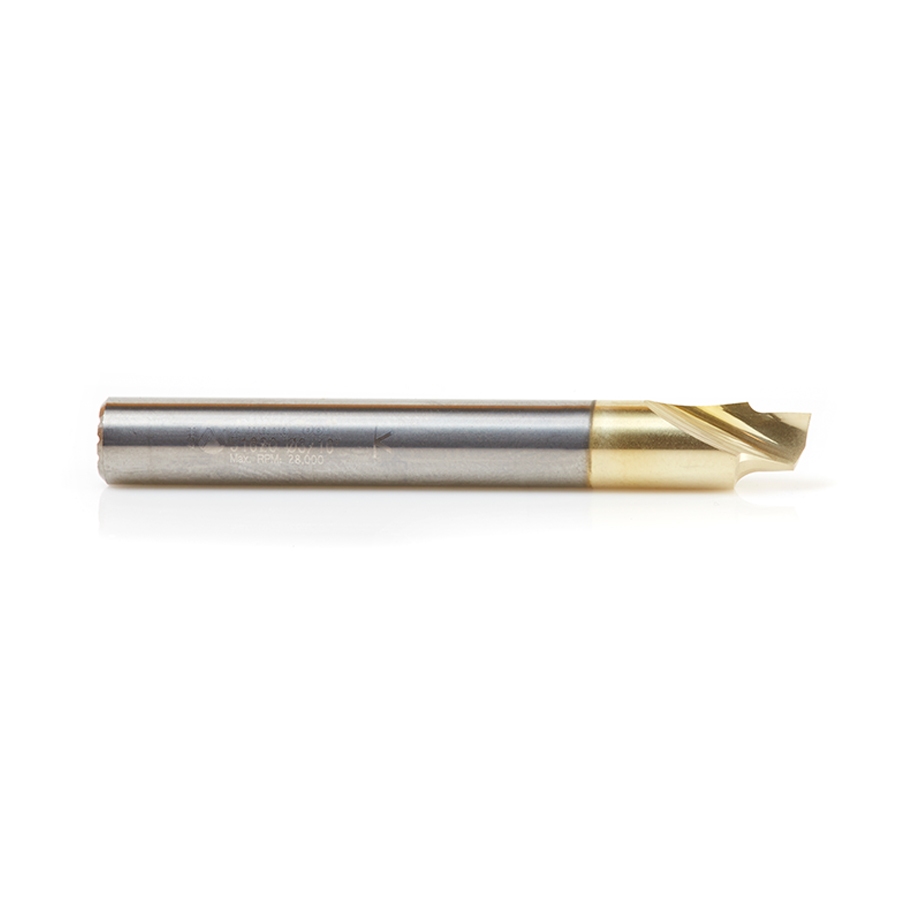

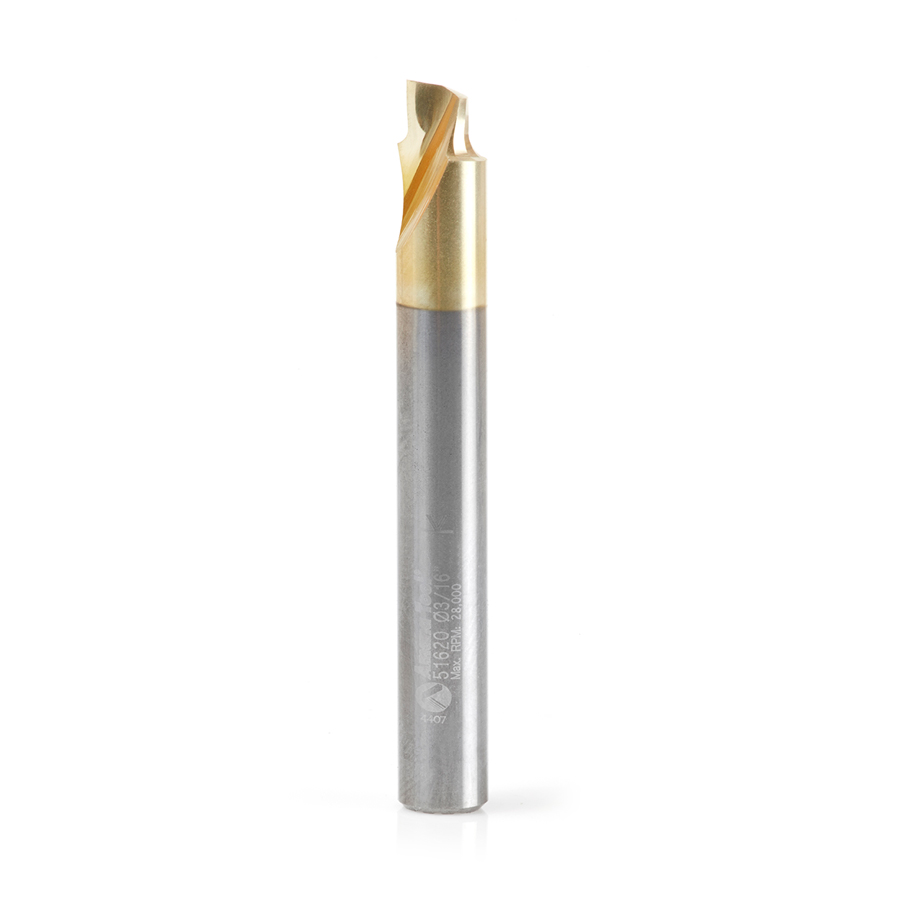

51620 Solid Carbide Aluminum Cutting 3/64 Radius Edge x 3/16 Dia x 3/32 x 1/4 Shank ZrN Coated Up-Cut End Mill

Amana 51620 Solid Carbide Aluminum Cutting 3/64 Radius Edge x 3/16 Dia x 3/32 x 1/4 Shank ZrN Coated Up-Cut End Mill

Name: Amana 51620 Solid Carbide Aluminum Cutting 3/64 Radius Edge x 3/16 Dia x 3/32 x 1/4 Shank ZrN Coated Up-Cut End Mill
SKU: Amana 51620
Availability: InStock

Original price was: $89.65.Current price is: $67.24.

3/16D SC 3/64R END MILL W/ZrN

UPC: 738685295168 SKU: Amana 51620 Categories: Amana Tool, CNC Router Bits, Signmaking & Engraving CNC Router Bits, ZrN Coated Router Bits/End Mills

Item Description

Designed to route a finished appearance into aluminum, brass, copper & non-ferrous metals in one pass, these Amana Tool end mills utilize the ‘O’ flute up-cut design for a super-clean finish. By combining the up-cut design along with the common 3/32” convex radius, you can maximize your efficiency by routing one single pass.

Excellent for cutting:

Aluminum
Aluminum 5052
Brass
Copper
Fomex® with Aluminum Face

Gold
Non-Ferrous Metals
Silver
Acrylonitrile-Butadiene-Styrene (ABS)
Lexan™

The Zirconium Nitride (ZrN) coating creates a harder and tougher cutting ceramic over carbide edge allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting.

Amana’s combination end mill/router bits offer the flexibility to cut the radius along with the proven performance of the up-cut design for superior chip ejection.

Specifications

Direction	Up-Cut
(D) Diameter	3/16
(R) Radius	3/64
(B) Cutting Height	3/32
(d) Shank	1/4
Overall Length (L)	2
Type	Radius
Flutes	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(R) Radius	(d) Shank	Overall Length (L)	Type	Tool No.
3/16 (4.76mm)	1/8 (3.18mm)	3/64 (1.19mm)	1/4 (6.35mm)	2 (50.80mm)	Radius	51622
3/16 (4.76mm)	3/32 (2.38mm)	–	1/4 (6.35mm)	2 (50.80mm)	Chamfer	51625
3/16 (4.76mm)	1/8 (3.18mm)	–	1/4 (6.35mm)	2 (50.80mm)	Chamfer	51627

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
