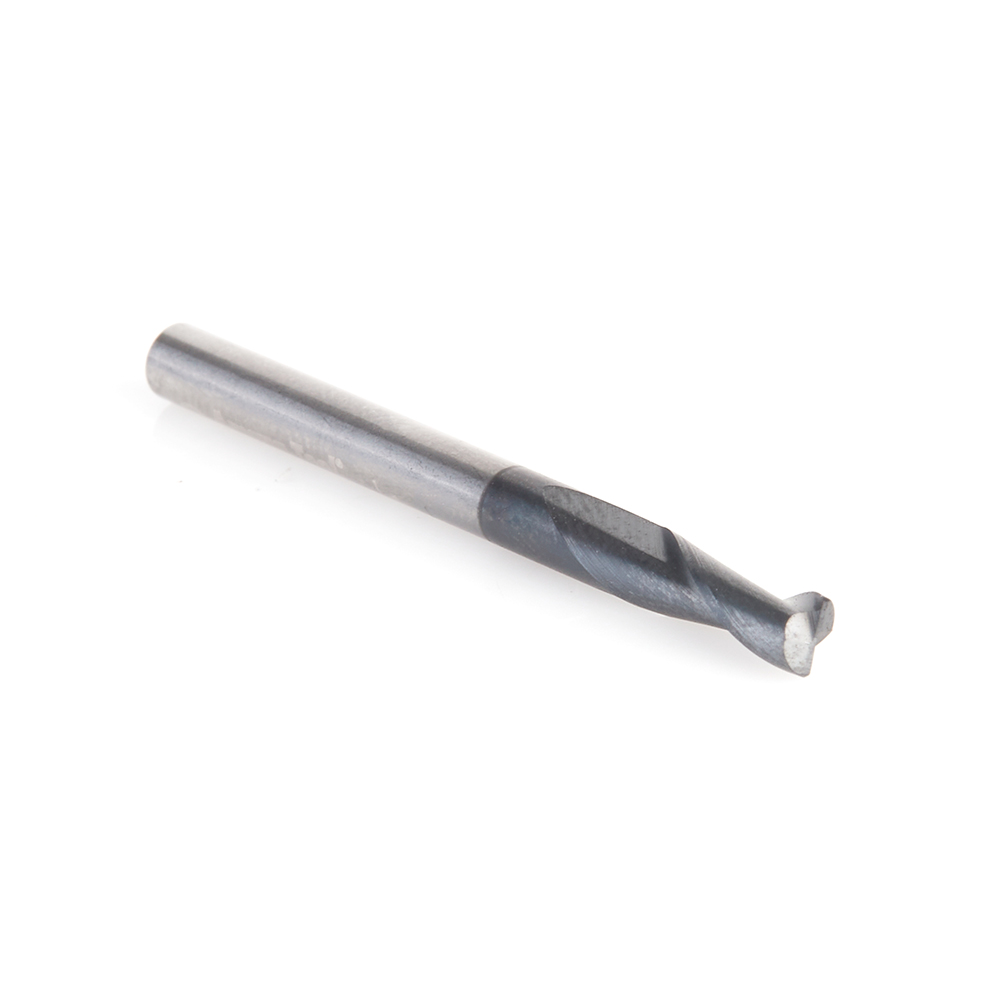

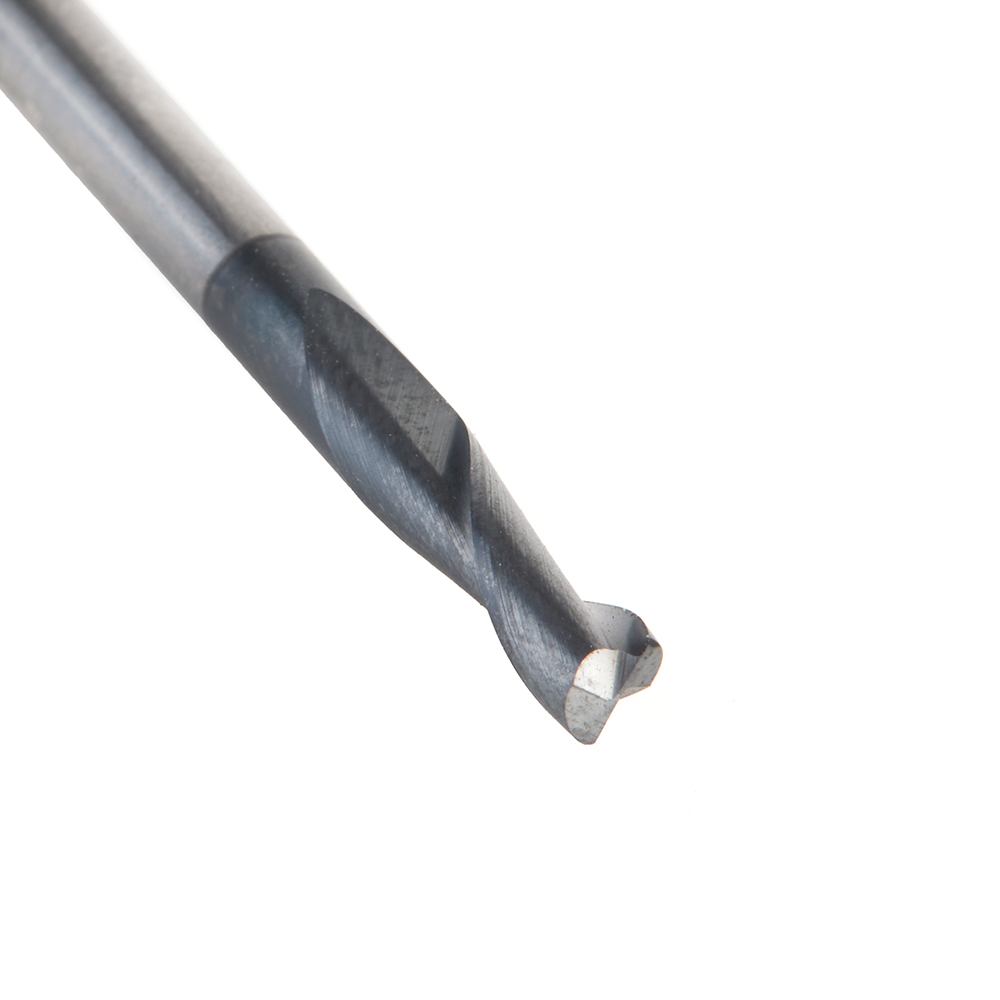

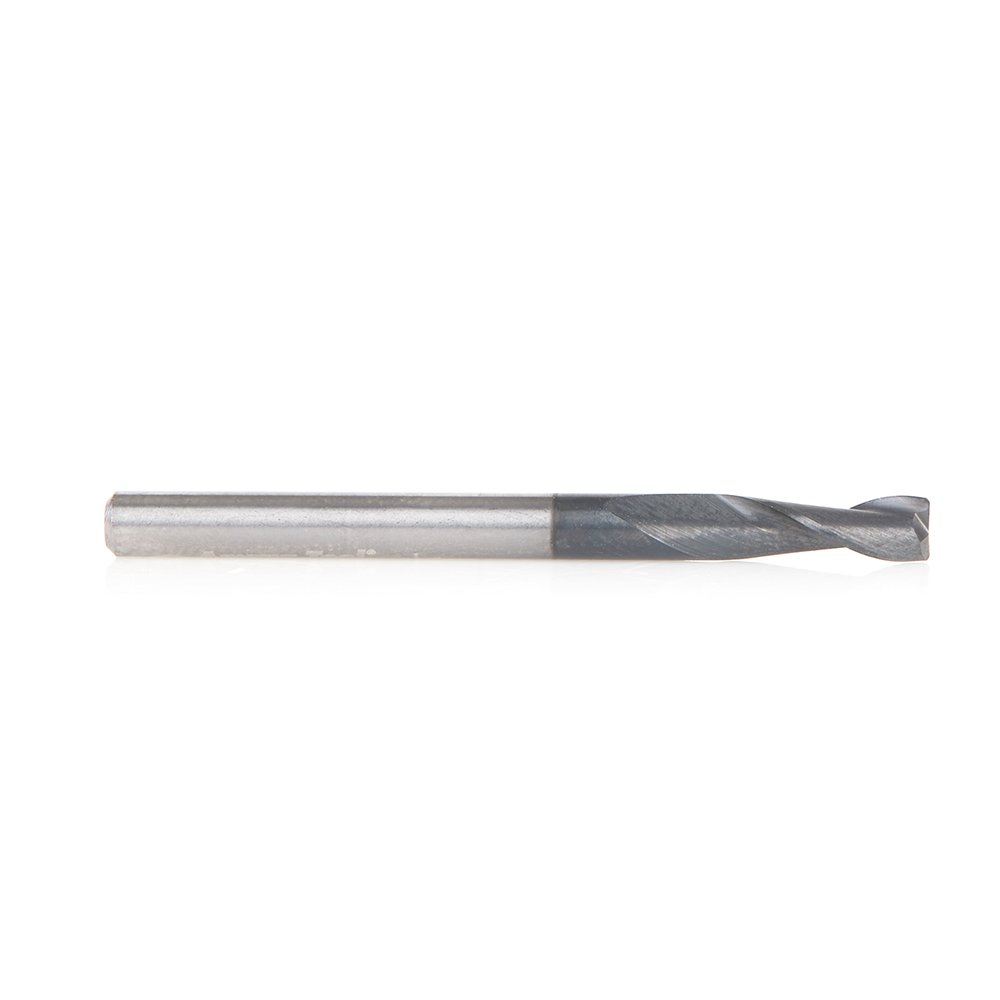

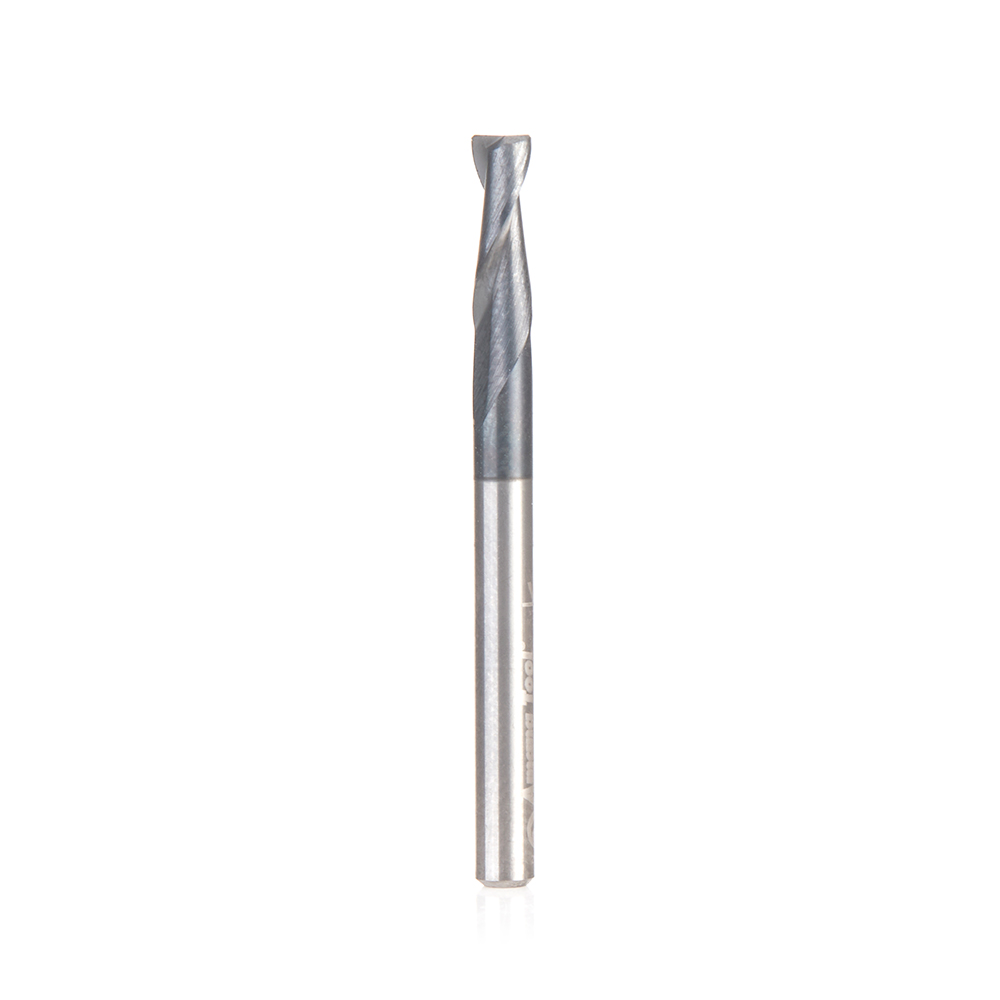

51674 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 2-Flute x 1/8 Dia x 3/8 x 1/8 Shank x 1-1/2 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill

Amana 51674 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 2-Flute x 1/8 Dia x 3/8 x 1/8 Shank x 1-1/2 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill

Name: Amana 51674 CNC Solid Carbide Spiral for Steel &amp; Stainless Steel with AlTiN Coating 2-Flute x 1/8 Dia x 3/8 x 1/8 Shank x 1-1/2 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill
SKU: Amana 51674
Availability: InStock

Original price was: $50.65.Current price is: $37.99.

1/8″D SC STAINLSS STEEL AlTiN

UPC: 738685516744 SKU: Amana 51674 Categories: Amana Tool, CNC Router Bits, Solid Carbide Spiral CNC Router Bits / End Mills for Steel & Stainless Steel, Steel Cutting CNC Router Bits

Item Description

These router bits are manufactured from our exclusive ultra-fine micrograin carbide and feature a 30 degree Center Cutting Mill End with a 45 degree corner chamfer (for extra strength) up cut design and very importantly Aluminum Titanium Nitride (AlTiN) coating for superior cut quality.

Increase the ruggedness of your solid carbide end mill’s number one major wear point by the addition of corner chamfers that enhance the edge strength.

Excellent for cutting:

Stainless Steel
Steel
Cast Iron
Composites
Low Carbon Steel

Magnesium
Metal Composite Material (MCM)
Plastics
Super Alloys
Titanium (up to 40HRc Hardness)

_**These bits are perfect for the signmaking industry.**_ Our special carbide grade combined with the AlTiN coating gives amazing performance. The unique corner chamfer gives the bits great strength.

AlTiN coating has many benefits:

Extra wear resistance
Allows for faster feed and speed rates
Cutting edge protected from wear
Better chip evacuation
Less heat build up
Superior cutting quality and extended tool life

WARNING:**Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

Note:**For optimal results and extended tool life use mist lubricant system or air cooling.

Router collet reducer[RB-102](http://www.amanatool.com/rb-102-router-shank-reduction-bushing-1-4-overall-dia-x-1-8-inner-dia-x-1-length.html)(1/4 to 1/8) available for 1/8 shank bits.

Specifications

(D) Diameter	1/8
(B) Cutting Height	3/8
(d) Shank	1/8
Overall Length (L)	1-1/2
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Max RPM	Flutes	Tool No.
1/32 (0.79mm)	5/64 (1.98mm)	1/8 (3.18mm)	1-1/2	28,000	4	51601
1/16 (1.59mm)	3/16 (4.76mm)	1/8 (3.18mm)	1-1/2	28,000	4	51603
1/16 (1.59mm)	3/16 (4.76mm)	1/8 (3.18mm)	1-1/2	—-	2	51673
3mm	10mm	3mm	40mm	28,000	3	51610
1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-1/2	28,000	3	51460
1/8 (3.18mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	28,000	2	51461
1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-1/2	28,000	4	51602
4mm	10mm	4mm	48mm	28,000	3	51612
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-7/8	28,000	3	51462
3/16 (4.76mm)	3/8 (9.53mm)	3/16 (4.76mm)	2-1/2	28,000	2	51463
3/16 (4.76mm)	5/8 (15.88mm)	3/16 (4.76mm)	2 (50.80mm)	—-	2	51675
6mm	16mm	6mm	63mm	28,000	3	51614
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	28,000	3	51464
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	28,000	2	51465
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	28,000	2	51466
1/4 (6.35mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	28,000	2	51469
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	28,000	4	51604
1/4 (6.35mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	28,000	4	51606
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	—-	2	51676
5/16 (7.94mm)	1-1/8	5/16 (7.94mm)	3 (76.20mm)	28,000	2	51678
3/8 (9.53mm)	1/2 (12.70mm)	3/8 (9.53mm)	3 (76.20mm)	28,000	2	51467
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	—-	2	51677
1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	28,000	2	51468
